Dash Wiring Routing??

[dodge68charger]

Hey Guys I Went To Put The Dash In My 69 Bee Yesterday And Couldn’t Get It Fully Pushed Forward To Get The Steering Column Stud Holes Lined Up
( Studs Are Removed )

Does Anyone Have Pics of How The Wires Route Under The Gauge Cluster?

They Are Going Through The Molded Dash Connectors But Not Sure The Orientation

Wires Seem To Be Getting Sandwiched

Thanks



[pnora]

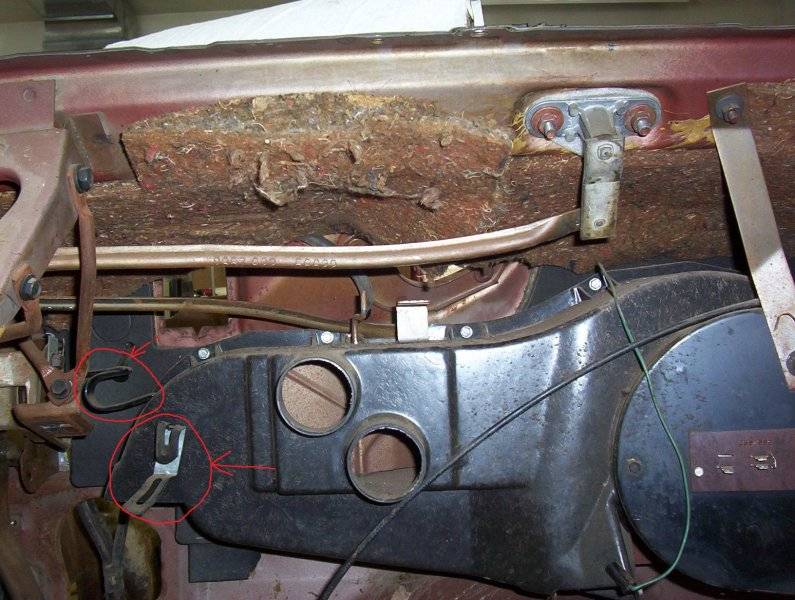

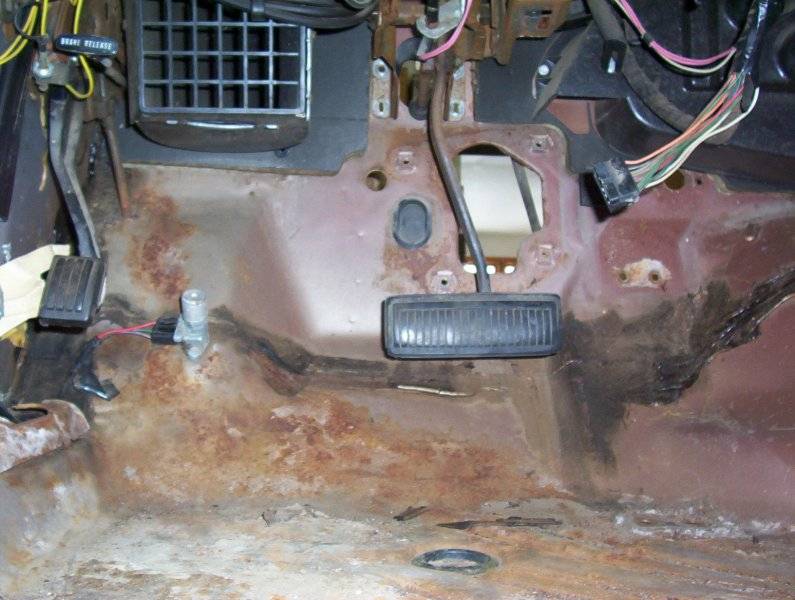

The harness should lay into the dash frame saddle clips and hang off to the right side when setting the dash frame in place. Then there are clips 1 on the heater box and another on the pedal support bracket. It should pretty much lay in place once you get the bulkhead seated into the fire wall.



[dodge68charger]

Thank You.

Do You Have Any Pics Where It Runs Over The Steering Column?



[Bird 426]

They just lay pretty close to where they are plugged in to the switches, above the column and lay at the bottom of the dash.



[pnora]

Thank You.

Do You Have Any Pics Where It Runs Over The Steering Column?

It lays in the dash frame u shaped saddles.
