fuel filler vent line hole in trunk pan

[burnt70]

Hey everyone, hope someone here has already come across this and can help me out. My 70 R/T didn’t have a fuel filler tube in it when I got it. Installed a new AMD trunk pan and didn’t realize it doesn’t have the hole for the vent tube pre drilled. I’m pretty sure it’s 7/8 in diameter, does anyone have any measurements on where exactly to drill it?



[Kern Dog]

I'm confused as to what you mean. As I stated in the PM, NO 1970 Charger that I know of had a vent line on the filler neck.

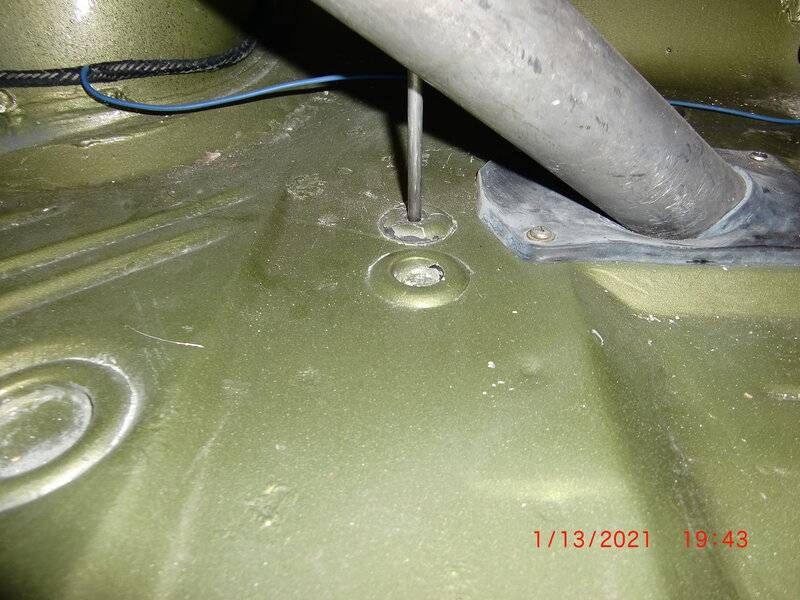

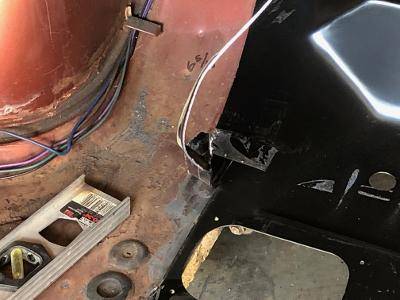

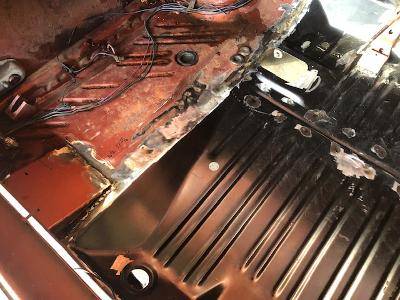

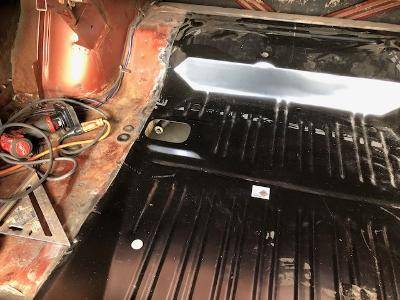

Those rubber plugs have no vent line going through them. Are these the holes you're thinking of?
The 1970 had a different vent system different from that 1/4" line that other cars had alongside the filler neck.



[OKDart]

I think it's that fwd rubber grommet in your top pic. The vent tube angles straight down from the filler tube a few inches from entering the gas tank. It vents in the frame rail if I remember right.

Only California 1970 Chargers got the vent tube monstrosity setup on the passenger side.



[burnt70]

That’s great if it doesn’t, that way I don’t have to drill a hole in the painted floor. In your first pic there’s 2 rubber plugs to the left of the filler neck opening. The top one has a hole in it, that’s where I assumed the vent line went. Does anything actually go through it?



[Kern Dog]

Those pictures are of my project car, Jigsaw. It is a California car.



[Ray70Chrg]

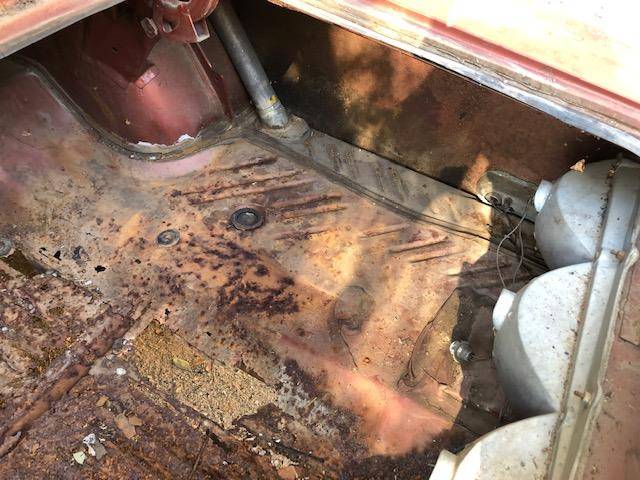

Here's a pic of mine. vent tube is attached to forward side of fill tube and hidden out of sight. hope this helps.



[burnt70]

Great thanks for the photos Kern Dog and Ray70Chrg, looks like the 2 grommets are close enough to almost touch. Should be able to figure out location to drill the hole from them.



[Kern Dog]

Holy crap....I have never seen a vent line on any 68-70 Charger.
Sorry that I was so rude, I didn't think that this was an actual thing that they did!



[burnt70]

All good, no worries!



[70gtx440dana]

View attachment 1054395 Here's a pic of mine. vent tube is attached to forward side of fill tube and hidden out of sight. hope this helps.

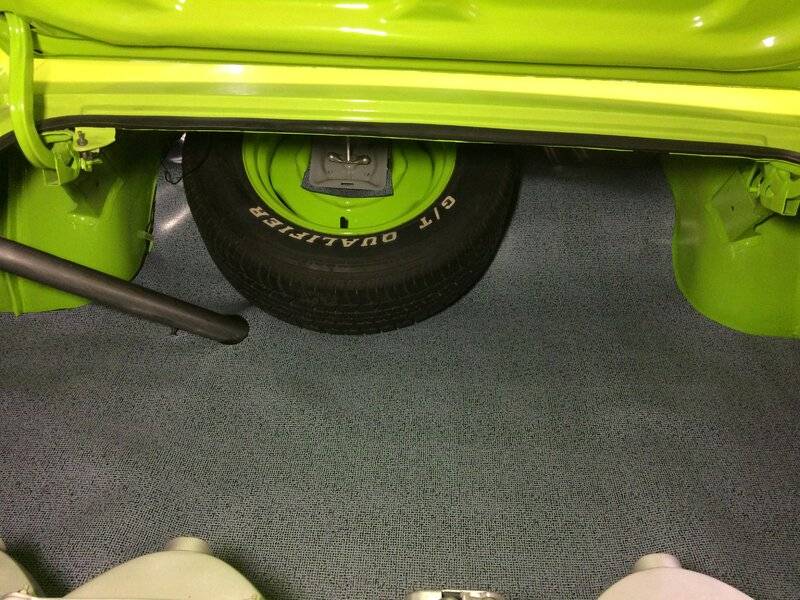

That pretty much looks like my 70 Charger. I had to drill my new AMD trunk pan as well. You can barely see the tube in this photo.



[Coelacanth]

My '70 Charger (Canada car) has this vent tube too. My body man put in a new trunk floor (one-piece) and I had a helluva time trying to re-fit my fuel filler tube, it seemed the vent tube just wouldn't go in nice and straight like Ray70Chrg's pic. It goes in at a fairly flat angle, making filler tube fitment a hassle. I just assumed he drilled the hole for that vent tube in the right place, now I'm going to have to double-check. Either that or the vent tube was bent. Grrr...you know with body work, you're going to have to deal with some oopsies...
