Headlight door relay resto?

[RTDaddy]

Seeing the question on neutral safety switches made me think (a bad habit for me). Anyone doing restorations on the relay that operates the headlight doors on 70/71 Chargers?



[Bob Lynch]

Try @Crackedback, a well known member here.
Rob might be able to help you out.



[T2R9]

I replaced mine with a quality modern Bosch relay.



[RTDaddy]

I replaced mine with a quality modern Bosch relay.

Do you have a number for that relay, and a "simple" schematic of how you wired it in?



[T2R9]

Do you have a number for that relay, and a "simple" schematic of how you wired it in?

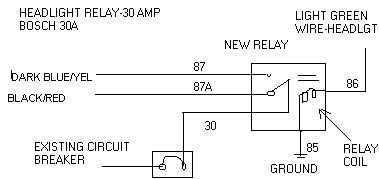

I used a BOSCH 0332209159 relay. $12 on Amazon. Here is a wiring diagram that I used thanks to some Internet person that posted it up.



[T2R9]

Also My circuit breaker was bad so I replaced it with a 20A fuse.
