HEMI carb return springs locations ?

[FU64RY]

My engine does not have the correct springs.
I ordered a correct set (3)..just need to know the correct location.
I have seen many pictures and none are the same.
I have edelbrocks not the 4619/4620 oem's



[FitzyB5]

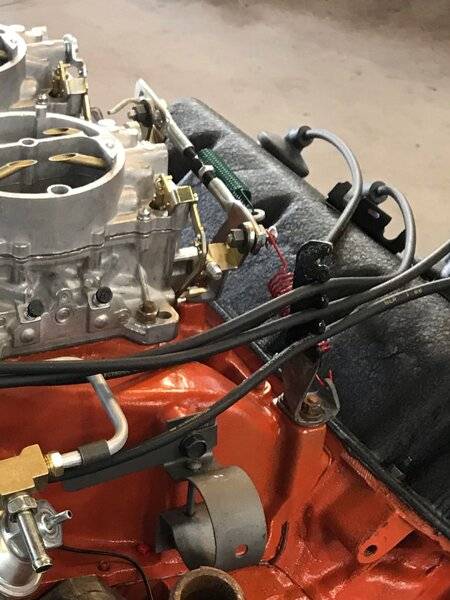

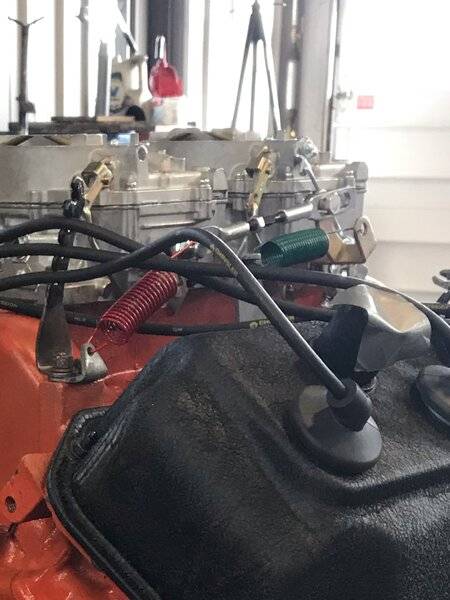

Does this help. Best pics I could find.



[FU64RY]

View attachment 1243412 View attachment 1243413
Does this help. Best pics I could find.

The kit has 3 springs.............from every vendor. Most pictures show the green one in the front. Thank you. I looked in my 69 parts book and the 69 shop manual and there are no clear pictures. UPDATE just saw the correct configuration in a different section of the shop manual. 3 springs are used.



[FitzyB5]

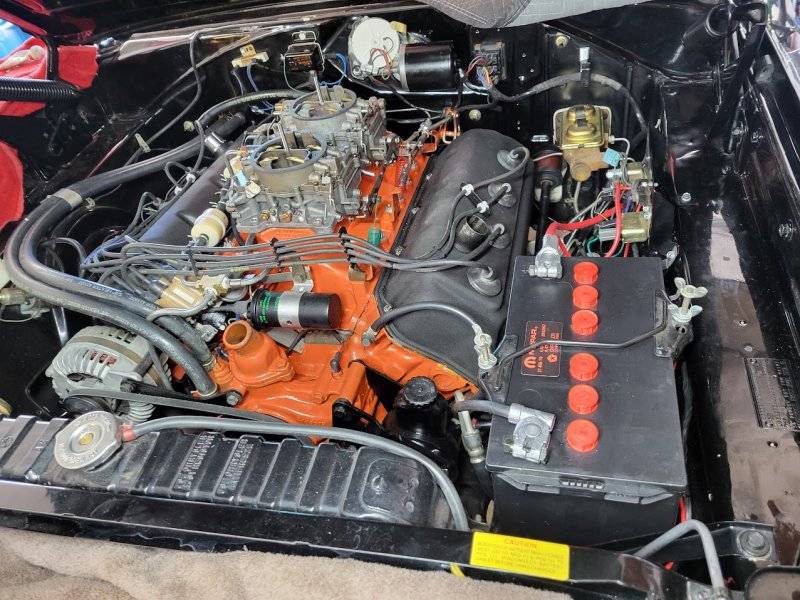

I used Bouchillon kick down cable setup instead of linkage.
Once setup, easy to adjust.



[69 hemibee]

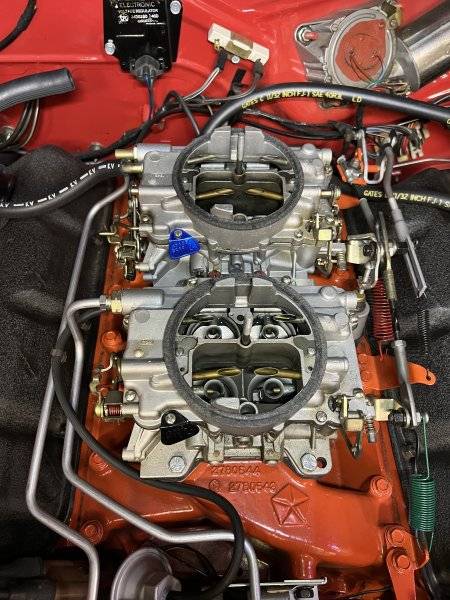

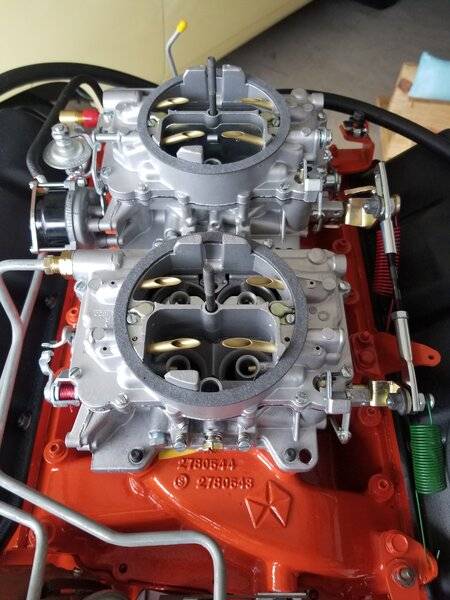

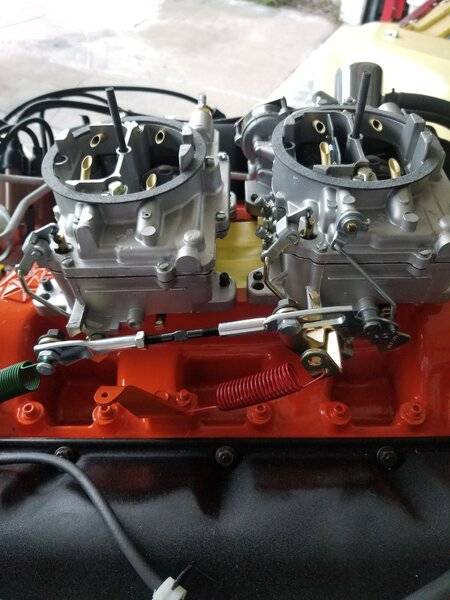

Here is mine during mock-up.



[Richard Cranium]

The black spring is for the kick down linkage, if so equipped with an automatic transmission.



[FU64RY]

The black spring is for the kick down linkage, if so equipped with an automatic transmission.

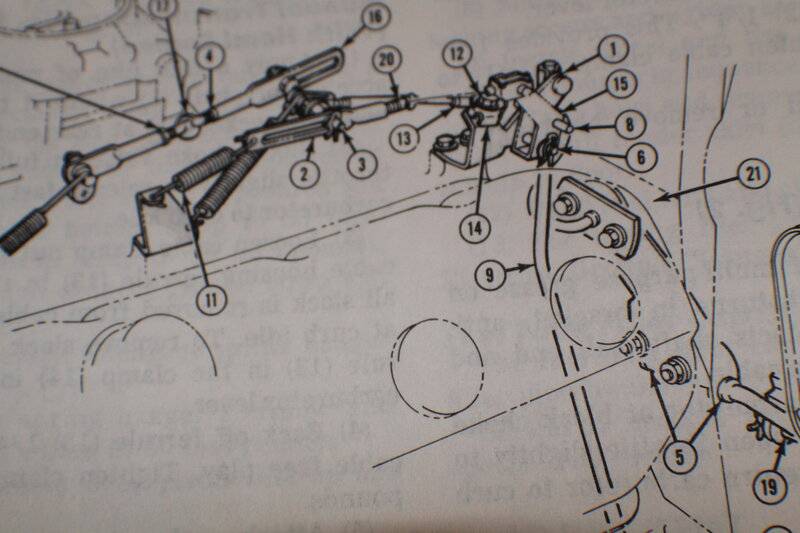

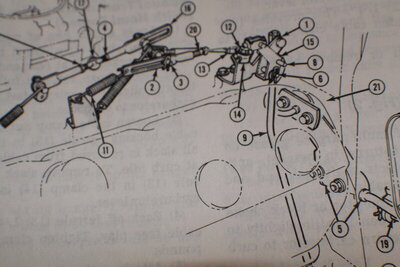

Mine is automatic..........here's the diagram from the 69 shop manual. Green at the front red on the upper hole and black on the lower hole for kick down as RC said.



[FU64RY]

View attachment 1243412 View attachment 1243413
Does this help. Best pics I could find.

According to the manual you have them reversed, however if it works leave it alone, unless your are taking it to a **** show. LOL
