HEMI Crank Pulley

[HEMI RR]

I was mocking up the federal power steering pump on the 70 Road Runner to check belt alignment. I have the HEMI only power steering pulley on the pump and before I return the install tool I wanted to make sure the pulley is not on to far. After mounting it on the engine, it looks like It would line up to a third pulley. I have a 2 groove crank pulley and both pulleys are the same diameter. The alt. and water pump are using the inner pulley. Some pictures I have seen show a 2 groove crank pulley with a smaller outer pulley offset unknown. I have the thicker HEMI Damper. What pulley do I need to correct this?



[HEMI RR]

I was mocking up the federal power steering pump on the 70 Road Runner to check belt alignment. I have the HEMI only power steering pulley on the pump and before I return the install tool I wanted to make sure the pulley is not on to far. After mounting it on the engine, it looks like It would line up to a third pulley. I have a 2 groove crank pulley and both pulleys are the same diameter. The alt. and water pump are using the inner pulley. Some pictures I have seen show a 2 groove crank pulley with a smaller outer pulley offset unknown. I have the thicker HEMI Damper. What pulley do I need to correct this?



[HEMI RR]

I measured my crank pulley it is 6 1/2 inches diameter and the alignment is 5/8 inch off. The power steering belt fits fine. Is there a way to couple an extra pulley on there like a GM?



[tonysrt]

Maybe check with Mancini because they have had experience with the older damper on the Hemi's.



[Fran Blacker]

Picture might help. On my 66 ps groove is first water and alt is second. There two different crank pulleys. You don't say what's up with other groove?



[HEMI RR]

The other crank pulley groove is 5/8" out of alignment. If there was a third pulley it word fit nice. I did back out the crank nuts to see if the crank pulley is one unit and it is. So I can't shim it out between to align.



[Fran Blacker]

Sounds like your pulley isn't out far enough,?? Pictures. Possible that PS pump doesn't match lower pulley or harmonic balancer . I only have experience with 66 pulley and harmonic balancer. My understanding is 70 and later pulleys don't stick out as far. You may have a 70 pulley with a 66 to 68 combo. Mine is a trw ps pump thick harmonic B and a 66 pulley.



[HEMI RR]

Called mancini. They are trying to help. Will post pix.



[HEMI RR]

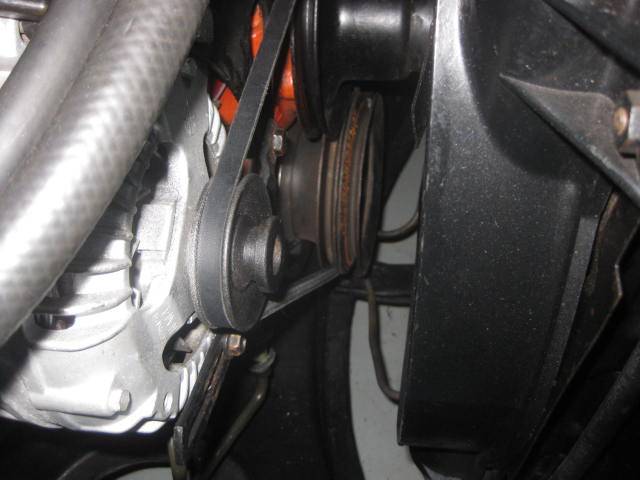

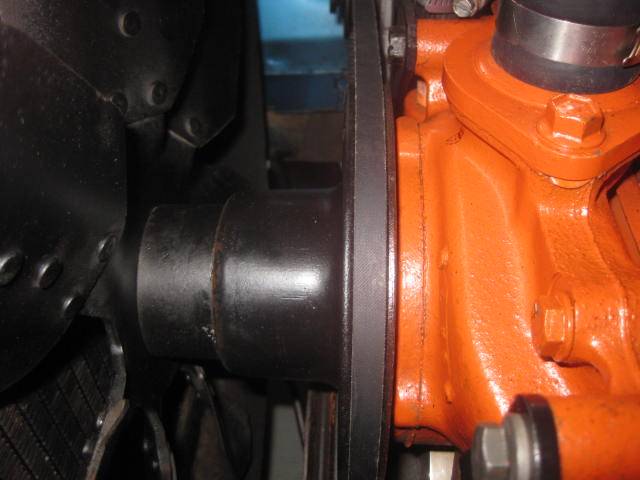

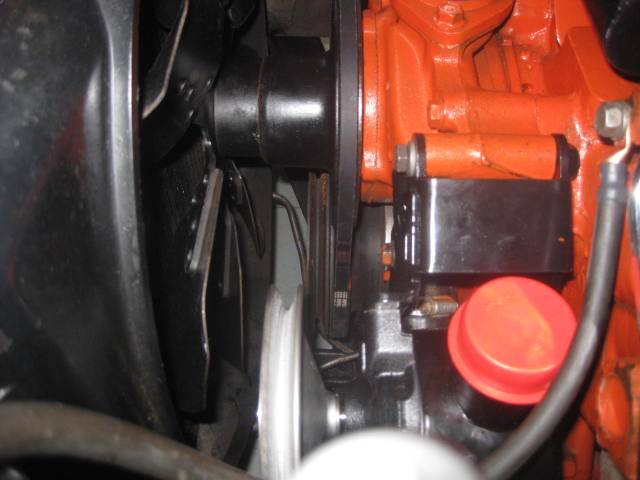

Here are pix.



[HEMI RR]

From more research, I may not have all HEMI pulleys and proper alternator spacers.



[Fran Blacker]

Is Your PS pulley on backward?



[dan juhasz]

like he said, ps pulley looks like it was installed backwards



[tonysrt]

I just looked at my P/S pump on my Hemi and it definitely looks like pulley is on backwards.



[HEMI RR]

not on backwards. The puller part is on the outside.



[HEMI RR]

This is a press on pulley. The groove is on the outside as you can see from the picture the smooth part faces towards the pump.



[HEMI RR]

I just looked at my P/S pump on my Hemi and it definitely looks like pulley is on backwards.

Does yours have a federal pump? Also a HEMI only pulley? Thanks



[Fran Blacker]

From your picture it looks like cone side is to the pump or is it the picture.

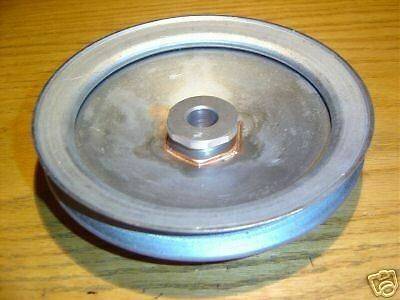

Is this what your pulley looks like? If so good question why there's a problem.
Your pump and pulley is like one in this link?
https://www.ebay.com/itm/69-71-Mopa...r-Federal-Power-Steering-Pulley-/401752910125 Not mine



[HEMI RR]

Here is a pix of the front of the pulley.



[HEMI RR]

Yes that is it. I think from more searching I have big block pulleys and must use all HEMI pulleys with a 67-71 426 Hemi Cuda B E Body Alternator Mounting OEM Bolt + Spacers kit. My water pump pulley has a step in it and a HEMI one doesn't and the crank pulley has both pulleys of the same size a HEMI crank pulley has 2 different size pulleys and offset.



[Fran Blacker]

Here is a pix of the front of the pulley. View attachment 771216

Look post #17 link check the pump pictures. Federal and TRW pump look similar. Maybe it's a TRW pump? If its a federal I don't know what to say.
