I Need Some BIG Blower Pictures !

[MiradaMegaCab]

Another Gen 1 Hemi at Carlisle



[69sunfireGTX]

Chrysler’s at Carlisle.

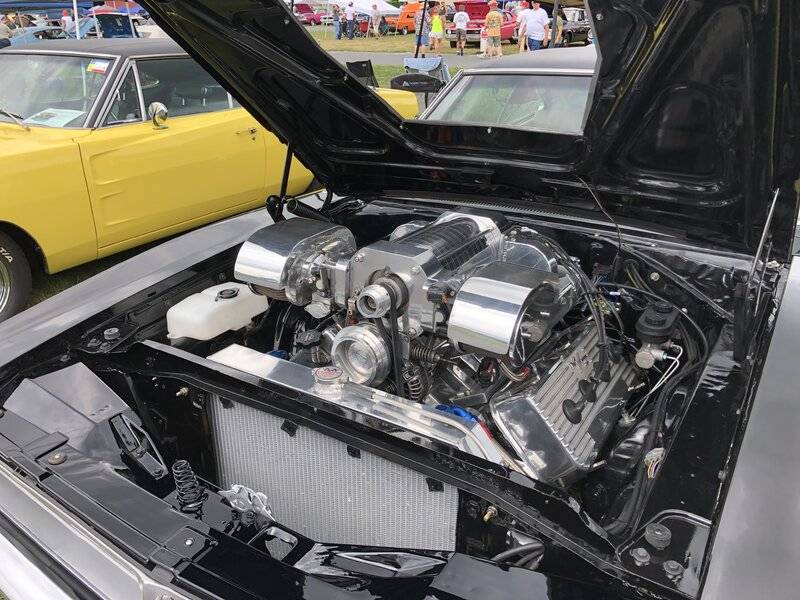

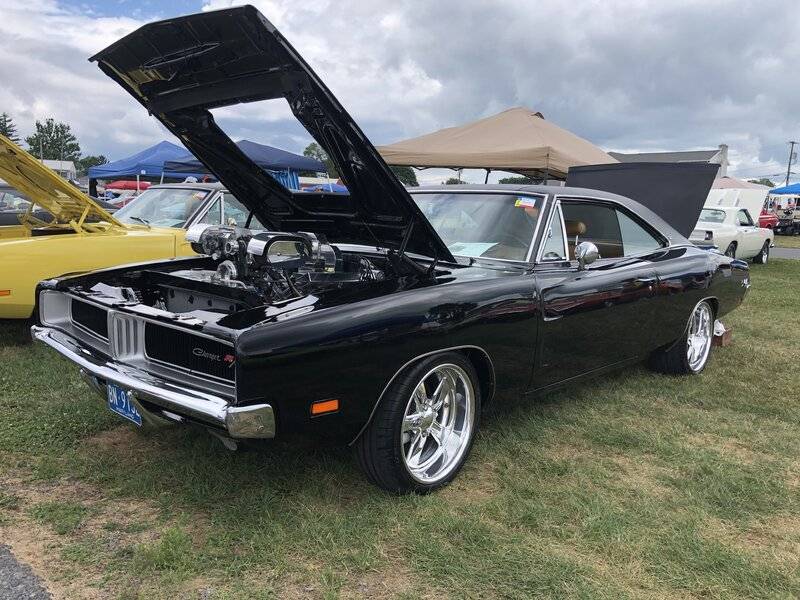

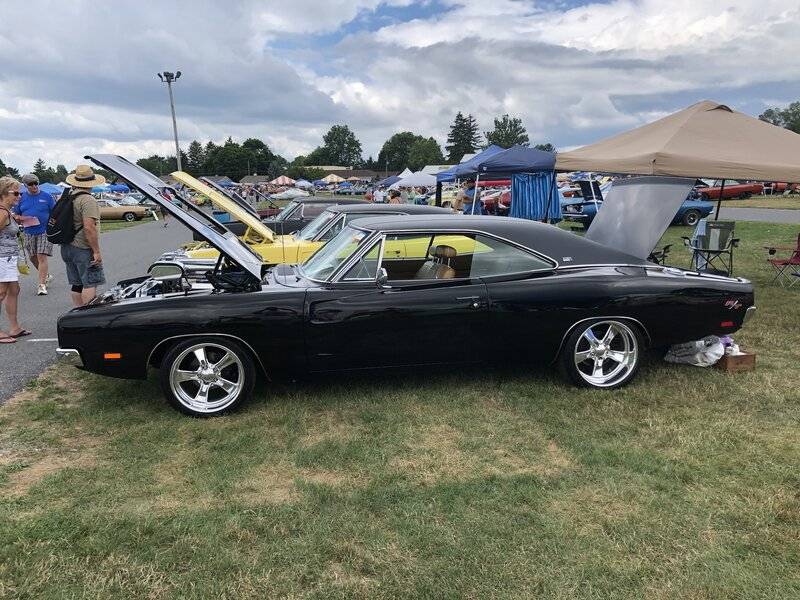

Really impressive 392 Hemi, Latham SuperCharger, dual toyota water pumps, crazy fabrication on the manifold and pulley system with accessory bracketry, multi point EFI....1969 Charger

I saw that at Carlisle. It looks like a Really strange setup. I can’t imagine that it puts out much power at all judging by the size of all the runners. But, it does look interesting



[MiradaMegaCab]

I saw that at Carlisle. It looks like a Really strange setup. I can’t imagine that it puts out much power at all judging by the size of all the runners. But, it does look interesting

Yes, the owner Jim from Maryland was a cool, down to earth guy. This is his first Mopar (he’s a chevy guy) he did all the metal work on the car and welded in all the body panels himself. He also did the body work himself, which looked really nice as it’s a black car, no waves, laser straight. He admitted that he didn’t build the engine, he simply bolted into his Charger, using an engine plate.
As far as the manifold goes..... That Latham blower has dual discharge ports, one feeding the right “plenum” and one feeding the left “plenum”.
On his build these plenums actually feed the opposing cylinders through those long runners. It’s a “dry flow” blower AND manifold. There’s Multi Point Electronic Fuel Injection.
I’m thinking the air doesn’t give a **** about how long the runners are as the blower is just cramming air in that engine. The fuel injectors are in the perfect location, close to the head.
The car was for sale, I had my woman friend with me and really wanted to inquire about the asking price. I thought I had taken a pic of his contact info but apparently I didn’t.......



[moparcrazy]



[MiradaMegaCab]

Hmm, serpentine drive. Is that setup for a Marine application?



[moparcrazy]

Hmm, serpentine drive. Is that setup for a Marine application?

Yup came off a boat !



[69sunfireGTX]

I run a 16 groove serpentine drive belt on my SBC (marine) blower motor. It's nice and quiet and really does not slip at all.



[biomedtechguy]

@moparcrazy
That is an awesome looking big block, but I have to ask...

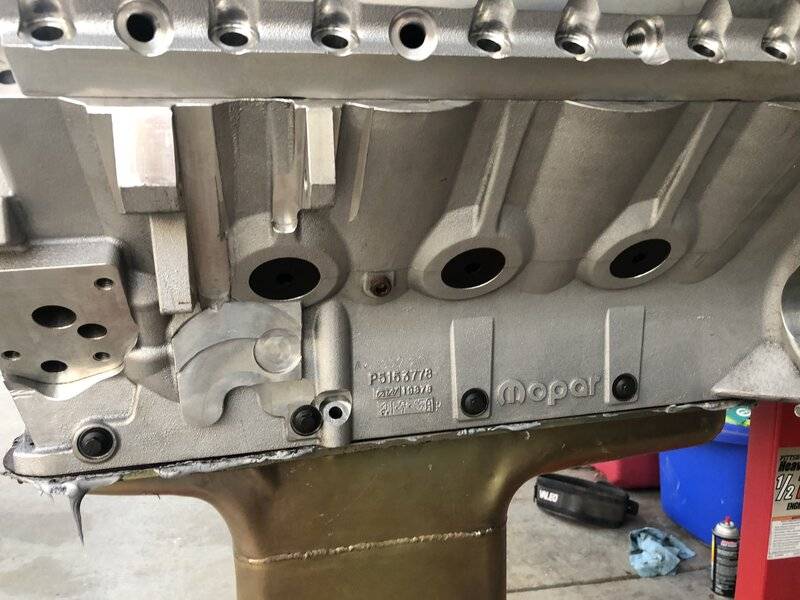

I see "Mopar" cast into the block, is it aluminum or silver painted cast iron, and just so I'm clear, who made it/what is it?
Thanks



[moparcrazy]

@moparcrazy
That is an awesome looking big block, but I have to ask...
I see "Mopar" cast into the block, is it aluminum or silver painted cast iron, and just so I'm clear, who made it/what is it?
Thanks

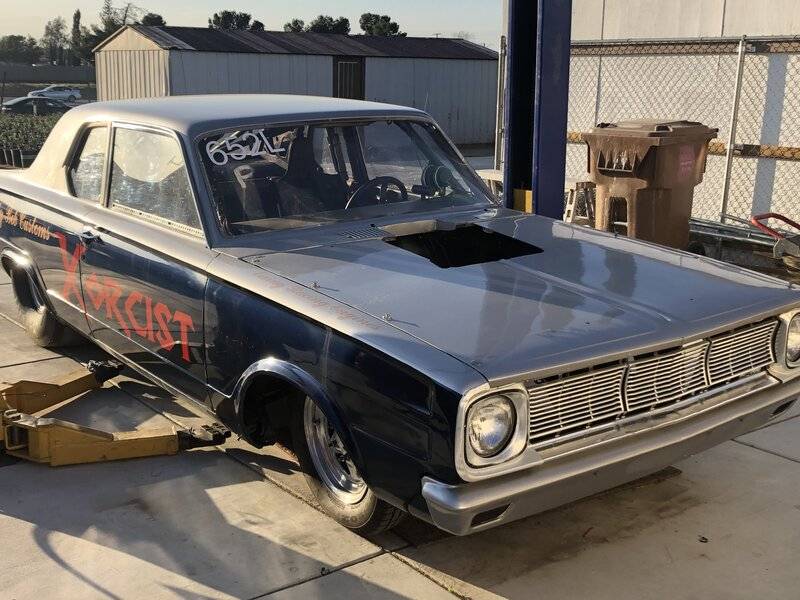

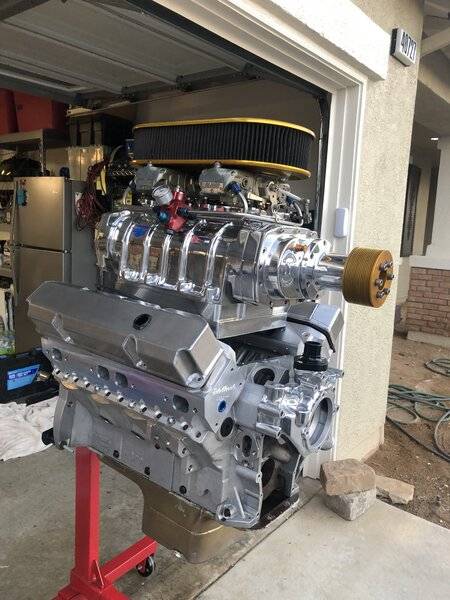

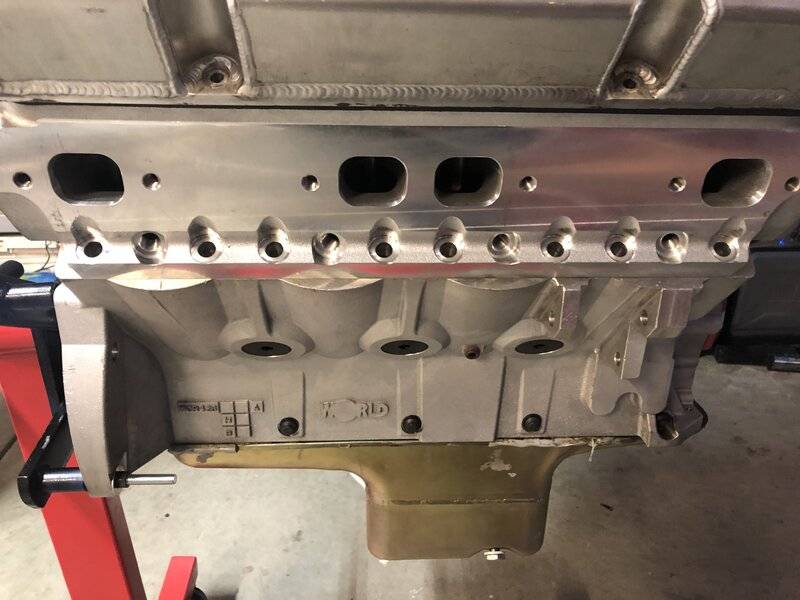

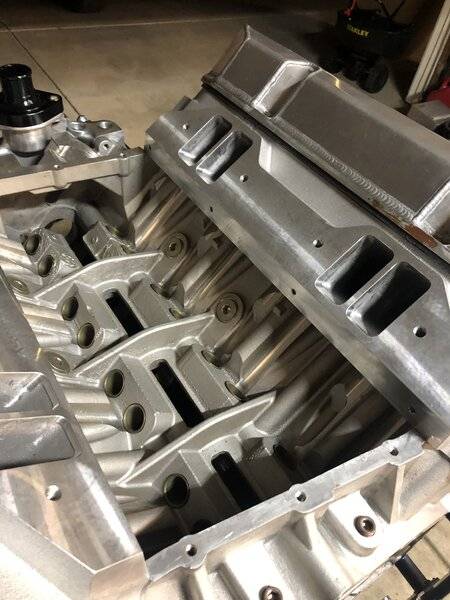

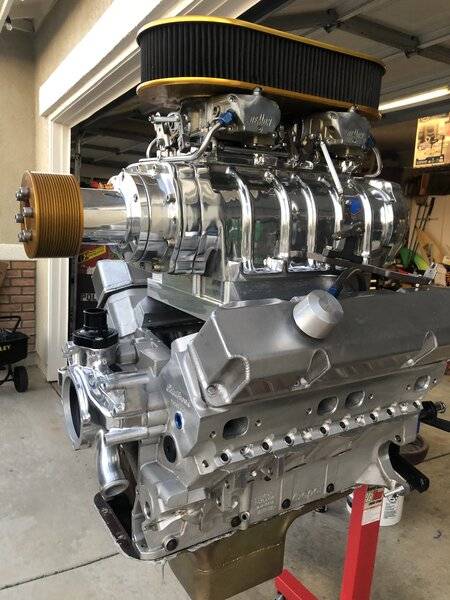

Its a all aluminum World Block 426, none Hemi going for a 572 wedge with Edelbrock heads, the blower honestly not sure if ill use it on the race car, 66 dart with a iron aftermarket block



[moparcrazy]



[moparcrazy]



[biomedtechguy]

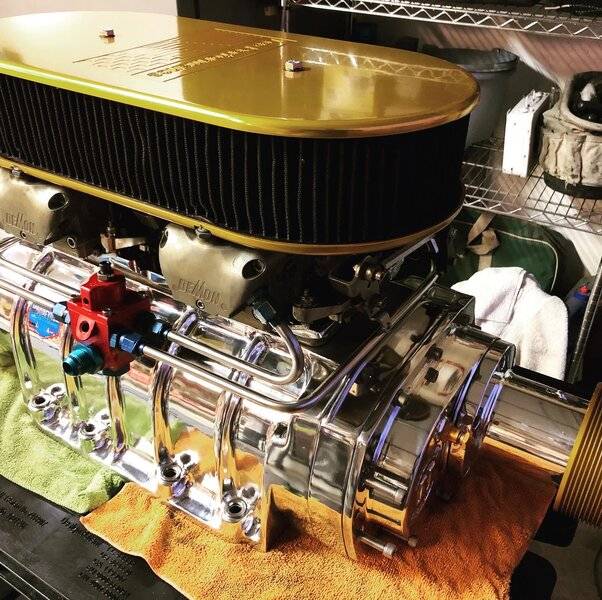

View attachment 982505

Oh hell YES!!!!
You have GOT to use that!!



[MiradaMegaCab]

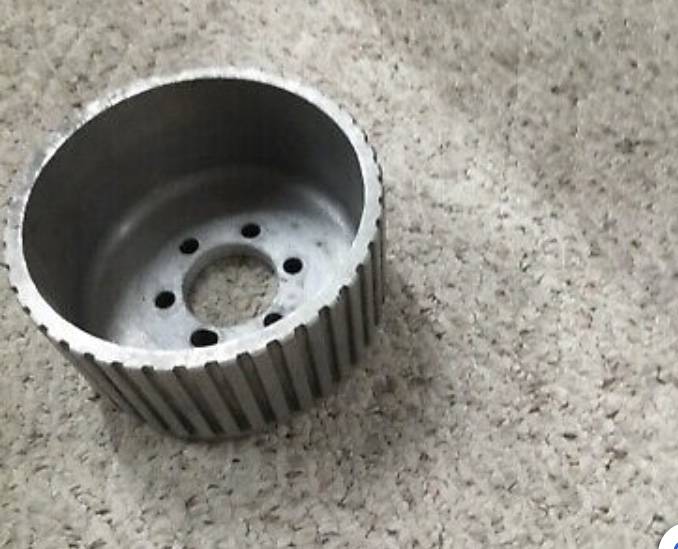

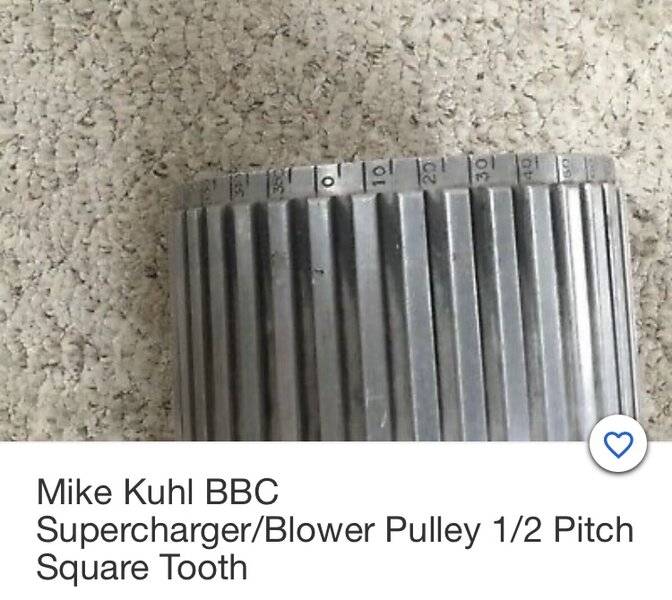

Something different, a blower pulley with timing/degree marks.....



[MiradaMegaCab]

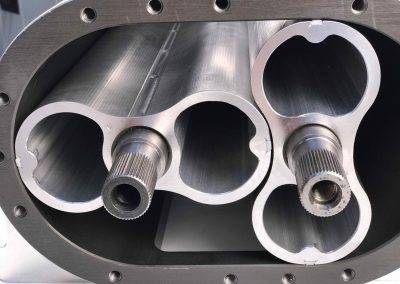

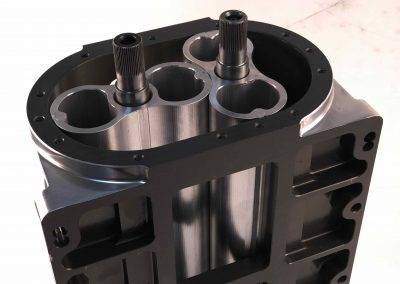

Two Lobe Tuesday!!!



[MiradaMegaCab]

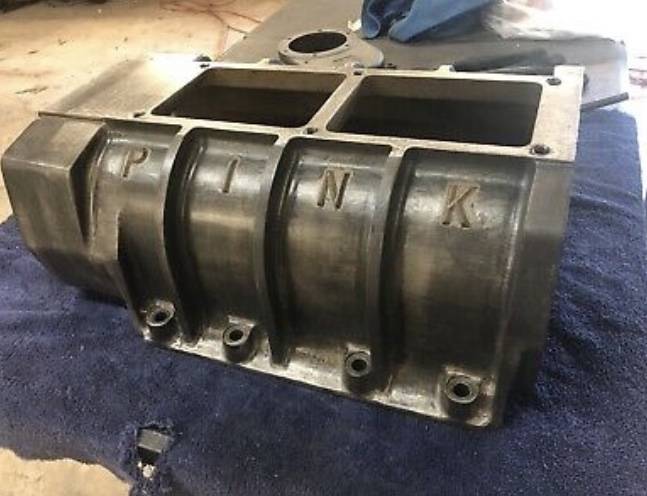

Magnesium 12-71



[MiradaMegaCab]



[MiradaMegaCab]

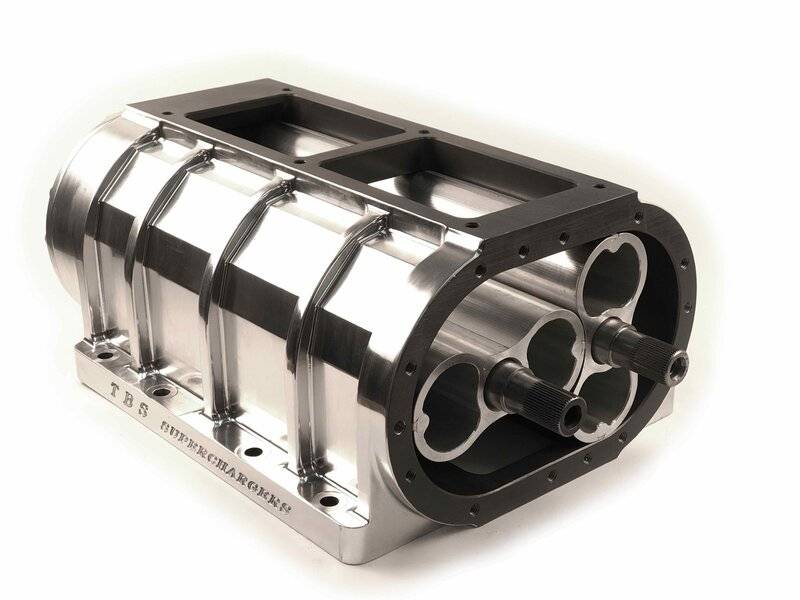

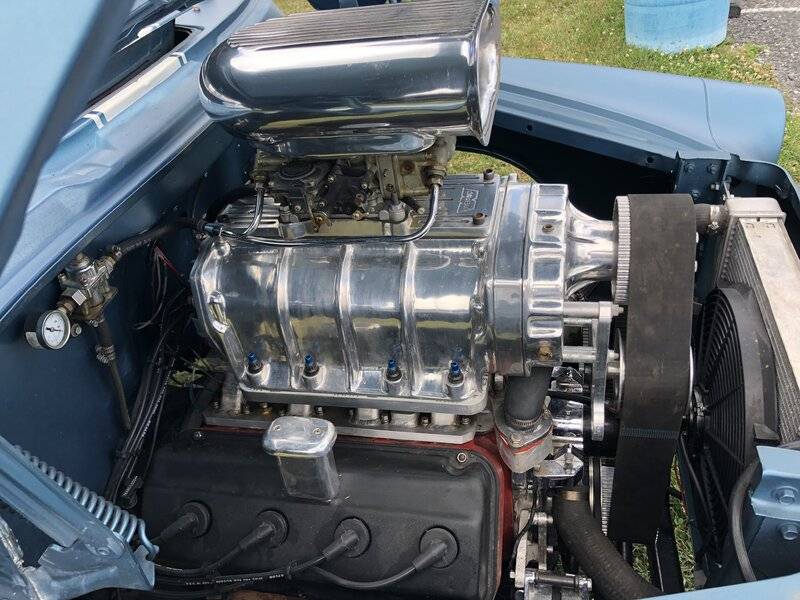

The Blower Shop 192 blower.



[67charger383]

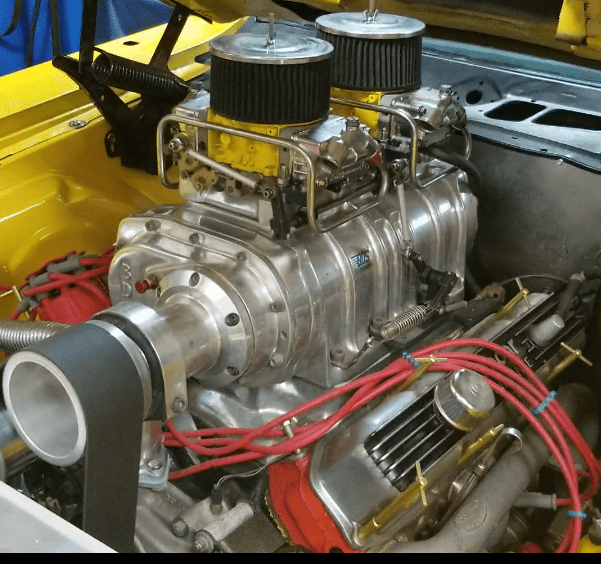

My polished BDS
8-71 with dual Holley 650 double pumpers:



[fbs63]

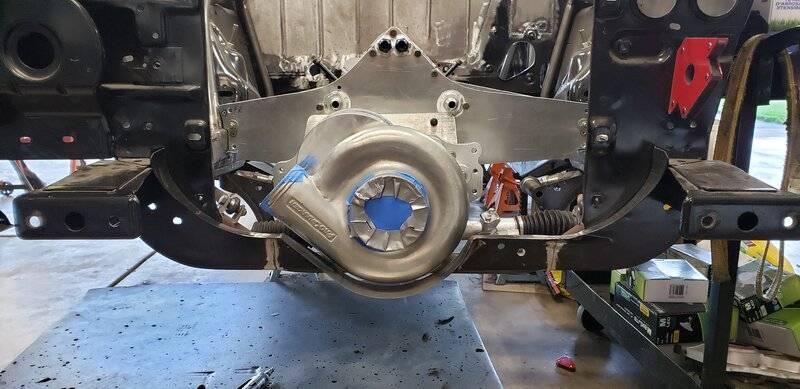

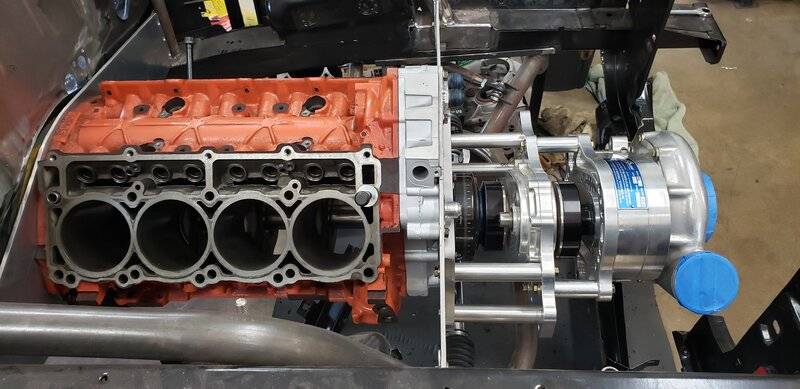

How about a different kind of big blower!?



[1 Wild R/T]

How about a different kind of big blower!?

View attachment 1063321 View attachment 1063322

What's old is new again....
