N safety switch hook up?

[wedge5]

How do I hook it up? I have a 3 pin switch(727) and the center one goes to something but what? My Cheetah shifter instructions show the wire from the switch going to the starter selanoid. I thought I hooked it up right but it still turns over/started so any ideas. I will check the instructions again maybe I missed something.



[wedge5]

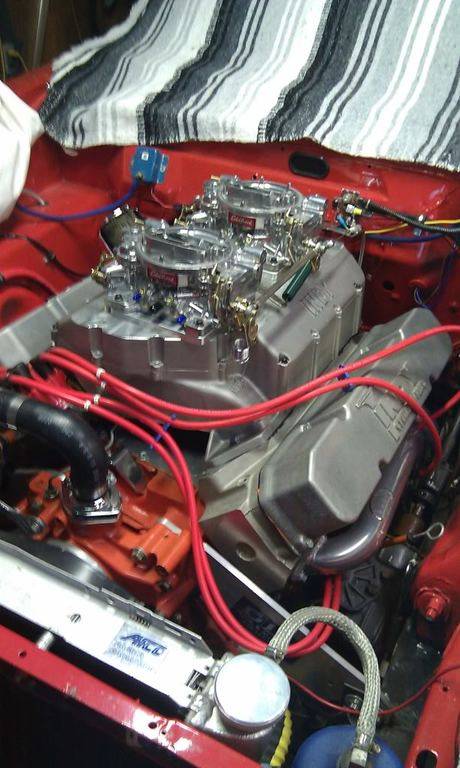

here are a few pics.

The first is the instructions that came with my shifter. The second shows where I connected the wire. It is the bottom black one with the lite blue connector end.

I traced the other wires. Their pic of the relay is upside down to the one I have on the fireway. The top post(battery) goes to the bulkhead. The center post goes to starter soleniod. The blue wire(key) goes to bulkhead. And I hooked my wire to the ground wire.

The only thing that I can think is that I need to run a wire straight to the battery like it shows but I was thinking the one going to bulkhead went there just not a straight shot.



[SUPERSTOCKRACER]

your 65 coronet needs a 1 wire nuetral safety switch.from the nuetral switch to the relay on the firewall.
does it start in any gear?
the center pin on the 3 wire nuetral switch is the one to the relay.



[wedge5]

Yes it starts in gear(3rd).

I have one wire(center pin) to the relay(G). I am lost/confussed:icon_axe:



[Redpolara]

your 65 coronet needs a 1 wire nuetral safety switch.from the nuetral switch to the relay on the firewall.
does it start in any gear?
the center pin on the 3 wire nuetral switch is the one to the relay.

Does this help?



[fugly]

you need the wire from the center pin to the terminal labeled "G" on your solonoid. If it starts when not in neutral like that, disconnect th wire- if it still starts your relay is bad. If not the shifter is misadjusted, the switch is not screwed in all the way or the switch is shorted....



[wedge5]

Thanks Fugly at least that gives me some ideas as to what to check.

I will check into the relay. The other trans I had never the switch hooked up so I don't know if my relay is good. I went through all the gears on the trans by hand so I think the shifter is adjusted right. Rick Allison(A&A trans) built the trans and I told him the application so I wouldn't think it is the switch but you never know. I am going to make sure that I have a good connection on the switch.



[fugly]

you can test the switch on the trans with an ohm meter or powered test light- ground one lead and hook the other to the center pin- it should show a direct short in neutral and park and an open circuit in all other gears. If not , unscrew it and push the plunger by hand - pushed in should ground it and out should be open. ( trans will dump fluid if you don't drain it first) Rick does good work, but damaging a switch in shipping is not unheard of.
