Need help ID'ing this radio

[SureGrip]

Hi,

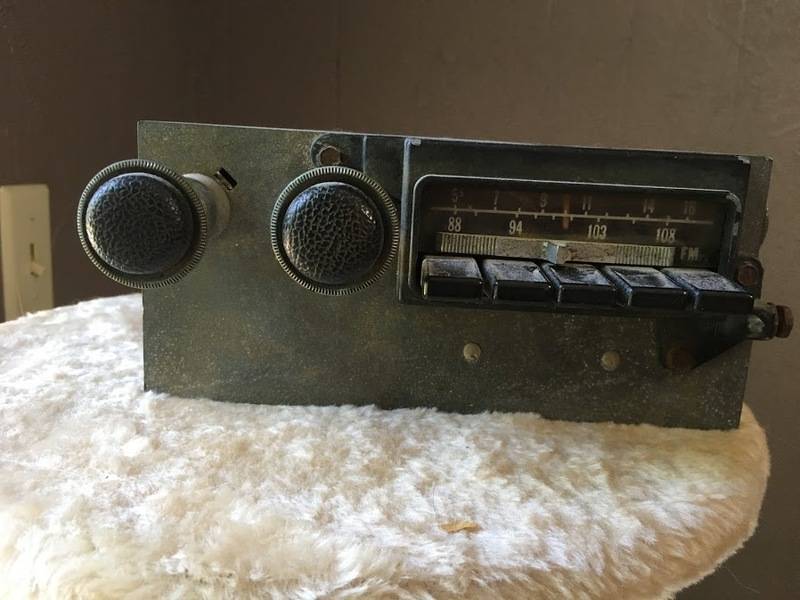

I received this radio with my latest car purchase.

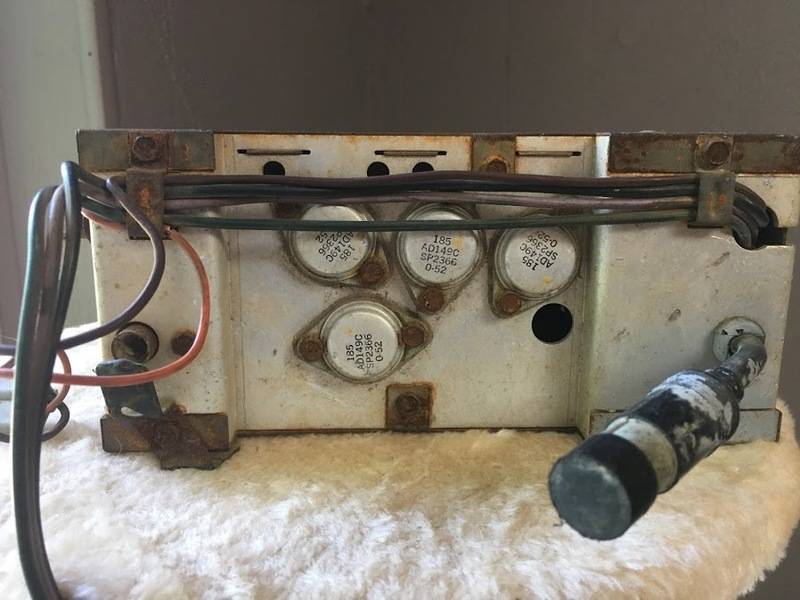

I know it's a 71-74 B-body AM/FM radio, but I've never seen one with the black cable on the back. It has a 5 or 7-pin connector under that cap.

Any help would be appreciated.

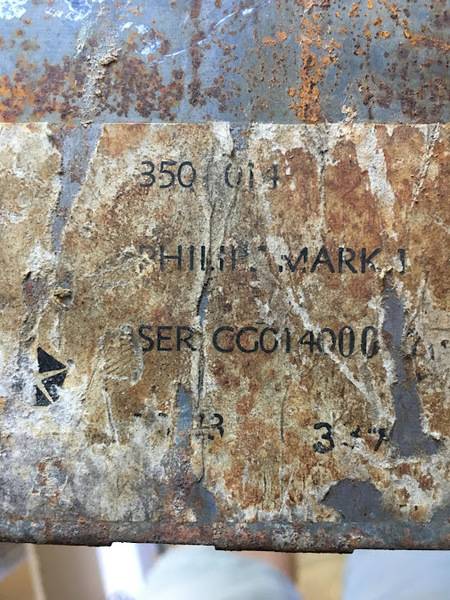

EDIT: As usual, a soon as I post a thread asking for help, I stumble across the answer myself. For anyone wondering, it's a Mopar p/n 3501 014 Philips Mark 1 CG1400 (Canadian)

I'm still curious what the PB stands for in AM/FM PB....and what the cable does.



[dual fours]

PB Public Broadcasting. Ok, I'll wait for a corrector answer.



[BeepBeepRR]

I believe you can hook up an 8 track to it on that plug.

https://www.ebay.com/itm/1969-1970-...109817?hash=item1ee41cc5f9:g:Ce8AAOSw9bdayQwM

This one says floor mount cassette
https://www.ebay.com/itm/OEM-1971-Dodge-Plymouth-Chrysler-C-Body-AM-FM-Radio-for-Floor-Mount-Cassette/372240292185?_trkparms=aid=222007&algo=SIM.MBE&ao=2&asc=52473&meid=86ff537f6f6d40d6840a61a871ba593c&pid=100005&rk=2&rkt=8&sd=112400794675&itm=372240292185&_trksid=p2047675.c100005.m1851

PB may be the reason for this.. Kinda like the old Mr.Microphone
https://www.ebay.com/itm/MOPAR-NOS-...254618&hash=item4b3a1d5894:g:dFIAAOSwAbhakXJq



[bee71]

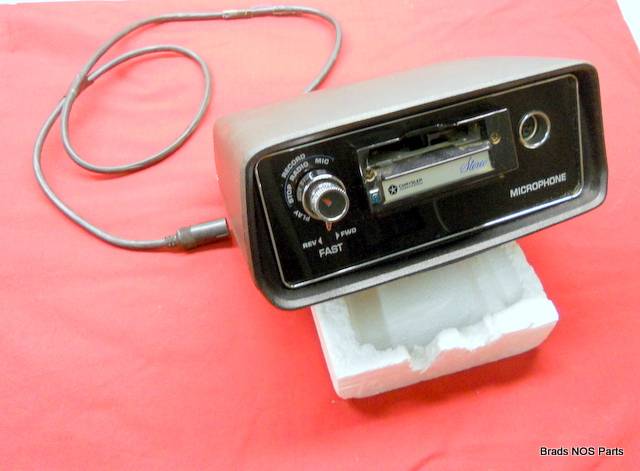

That is the plug for the cassette player.



[SureGrip]

You guys are a hell of a lot better at the internet than me, apparently. lol

Thank you!!



[Greyrock]

That is the plug for the cassette player.

View attachment 622491

Still have this?



[Greyrock]

Hi,

I received this radio with my latest car purchase.

I know it's a 71-74 B-body AM/FM radio, but I've never seen one with the black cable on the back. It has a 5 or 7-pin connector under that cap.

Any help would be appreciated.

EDIT: As usual, a soon as I post a thread asking for help, I stumble across the answer myself. For anyone wondering, it's a Mopar p/n 3501 014 Philips Mark 1 CG1400 (Canadian)

I'm still curious what the PB stands for in AM/FM PB....and what the cable does.

View attachment 622383

View attachment 622384

View attachment 622385

Yeah, I know it's an old post but that particular radio was available 71-73 with the plug and 74 without the plug. It was for the optional floor or console mounted Phillips Cassette recorder/player (71-73) on many Chrysler models. I had a few years ago along with a service manual, I should have kept them. What did you do with it?



[70gtx440dana]

PB = Push Button



[SureGrip]

Still have this?

I'll look and see if its still downstairs.
