40 Hrs hand Clearence for rods, crank, push rods etc....
Lower end
Callies Dragon Slayer Crank 4.500: W/Chevy Journals, Rods Std. Mains Std. Coated bearings
New Bill Miller Rods: 7.150 long bushed rod ends W/oil hole. Chevy rod end & pin.
Custon Dome Diamond Pistons: 14.1-1 gas ported, lightened, custom rings pack .043 .043 3mm, double pin oilers, 990 tool steel pin w/locks
7 Qt Custom Aluminum pan w/ built in windage tray.
Milodon -12 external oil Pick up
High volume oil pump
B & M SFI 26.1 Flexplate
SFI Fluid Dampner
Comp Cams 9 way adjustable torrington bearing timing chain
Comp Cams Custom grind camshaft Intake .845 lift, Exhaust .802 lift installed @ 111 degrees, for street driving.
Comp Cams 829 roller lifters
Ray Barton Racing Engine custom 7/16 push rods
Heads
Stage V raised exhaust port "Not Millenium heads"
Copper valve seats, 50 degree valve job
Titanium valves, locks, retainers, lash caps
Valves swirl polished Intake 2.40 Exhaust 1.90
Flow rates: Intake 490, Exhaust 325
1000# NexTek valve springs
Ray Barton Racing Engine Custom 1.6 ratio T & D roller rocker arm system w/internal oil lines
Cometic .040 head gaskets
Polished Stage V valve covers
Ray Barton Racing Engines 4500 high rise single plain intake. "UNPORTED"
Holley 1250 Dominator
Ignition Msd Magnetic P/U Distributor, Firecore Plugwires

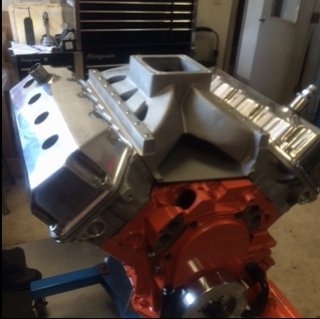

Motor has 4 pulls on Dyno it makes 1198 HP @6500 RPM. And it was still climbing. Carb needed bigger juts & engine builder did not have them on hand. Motor was only dynoed for a baseline tune up, runs on 110 octane. This Motor will make 1300hp very easily. The cam is small 850 int 800 exh. It idles @ 1000 Rpm w/65 lbs oil pressure hot, 80 cold. Temp @ 170 degrees on dyno. Motor was dynoed w/30 degrees of timing, add some timing, fully port intake (Easy 50 HP), and you can make a lot more Hp. These heads just start to flow @ 7000 and up. Change cam timing or cam and this motor easily makes 1300hp or more. Motor is in car, can hear it run, car not driveable- its unfinished. Located in Southeast, Wi. This motor has only 4 dyno pulls & maybe one hour break in, run time on dyno. Starts right up and idles @ 1000 RPM. Great motor for nostalgis super stock, King of the Streets, outlaw street, top sportsmen, take a shot at the Street Outlaws, or a really bad as sleeper street car. That was my intention. This motor is completely nitrous ready. On the flip side, compression can easily be lowered by using a thicker Cometic head gasket, easily lower Hp. Or throttle stop if its used for racing. Please serious inquires only
35,000 or offer
