Nuts that hold electrical bulkhead connector

[Robliepse]

can someone send me a picture on the nuts that hold the electrical connector to the firewall on a 72 Roadrunner? I bought the engine compartment bolt kit but I've lost track of what's what and I have bolts and nuts everywhere



[kiwigtx]

I thought it was held in by spring clips?



[Robliepse]

Spring clips hold the inside pieces together. There are 2 screws / bolts that go through the firewall with nuts on the outside



[kiwigtx]

Spring clips hold the inside pieces together. There are 2 screws / bolts that go through the firewall with nuts on the outside

OK, thanks....never owned one, but assumed it would be similar to the Challenger setup.



[Nacho-RT74]

7/16 hex head with captive washer nut



[Nacho-RT74]

I thought it was held in by spring clips?

OK, thanks....never owned one, but assumed it would be similar to the Challenger setup.

spring clips are on A bodies and up 70 B bodies. Since 71 B bodies were with screw and nut, like all E bodies.

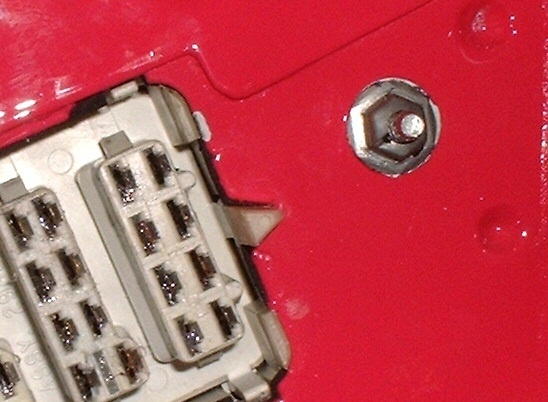

Actually even is a nut ( 7/16" head ), I have found diff kind of nuts holding this... from a nut with a captive washer, up to a sheetmetal nut like the ones to the S spring clips for some molds, BUT STILL wit a captive washer built in



[Nacho-RT74]

found the description here... the "fastener" kind nut is called... "pal nut" ?

http://board.moparts.org/ubbthreads/ubbthreads.php/ubb/showflat/Number/5429016/site_id/1

old thread so pics maybe won't come up easilly

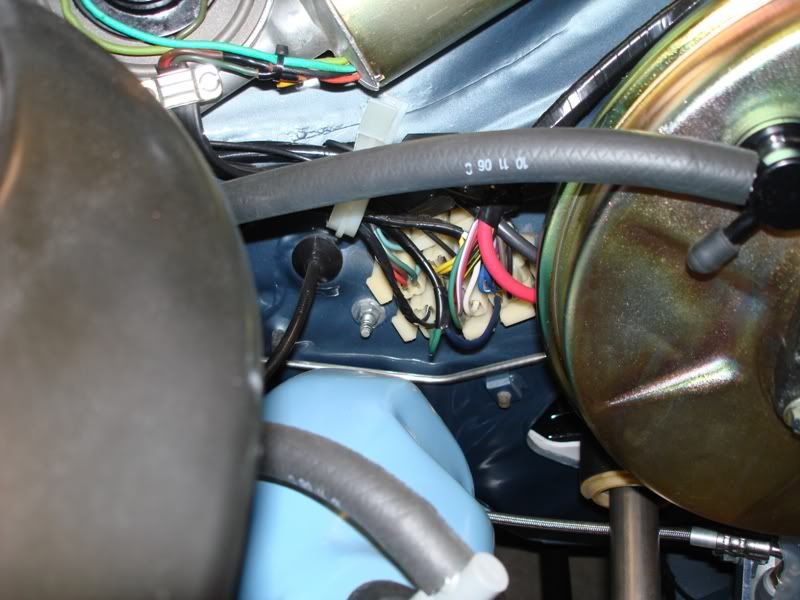

That's the kind of nut my 74 got STILL WITH A CAPTIVE ( or built in ) washer, but as mentioned I have seen some more like a regular nut



[72RoadrunnerGTX]

It's a stamped nut filled with a sealer originally.



[Nacho-RT74]

Stamped nut! That's the name! Sorry! Language barrier!
