power brake booster for 67 belvedere

[67belvedere/225]

I went to my local junk yard (been going for almost 30 years now )

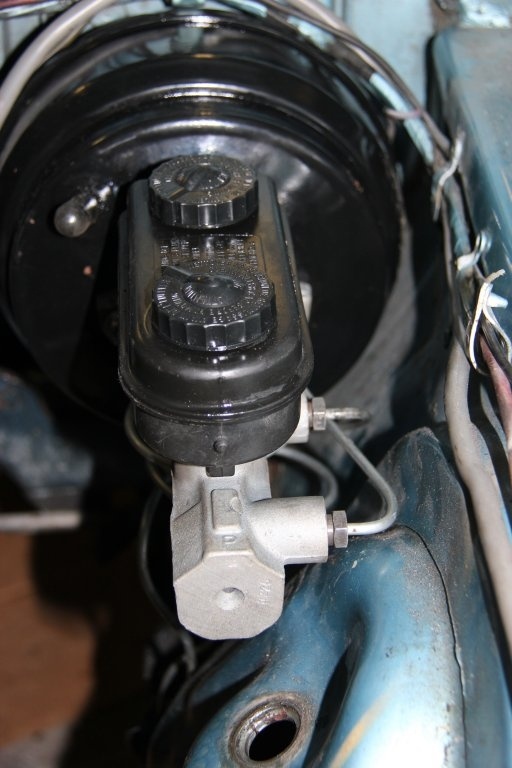

they let me go through there parts shelf , i found one from a mazda 3 made by bendix

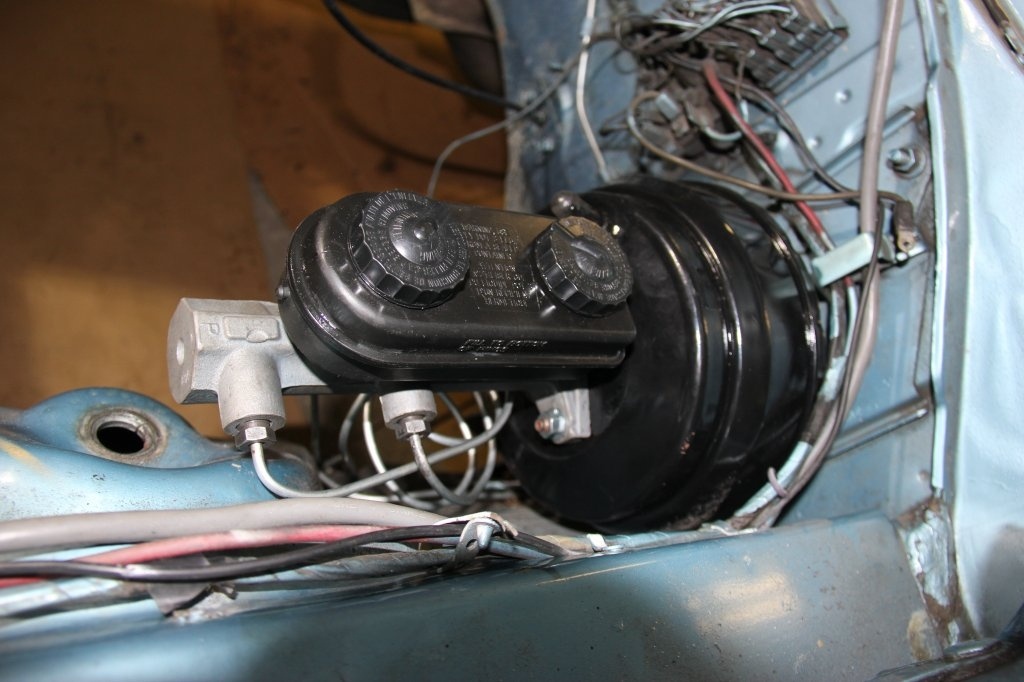

mad a adapter and extended the push rod in booster to my dodge diplomat master cylinder
So now the M/C matches the disc brake swap in the front and the diff swap to the 8.25 diff in the rear with 11 inch drums. come spring when she's all back together , ail have to see how well it works.



[67belvedere/225]

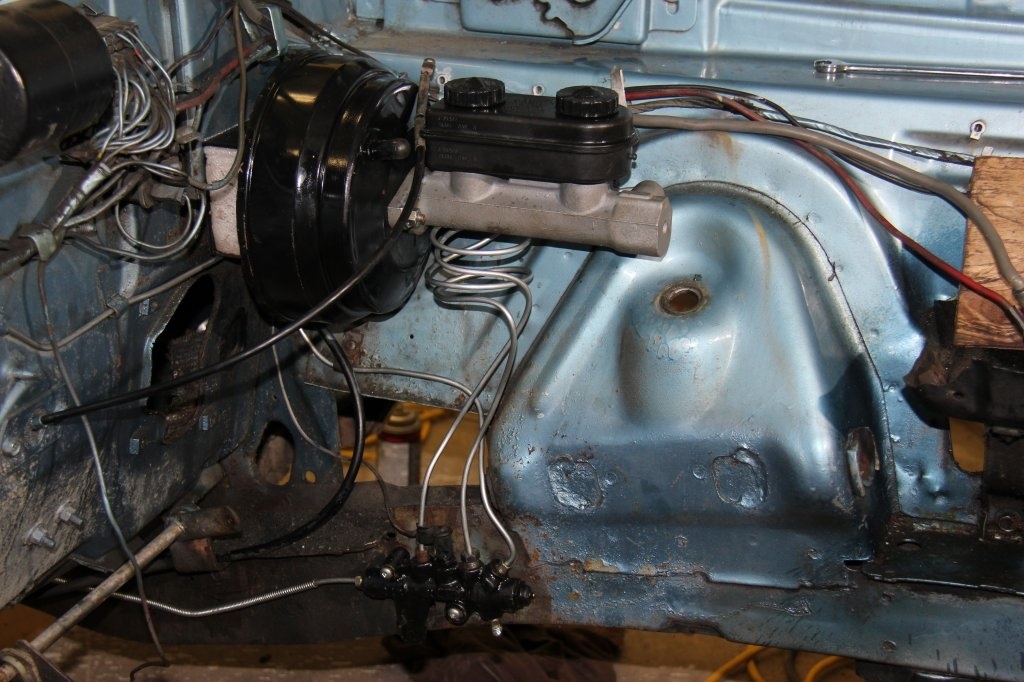

the proportioning valve is also from the dodge diplomat



[BeeKool]

I was wondering if the power brakes booster/Mc and proportioning valve from one of my parts trucks (Dakota) would work on a b-body. It sure looks like a fit. Also the drum assembly springs/cylinders ect from the rear of a 4wd Dakota look like they would work for an 11" rear drum b-body. I went ahead and replaced things with new parts just to avoid to hassle of removing parts time and again if things didn't fit. I will be doing budget builds in the future and I will definitely rob parts off them if I can to save $



[67belvedere/225]

with hydraulics , the thing is pedal travel, if the wheel cylinder use more fluid to move ,the pedal does too
thats why when i swap stuff it try and use the whole system, good luck
let me know if it works



[BeeKool]

The wheel cylinders from the 95 Dakota and 70 coronet appeared to be carbon copies of each other. I had cylinders from both removed and next to each other. In fact I did use some of the springs.

The booster/Mc also appear to be very similar although I didn't get the chance to closely inspect them side by side. I just presume that if the brakes were interchangeable at the bottom end then they were also at the top end.



[67belvedere/225]

it might be just check bore size , i m pretty sure it would be the same ,
