Power Steering Bracket Needed

[Mike Gaines]

I also have this posted in the other section...but.....

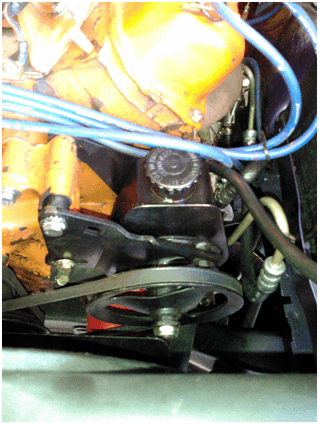

I need this bracket (mount) for a power steering unit. I would think they are all pretty much the same for 383 thur 440. If the mounting bracket is in 2 parts (front and rear) I need both parts.
I have a Mancini Torque strap mounted off the motor mount lugs but I want to fabricate a Torque strap coming off the water pump housing bolt holes where this power steering bracket mounts. I can use it for the top part and use a rod and a second heim end like the Mancini Torque Strap to run it down to the frame rail to a fabricate a mount on the frame rail.

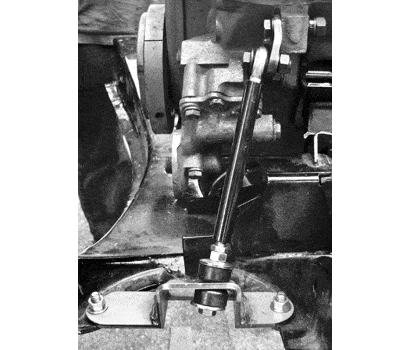

The Mancini Torque strap (which I show in the picture on the right) still allows the motor to rock a lot because it is so low on the block.
I have seen Torque Straps like I want to fabricate but they use only 1 of the available mounting holes on the water pump housing. I think my thoughts on this would be much more sturdy.

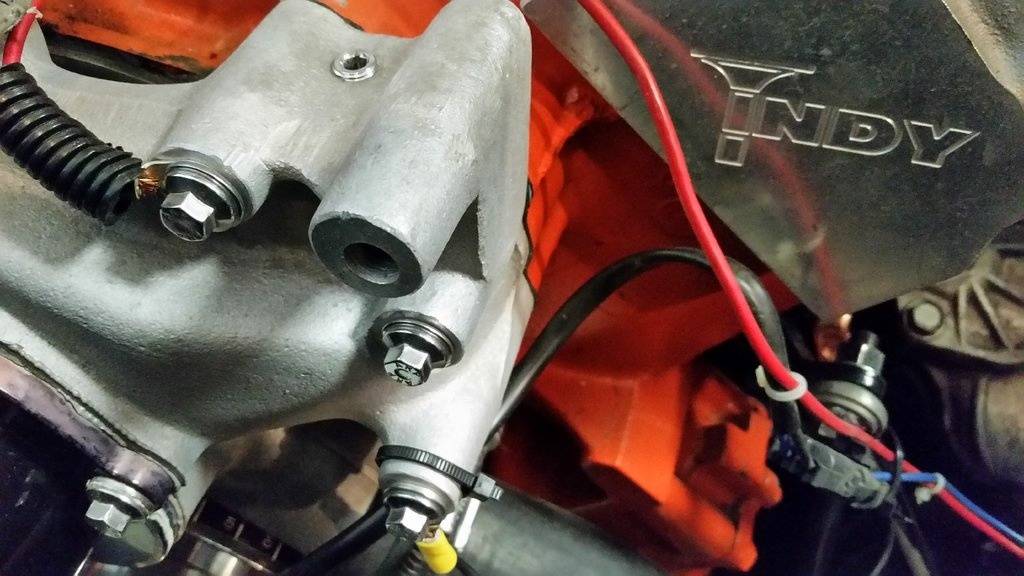

The bottom photo shows the mounting holes on my water pump housing that I want to use for the top part of the torque strap.
I do know that I could use a "motor plate" to accomplish the same purpose of making the motor more solid but I don't want to give up my alternator and I don't want to spend the money for a motor plate, alternator mounting kit for the motor plate and a small size powermaster alternator that would fit in where it has to go. I also know I could use Moroso steel motor mounts which I have already. Thanks again.
Let me know if you have one and how much.
Thanks, Mike



[bobtile]

I may have one Mike.
Ill check when I get home from work.



[Mike Gaines]

I may have one Mike.
Ill check when I get home from work.

Thanks...if you do have one could you snap a pix and post it...
I am not sure how it is shaped when it is undone front the power steering unit...thanks



[bobtile]

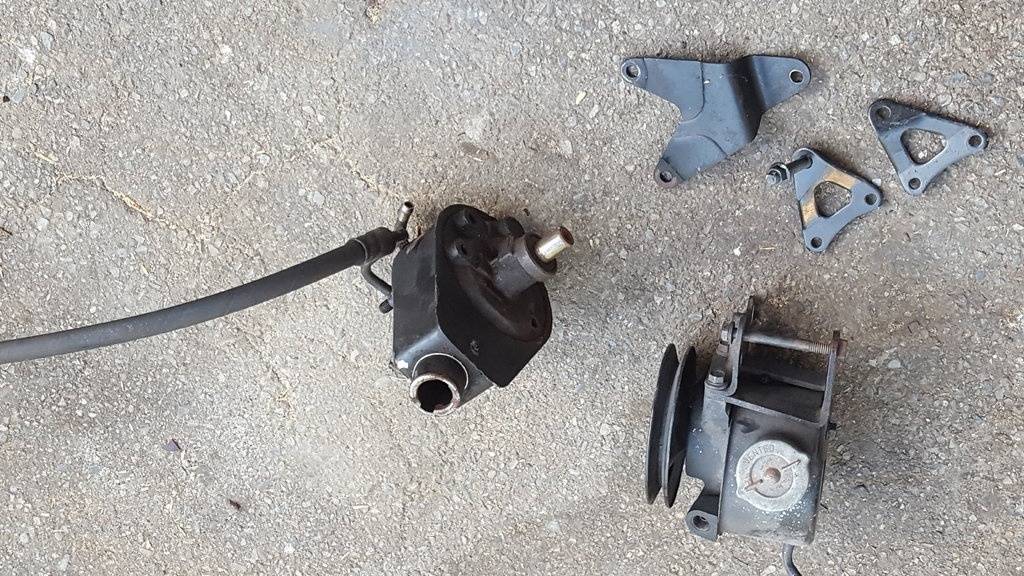

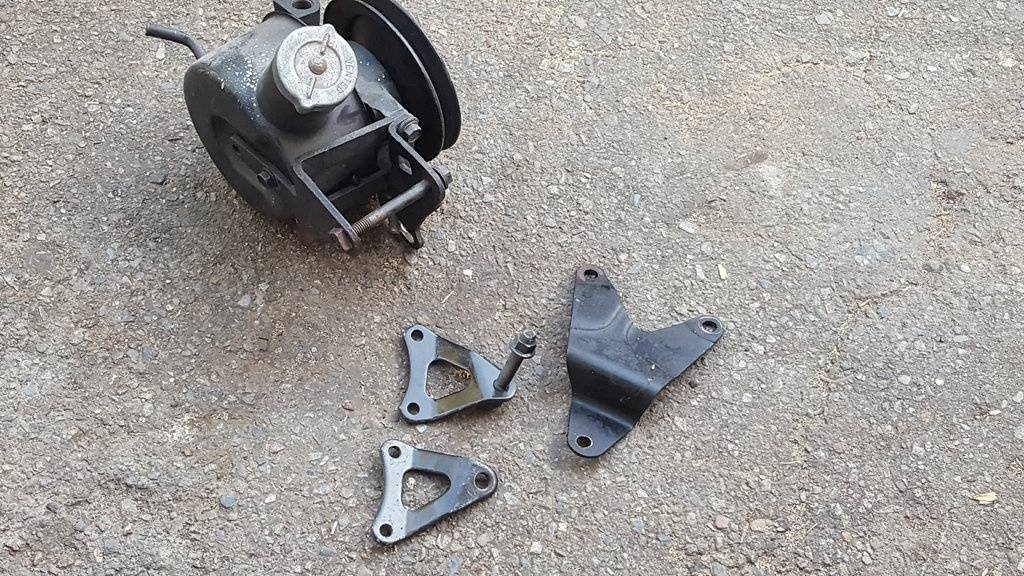

This is all the power steering stuff that I have Mike.
Let me know if it works.



[Mike Gaines]

This is all the power steering stuff that I have Mike.
Let me know if it works.

View attachment 442604 View attachment 442605

If you could part with all 3 loose triangular brackets PLUS the bracket still bolted to the power steering pump I believe I could use all of them to fabricate my torque strap mounting bracket.
If you can part with all of them, let me know, and how much.
Thanks, Mike



[bobtile]

If you can use them, you can have them.
Pm
Your address and Ill send them to you.



[actionange1]

Unless you're really set on fabbing something yourself a motor plate is the way to go. It's what I finally did in my Belvedere and never looked back.
I used the one below with their brackets
http://arengineering.com/products/cnc-motor-plate-0-375-thick-be-body-big-block/
