Rally cluster picture wanted

[Chryco69]

Can someone please post a picture of the back side of there 68-70 rally cluster? I know I am missing a transistor but it appears like there might be more missing. Thank you!



[Chryco69]

Bump



[Mr.SpeedFreak]

I'm at work but if no one helps you out before then I'll get a picture of mine for you tonight. Dash is assembled and out of the car so should be easy to see everything



[Chryco69]

Your awesome



[Mr.SpeedFreak]

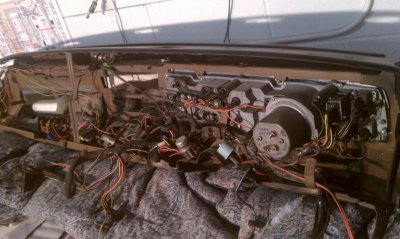

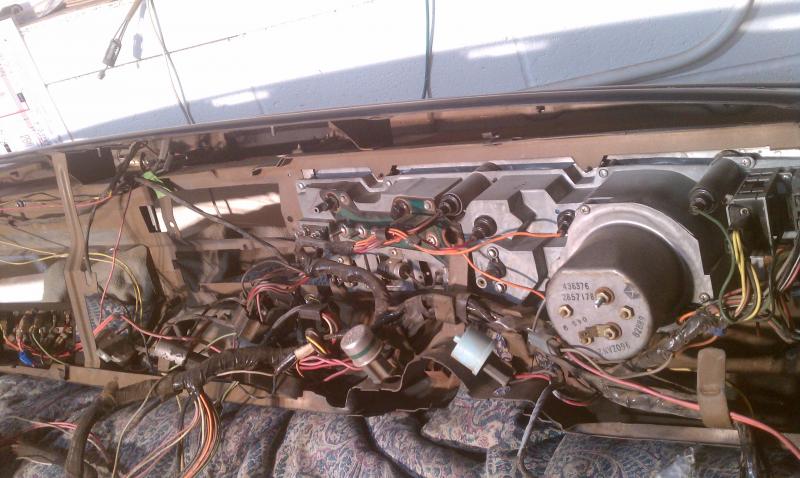

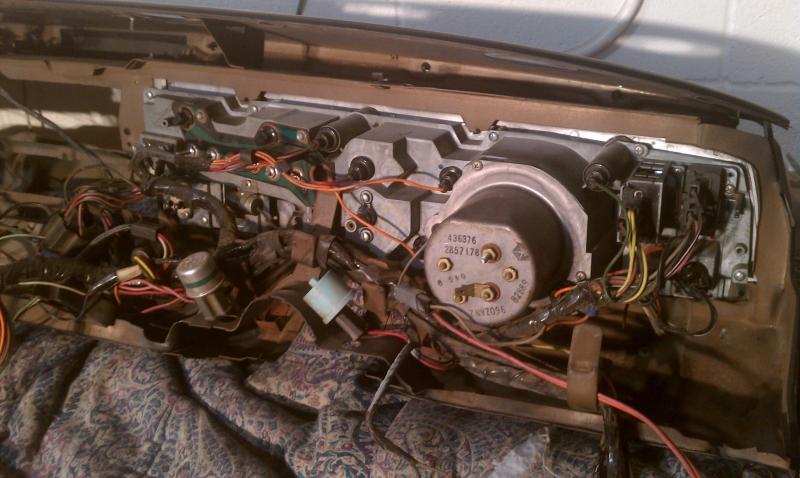

Hey sorry I guess I forgot it was still messy as all hell. Had my hands full on every other part of the car so haven't gotten around to sorting the wiring out yet. Not sure how helpful they'll be but here they are

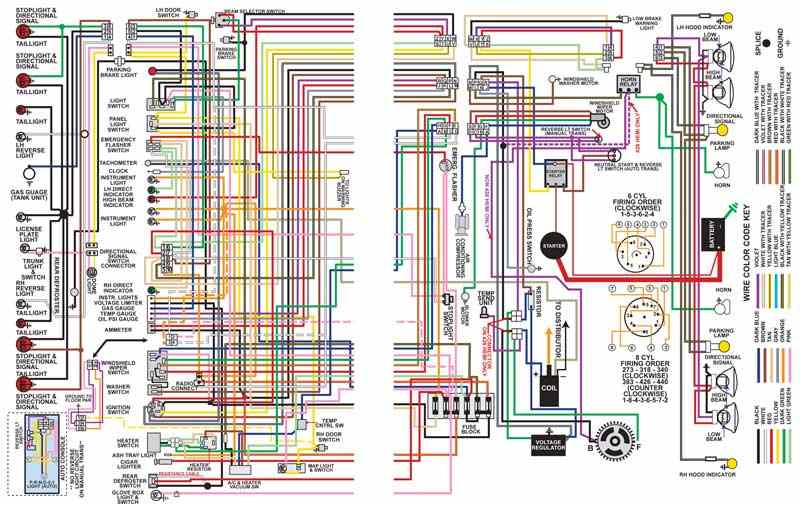

This diagram would probably be more helpful, hard to read in this size image by they're only like $15 and worth every penny as far as how much easier they are to read than the service manual diagrams


http://www.classiccarwiring.com/dodge.php



[ChargerRTguy]

Dash

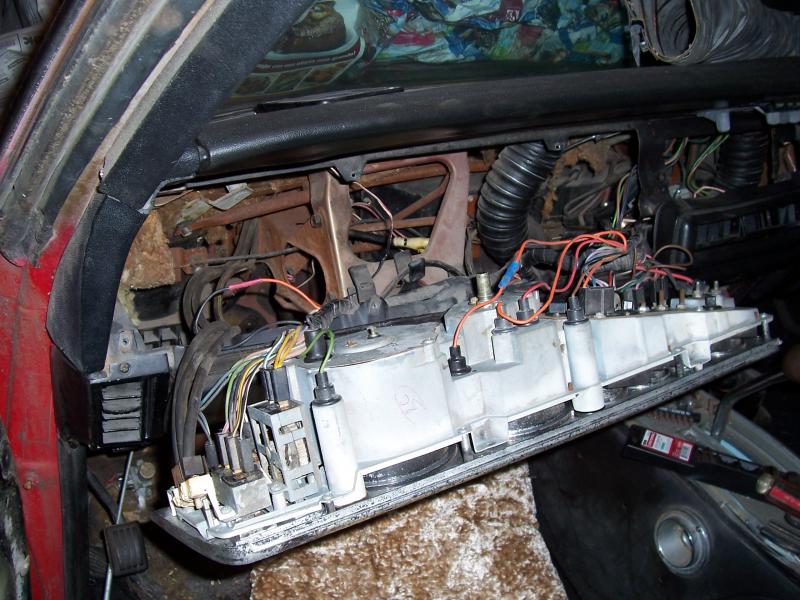

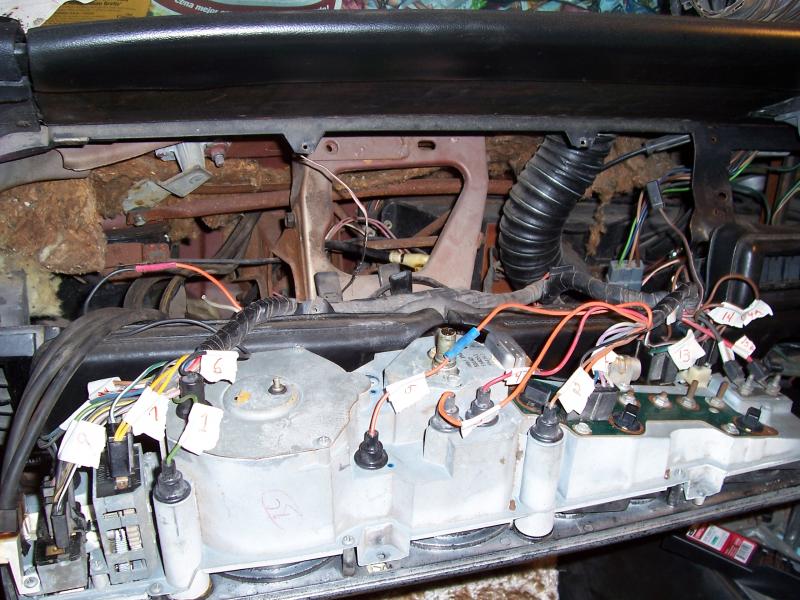

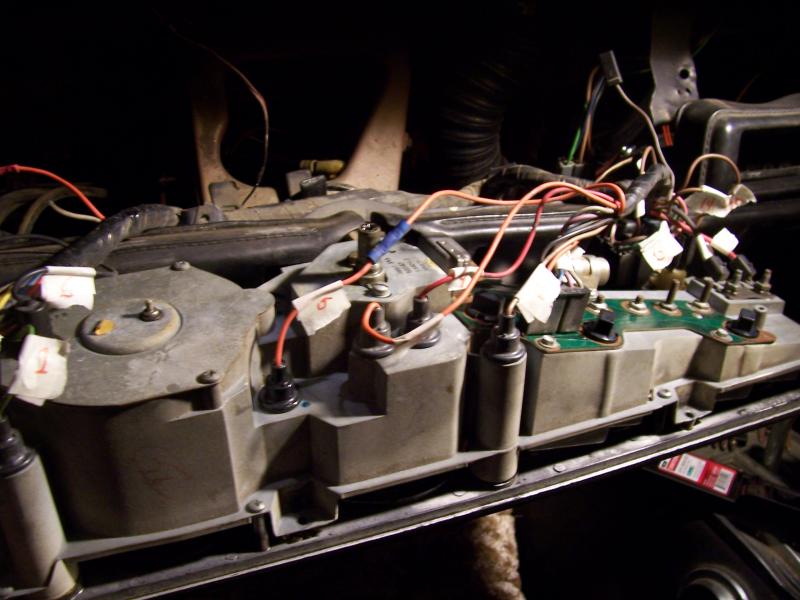

Here are a few pics of a '68 Rally Dash.....

- - - Updated - - -

One more...



[cdr]

i see a condenser on the backside close to the main cluster plug,mine does not have one & what is it for ??



[PUNKN8R]

I believe the condenser you speak of is for am radio electrical interference suppression.



[ChargerRTguy]

I believe the condenser you speak of is for am radio electrical interference suppression.

x2, I believe he is correct.
