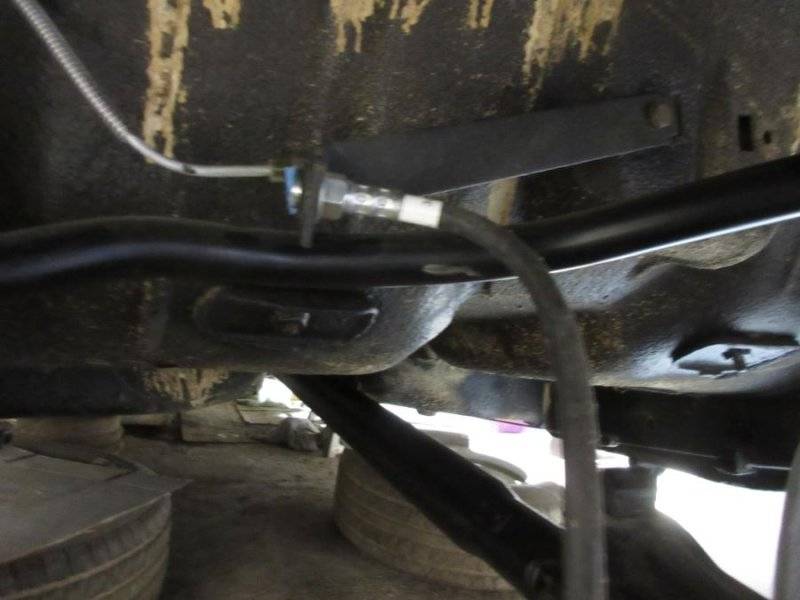

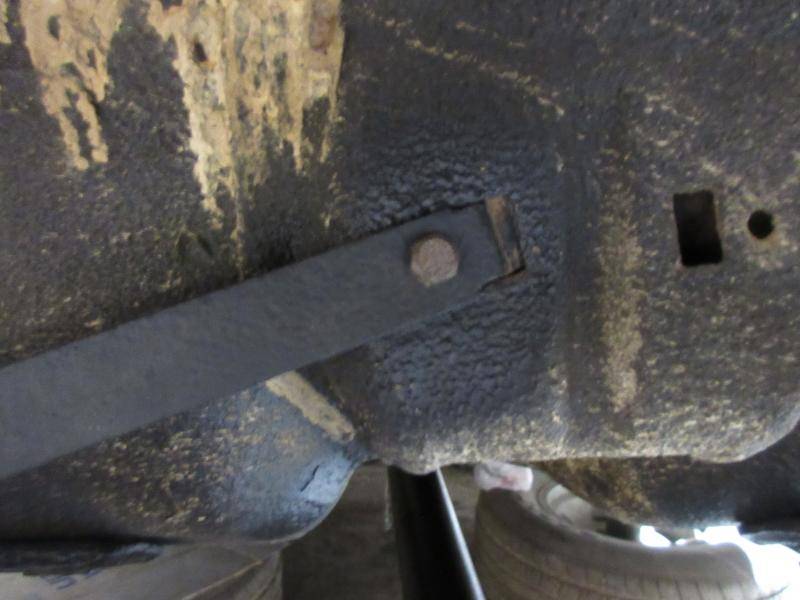

What size is this bolt at the top of the bracket, that holds it to the body? Mine's gone missing, hopefully I can find something at the hardware store to replace it.
Rear brake line bracket bolt
- Thread starter JR_Charger
- Start date
5/16 x 3/4 Long
JR_Charger
Well-Known Member
Medium thread? Is it a body bolt?
Yes
JR_Charger
Well-Known Member
I picked up a 5/16 and a 3/8 body bolt - the 3/8's pushes right through the hole. Something's not right here.
Hmm, I "just" installed this bracket a couple days ago on my own car so I know for a fact its a 5/16 bolt. And it bolts into a slamped hole, not a speed nut or whatever they're called. My guess is the hole is stripped - probably why the bolt is missing !!
So is this a photo of your car/bracket ?? What's the bolt that's in there in the photo ??
JR_Charger
Well-Known Member
It's one I dug out of the misc bin, it doesn't fit. I was trying to figure out where the bracket is supposed to be, because it looked like it was going to interfere with the aftermarket sway bar.
There's another slot and bolt hole on the passenger side. Is that also a 5/16" hole on your car? I've never used that hole, so I assume it's not stripped or rounded out. It's bigger than 5/16"s on my car.
The bolt is missing because I lost it. It held the bracket on securely. I really wish I could find it again just to see what it is. I'm sure it will show up after I replace it. Like a few things lately, I bet I put it in a good place so I wouldn't lose it.
So what year and model is your car?
JR_Charger
Well-Known Member
72 Dodge Charger.

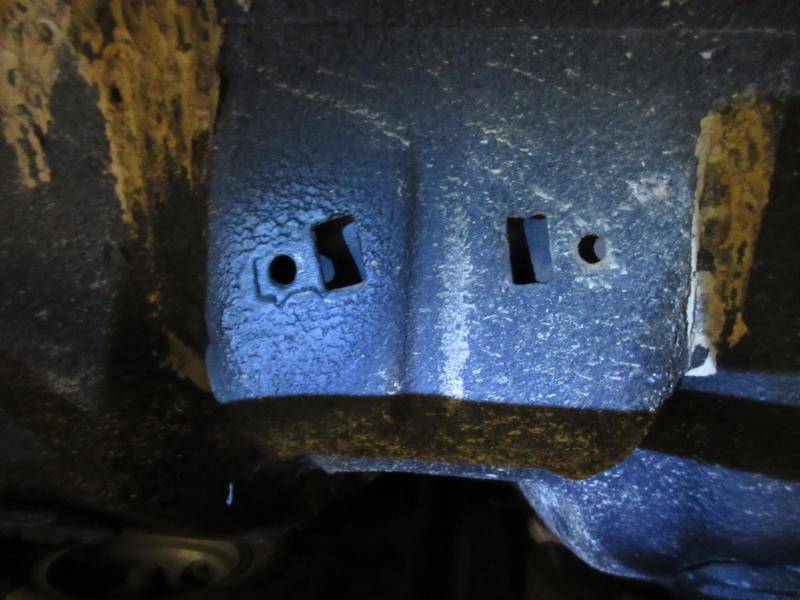

The hole does look enlarged in this picture, but it may be the undercoating creating an illusion -
The hole does look enlarged in this picture, but it may be the undercoating creating an illusion -
Looks enlarged to me.
JR_Charger
Well-Known Member

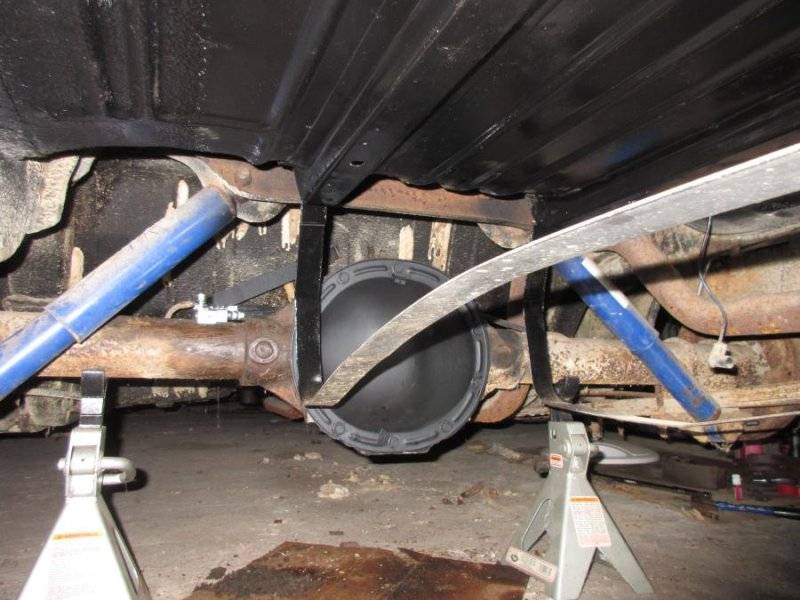

You can't see the bolt here, but it was holding the bracket on well after I cleaned it up and reinstalled it. This is before I went nutty, pulled the rear suspension, and cleaned up the whole thing -
Someone had put a regular bolt in the axle, in place of the vent bolt. That bolt is too large to go into the brake bracket bolt holes, but it's only a touch larger than a 3/8's body bolt.
Someone had put a regular bolt in the axle, in place of the vent bolt. That bolt is too large to go into the brake bracket bolt holes, but it's only a touch larger than a 3/8's body bolt.
Body bolts are all 5/16.

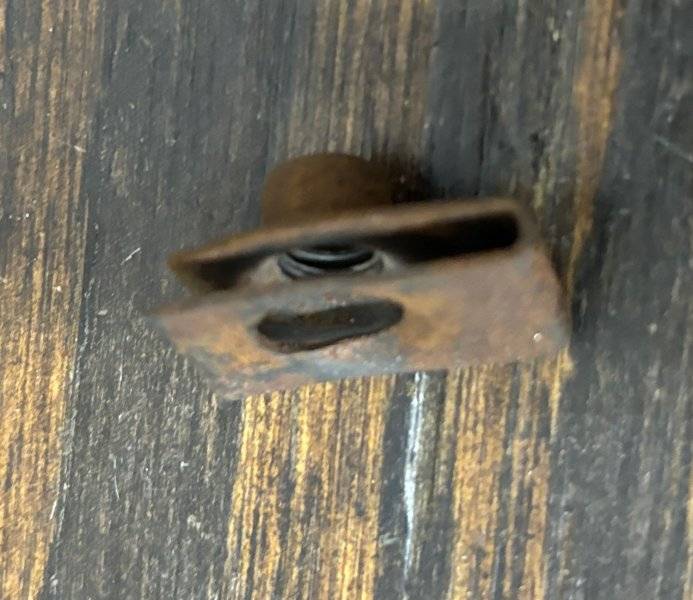

Your missing the captive clip. Looks like this.
5/16 - 18 is correct as Gkent said.
JR_Charger
Well-Known Member
Thank you! No doubt I pulled it to refinish, and forgot it was ever there. Now I can see the outline of it in the "elongated hole" pic I posted earlier. Was there a clip on the other side too? I think I can see where one was, but I don't know what it would have been used for.
Looks like its still in the other hole ... take that one out and use it.

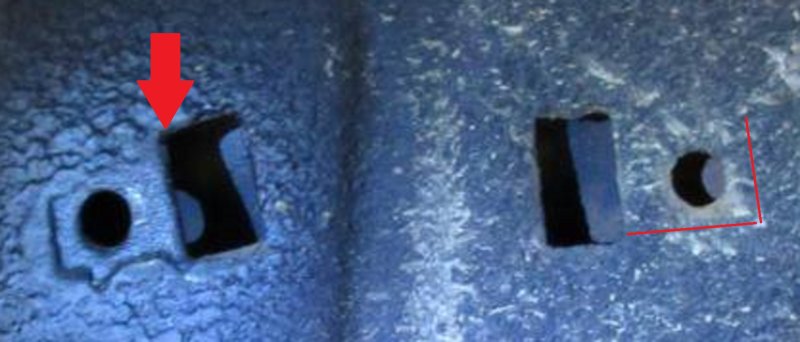

It could be the captive nut is just conpletely stripped . If you look where the arrow is pointing it looks like the edge of the clip where its rolled over. If you look at the other hole there seems to be a faint outline ... of an existing clip ??
JR_Charger
Well-Known Member

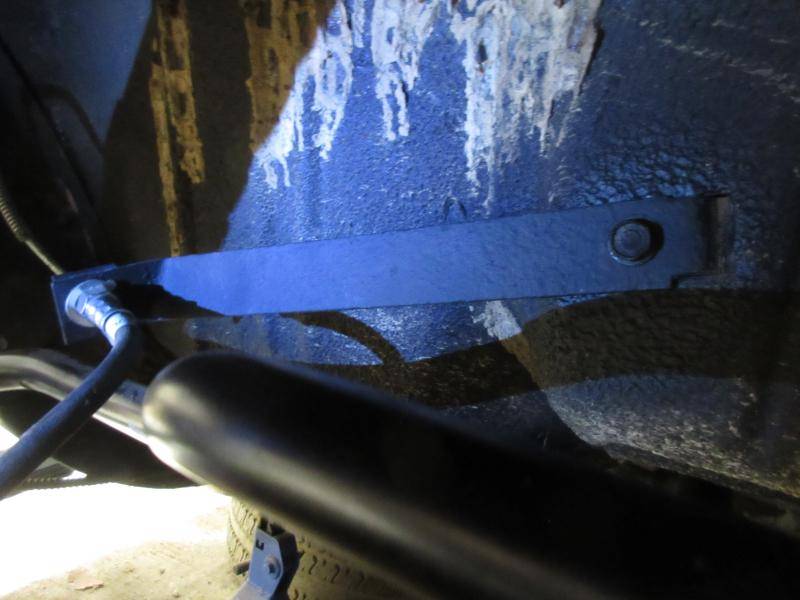

I found the bolt and bracket and got everything installed. Thanks for everyone's help!
