The Mopar Wiring Hall of Fame.

[Mr Gorsky]

Please feel free to submit your entries for this lowly regarded category of the Mopar Hall of Fame.

Winner will receive a mounted prestigious length of cable in the color of your choice. This trophy will of course have had the smoke released, as per the Mopar bulkhead connector standard.

First up, this fusebox with twig pic from my newly purchased '73 Charger :



[GetX'd]

Hardly a lowly regarded category. Probably the one we know the least about. At least IMHO. Will love to be following this one - and learning.....



[moparedtn]

Wow! An NOS fuse twig! Unobtanium, worth a small fortune.
I'd only heard legends of its' existence.



[kiwigtx]

For the eventual winner....a jar of Replacement Smoke...



[Lets Roll]

They should have added some tinfoil to replace those unreliable fuses too! ha ha



[Mr Gorsky]

For those who aren't mechanically (or electrically) minded, the negative post on your battery is smaller than the positive post (so you don't mix them up).

Turns out that the previous owner put a new (bigger) positive terminal onto the negative cable.....it wouldn't clamp down enough to make a good connection and wouldn't charge.

Sheesh.



[747mopar]

Now that's being creative while saving a couple dollars??!!



[Hanover Mopar]

My contribution
Under dash before rewire. Please note use of alligator clip (but shrink wrapped)



[Darthomas]

For the eventual winner....a jar of Replacement Smoke...

View attachment 349805

Wow, that's the expensive stuff.
Dealership swag, or smuggled out of the Lucas works?



['73bird]

For those who aren't mechanically (or electrically) minded, the negative post on your battery is smaller than the positive post (so you don't mix them up).

Turns out that the previous owner put a new (bigger) positive terminal onto the negative cable.....it wouldn't clamp down enough to make a good connection and wouldn't charge.

Sheesh.

I don't have a picture but in my 1974 Satellite someone replaced the negative battery cable lead with a positive one and when I went to put a battery in at dusk I shorted out the fusable link.



[kiwigtx]

Wow, that's the expensive stuff.
Dealership swag, or smuggled out of the Lucas works?

Designed (I believe) by a principal founder of the "Prince of Darkness" syndrome.



[Derwud]

For the eventual winner....a jar of Replacement Smoke...

View attachment 349805

On the hood of an E-type no less!!!



[68gtxman]

I stole this photo from someone else!



[Cranky]

For those who aren't mechanically (or electrically) minded, the negative post on your battery is smaller than the positive post (so you don't mix them up).

Turns out that the previous owner put a new (bigger) positive terminal onto the negative cable.....it wouldn't clamp down enough to make a good connection and wouldn't charge.

Sheesh.

Those temporary clamps are for temporary use only



[kiwigtx]

Those temporary clamps are for temporary use only

Just like this type of spare is for TEMPORARY use only...not for highway driving or doing massive burnouts...



[Darthomas]

Just like this type of spare is for TEMPORARY use only...not for highway driving or doing massive burnouts...

I thought polio had been cured a long time ago.



[rakort]

So I'm thinking this is the hall of shame, not the hall fame!



[rakort]

My contribution
Under dash before rewire. Please note use of alligator clip (but shrink wrapped)

I must say though, this is a first class cobble!



[kiwigtx]

I thought polio had been cured a long time ago.

Possibly....I heard that the Irish Polio Team have pulled out of the Olympics this year....all their horses drowned.



[Mr Gorsky]

So I'm thinking this is the hall of shame, not the hall fame!

Yeah, the irony of my first post might have been missed by some. Sorry!

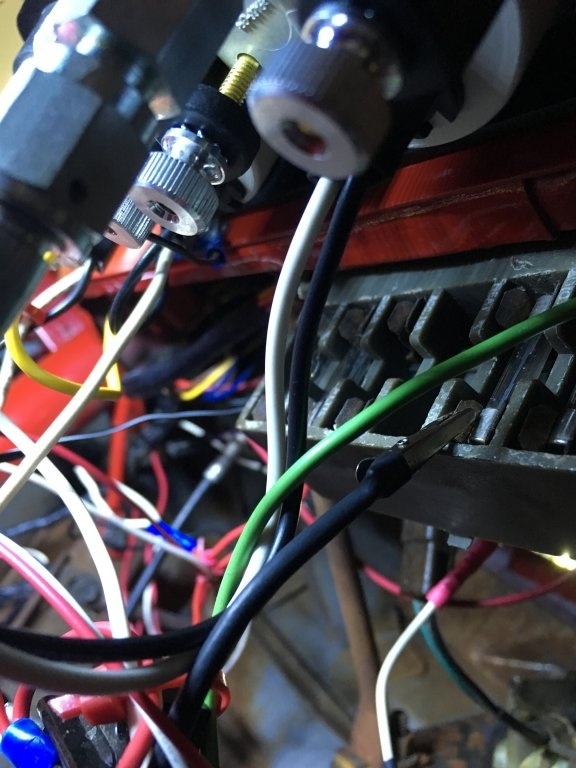

More of my '73 Charger. It might seem that this car of mine is a wiring nightmare, but most of this carnage is additional crap that I'm going to remove.
