The Mopar Wiring Hall of Fame.

[Mr Gorsky]

My contribution

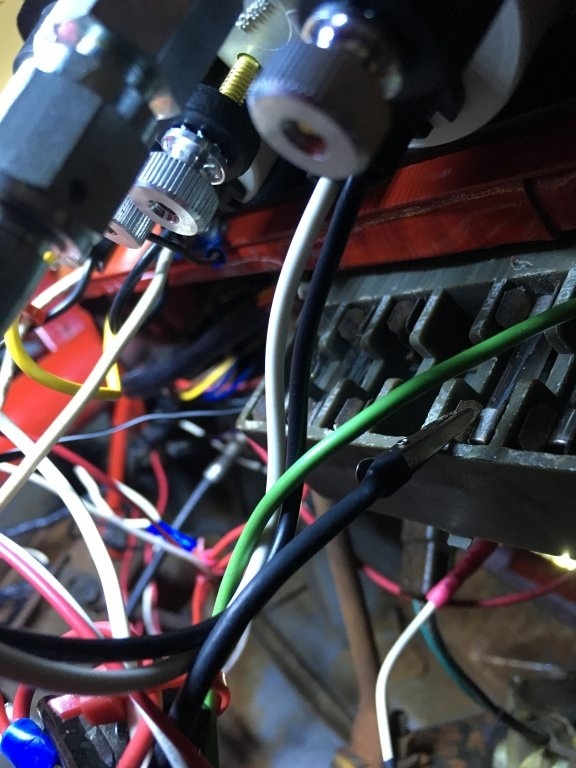

Under dash before rewire. Please note use of alligator clip (but shrink wrapped)...

A shrink wrapped alligator clip is at least a two generation advancement on a twig (first gen, no shrink wrap).

Much safer . lol.



[rakort]

Yeah, the irony of my first post might have been missed by some. Sorry!

LOL, yeah!

I've not gotten down to my pile of wires yet, but be sure you need to make it right as I will.

It's a huge undertaking, but maybe a car saving undertaking, rip ALL that shix out of there and and start from what you know is good, original, and not all hacked up.

Last time I did this was for my 68 chev truck (yeah, haters rag on, but I am a mopar convert now). I ended up taking apart 2 or 3 entire harnesses and merging them into one good harness. Hacked up wiring will burn your car to the ground. Fix it now, it's a top priority.



[rakort]

this is the stuff I am talking about. Scotch Locks! May the inventor of these burn in HELL!



[Sixpactogo]

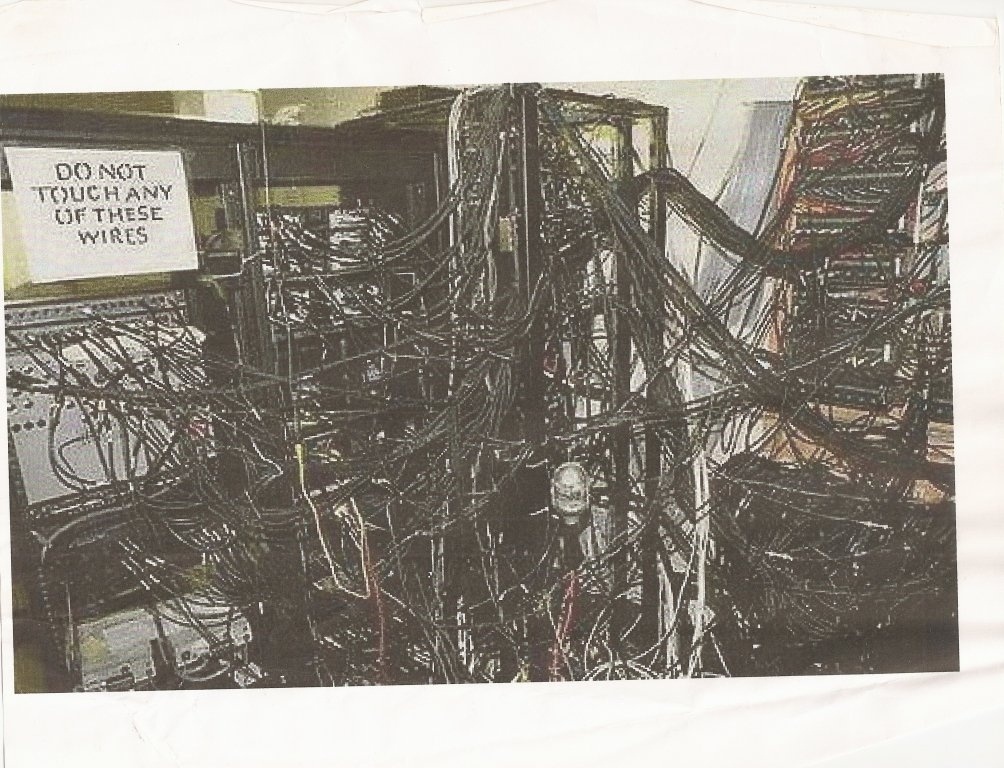

How would you like to sort this mess out? Not an automotive project but nasty none the less.



[rakort]

How would you like to sort this mess out? Not an automotive project but nasty none the less.

Which one do you plug in to turn on the trouble light?



[Sixpactogo]

Which one do you plug in to turn on the trouble light?

I'm guessing the bulb is burned out anyway



[64BEL]

My contribution
Under dash before rewire. Please note use of Roach clip (but shrink wrapped)

View attachment 349807

Fixed it for you.



[Hanover Mopar]

Thank you
