What does a '64 brake reinforcement plate look like?

[Nate S]

After much fun (or not) with an aftermarket booster / MC, I'm thinking about switching over to a factory booster with appropriate MC for discs. Starting with a manual brake car I obviously don't have the power brake reinforcement plate. All the later power systems have a 2:1 toggle lever but I don't think the early ones use that. Looks like it simply uses the lower hole on the brake lever. So questions...

Is that assumption correct? No toggle / lower hole?
Anyone have a snapshot of one of these without a booster in front of it?
Can I just hog out the hole for the apparently lower booster mounting position?
Will a C body booster fit?
Anyone have a booster / plate they'd like to sell?



[Big Bad Dad]

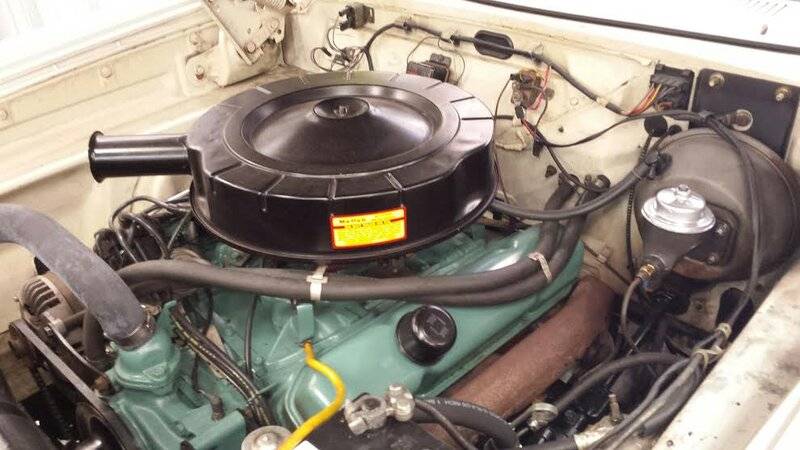

My 64 is an original power brake car.



[Nate S]

My 64 is an original power brake car.

View attachment 996901

If you look under the dash. Where are the booster studs and which hole on the brake pedal lever dose the linkage hook to?

Thanks



[moparmarks]

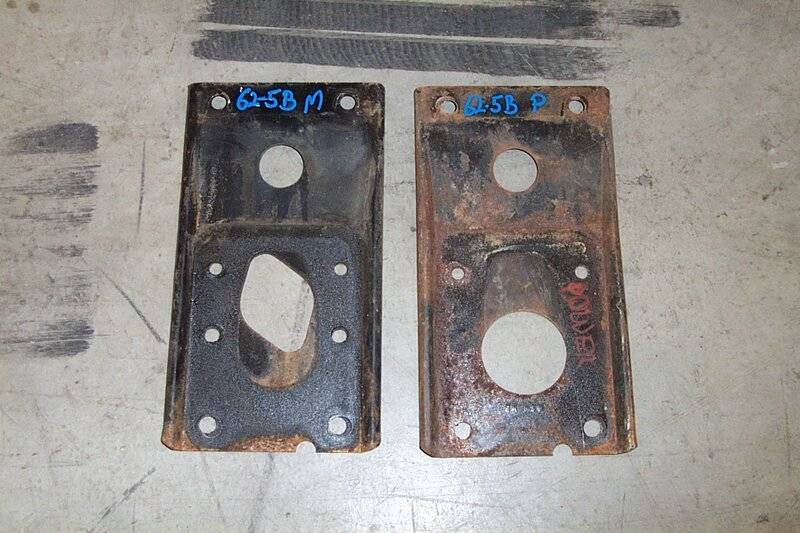

Like this.



[Nate S]

Like this.

View attachment 996907

JACKPOT! Exactly what I needed to see!
