Wiper transmission assembly to motor?

[Rck68]

Hi all,

I am trying to put together my wiper transmission assembly/linkage to the 2 speed wiper motor on my 68 charger.

Does anyone have a diagram of how this is supposed to be?

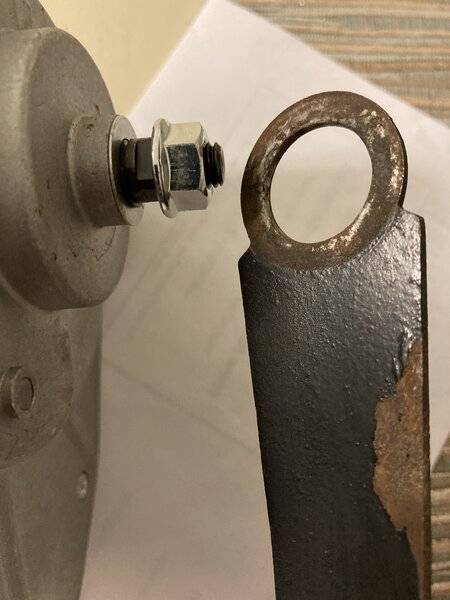

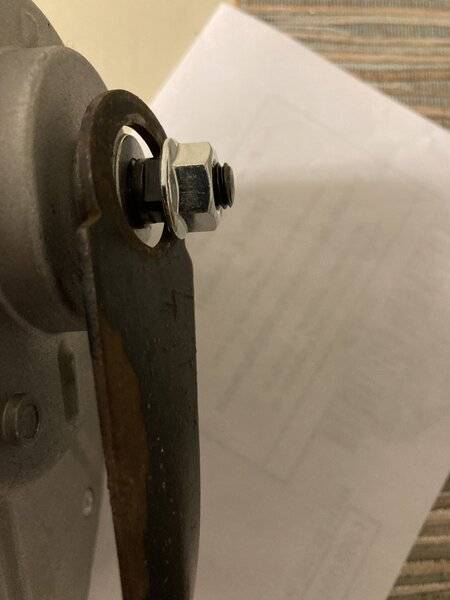

The hole on the end of the rod that attaches to the rotor of the motor, is twice as large as the diameter of the rotor.
What specific way do they attach there?

Thank for your time!

Rob



[snakeoil24]

Your missing the plastic eccentric yo9u can buy from Dodge boy or a number of mopar parts suppliers



[dadsbee]

..and the attachment arm...



[Rck68]

Your missing the plastic eccentric yo9u can buy from Dodge boy or a number of mopar parts suppliers

Is that what it’s called? The eccentric?



[Rck68]

..and the attachment arm...

Isnt that the attachment arm? I’ve never seen the whole assembly



[dadsbee]



[Rck68]

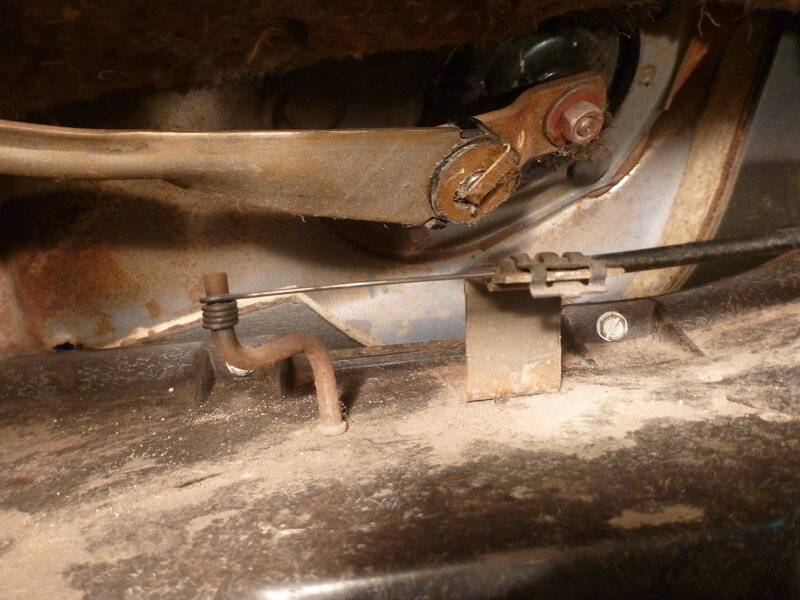

View attachment 1041937

Got it! Perfect picture, it’s called a wiper crank specific for 2 and 3 speed wiper motors.

thanks! Found it on eBay, for a bajillion dollars though



[dadsbee]

Put up a WTB advert here for the arm and eccentric assembly. Someone will help you out cheaper than EBAG!



[Rck68]

Put up a WTB advert here for the arm and eccentric assembly. Someone will help you out cheaper than EBAG!

Ok thank you!



[joerachet]

Rob, I have some wiper hardware and arms. Let me if you still need the.



[Rck68]

Rob, I have some wiper hardware and arms. Let me if you still need the.

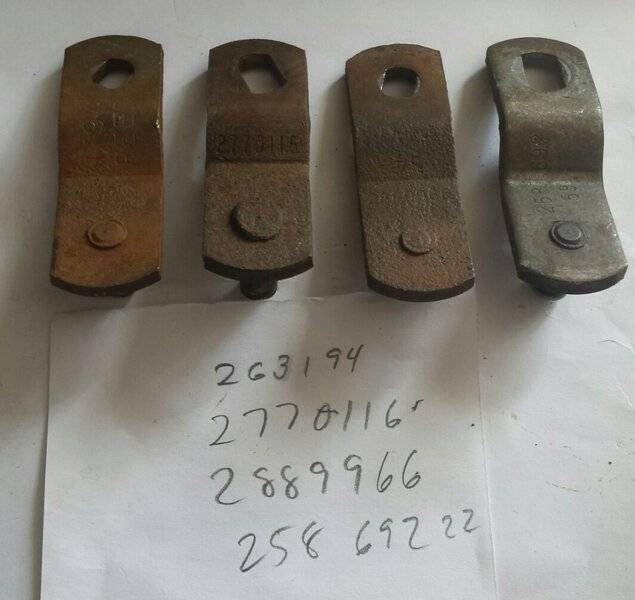

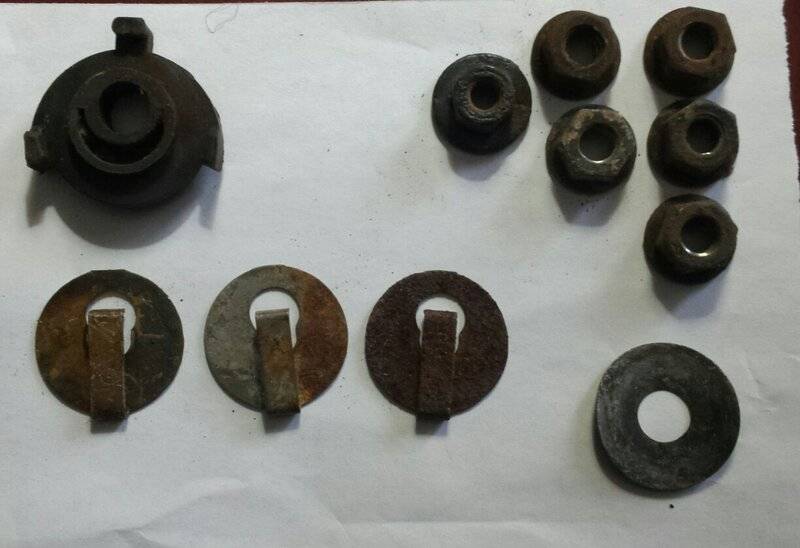

View attachment 1042036 View attachment 1042037

Thank you though I found one on eBay in my frenzy for a pretty penny. Will keep you in mind for future



[joerachet]

Glad you found what you needed.
