Wire Identification

[Jim McAdams]

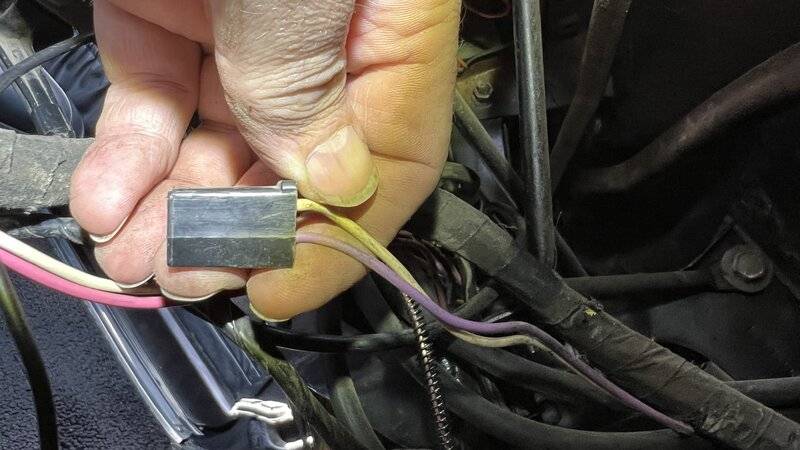

I’m trying to identify all of the wiring under the dash that isn’t connected to anything. The suitcase has been removed and I have identified those wires but the following I can’t seem to figure out. Anyone have any idea?

The vehicle is a 1968 Charger



[Sixpactogo]

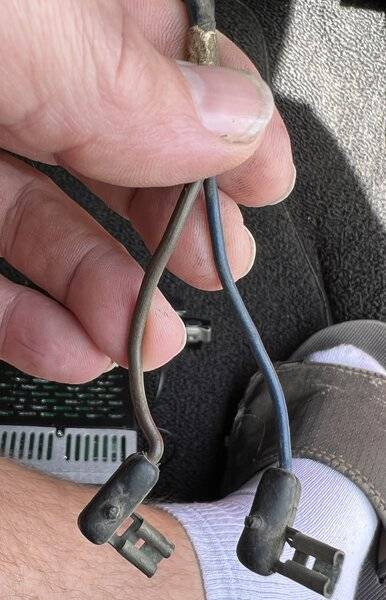

Not sure about the first pic but the brown and blue wires in pic #2 go to the timer on the bottom of the heater box to run the AC compressor for short periods of cold weather.

The Purple / Yellow connector could possibly be for the map light if your car has one.



[493 Mike]

Not sure about the first pic but the brown and blue wires in pic #2 go to the timer on the bottom of the heater box to run the AC compressor for short periods of cold weather.

The Purple / Yellow connector could possibly be for the map light if your car has one.

Pink and yellow are courtesy lighting color codes. And other dash lighting feeds.
Mike



[pnora]

That one looks like violet and white. If it is I believe it would go to the back-up light switch. The other two as said A/C time delay relay.



[493 Mike]

That one looks like violet and white. If it is I believe it would go to the back-up light switch. The other two as said A/C time delay relay.

I guess I was looking at the pair below the hand in the photo!
Mike



[Lefty71]

The wiring diagrams on MyMopar.com have been very helpful for most.



[Xp29h]

https://classiccarwiring.com/products/1968-dodge-charger-color-wiring-diagram

Not bad to have! But I think it can be blown up enough to see?



[Jim McAdams]

Thank you. That definitely makes sense with the brown and blue wires as they are in the same wire loom as the other AC/Heater box wires.



[Nacho-RT74]

Brown and blue, delay relay for the A/C system.

Yellow, door jam switch circuit
Pink, batt circuit.

Last ones, mostly sure as mentioned, for courtesy lighting circuit

HOWEVER I think they are white and violet?, if so, back up light circuit... column or floor shifter switch up to 68. White is 12 volts from Acc circuit, violet runs to the back up lights.
