wiring diagram for ralley dash

[dart6]

Can someone please post one or email for a 70 RR with ralley dash, no tacho. The one i have for a belvedere ralley dash is nothing like what i am looking at.
Actually if anyone has the complete diagrams that would be a bonus

Thanks in advance



[kiwigtx]

PM coming....I may be able to help with that.



[Beekeeper]

You can download it for free at mymopar.com



[Lionized]

You can actually download the entire FSM.

http://www.mymopar.com/index.php?pid=109



[soundhd]

I have a copy of the 1970 Service manual and last time I looked I could not find anything on the Rally Gauge Cluster...it's like it does not exist........in the manual anyway.......nothing about it at all....no instructions on how to remove or install it.....or anything...........I will say that GM did make better shop, service and chassis manuals.

You can actually download the entire FSM.

http://www.mymopar.com/index.php?pid=109



[Lionized]

I have a copy of the 1970 Service manual and last time I looked I could not find anything on the Rally Gauge Cluster...it's like it does not exist........in the manual anyway.......nothing about it at all....no instructions on how to remove or install it.....or anything...........I will say that GM did make better shop, service and chassis manuals.

Chapter/section 8 in the 1969 FSM covers electrical including wiring diagrams for the rallye instrument cluster. I'm guessing they didn't include it in the 1970 manual because it was already covered in 1969...including removal.



[dart6]

I have the 2 volume 70 plymouth manual and there is nothing for the GTX or RR ralley dash, bloody frustrating



[soundhd]

Think you could somehow post the information from the 69 manual?

thanks

Chapter/section 8 in the 1969 FSM covers electrical including wiring diagrams for the rallye instrument cluster. I'm guessing they didn't include it in the 1970 manual because it was already covered in 1969...including removal.



[Lionized]

Think you could somehow post the information from the 69 manual?

thanks

Not exactly sure how to post individual pages from a pdf file. Here are screens of the manual on my phone though.

Remember, the download is absolutely free. I have a copy on my phone and on my PC...as well as a hardcopy.



[dart6]

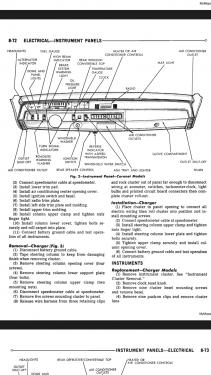

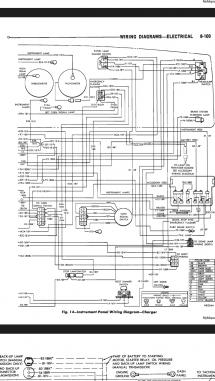

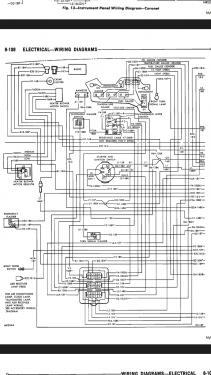

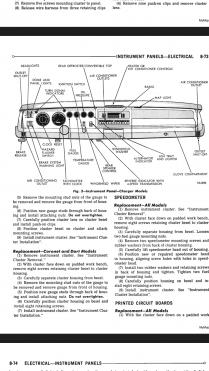

Not exactly sure how to post individual pages from a pdf file. Here are screens of the manual on my phone though.

Remember, the download is absolutely free. I have a copy on my phone and on my PC...as well as a hardcopy.

View attachment 303933
View attachment 303934
View attachment 303935
View attachment 303936



[dart6]

I also have the 70 ralleye dash with no tach.
I'm trying to figure out which bulb is for the high beam when on.I have 6 wired bulbs.
3 x orange, brown for rh t/s, green for lh t/s and a red one which plugs in between the speedo and deleted tach at the lower part.
I'm guessing it's the red one. Can anyone confirm this.

I get no power to the red one when lights are on or off whether engine is running or not. Verified with a test light.
Or is this an ignition light when key is on the on position, if it is i get no power to it when key is in the on position



[Beekeeper]

The red is indeed the high beam indicator



[dart6]

The red is indeed the high beam indicator



[dart6]

Thanks for that.
Ok does anyone see a problem with this, i'm thinking of running a wire from the high beam terminal on the floor switch to that red wire



[Beekeeper]

have you checked the ground for the circuit? Also do a continuity test from the red wire at the dimmer to the red wire at the dash. If your high beams are working
You have voltage. The indicator wire is doubled up with
high beams at the bulkhead connector on point Y



[Lionized]

...and a red one which plugs in between the speedo and deleted tach at the lower part.
I'm guessing it's the red one. Can anyone confirm this.

I can confirm that is not where the high beam indicator plugs in. There is a plug socket at about the one o'clock position on the back of the speedo. Between the 80 and 90 mph indications.



[Photon440]

Chapter/section 8 in the 1969 FSM covers electrical including wiring diagrams for the rallye instrument cluster. I'm guessing they didn't include it in the 1970 manual because it was already covered in 1969...including removal.

Since the 1969 GTX and road runner didn't get the rallye cluster, it's odd that it would be in that year's manual. No surprise that it's missing from the 1970 manual though, just like the complete lack of pop-up air grabber info.



[Beekeeper]

My 69 dodge factory service manual dose not have a wiring diagram specific to the rally dash but all wire colors are the same. I just finished wire check and continuity testing on my rally dash in my bee and all
Colors and wire designations are the same.



[Lionized]

Since the 1969 GTX and road runner didn't get the rallye cluster, it's odd that it would be in that year's manual. No surprise that it's missing from the 1970 manual though, just like the complete lack of pop-up air grabber info.

My 69 dodge factory service manual dose not have a wiring diagram specific to the rally dash but all wire colors are the same. I just finished wire check and continuity testing on my rally dash in my bee and all
Colors and wire designations are the same.

I've got the 1969 Dodge Charger/Coronet/Dart FSM. It's in there.



[Beekeeper]

Yea I just looked it's there. I just used the standard schematic
