Wiring Questions 69 Bee Rallye Dash

[dspur]

Two Questions

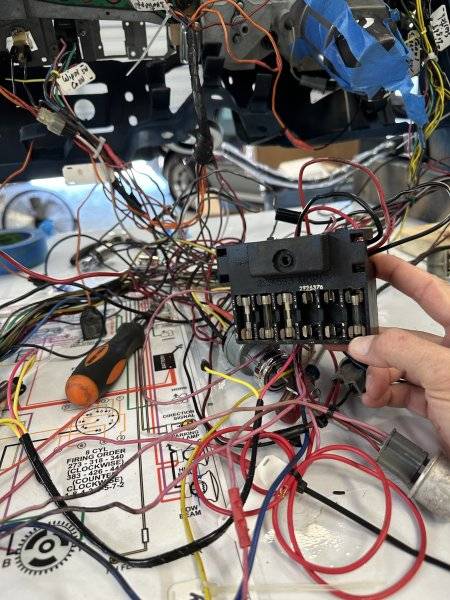

1) It has been a couple years since I removed dash and have totally forgotten where the fuse box mounts, dumb and probably obvious but help an old guy out anyway.

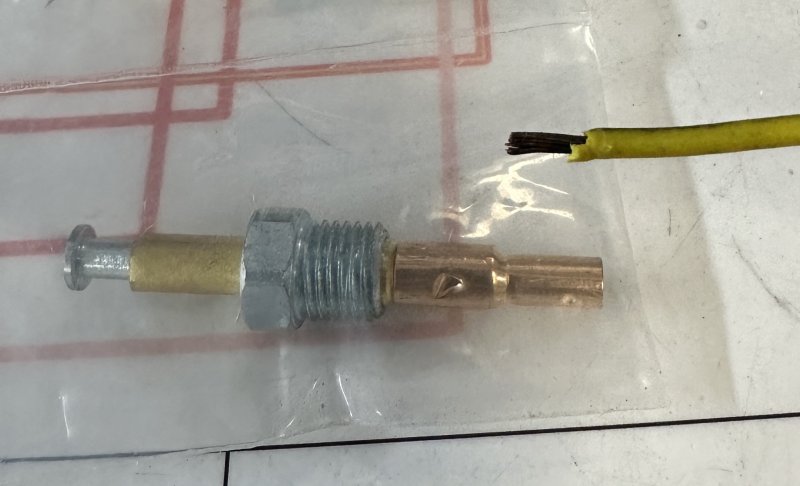

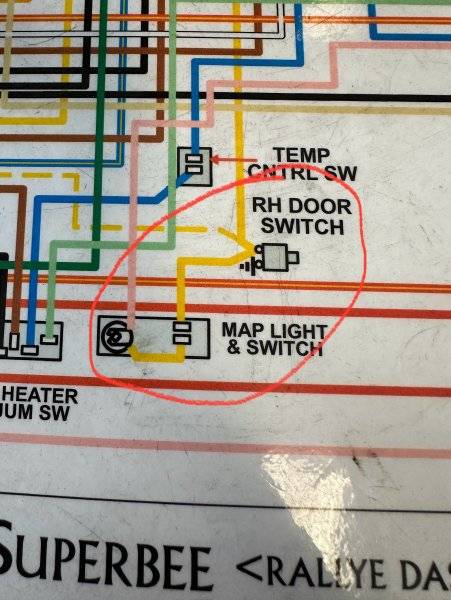

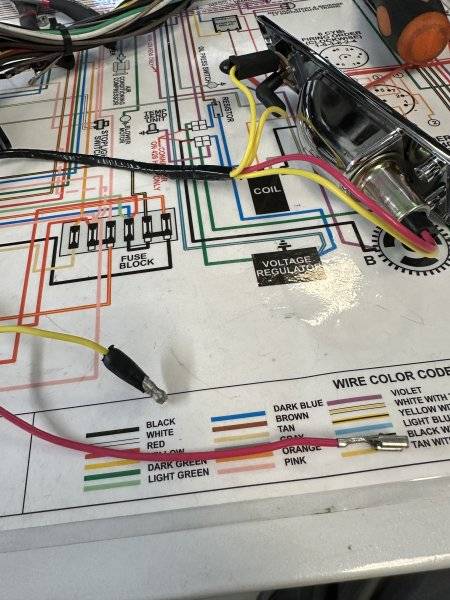

2) my dash has the map light with switch. I have a new one. Pic attached. On the diagram (pic attached) the wiring from the map light -pink goes to fuse block. Yellow goes to the panel light switch via the rh door switch. That wire is cut off and has no connections. How do I connect the wires going through the door switch that has a single pole connection?
TIA



[dan juhasz]

fuse box behind glove box liner left side of liner has access door to get to fuses



[dspur]

fuse box behind glove box liner left side of liner has access door to get to fuses

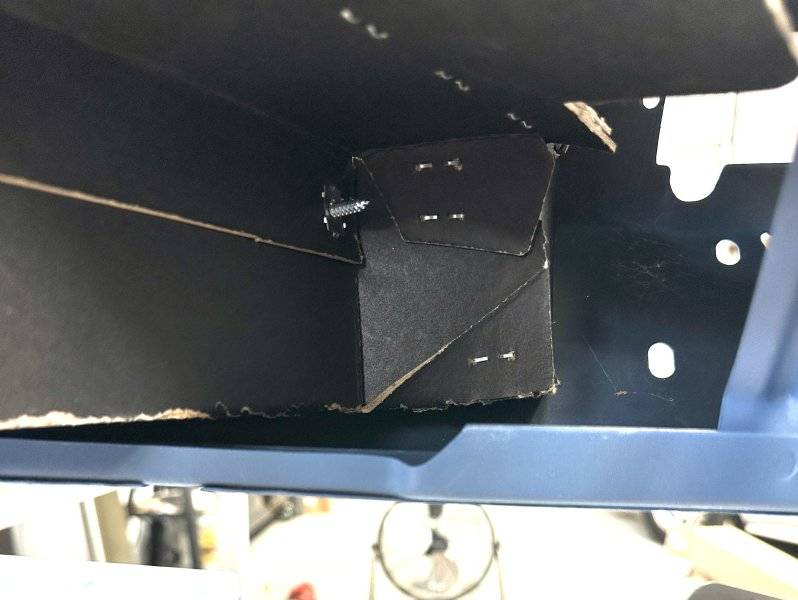

That is what I thought but nothing “metal” that I can see to attach it to. I must not be looking at something correctly. Thx



[dan juhasz]

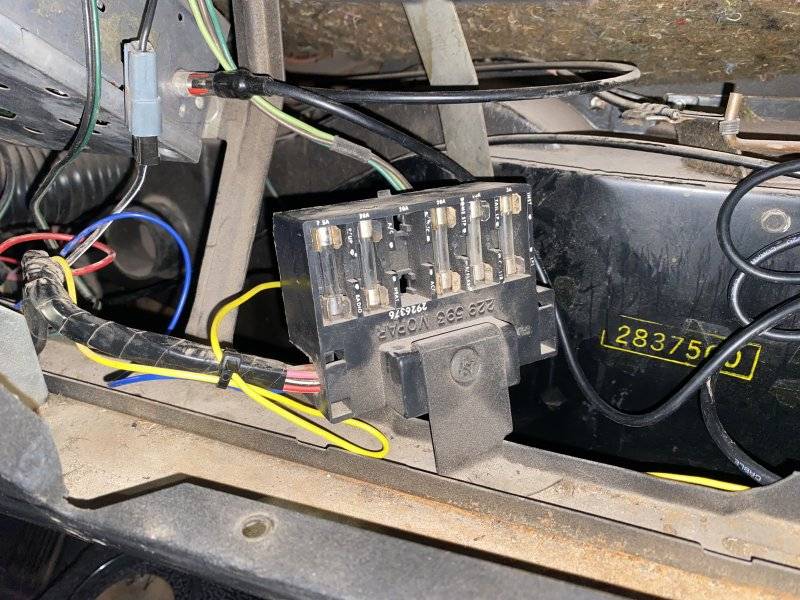

My liner is getting replaced. This is the bracket that should be there



[Bird 426]

Personally, don't care for the laminated wiring diagrams. Seems like not all things are accounted for, such as accessories. Always seem to find them on other models and you just have to figure it out. Seems like my glove compartment light had a weird harness to the door switch and points beyond.



[dspur]

My liner is getting replaced. This is the bracket that should be there

View attachment 1677342

Thanks. Evidently mine is missing the metal bracket. Guess I’ll have to make one. Doubt I can source that. Thanks so much.



[dspur]

Personally, don't care for the laminated wiring diagrams. Seems like not all things are accounted for, such as accessories. Always seem to find them on other models and you just have to figure it out. Seems like my glove compartment light had a weird harness to the door switch and points beyond.

I love it. I have found it to be very accurate for the most part and it is easy on these old eyes.



[dspur]

My liner is getting replaced. This is the bracket that should be there

View attachment 1677342

I have additional questions if you don’t mind. (1) Is that bracket metal? and 2) how is it attached, spot weld? Thanks much.



[pnora]

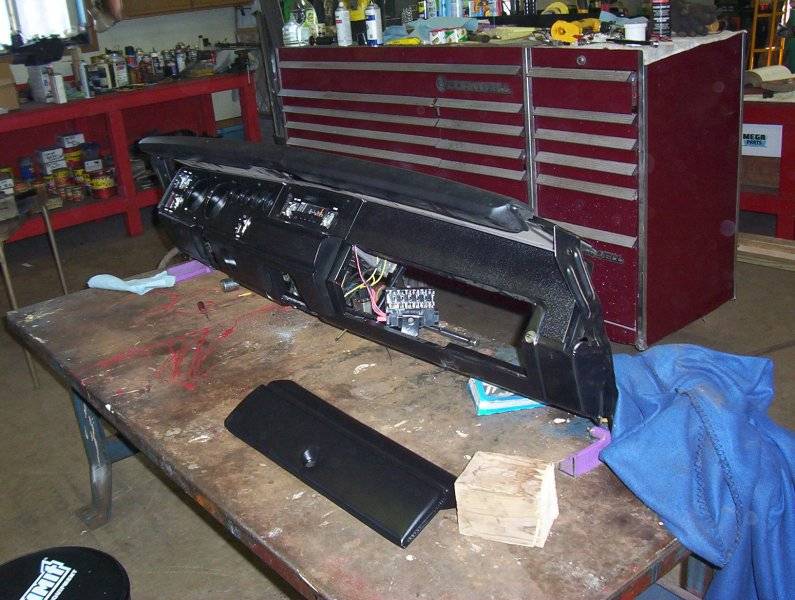

It is spot welded to the dash frame.



[dspur]

It is spot welded to the dash frame.

View attachment 1678353

Ok that is what I assumed. Thanks
