1969 383 oil pressure sending unit

[paul1969cars]

Hi

Im just wondering what is the correct oil pressure sending units for a stock 1969 383 4 spd car. I took a snip of this on the forum and posting it.

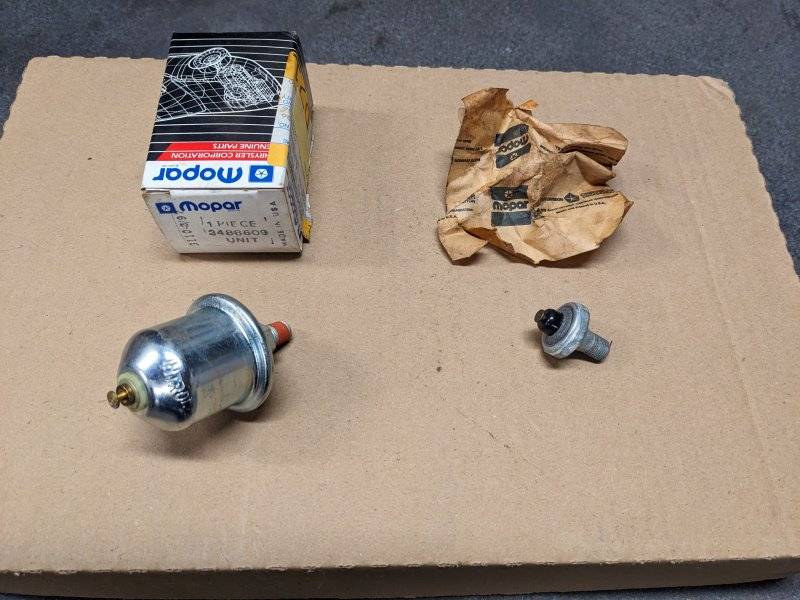

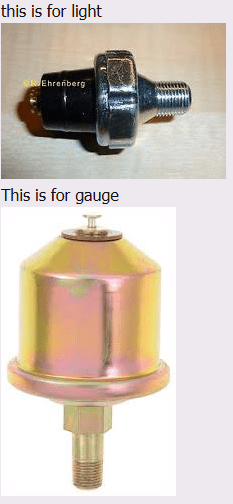

The top image is what I had on the car. Dont know if the dash board cluster matters or not. I have non rally dash in roadrunner

I thought he sending unit was the bottom image

What is the difference and what is correct.



[dadsbee]

Top is for standard dash idiot light, lower is for Rallye dash with a gauge.



[paul1969cars]

Top is for standard dash idiot light, lower is for Rallye dash with a gauge.

thanks

be well



[Black_Sheep]

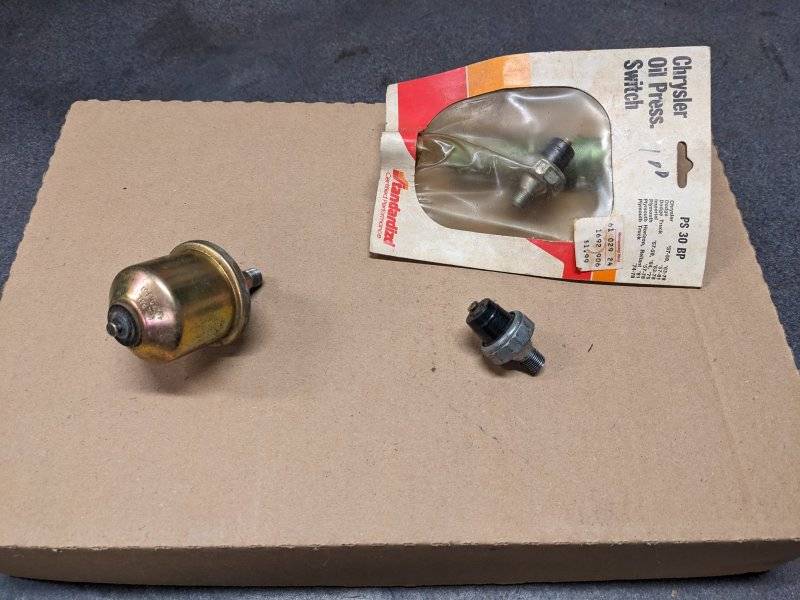

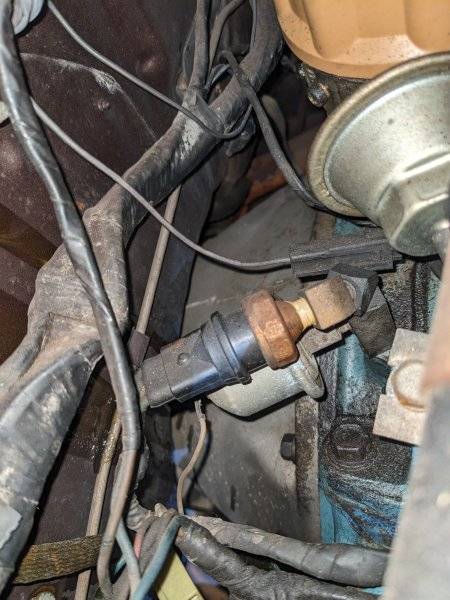

The "idiot light" sender on my '69 looks different than the one in the OP, it is shorter with a blue plastic insert instead of black. I believe it was original to the car..



[paul1969cars]

thanks



[Richard Cranium]

The "idiot light" sender on my '69 looks different than the one in the OP, it is shorter

Obviously, yours is less manly.



[Black_Sheep]

Obviously, yours is less manly.

Great, now I have an oil sensor inferiority complex…



[Cranky]

Obviously, yours is less manly.

Great, now I have an oil sensor inferiority complex…
