1972 Vapor Return Line & Fuel Line Pictures to Gas Tank

[Charger72]

I'm stumped, didn't take nearly enough disassembly photos of the car. I'm pretty sure I have the fuel line hooked up but am not sure of the routing of the vapor return line.

I have the FSM and reference guides etc, but I need actual photos to understand.

This is the fuel line from my car.

Found this on one of the forums coming out of the vapor cannister:

How is the vapor line routed to the vapor cannister? Does it run by the gas tank near the shocks?



[T2R9]

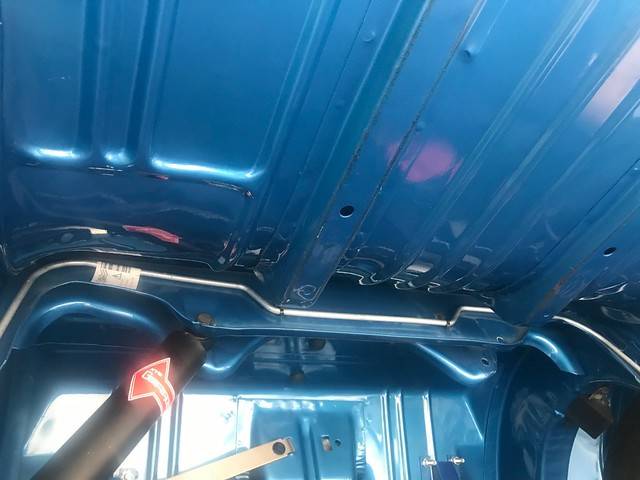

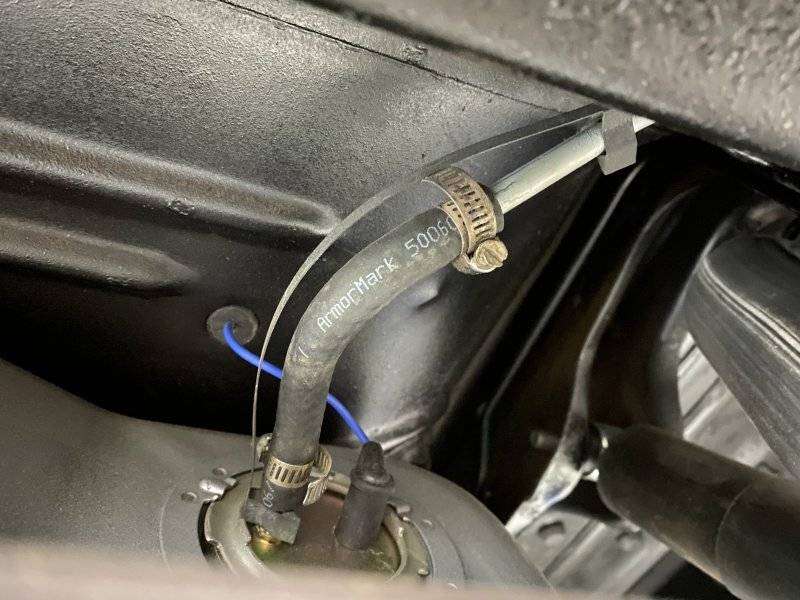

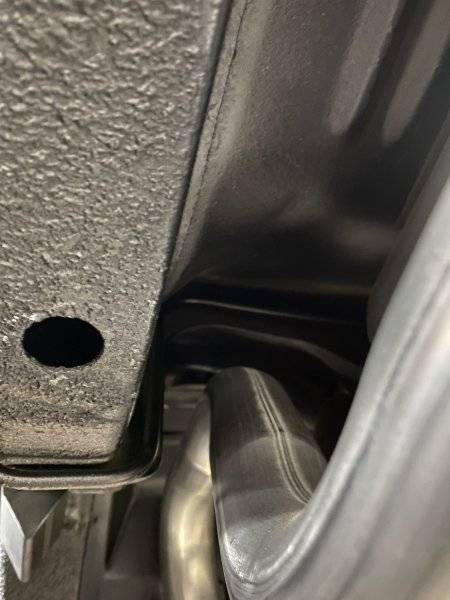

It runs over on the shock tower. You will see two holes for the clips to snap into. Pics are kinda hard to see but it runs up and over between the tank on the tower. One pic you can see the clips in the holes from the back side.



[Charger72]

T2R9, thank you very much for the pictures!! I've been really frustrated trying to figure it out.



[Charger72]



[T2R9]

Perfect!
