440 Engine Numbers
- Thread starter '69Net
- Start date
1badgtx
Well-Known Member
Under the passenger side exhaust manifold...
Petty Blue 67 gtx
Petty Blue 67 gtx
TheGodfather
Well-Known Member
Engine #'s
If your looking for the Block casting #'s? Look for them on the side of the block just above the freeze plugs and below the exhaust manifolds. No need to take anything off to see them. Crawl under the car with a LED light.
If your looking for the Block casting #'s? Look for them on the side of the block just above the freeze plugs and below the exhaust manifolds. No need to take anything off to see them. Crawl under the car with a LED light.
MoparBill
Well-Known Member
Passenger side of the block, below #4 cylinder, just above oil pan rail. This is the case for '68 and newer, if you have a '67 or older motor, it will not have a VIN #. Good luck!
detmatt1
Well-Known Member
Not that it applies here, but the vin was located in a different location in `68, up near the oil pressure sending unit on big blocks.
terzmo
Well-Known Member
I agree with mopar Bill
Meep-Meep
дворянин
There can be three places to look for ID. The block casting number in the location mentioned, the partial VIN stamp and the basic engine ID markings on the pad by the distributor.
By the way, Matt is spot on about the 68 VIN location. 69 and later had it stamped on the machined pad above the pan rail.
By the way, Matt is spot on about the 68 VIN location. 69 and later had it stamped on the machined pad above the pan rail.
'69Net
Well-Known Member
Thanks for the replies Fella's.
I found the pad You mentioned today, but there are No numbers on it..same as the dizzy pad....unless the paint, which is quite thick is covering them? then I don't have any numbers.
Trying to figure out how the car was imported too Australia with No engine number?
I found the pad You mentioned today, but there are No numbers on it..same as the dizzy pad....unless the paint, which is quite thick is covering them? then I don't have any numbers.
Trying to figure out how the car was imported too Australia with No engine number?
detmatt1
Well-Known Member
The #s on the pad by the distributer may very well be too light to read because of the paint, but give it a closer look and bust out a magnifying glass to help. You won't find a serial/vin # there though but what you will find is a single letter abreviation for the model year. For example if your engine came out of a `69, it would have an E stamped before 440. An assembly date was also stamped on this pad along with info pertaining to bearing and bore sizes and this will also be where the block would be stamped with an HP for high performance apps. If the pad is blank, the engine could have been a warrenty replacement unit. If the pad is blank you can look on the side of the block for the casting date to determine what year the engine was built for. If this date is earlier then the first half of `67 you will not find any sort of serial or vin number on it.
detmatt1
Well-Known Member
If "T" is the where it would be Trenton Engine plant, where most of the big blocks were made.
detmatt1
Well-Known Member
Are you reading those #s upside down? It would make more sense to me if it said E 440, which is `69 440. It would also make more sense if the maltese cross was before the 2 which would indicate that the 2nd main bearing is undersized from the factory. The serial number will/should be located on the bottom of the block on the passenger side near the oil pan flange at the rear. This will be a 13 digit # that breaks down like this:
PT=Trenton plant, 440 are the next 3 #'s = displacement, the next 4 numbers are a 4 digit date code based on a 10,000 day calender and the last 4 digits indicate what number of engines built that day. Lastly if the letter "S" appears after the 440 that would indicate high performance use but since you found no HP stamp on the pad by the distributer, I'm thinking you're not going to find an "S" in the serial #.
PT=Trenton plant, 440 are the next 3 #'s = displacement, the next 4 numbers are a 4 digit date code based on a 10,000 day calender and the last 4 digits indicate what number of engines built that day. Lastly if the letter "S" appears after the 440 that would indicate high performance use but since you found no HP stamp on the pad by the distributer, I'm thinking you're not going to find an "S" in the serial #.
racedodge
Well-Known Member
maltese cross represents .001" UNDERsized on the crankshaft
Last edited:
69Coronetrt
Well-Known Member

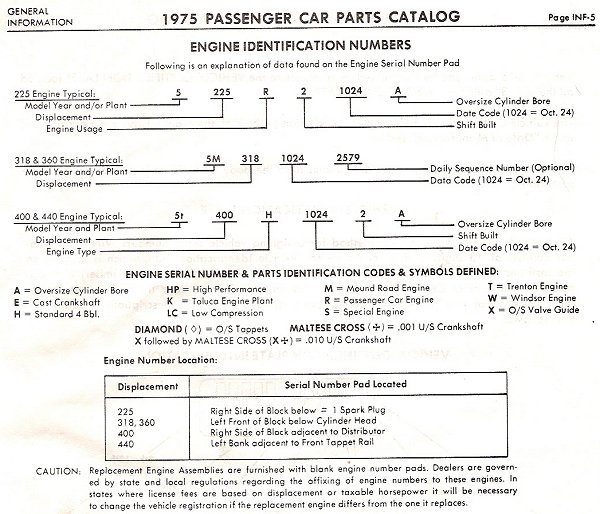

This is from 75 but applies to 1977
Attachments
'69Net
Well-Known Member
Ok update again.......got the dizzy pad #'s slightly wrong,( No I was not upside down..lol)
7T 440 E
2... 1... +............................................................... += maltese cross
so I understand this to be.
'77 Trenton 440 cast crank
with the 2 missing the rest of the month and 1 the first shift, .001 over crank
there are no numbers on the pad above the sump pan.... above this pad are the casting numbers...
7T 440 E
2... 1... +............................................................... += maltese cross
so I understand this to be.
'77 Trenton 440 cast crank
with the 2 missing the rest of the month and 1 the first shift, .001 over crank
there are no numbers on the pad above the sump pan.... above this pad are the casting numbers...
detmatt1
Well-Known Member
My bad, I went out to take a look at 1 of mine, will post some pics I took in the morning, and the serial # is on the drivers side.
