440 plug wire routing

[zimmstoy]

does anyone have a few pictures they can share with me on how best to route the plug wires on the drives side of a 440? I am running stock manifolds on a 67 Coronet R/T.



[Meep-Meep]

I don't have a pic but this might get you going. #7 runs along the inside of the valve cover (next to the intake ports) and the others go down along the front of the head and hook to the plugs from the bottom.



[Pistol Pete]

Bracketry help here, go to electrical-ignition-scroll down to general reference

http://amhightechauto.com/



[Pops1967GTX]

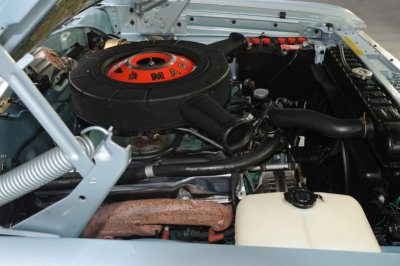

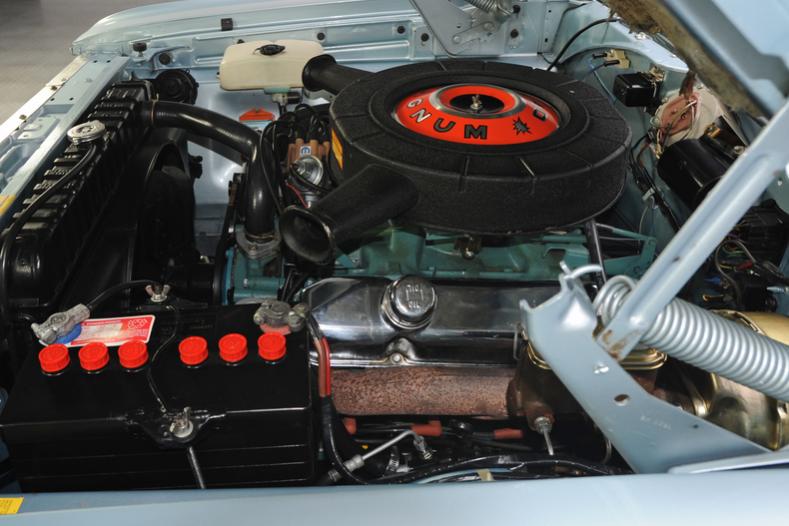

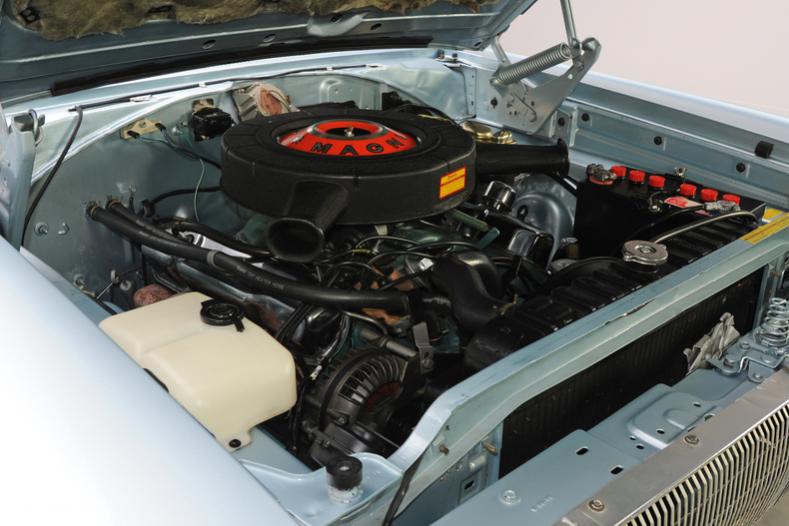

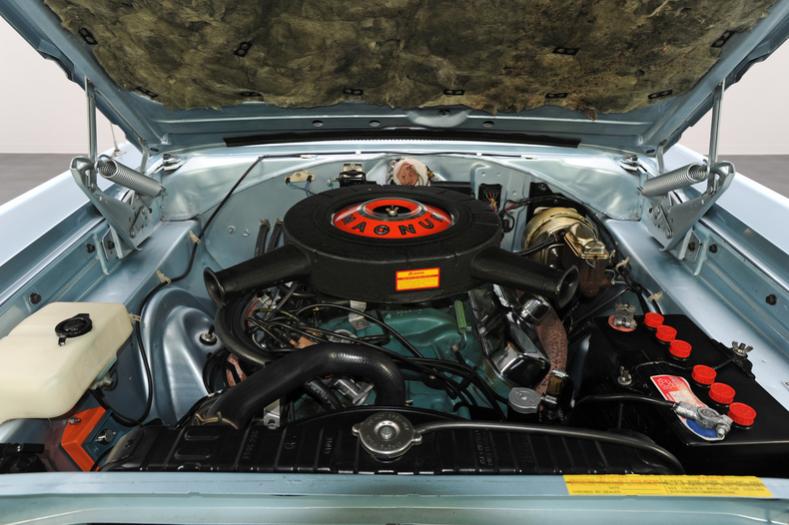

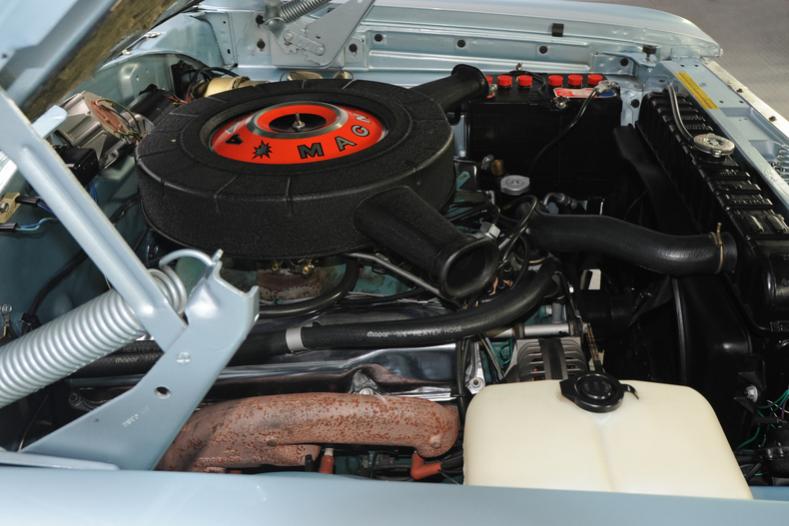

A few pics from 67 rt



[dancingsteven]

Go online and do a search mopar big block wiring pictures it should show some ways to wire the loom in the correct place!
