67 GTX Dash Harness

[moparchris]

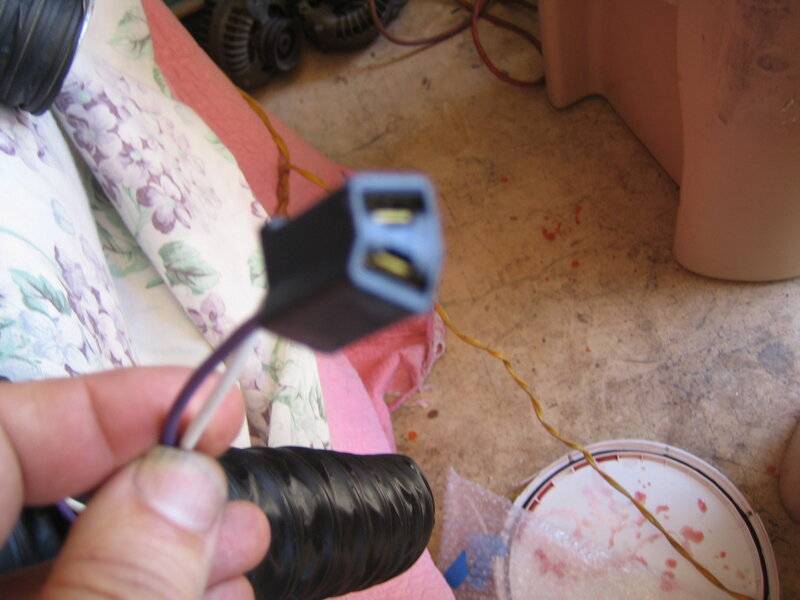

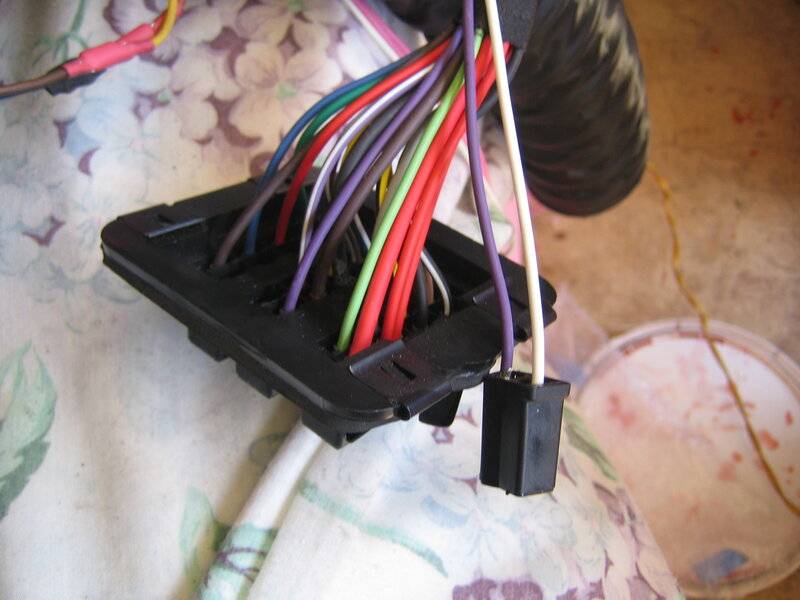

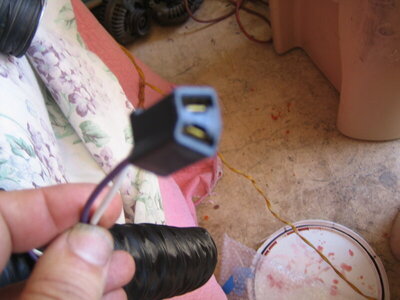

So I'm ready to install the dash on my GTX and I want to make sure I know what the plug that is pictured is for. It appears to be designed to go through the fire wall very close to the bulkhead connector. However I cannot find it shown in any wiring harness drawings and there is not a hole in my firewall that I can seem to use for it to pass through into the engine compartment.
Any suggestions??



[copper67sat]

I believe that goes to the back-up lamp switch for an automatic.



[Aarons Air]

I may be wrong, but i think it plugs into the steering column harness.



[moparchris]

No plug for it on the steering column harness. I will look at the auto trans suggestion. My car's a stick, so maybe that's why I don't see a hole in the firewall for it??



[copper67sat]

I may be wrong, but i think it plugs into the steering column harness.

That may the case if it's column shift or it plugs into the console harness in DS kick panel.



[moparchris]

Yup. auto trans reverse wiring. No need for that!! Thanks Copper67sat!!!!



[Aarons Air]

No plug for it on the steering column harness. I will look at the auto trans suggestion. My car's a stick, so maybe that's why I don't see a hole in the firewall for it??

Sorry Chris. I remembered seeing it by my column and assumed.



[copper67sat]

Sorry Chris. I remembered seeing it by my column and assumed.

@Aarons Air you weren't wrong. I checked my spare col. shift column and it does connect down near the bottom so this dash harness is for a col. shift auto car.

OP has a 4 spd. I don't know what it uses for the b/u lamp switch.
