72 plymouth fuel line help!

[CDN-Sebring]

does anyone know the proper way to hook up the lines running from the driverside of the gas tank up into the fender/wheelwell? theres 4 total. 2 small ones and 2 larger ones if I recall. I believe they're emission control lines. pictures would be great! thanks



[72Satellite440]

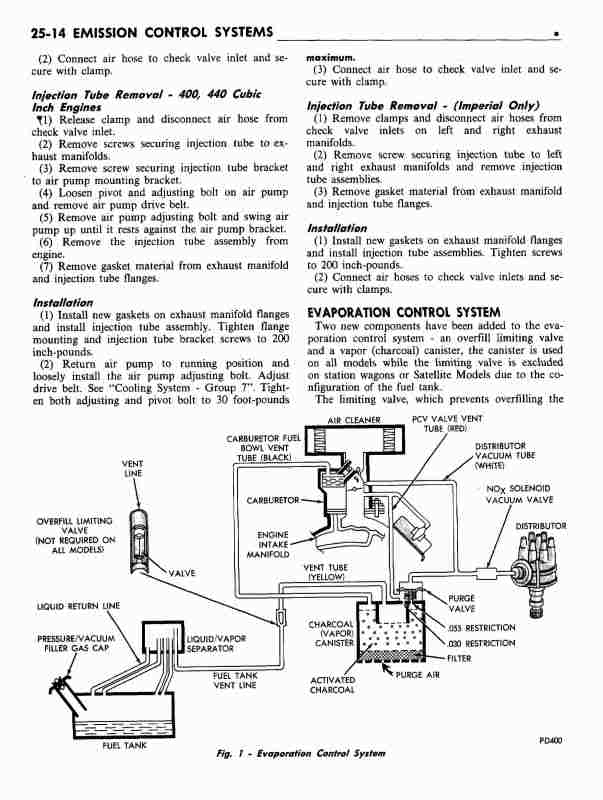

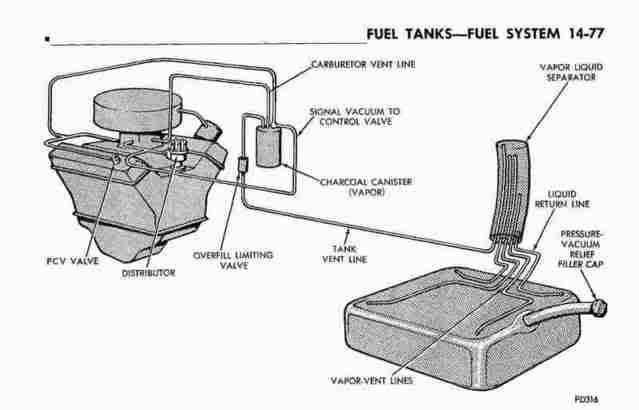

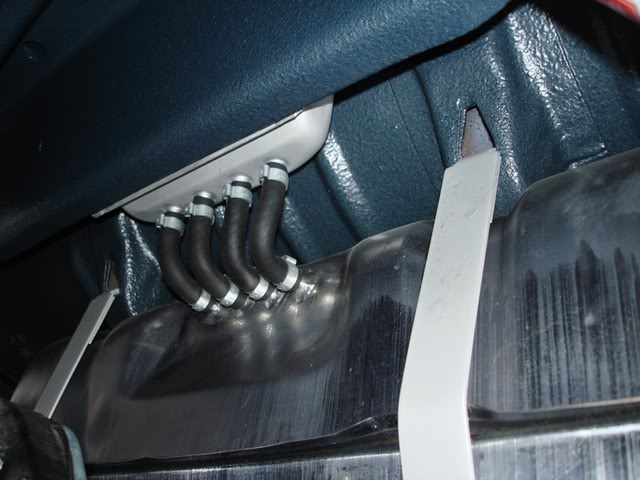

Pics of Fuel lines as requested sir
These may not be exact of what you wanted cause in these pics it doesnt even label the other side where the pickup is...



[CDN-Sebring]

Pics of Fuel lines as requested sir
These may not be exact of what you wanted cause in these pics it doesnt even label the other side where the pickup is...

I dont exactly know where the problem is but I have a transparent fram filter before going into the carb and when I start the engine it fills completely with fuel then after 5-10 minutes of running the filter is half full with air/bubbling and the engine sputters then cuts out. When I try to start it again it takes a few tries untill the filters completely full again then it starts and repeats it self. Do you know what could solve this?



[72Satellite440]

If this is your daily driver id say the problem most likely lies with the mech fuel pump....

One more thing- I didnt think those inline fuel filters were org equipment and your problem may lie right there with that filter. That would be the first thing id check...

Im sure if im totally wrong someone will point it out...



[72 GTX clone]

I had one of the clear filters just before my carb. and had the same problem. After I relocated the filter closer to the pump and changed it out to a metal inline filter I haven't had any problems.
