Alternator bracket 440 A/C

I’m noticing you are in Norway.

There is a German distributor for the PowerMaster 7019

Alternator Mopar 95 Amp till 1969 round back, dual Pulley, 298,88 €

I bet your car won’t need more than 65 amps at iddle IF is fairly stock with just some upgrades.

Is not straight ONE WIRE alt like the one you got (later GM design alt), but is ready to be used with later factory dual field setup electronic Mopar regulator. If you want to use the factory reg for 68 one field setup, just will need to reuse the factory grounded brush you already have on your stock alt or ground one of the brushes that one gets.

To “become it” into one wire alt, small mounted on regs are available. These are the ones used on most Mopars “one wire” conversions alts available. Same shop get those

Voltage Regulator, 1-wire, 85,87 €


Sure these are cheaper in USA, but as you noticing shippings and taxes kills any deal when shipping to EU, unless you have a diff international carrier service for the overseas ship. (I have one to ship between USA and Venezuela by sea or air, filling containers with lots of diff customers and shipping together).

However I still think that mounted on regulator can be found WAY CHEAPER maybe even on Aliexpress and get it on less than 10-20€ rate. I meant, if you really want a “one wire” alt setup.

(EDITING… so far so good still haven’t found any other seller outside USA for these regs. Buying eBay and Amazon, it seems will be on 50€ rate shipped to Europe… I guess plus customs fees.)

The deal with the alt setup for 69 and laters with A/C brackets setup (like Pnora and 1967Coronet shown) is the diff upper bracket position between A/C and non A/C. When A/C is present, compressor bracket uses the bolts provisions used on non A/C alt brackets, so the Alt bracket had to be moved on to a deeper disposition. This makes the alt front provision mounts IN FRONT of the alt bracket. So even if you want to use the alt you got, get the alt installed like laters setup wouldn’t be possible due the one piece large alt provision for the top mounting design used on these later GM alts (the design of the PowerMaster alt you got)
I already have an external regulator on my current alternator and will probably keep it for the new one as well. Will check with tuff stuff if these will fit my setup:

130 Amp
130 Amp Chrysler Alternator #9509DP - TUFF STUFF Performance Accessories

100 Amp
Chrysler Alternator #8509DP - TUFF STUFF Performance Accessories

Need(high estimate)
30 amps cooling fans
10 amps stereo
10 amps heater fan?
10 amps lights low
10 amps lights high
10 amps all other lights/functions

Been using XPS shipping that combines my packages from USA so i can get the cost down a little bit. Sounds like a smart thing combining container cost with other people. Will be running 2 x 12" proform fans, small upgrade on the stereo other than that it will be stock.
Thanks for taking the time to help out, much appriciated :)
Hope weather is better in venezuela than Norway!

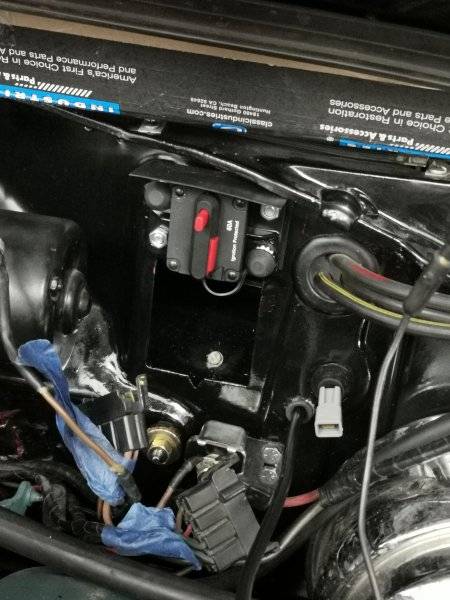

Will post some pictures tomorrow so you can see what im working on
