Custom wiper switch?

[morbidgoat]

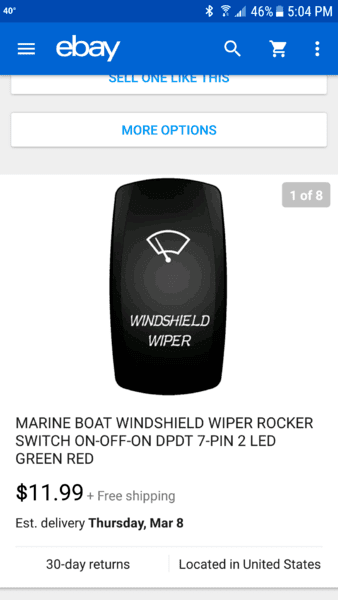

I am updating my wire harness and making a new gauge cluster with all new gauges and using rocker style switches to replace the original switches. I've got everything figured out except the 2 speed wiper. The switch I have is an on-off-on switch. Does anyone have experience with wiring something like this and still have the park feature work? A combination of relays perhaps?



[morbidgoat]

Was doing some thinking after I posted this. I think i can accomplish this through a series 6 different relays. Wish I could do it with fewer relays, I'm sure its possible but I am not familiar with whats out there.



[morbidgoat]

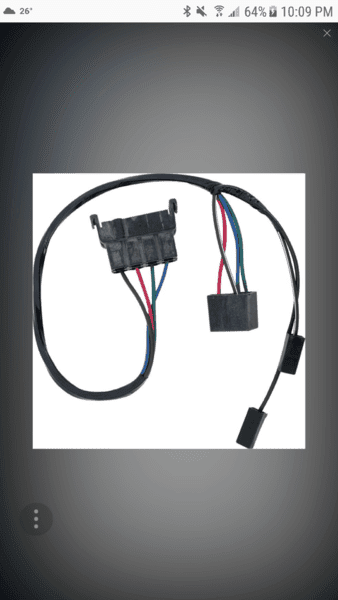

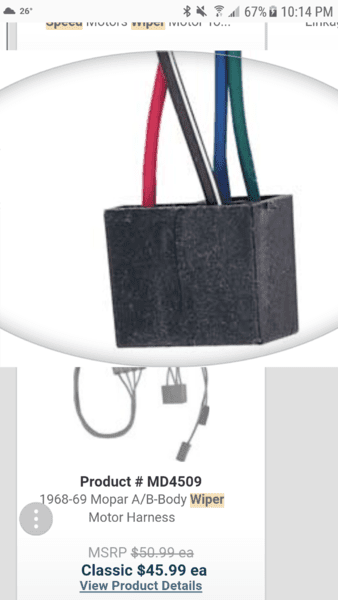

Just want to verify

Switch in high position should be 12v to brown

Low position should connect green to ground, and brown and red to 12v +

Switch in off position should connect green to brown/ connect red to ground/ and blue to 12v



[aeon280]

Watching. If you are successful please post your results. Its confounding how complicated the wiper wiring can be.



[morbidgoat]

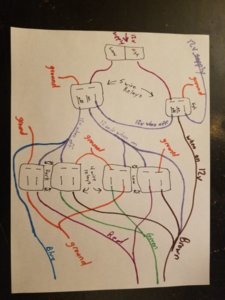

Not the best but I tried to make it colored to be easier to understand



[aeon280]

Wow that is a bunch of relays.



[morbidgoat]

6 total 2 5wire and 4 4wire relays. That is the only way I could figure out how to make a on-off-on rocker switch work. You could use 2 8wire relays instead of the 4 4wire relays but the cost is about 4x more that way.



[morbidgoat]

For those who are waiting to see if the relay combo works we will have to wait until next weekend. My 4 wire relays haven' shown up yet.



[morbidgoat]

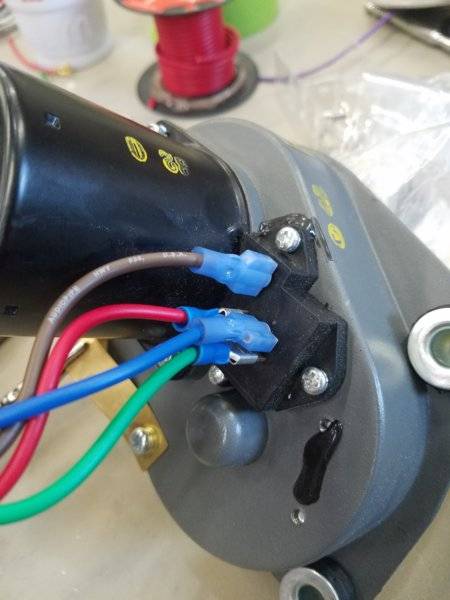

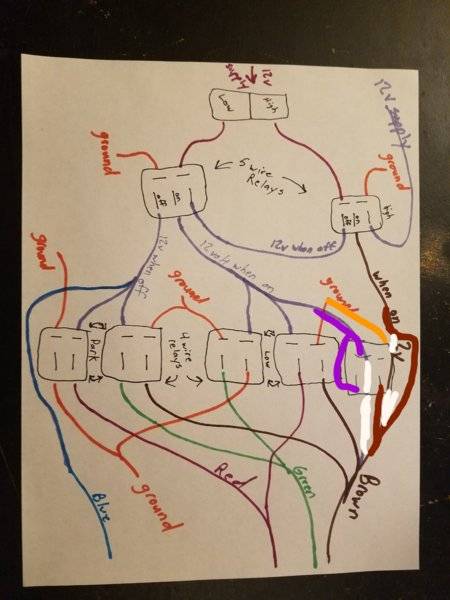

Final result..... needed to add another relay. Also the after market 2 speed wiper I got from classic industries needed to be wired slightly different. I had to switch brown and red in order for both low and high to work. Also the factory ran a resistor for the brown wire which is supposed to be the high speed I have mine hooked up without a resistor but dont know what long term affect that may cause especially considering this is an aftermarket motor. (Maybe don' need resistor)



[morbidgoat]

Sorry my Photoshop skills suck lol
