Dash harness connector ID 70 Roadrunner

[Ftlbs]

I'm installing a new dash harness and having trouble with a few connectors. One is near the glove box, one is behind the cluster, and one is to the left of the wheel. Any help is greatly appreciated.



[pnora]

It would help to know what year and model Simca you are working on.



[RemCharger]

Looks like a 1970 Simca Road Runner



[Ftlbs]

Yep. Sorry about that. Just edited it.



[pnora]

Your very right photo the connector is for the radio.



[pnora]

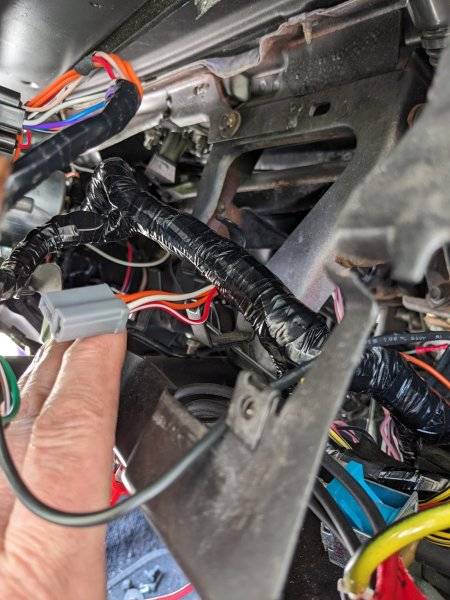

Your top left photo the connector is for the key in ignition buzzer.



[davek]

Question,is this a new M&H harness? If so it will have extra plugs do to 70 charger headlight relay. I believe the double blue is for that on driver side






7



[davek]

were do these go- dash harness

70 Bee mt harness 1st plug next to bulkhead,2nd these are towards drive side after gauges and 3rd were does the reverse light-4spd-wire hook up to? Old harness did not have 1st or 2nd set of wires and reverse wire was spliced.:BangHead: were does the grommet go threw thanks

www.forbbodiesonly.com



[Ftlbs]

Question,is this a new M&H harness? If so it will have extra plugs do to 70 charger headlight relay. I believe the double blue is for that on driver side






7

Yes it is. Thank you very much!



[pnora]

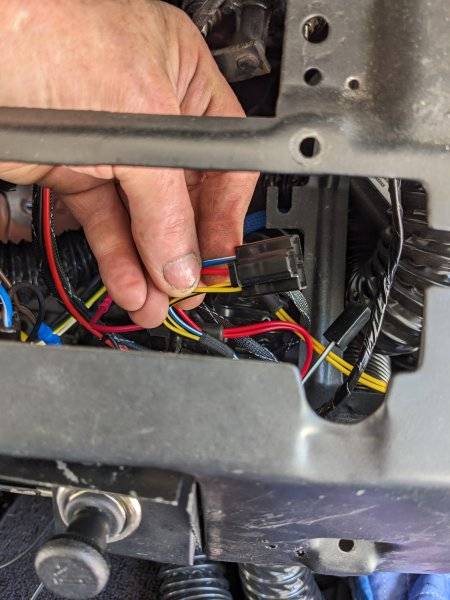

Bottom left is a crap shoot. Just a guess headlight delay relay. At least thats what the double green should be for.



[Nacho-RT74]

Not headlight delay relay, but headlight hideaways relay. It should get also a floating plug around with the double blue on background of the pic. For 70 Charger.

A headlight delay relay should ge an extra harness not included into the basic standard equipment harness, since is an added accesory.



[kiwigtx]

Looks like a 1970 Simca Road Runner

That would be a Renault.



[Ftlbs]

Thanks everyone. I think I've got it sorted. Another question however, I don't see the air grabber solenoid anywhere in the SM. I found a diagram of the vacuum routing on here but unsure how the solenoid is electrically connected.



[70gtx440dana]

AG Solenoid has it's own wire (green). Direct connection to FB.
