Dodge Charger 68 R/T Engine bay

[Dreamcatcher]

Gentleman,

My GG1 RT.

It’s not perfect as per factory under the hood, but close. Working on the small details.

View attachment 810202 View attachment 810203 View attachment 810204

Love me a GG1 68. Nice car!



[Dreamcatcher]

Gentleman,

My GG1 RT.

It’s not perfect as per factory under the hood, but close. Working on the small details.

View attachment 810202 View attachment 810203 View attachment 810204

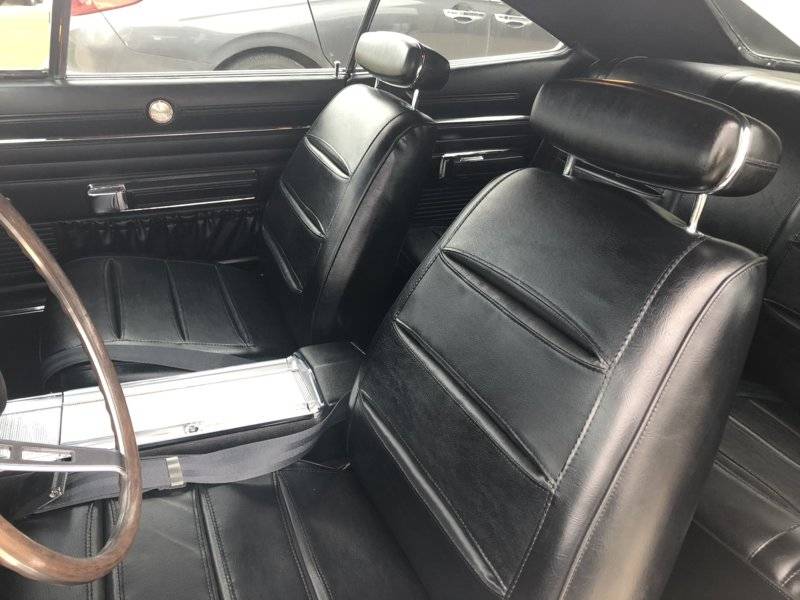

Were head rests an option in 68? My seats didn't have them and the 68R/T my cousin had didn't have them either.



[HeavyFuel]

I’m still working on my engine, almost done.
but I need some information about the location of the negative cable from battery and also for the negativ cable to firewall.
The cable to battery ist normally connected to the first intake screw, but I got an A/C car (A/C not mounted jet, will be added later) so where does it go? Is it on the picture correct?

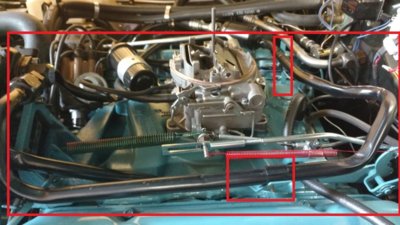

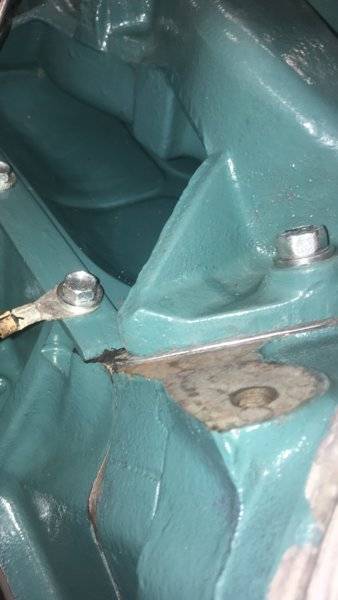

I also attached a picture of the cable to firewall, maybe it’s wrong... maybe you guys know how to mount it correctly to the block. I couldn’t find an answer for that.

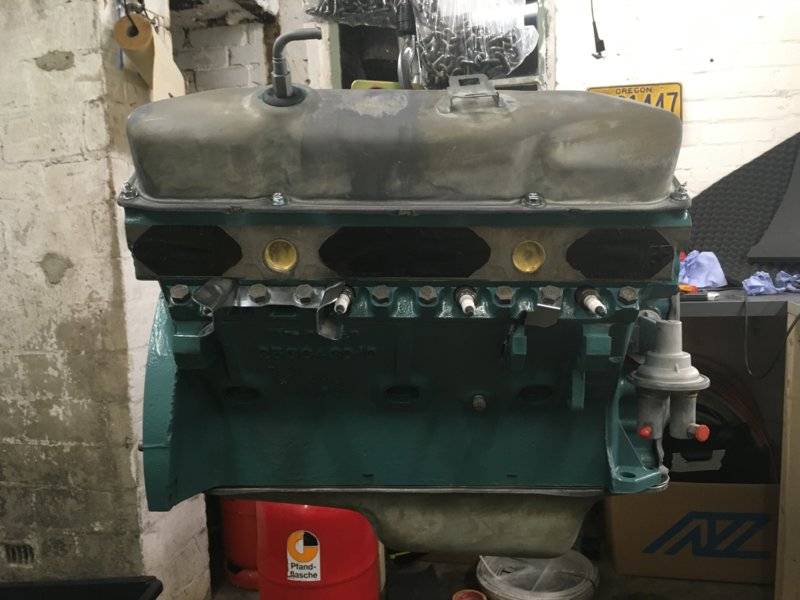

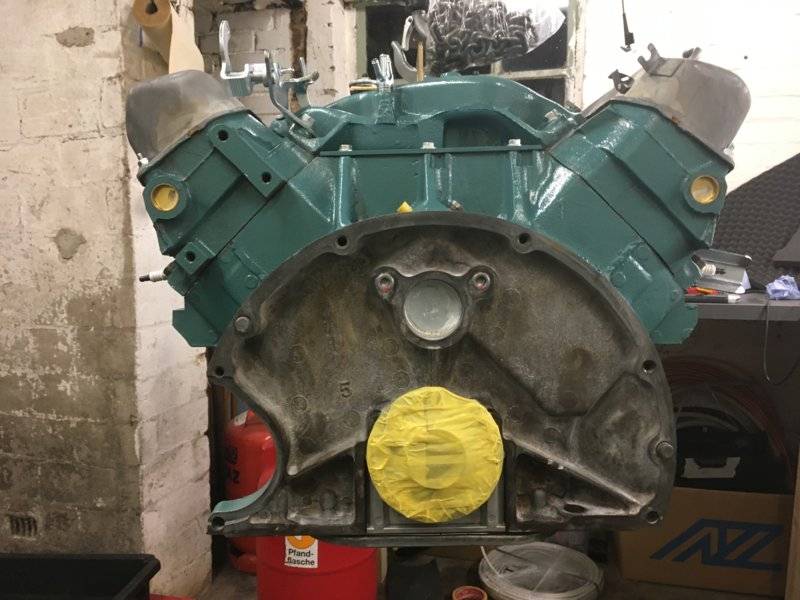

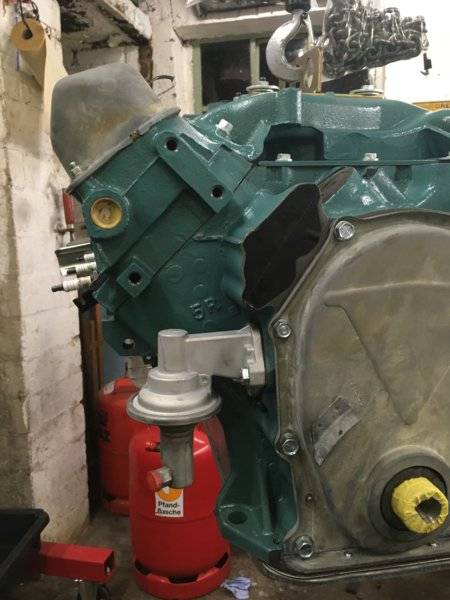

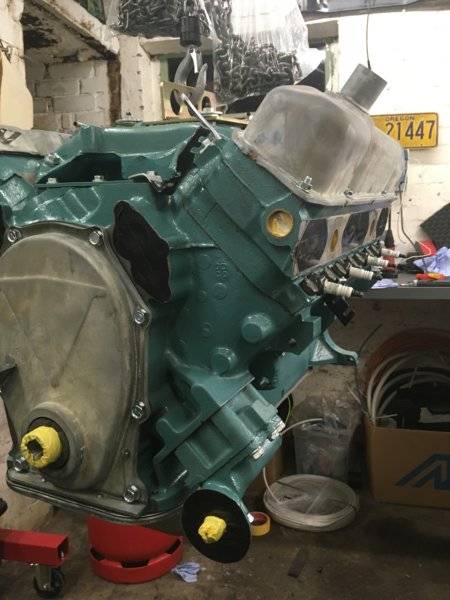

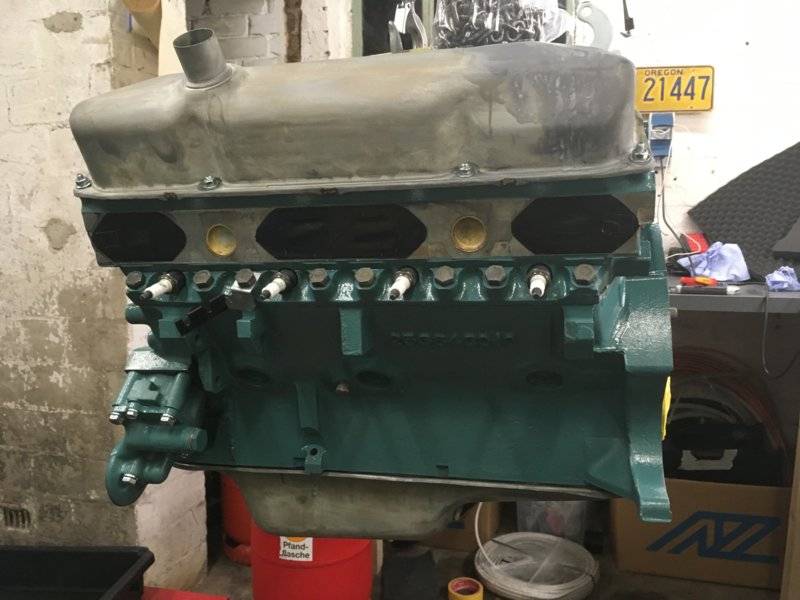

and some picture of the engine. If anything is wrong write it down.

The paint job is a little bit strange... my first engine builder had a different vision how to paint the engine. The engine will be painted next week like shown. Dismounted parts will be painted separately. Like water pump, etc

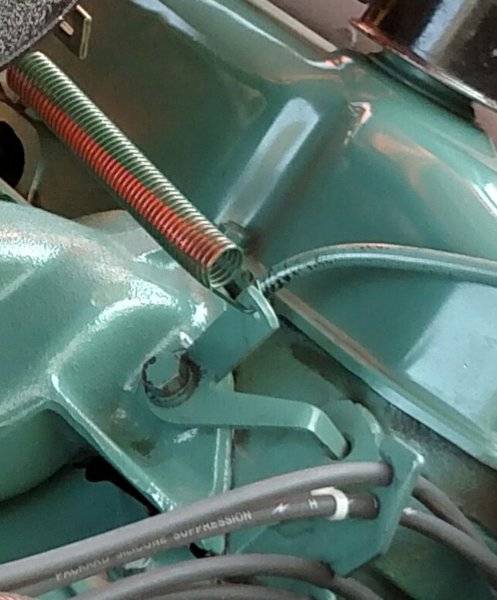

You have the wrong spring bracket, and the neg battery cable is mounted in the wrong spot.

Here's a pic of mine, which is correct.



[HeavyFuel]

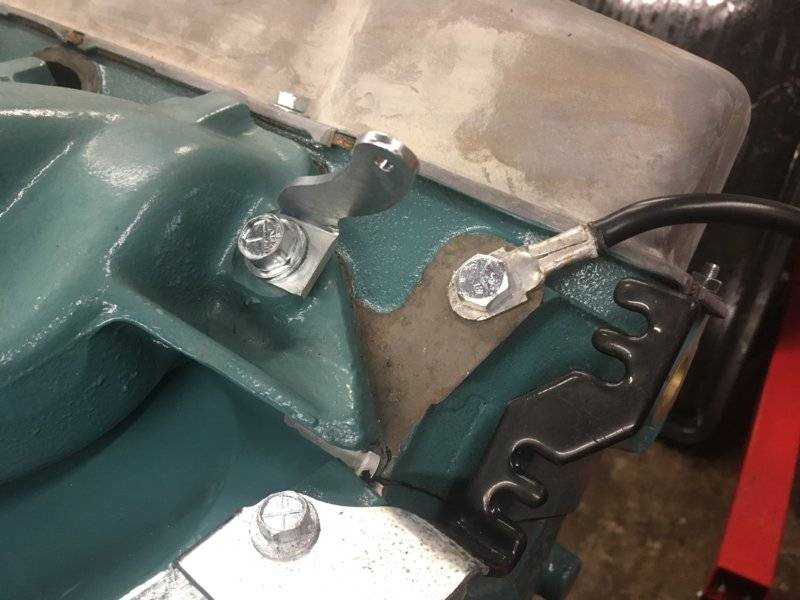

The neg battery cable goes below the bracket, on the same bolt.

The pic doesn't show it very clearly.



[Gentleman]

Thank you,

Now I know where the negativ battery cable is going!

I got an A/C car, so the bracket is already for one, I´m still looking for the compressor mount. Can I use the original intake screws with a compressor mount? My intake screws are not correct, so they will be switched. They should be longer.


The negativ cable from engine to firewall should be mounted on the left back intake screw, is this correct?

I´m also looking for this return line plus brackets (Shown on the picture) Has anybody an idea where to find them? All other A/C parts are available but I can´t find these parts.



[moparedtn]

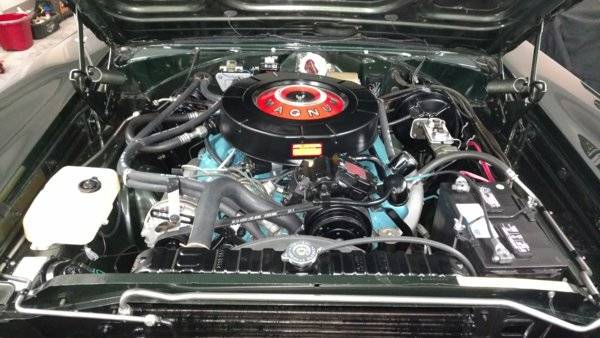

Here's my GG1 a/c equipped car. If you need some particular detail pictures, just let me know.
View attachment 807862
View attachment 807863
View attachment 807864



[Richard Cranium]

I’m still working on my engine, almost done.
but I need some information about the location of the negative cable from battery and also for the negativ cable to firewall.
The cable to battery ist normally connected to the first intake screw, but I got an A/C car (A/C not mounted jet, will be added later) so where does it go? Is it on the picture correct?
I also attached a picture of the cable to firewall, maybe it’s wrong... maybe you guys know how to mount it correctly to the block. I couldn’t find an answer for that.

and some picture of the engine. If anything is wrong write it down.

The paint job is a little bit strange... my first engine builder had a different vision how to paint the engine. The engine will be painted next week like shown. Dismounted parts will be painted separately. Like water pump, etc

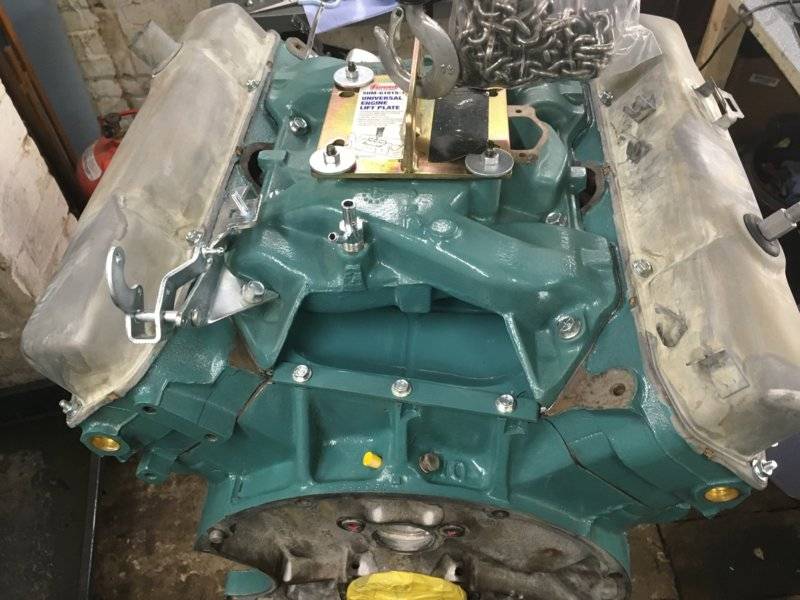

View attachment 878359 View attachment 878360 View attachment 878361 View attachment 878362 View attachment 878363 View attachment 878364 View attachment 878365 View attachment 878366 View attachment 878367

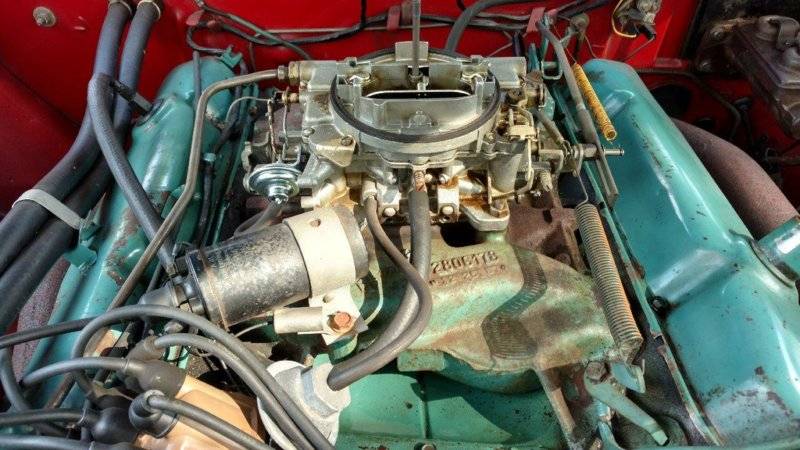

Here's the unrestored engine in my red car. You can see the negative cable is under the return spring bracket. The ground cable at the rear attaches to the head, not the valley pan bolt.
