Hello all just wondering if anyone has clear pictures of how the floor pan wiring covers are fitted as my floor pan was replaced,are they screwed to the floor and any gaps between the front & rear covers thanks ahead all
floor pan wiring loom covers
- Thread starter RT SE 440
- Start date
- Local time
- 4:22 PM
- Joined
- Jul 17, 2008
- Messages
- 21,833
- Reaction score
- 62,486
- Location
- South Jersey USA
pretty sure AMD sells them, they have "tabs", and are spot welded in........ pretty self explanatory as far as fitment goes........ you can screw them in if it's too late for welding
RT SE 440
Well-Known Member
yes thanks i already purchased them and it's too late to weld so screw it is .i just found a post on this forum & photo's all i really need now is the measurement between the two in the middle thanks
Last edited:
davek
Well-Known Member
the back ones are about 1 1/2 inche short of touching the wheel well . The front one will almost touch the back one. I will weld mine in after priming the floor pan. Just search our site,here you go Floor pan wire covers
RT SE 440
Well-Known Member

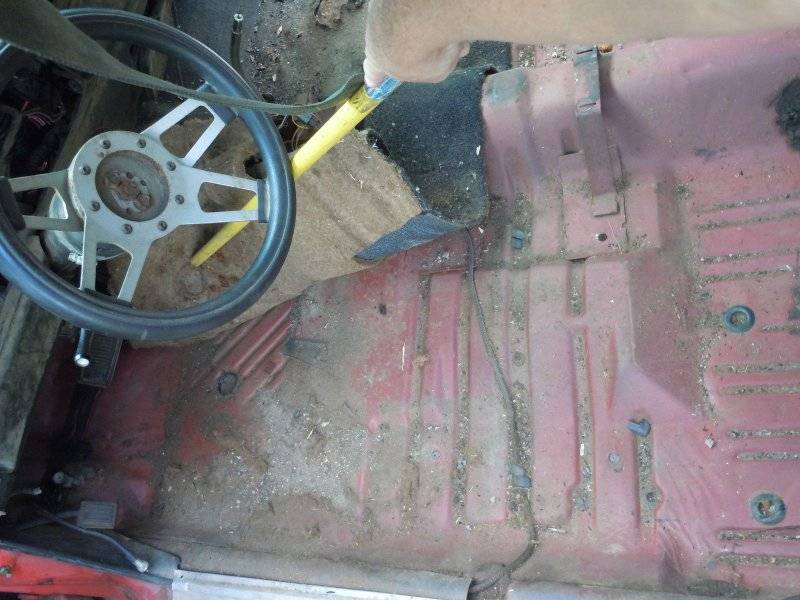

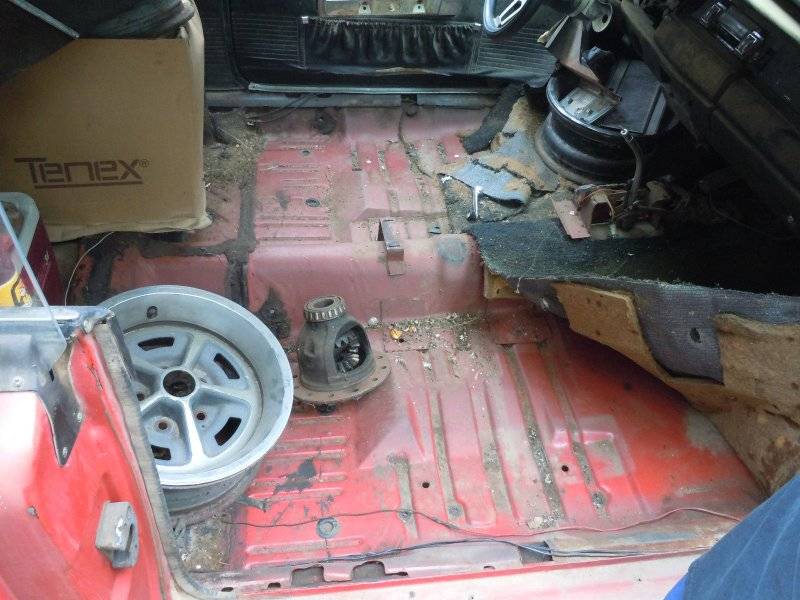

looking at these pictures of an original pan they look to have around 2" gap between the two
- Local time
- 4:22 PM
- Joined
- Jul 17, 2008
- Messages
- 21,833
- Reaction score
- 62,486
- Location
- South Jersey USA
I doubt the guys at the factory were measuring........
davek
Well-Known Member
Mine are still in place and never removed. I have the carpet out of the car. I can post some pictures from my '70 Charger later this week, weather permitting.
Are there pictures of anything else you need?
davek
Well-Known Member
The Holy Grail Radio
It's already posted in my thread 'The Omen'.
davek
Well-Known Member
I know I know,thought you might want to show it off.
RT SE 440
Well-Known Member
just need the measurement between the two and the measurement from the wheel tub to the cover off an original untouched car thanks much appreciated
CHARGERSTEVEN
Well-Known Member
In my post it shows it at 1-1/2 inch from rear wheel well.I would think twice before screwing them in car painted or not.That screw sticks out underneath thru the floor pan. A little prep work n touch up paint n you will never know you did it after
RT SE 440
Well-Known Member
Thanks i saw the 1 1/2 inch from back thank you but needed to know the gap between the 2 .I'm surprised as i would have thought the screws wouldn't be seen being on the inside of the seal panel next to the seal panel seam under the scuff plates
I'll be taking/posting pictures later today since the weather is finally cooperating.
CHARGERSTEVEN
Well-Known Member
Just take a measurement where the two show a gap when placed in car. That is what he is asking for

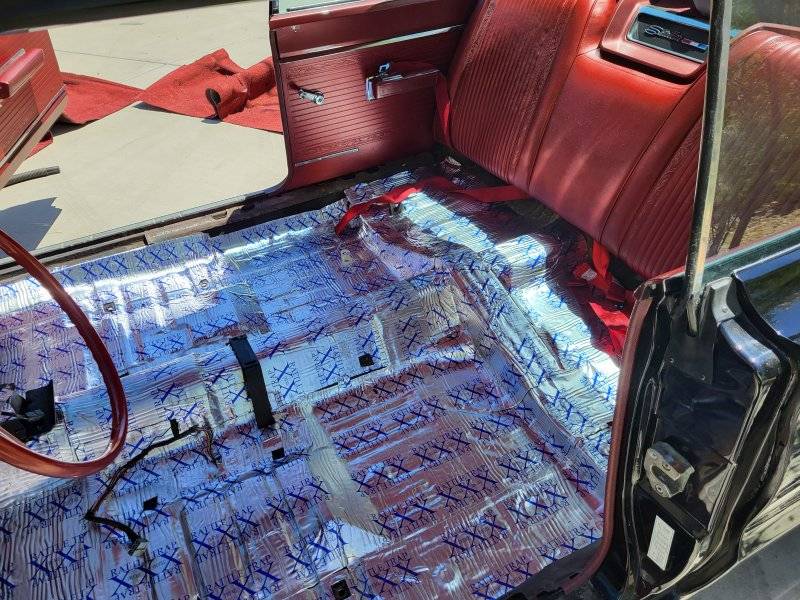

SUMMARY: The driver and passenger side gaps are different from one another.

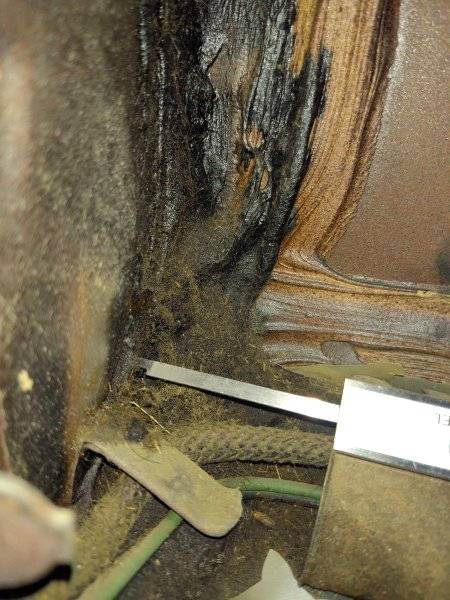

Driver's Side:

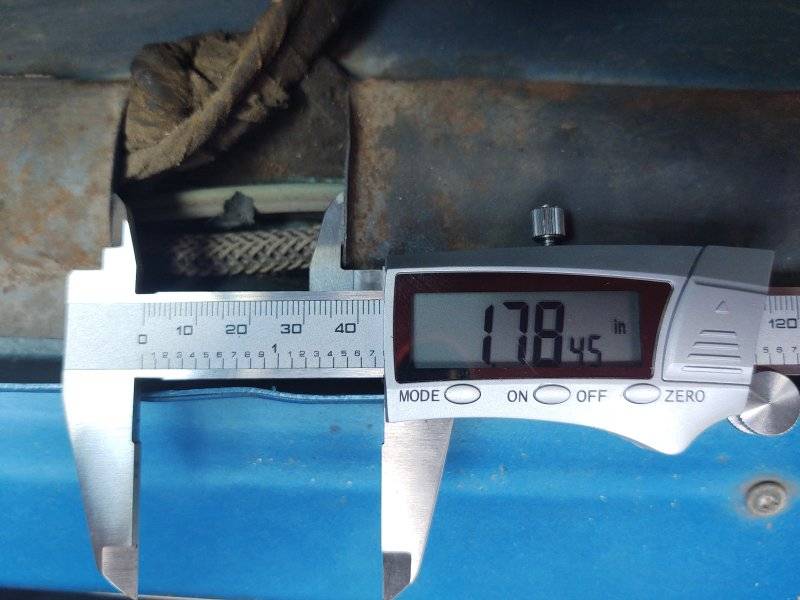

1.78 inch gap between the two loom covers.

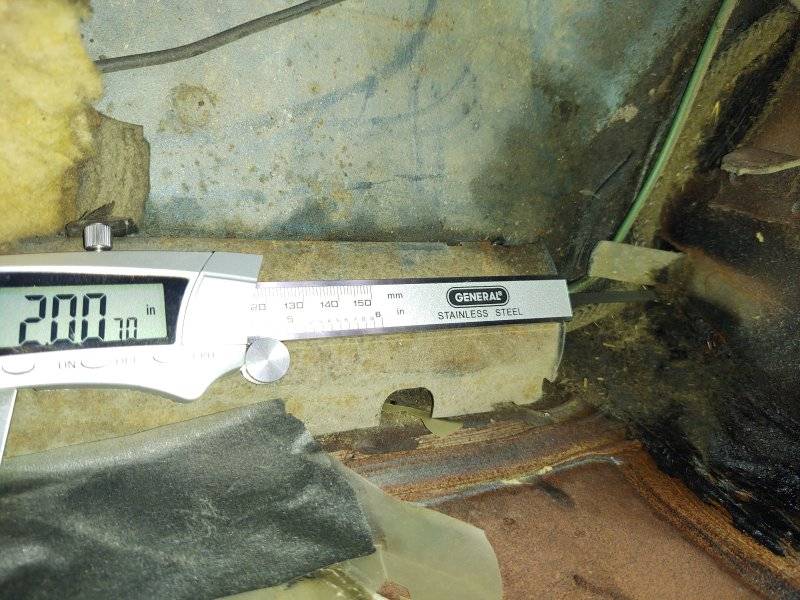

2.00 inch gap between the rear loom cover and the rear wheel tub.
*******
Passenger Side:

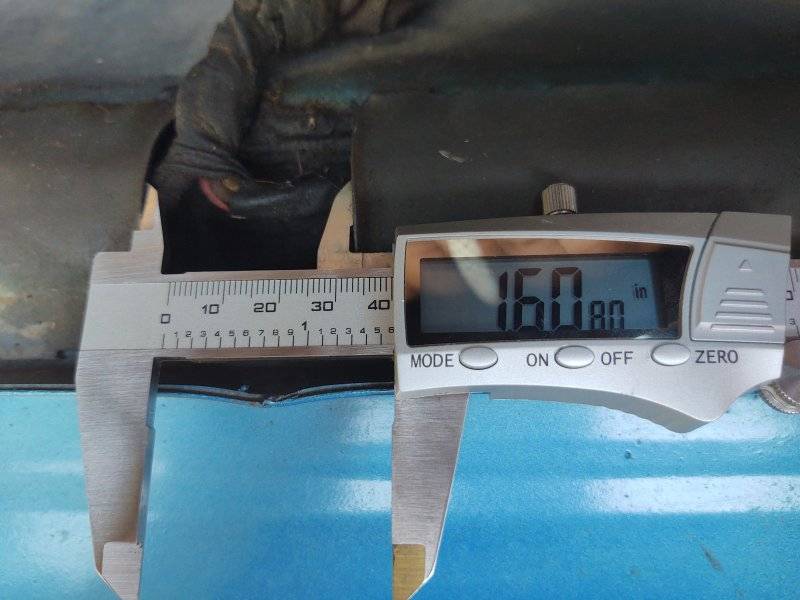

1.60 inch gap between the two loom covers.

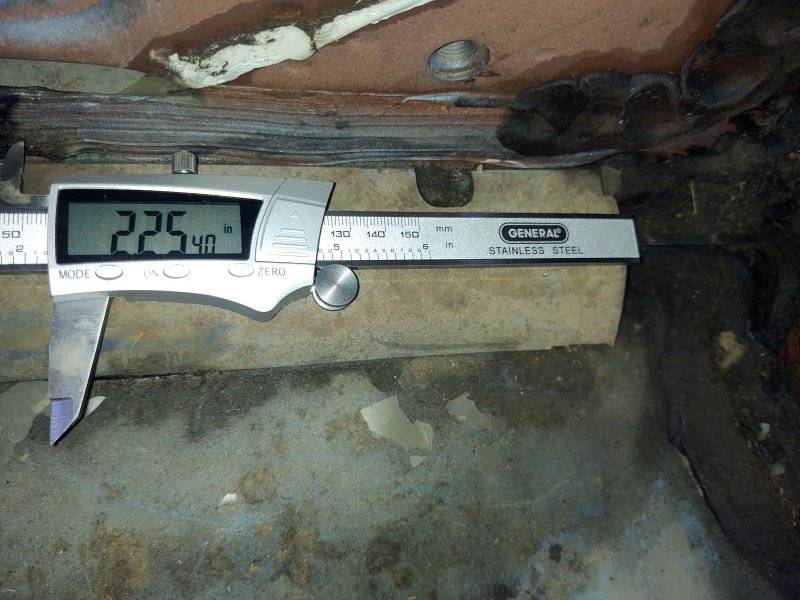

2.25 inch gap between the rear loom cover and the rear wheel tub.
=================================

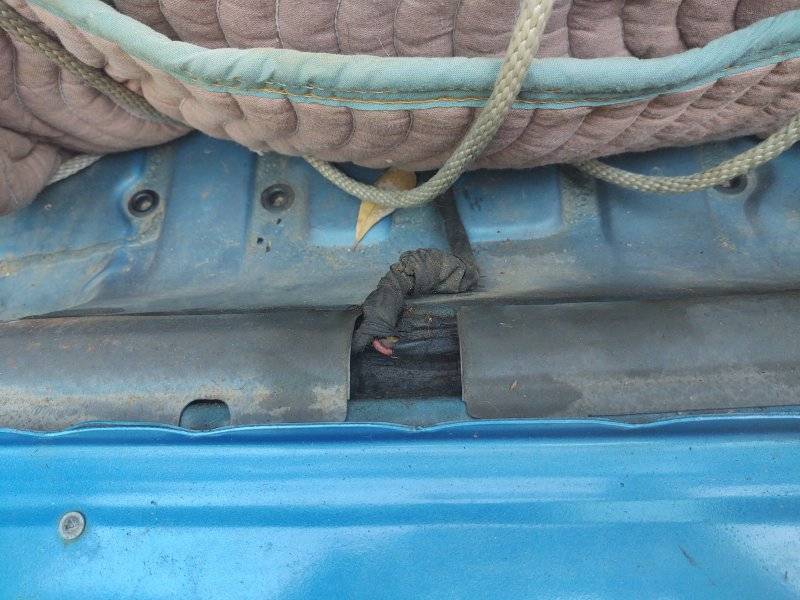

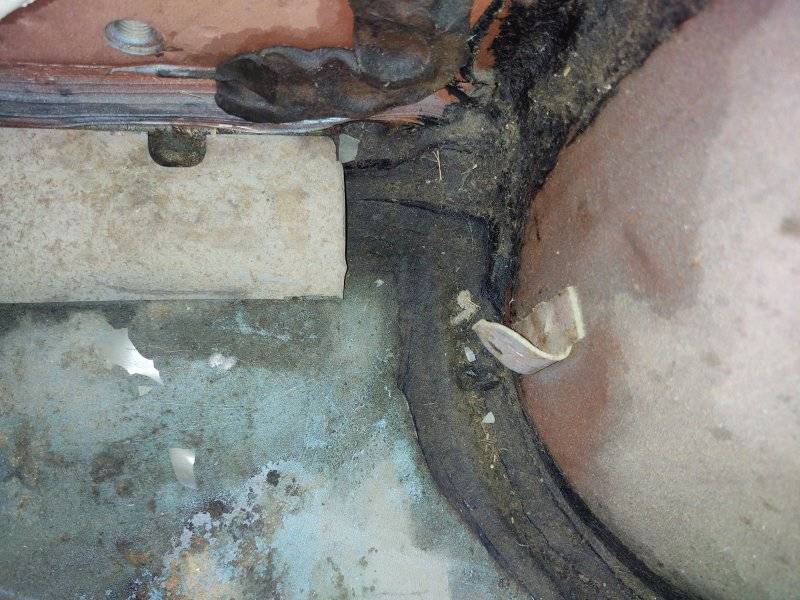

Driver's Side pictures:
***

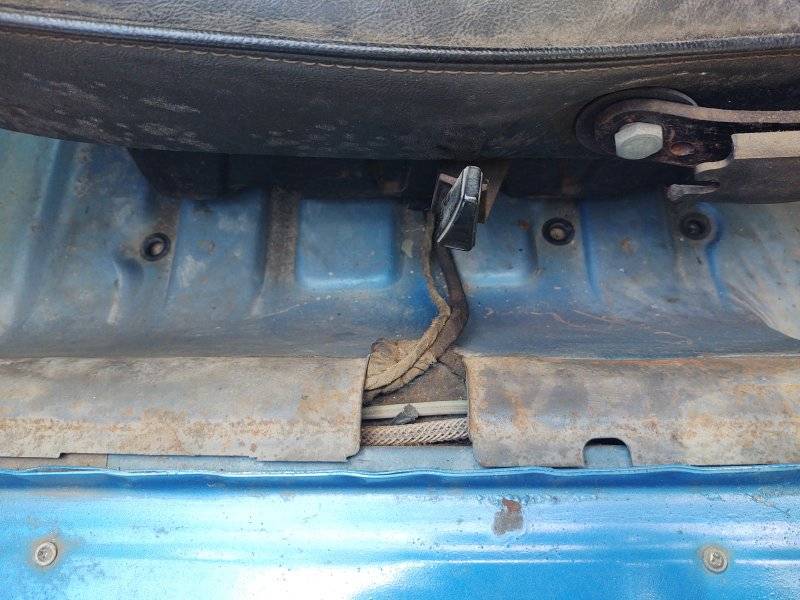

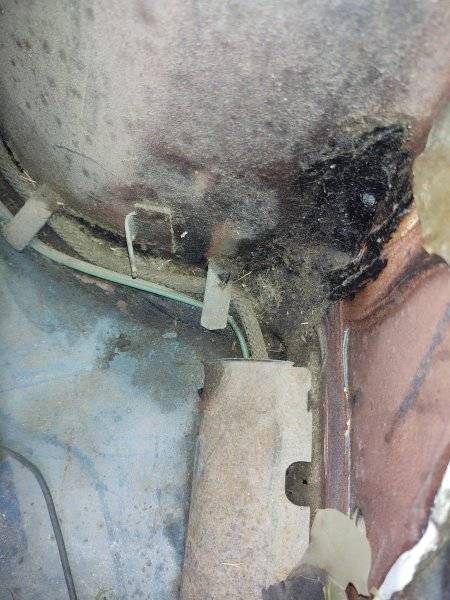

Passenger Side pictures:
***

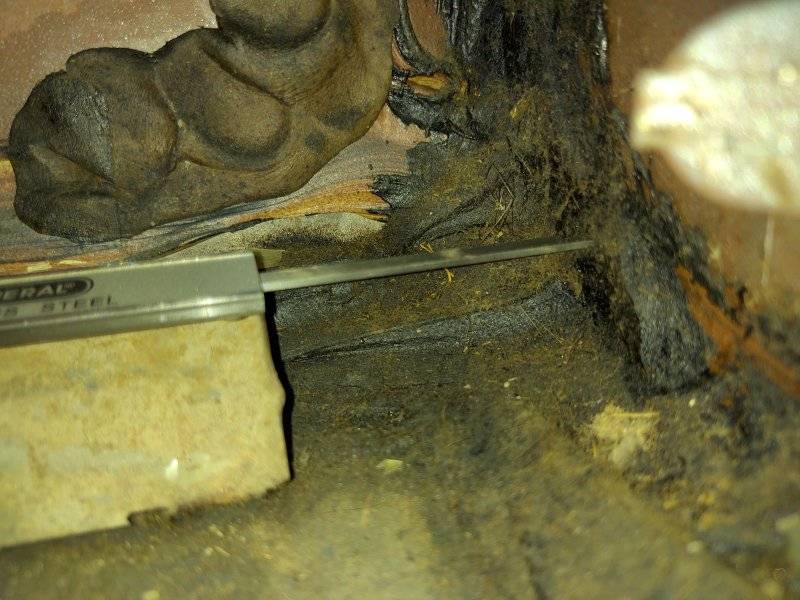

Note: The wheel wells have sealant on them from the factory. My measurements to the wheel well only included a thin layer of sealant, not a thick layer or bead.
Driver's Side:
1.78 inch gap between the two loom covers.
2.00 inch gap between the rear loom cover and the rear wheel tub.
*******
Passenger Side:
1.60 inch gap between the two loom covers.
2.25 inch gap between the rear loom cover and the rear wheel tub.
=================================
Driver's Side pictures:
***
Passenger Side pictures:
***
Note: The wheel wells have sealant on them from the factory. My measurements to the wheel well only included a thin layer of sealant, not a thick layer or bead.
RT SE 440
Well-Known Member
Thank you so much DeltaV exactly what i needed now i can march on to the next job thanks all for the reply's
