Help identifying rear end

[FridayGt]

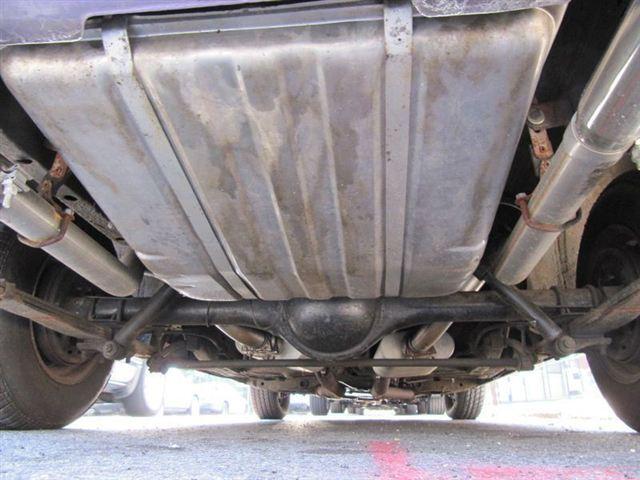

Any possibility of at least identifying the type of rear end this is by this picture? I understand that the gear ratio will have to wait until I can spin the tires and count, but apart from that, I haven't the knowledge to identify if it's a sure grip or something else just by looking at pictures.

If it helps any, this is on a '72 Roadrunner. No clue as to whether or not it's original.



[Cranky]

8 3/4 and probably original. Look close at the front side and see if there's any tags on one of the nuts holding the center section in. If there are any, it's a good sign that it's never been apart and will tell you what the gear ratio is and if it's a SureGrip by stating what oil to use. IIRC, example is 'SG 3.23' etc. Been too long since I've seen a tag lol



[FridayGt]

Thanks Cranky, for future knowledge, how do you identify? What characteristics do you look for to differentiate?



[Cranky]

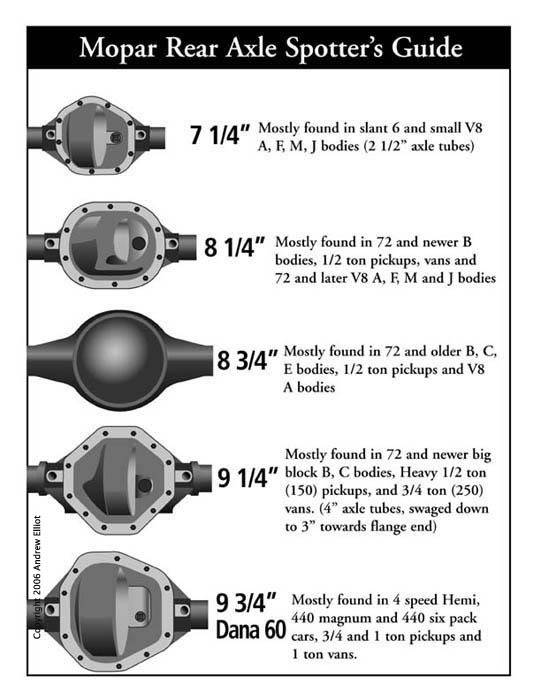

That's the only style housing ChryCo used that looked like that that was the 8 3/4. All the others had a cover on the rear part of the center.



[Cranky]

Ford had an 8" housing that looked similar but different and looked nearly identical to the 9"....except for size. Btw, I made an edit to my first post.



[FridayGt]

Thanks a lot Cranky! There's just so stinking much to learn with this stuff, I love it!



[Cranky]

Most rears that mom used in her cars....



[FridayGt]

Cranky, if I ever get stationed back in Texas, I'm bringing you a Cigar. Thanks again!



[Mango 1]

Hey guys,
What is an 8 3/4 rear end worth, if you want to buy one? Say from a boneyard?



[FridayGt]

Hey guys,
What is an 8 3/4 rear end worth, if you want to buy one? Say from a boneyard?

That really depends on the condition it's in, the gears that are in it, if it's a sure grip or open and so on. Well, that and what the market will take which isn't too terribly much these days. Have you priced out your competition?



[Cranky]

Cranky, if I ever get stationed back in Texas, I'm bringing you a Cigar. Thanks again!

Thanks, but I can't smoke em anymore. Bring beer instead!

Hey guys,
What is an 8 3/4 rear end worth, if you want to buy one? Say from a boneyard?

Depends on the bone yard. Years ago, the Pick and Pulls here were pretty cheap. I was pulling chunks for less than 40 bucks and it didn't matter if they were open or limited slip...but the last complete drum to drum 8 3/4 I sold that had a 2.94 gear and an open carrier went for 200 bucks. It was for a 68-70 B body. 'A' body rears go higher.....
