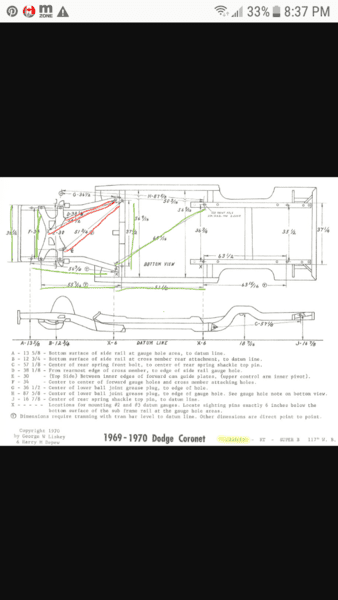

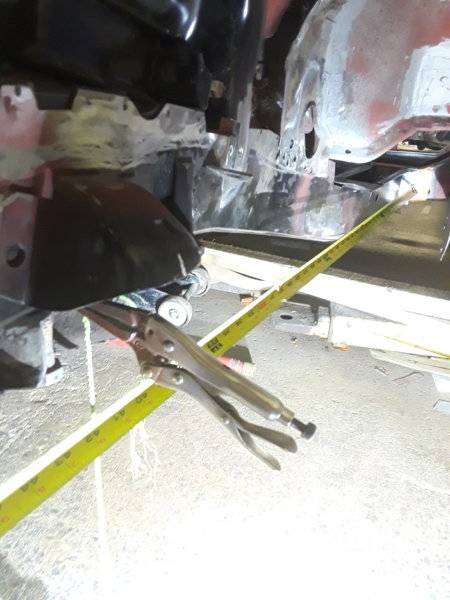

Need help I am not getting right measurement with red mark line like to know are you getting same?I am getting 1" less on K member.
Help with measurement please
- Thread starter 7necharger
- Start date
7necharger
Well-Known Member

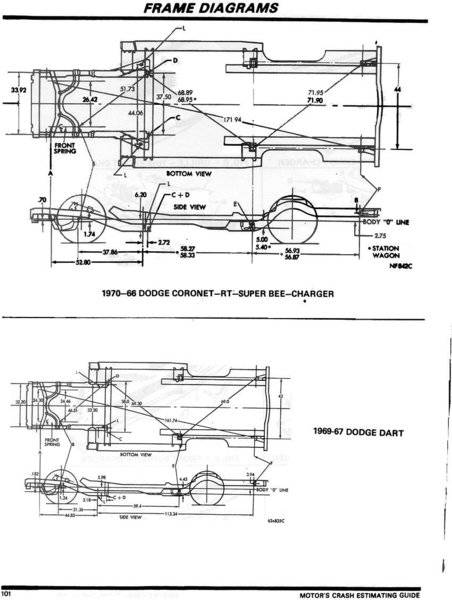

Yes it's the same diagram thanks but the problem is I can't adjust they frame where is the red mark is mine is showing one inch less.
Do you have the correct K-member ???
I would think if there is no obvious damage and repair that shortened the front end, getting the same measurements side-to-side would be sufficient to determine the car is square. Leave it at that and move on. Really, what are your options ?!?!
I would think if there is no obvious damage and repair that shortened the front end, getting the same measurements side-to-side would be sufficient to determine the car is square. Leave it at that and move on. Really, what are your options ?!?!
- Local time
- 1:35 AM
- Joined
- Dec 4, 2009
- Messages
- 35,512
- Reaction score
- 45,957
- Location
- Pasadena, Texas
Diagonal measurements will tell you if it's square.....or take it to a frame shop. Btw, 1/4" differences is common with way more than that on the body measurements.
7necharger
Well-Known Member
Actually complete front frames are new which i am trying to install.i am only having problem to adjust the k member.
The aftermarket front frames are probably for both Plymouth and Dodge b-body and will have holes for one or the other. Whereas the factory would have stamped seperate ones for each with holes where the engineers wanted them. Since you're doing a Dodge, maybe have a look at Plymouth measurements and see if those match.
7necharger
Well-Known Member
Hi like to know the hole Mark on K member which is 54 1/2 is this same hole on top of k member or underneath?
yes
7necharger
Well-Known Member
Sorry didn't understand your answer.

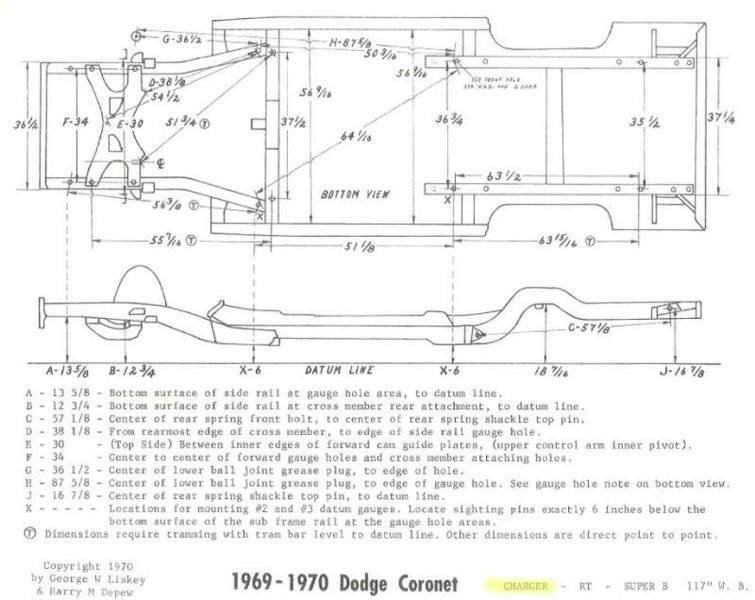

The larger diagram in #3 is the same as in post #1.
7necharger
Well-Known Member
Lol yes I understand what you mean.my question is on K member in the top where the engine sits there is hole and underneath of the K member so which hole shoud I take to do measurement of 54 1/2?
That diagram is looking at the bottom of the car. So, it would be the hole on the bottom side of the K member. Also, the 54-1/2 inch dimension is the distance between the hole edges, not the hole centerlines. I am looking for a sharper image.
I'll be taking measurements sometime this weekend. Currently, it is raining here in coastal Georgia.
7necharger
Well-Known Member
Thanks a lot i was getting confuse here .I was taking measurement from top of the K member where engine sits thats why was not getting right number lol.

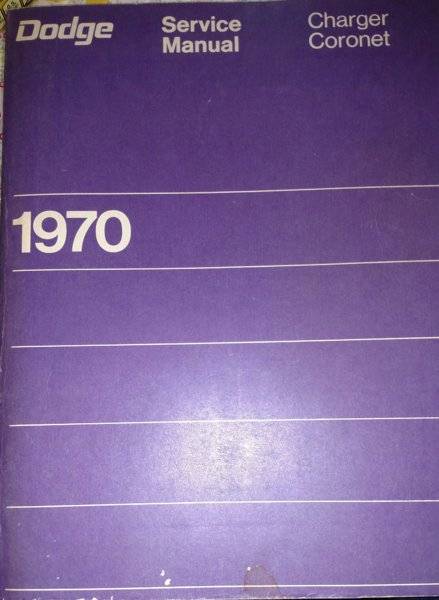

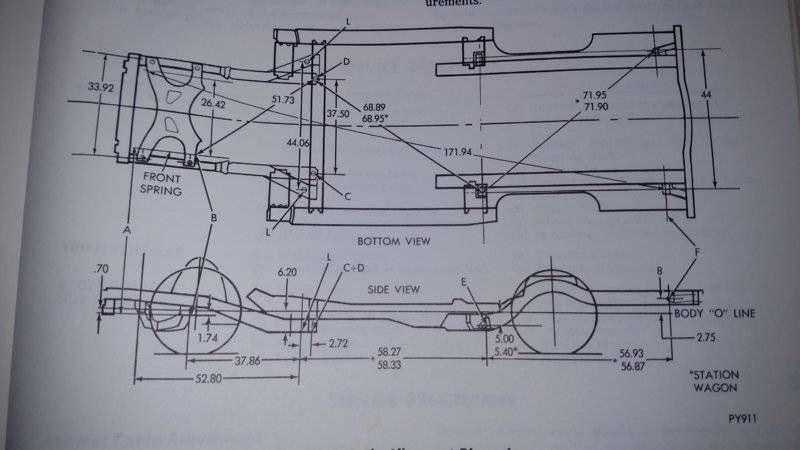

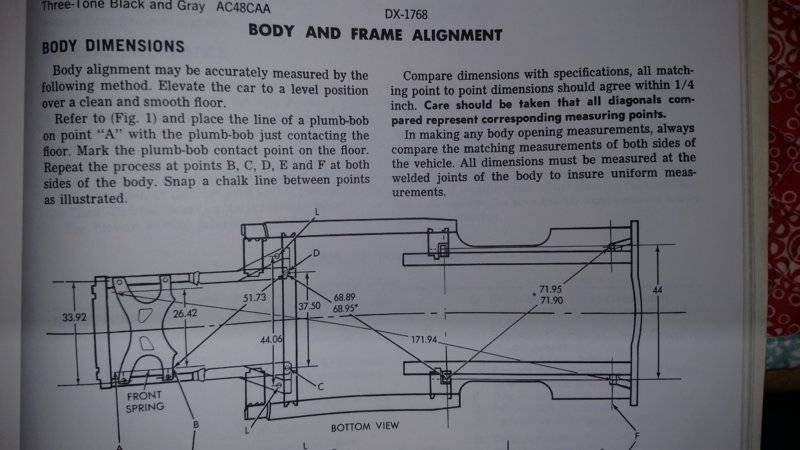

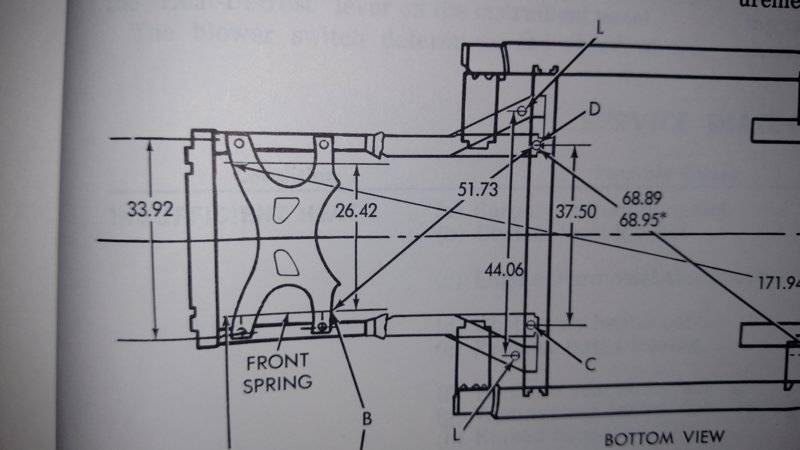

Pictures of text and diagram from my service manual are below. That 51.73 inch dimension looks like it is between the hole edge and and torsion bar centerline at the aft face of the K member. Stay tuned. Lol. I'll try to take some good images and provide them with the measurements.
7necharger
Well-Known Member
Thanks alot for the help since 3 weeks I was badly stuck with measurements because the AMD frames I got the holes on it for measurements are not in correct place .trosin bar cross member center holes should be 37 1/2 And I am getting 37" so I have to fix that and both frame marking are out and plus 3/8 short.so that means I am big time screwed lol.
7necharger
Well-Known Member
Is it possible if you get time can you give me the measurement from trosin bar cross member till K member center bolt cuz like to check if there is problem with bolt measurement please.
Please clarify the distance by marking-up the Dodge frame diagram and posting it here.
