Inline fuel pump switch

[toolmanmike]

Thanks, I did. This how tanks inc shows to wire the three prong sender. I don’t see how there’s a terminal for the light? Also not sure why one leg is shown as going to starter circuit? Maybe that’s yo allowed the pump to work while cranking?

wiring is not my forte so any help is appreciated…

View attachment 1371669

I don't see any fuse in the circuit.



[72RoadrunnerGTX]

Thanks, I did. This how tanks inc shows to wire the three prong sender. I don’t see how there’s a terminal for the light? Also not sure why one leg is shown as going to starter circuit? Maybe that’s yo allowed the pump to work while cranking?

wiring is not my forte so any help is appreciated…

The three-pronged oil pressure safety switch has no provisions for the idiot light. You would add the safety switch to another oil pressure port on the block, two sensors basically. Yes, without oil pressure, the relay is activated from the starter circuit while cranking.



[4mulas]

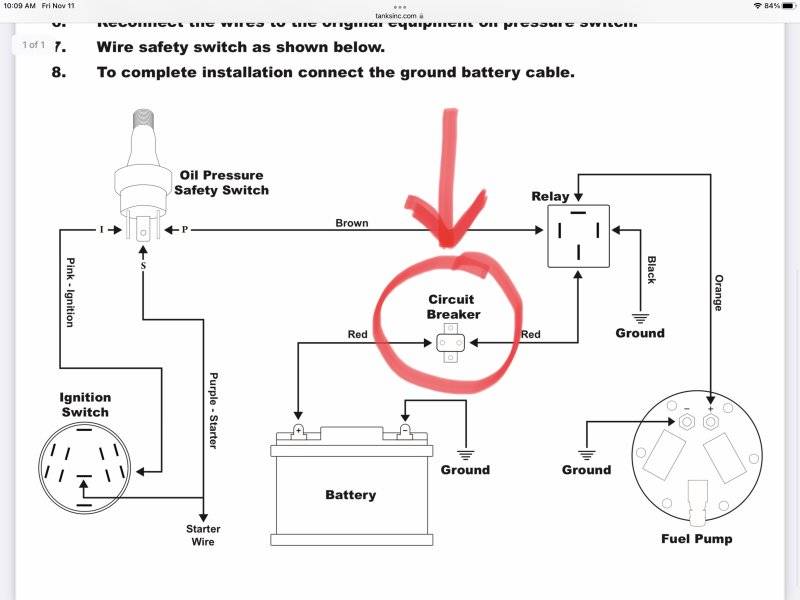

I don't see any fuse in the circuit.

It’s labelled circuit breaker. Be a 30 amp one
