Instrument Cluster wiring

[kurtsdodge]

On the rear of the instrument cluster on a 1969 Coronet standard dash on the upper left side is a Capacitor/Condenser with a spade end. I was wondering where that plugs into.
Thanks, Kurt



[davek]

Kurt post a pic please.



[dadsbee]

Presume it's on the 5 volt gauge voltage regulator. Fairly standard when car came with radio.



[Nacho-RT74]

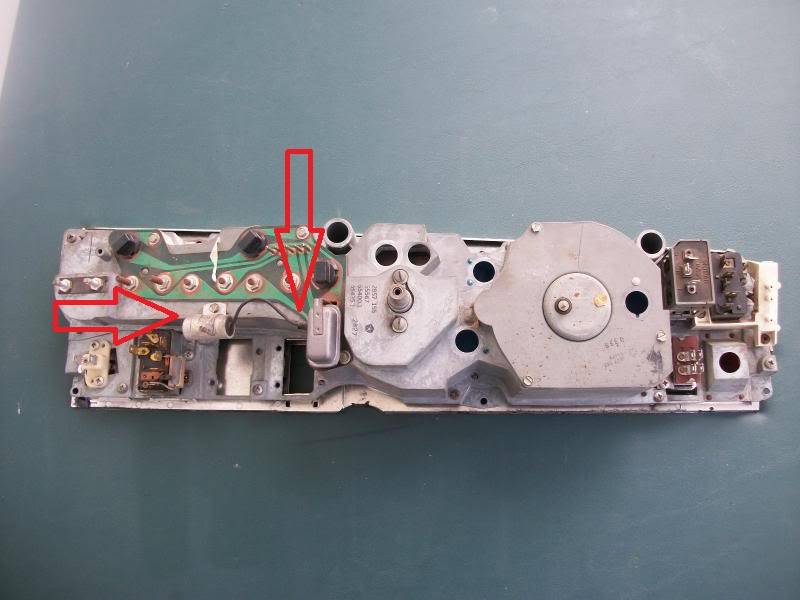

Charger cluster but same idea



[Nacho-RT74]



[Nacho-RT74]

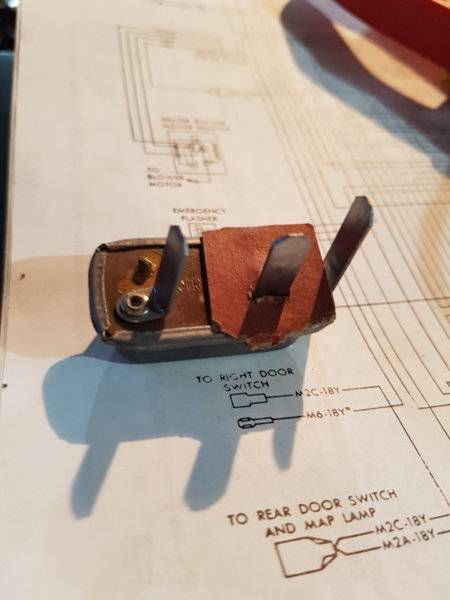

Limiter should tipically get a paper/cardboard piece to isolate from an accidental chassis contact and get a short. But if the condenser terminal and wire is good and correctly installed, could be no necessary



[kurtsdodge]

Limiter should tipically get a paper/cardboard piece to isolate from an accidental chassis contact and get a short. But if the condenser terminal and wire is good and correctly installed, could be no necessary

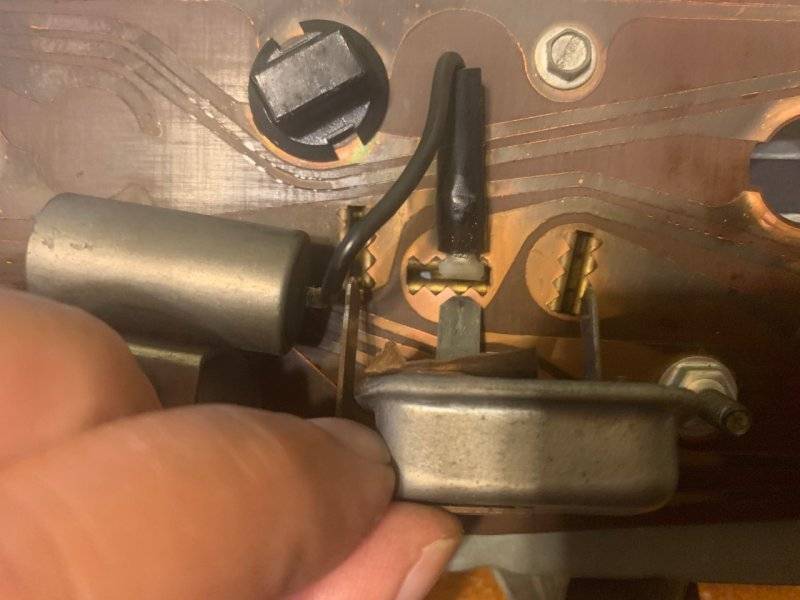

View attachment 1661564

Thats it! Thanks



[Sinitro]

The condenser was originally designed to minimize any static the voltage limiter may generate into the AM radio..
IMHO... Really not needed, so OK to delete....

Just my $0.02...
