Intake casting numbers (Factory Hi-po)

[UrbanXX]

66-71 426 Hemi Alum. 2780543
69-71 440-6 bbl. Alum. 3412048
69-71 440-6 bbl. Cast Iron 2946278
70-71 440 Cast Iron 2951736
70-71 383 Cast Iron 2951666
70 340 Cast Iron 3462848
68-69 440 Cast Iron 2806178
68-69 340 Cast Iron 2531915

This has been researched many times by me and I have always found this to be correct.
Note that the 69-71 440-6 Alum. and Cast Iron intakes were both used 69-71. The Cast Iron intake is much more rare than the Alum. Urbanxx



[69HEMICORONETR/TCONV]

Good Info.



[A383Wing]

I notice no 68-69 cast iron 383 intake.....what's the difference between those and the '70 ones?



[UrbanXX]

A383wing,
I think the difference between the intakes beside casting numbers are:

68-69 Used Carter carbs.
70-71 Used Holley carbs.

So the carb mounting hole spaceing are spaced different.


If I'm wrong on this someone correct me.



[wagonmaster]

Carb spacing holes are the same, but the intake needed a little more space for the accelerator pump on the Holley.

69-71 440-6 bbl. Cast Iron 2946278- This intake actually didn't appear until 1970. The first few (number?) of 1970 440/6 packs had the 1969 aluminum Edelbrock intake like the '69's did.



[B-BODY_67]

66-71 426 Hemi Alum. 2780543
69-71 440-6 bbl. Alum. 3412048
69-71 440-6 bbl. Cast Iron 2946278
70-71 440 Cast Iron 2951736
70-71 383 Cast Iron 2951666
70 340 Cast Iron 3462848
68-69 440 Cast Iron 2806178
68-69 340 Cast Iron 2531915

This has been researched many times by me and I have always found this to be correct.
Note that the 69-71 440-6 Alum. and Cast Iron intakes were both used 69-71. The Cast Iron intake is much more rare than the Alum. Urbanxx

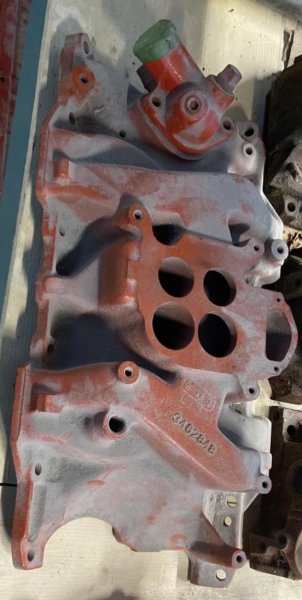

So is this a Cast 340 hi-po intake I assume any idea on what it's worth canadian guys I have chance to buy it jw if what there worth



[RemCharger]

Nice intake, throw the chevy tstat housing in the garbage, 150 bucks .
Is it from newfoundland



[B-BODY_67]

Nice intake, throw the chevy tstat housing in the garbage, 150 bucks .
Is it from newfoundland

From nova scotia guy wants 300



[RemCharger]

From nova scotia guy wants 300

I have one that I'm not selling, but if someone gave me 300 I'd be doing cartwheels to the bank.

200 tops is fair
