New toy and lower control pivot pin

[Coronet 14]

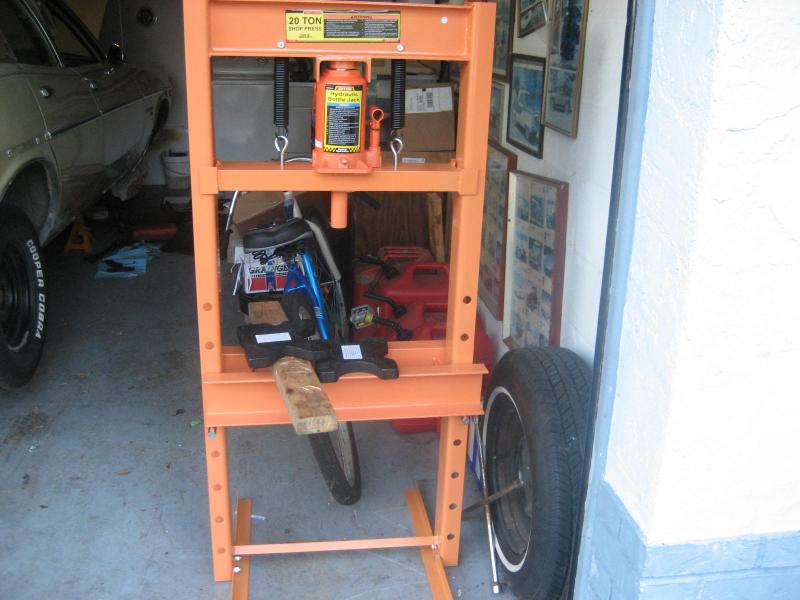

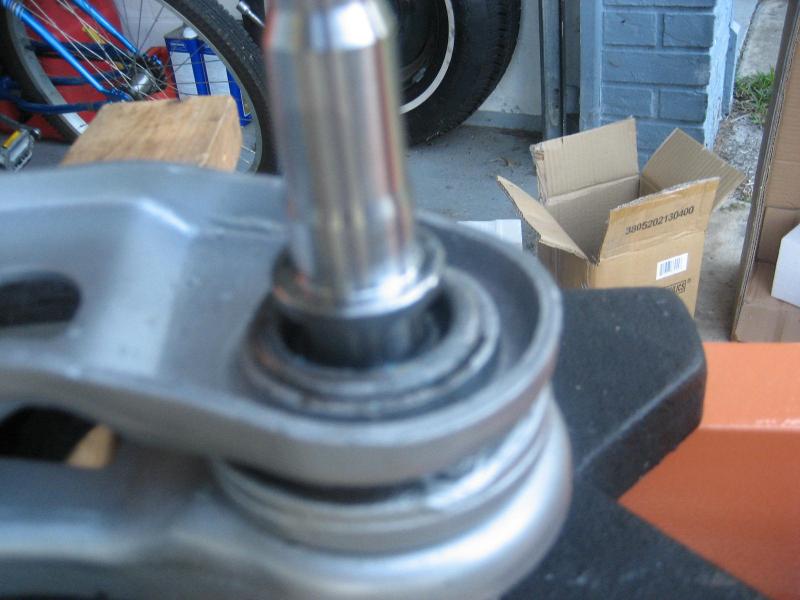

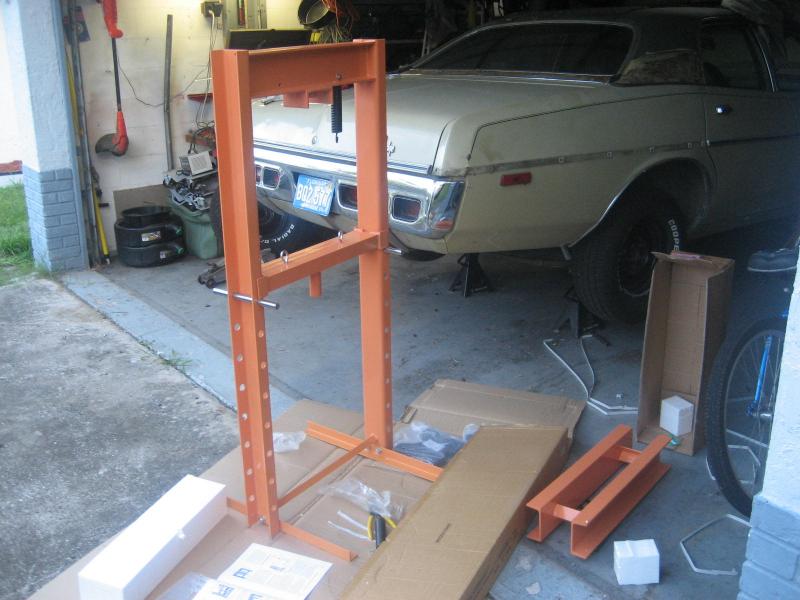

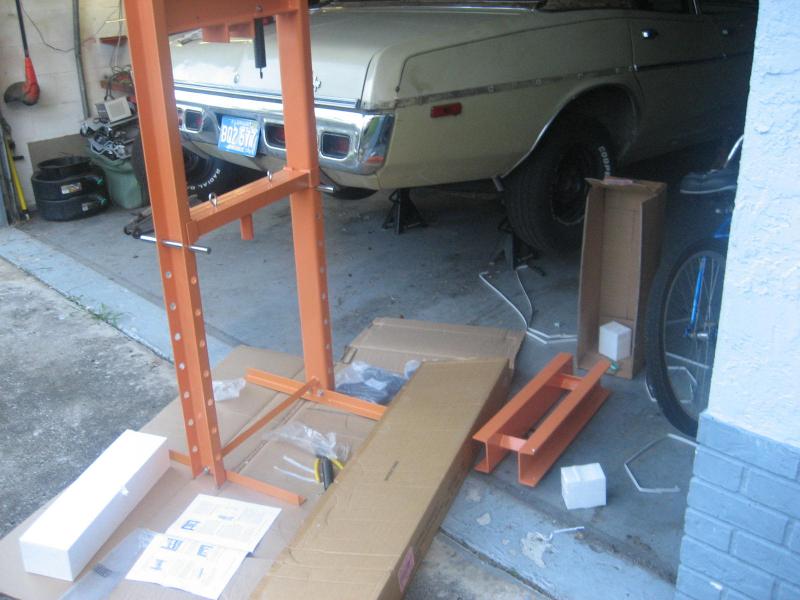

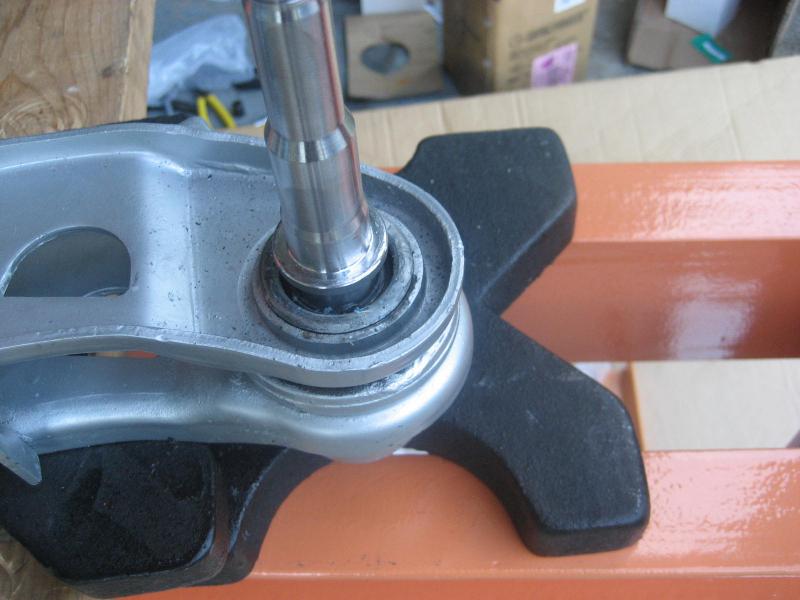

Got my press together and pushed the pivot pin in. I need an experts opinion on if this pin is in right. This is my firsttime working on a M opar front end



[YY1]

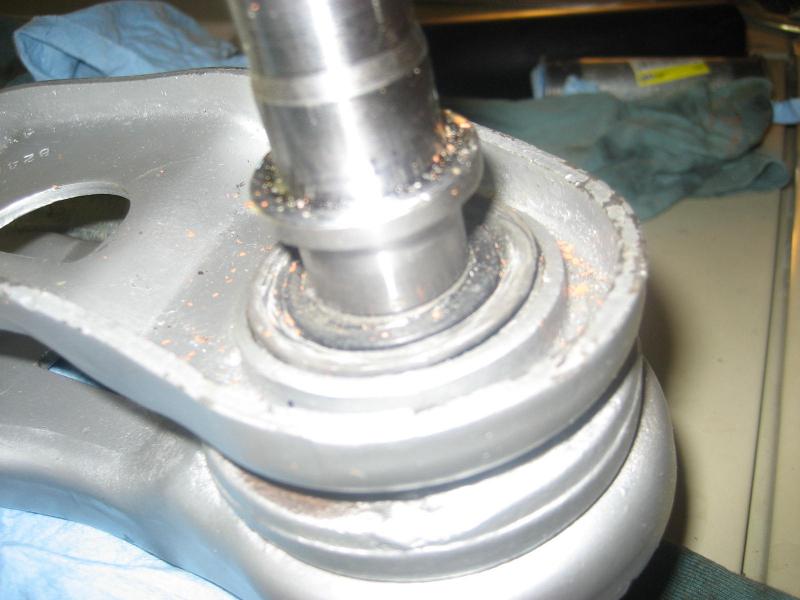

I think the "shoulder" on the pin is supposed to be against the inner bushing sleeve.

Be careful as it's possible to push that inner sleeve farther into the bushing.

- - - Updated - - -

Are you doing one side at a time?

If so, use the other side for reference.



[lynchroad]

According to the shop manual, bushing should first be pressed on shaft then the whole assambly pressed into LCA. That's the way I did it, using a bit of a pipe outside the shaft so the press hit the bushing flange.



[67 coronet]

According to the shop manual, bushing should first be pressed on shaft then the whole assambly pressed into LCA. That's the way I did it, using a bit of a pipe outside the shaft so the press hit the bushing flange.

you are correct sir!



[Coronet 14]

Doing one side at a time. I will do other side the way you all said. I should have asked first. My bad Thanks Do you think I should take it apart and press a new bushing onto the pivot pin and then press into control arm. Or do you think it will be ok?



[Coronet 14]

up date

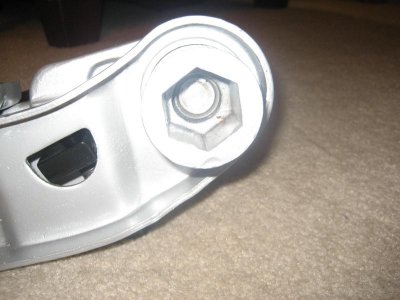

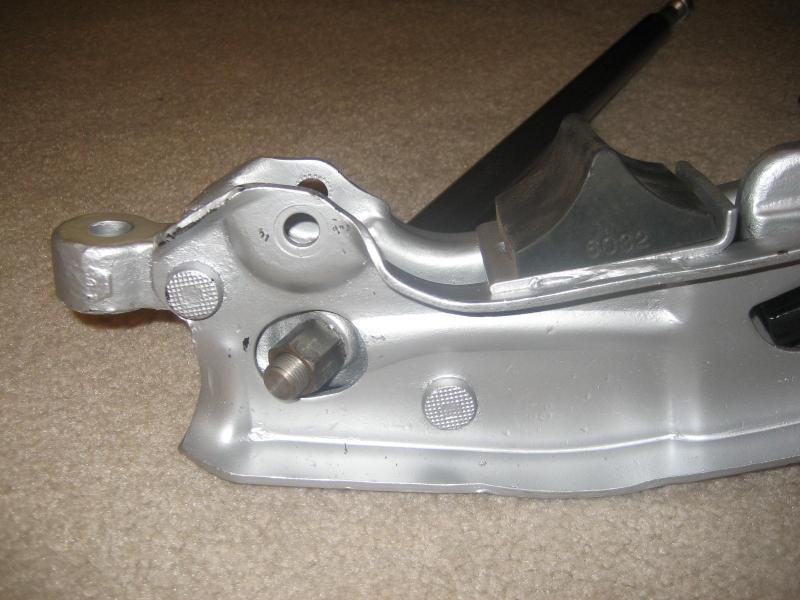

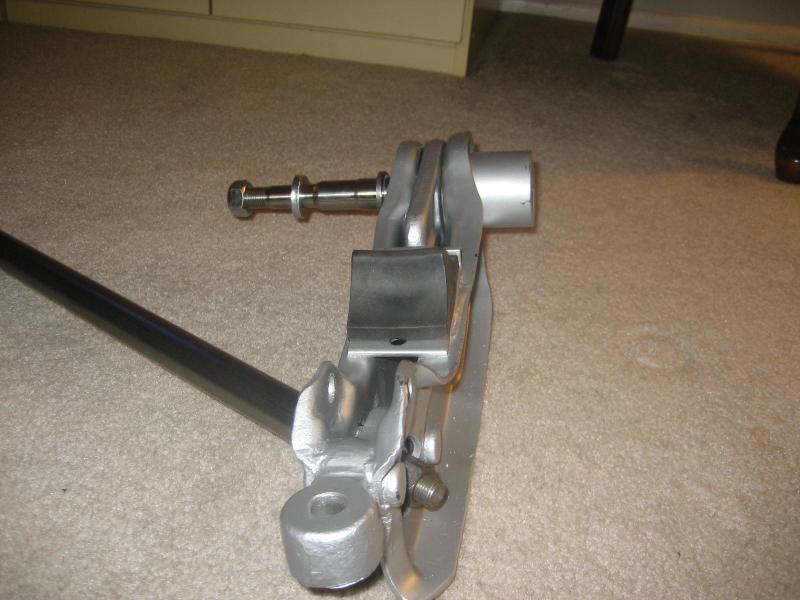

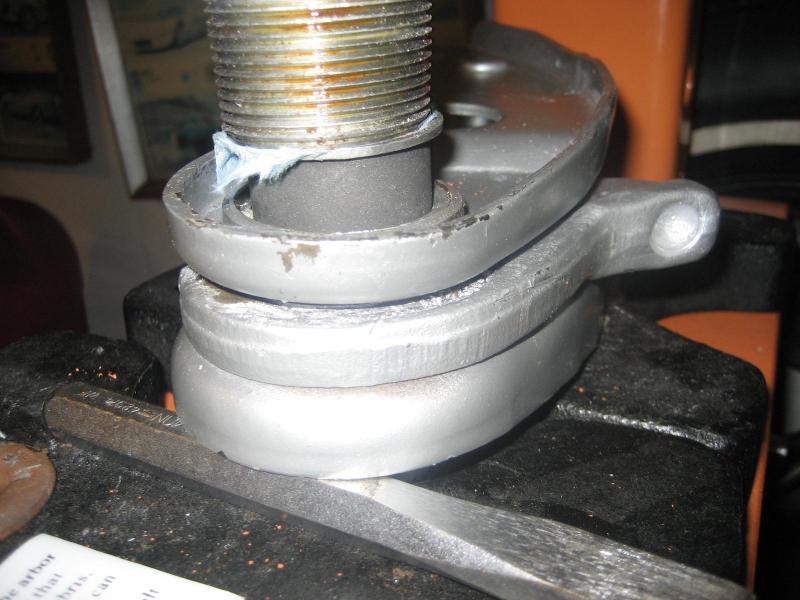

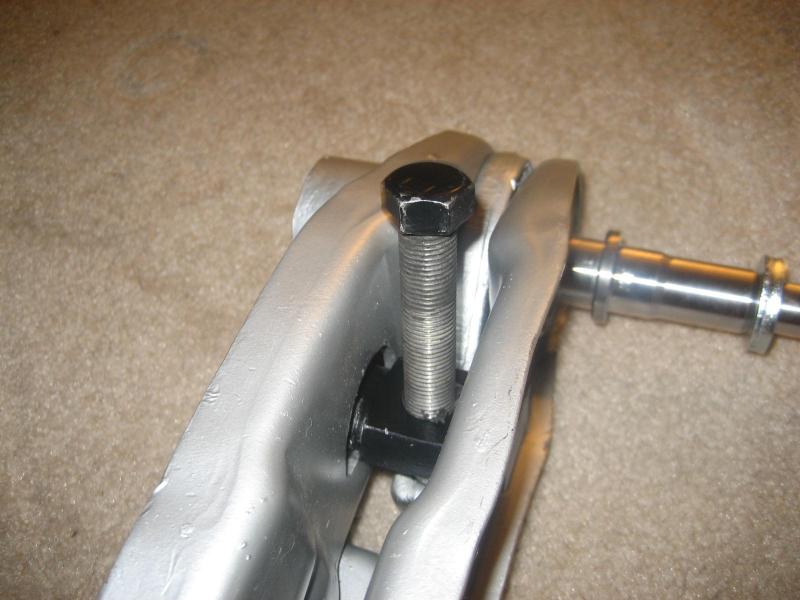

Fixed bushing assembled control arm pieces
