Stuck roll pin

[TX970]

What size is the roll pin that holds the steering column to the gear box?
I can not get it out. Have tried penetrating oil and tapping it out but it will only come about 1/4 of the way out.
tried drilling it out but just keep breaking drill bits. Any suggestions would be greatly appreciated.



[dadsbee]

Tried drilling, oh boy... There's a little step in that hole, so your punch is probably too large a diameter.



[TX970]

You don’t happen to know what size I need do you?
I’m going to the store to buy one.



[dadsbee]

Not off hand, look in the coupling hole to verify that step is the issue. I'd just grind the punch you were using down a touch. Easiest way to check size would be turn the steering 180 and compare the punch to the split pin coming out the other side.



[TX970]

Thanks.



[hunt2elk]

The pin is a 5/16". Sometimes they are really stuck in there. Hope you didn't do any damage with the drill...



[dadsbee]

..ahh you mean 3/16 Joel...



[hunt2elk]

..ahh you mean 3/16 Joel...

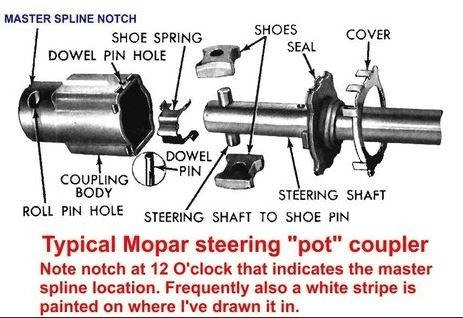

The roll pin that goes through the coupling body holding it to the steering box splined shaft? It is 5/16". Thought that was what we were taking about, but maybe not?



[dadsbee]

I don't remember it being that big, that steering shaft to shoe pin yes, but I don't think that roll pin is 5/16...maybe a 1/4..maybe you're correct. All I know is it's blowing 90K here and sleet, so I'm not leaving my comfy chair to go check.. LOL The hole does have a bit of a lead in/step to it though and figure the OP's punch was bottoming on it.



[hunt2elk]

I don't remember it being that big, that steering shaft to shoe pin yes, but I don't think that roll pin is 5/16...maybe a 1/4..maybe you're correct. All I know is it's blowing 90K here and sleet, so I'm not leaving my comfy chair to go check.. LOL The hole does have a bit of a lead in/step to it though and figure the OP's punch was bottoming on it.

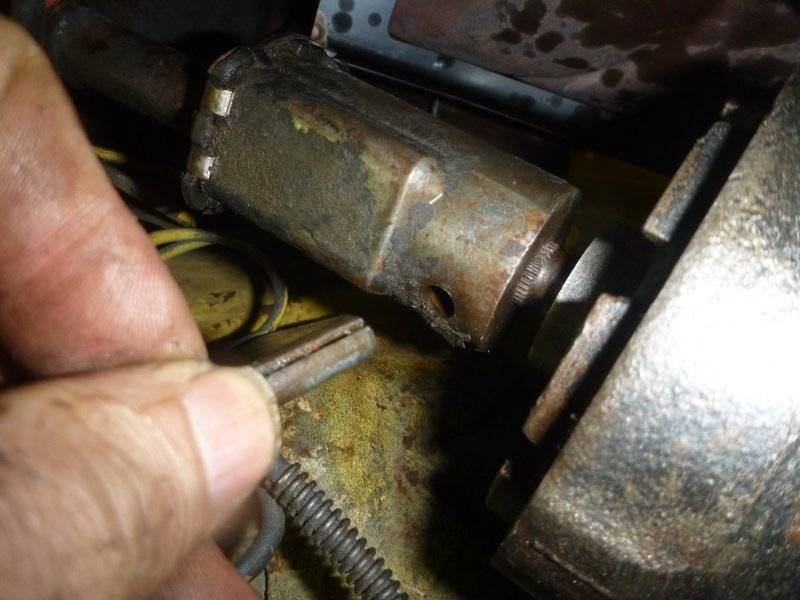

View attachment 1382112

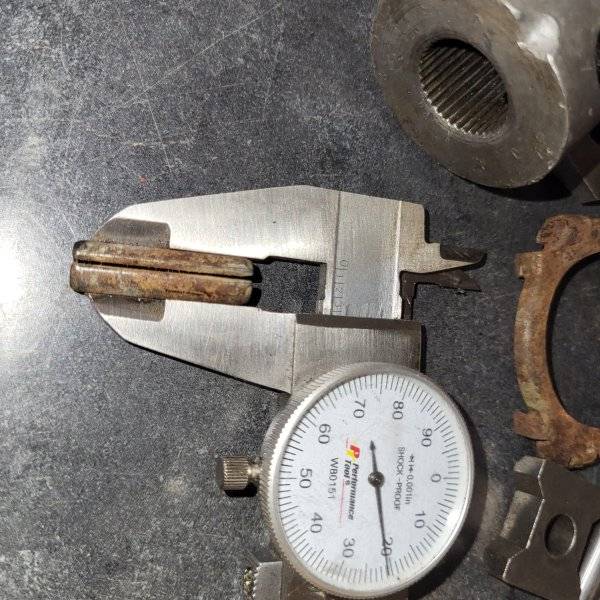

5 degrees here, but I had to walk over to the garage to take a pic for you. It is 5/16".



[64fury74charger]

The roll pin only come’s out one way, that opening in the coupler is tapered.



[dadsbee]

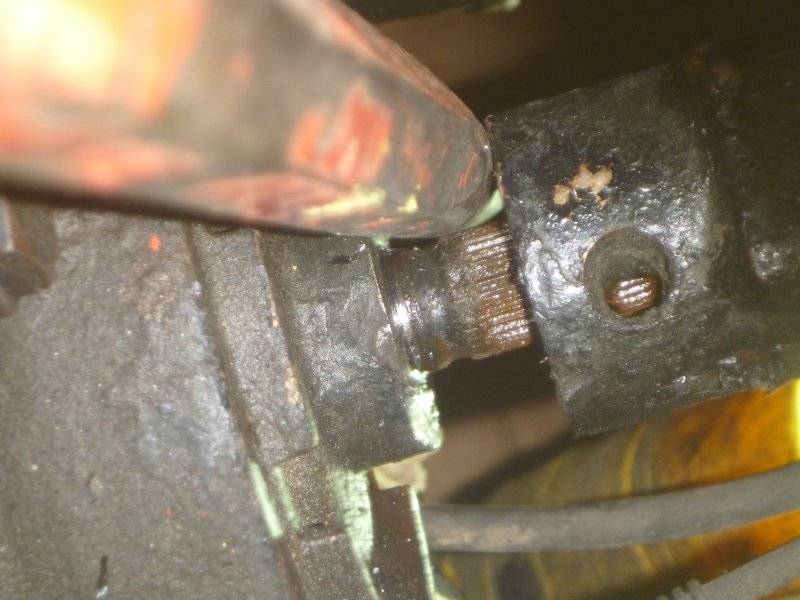

The taper is news to me... but this picture shows the "step" (counterbore) I mentioned. Why he's getting it a 1/4 of the way out and then not able to drive it any further as his punch is bottoming in the step.



[Mackman]

The hole is not tapered. He’s not using the proper size punch.



[hunt2elk]

The roll pin only come’s out one way, that opening in the coupler is tapered.

I'm positive the hole is not tapered. I have driven the pins out both ways.



[Billccm]

Old thread revival; did you ever determine what size punch and did you ever get the coupler off?



[BSB67]

Not off hand, look in the coupling hole to verify that step is the issue. I'd just grind the punch you were using down a touch. Easiest way to check size would be turn the steering 180 and compare the punch to the split pin coming out the other side.

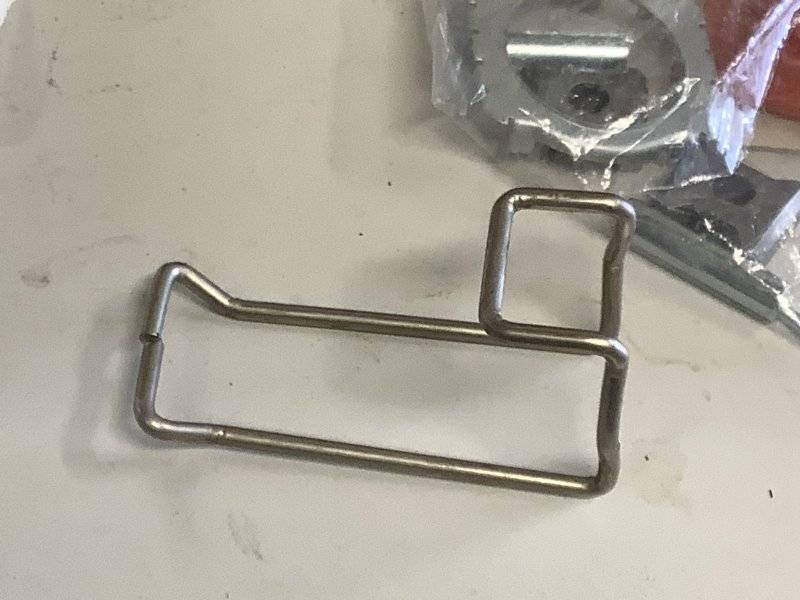

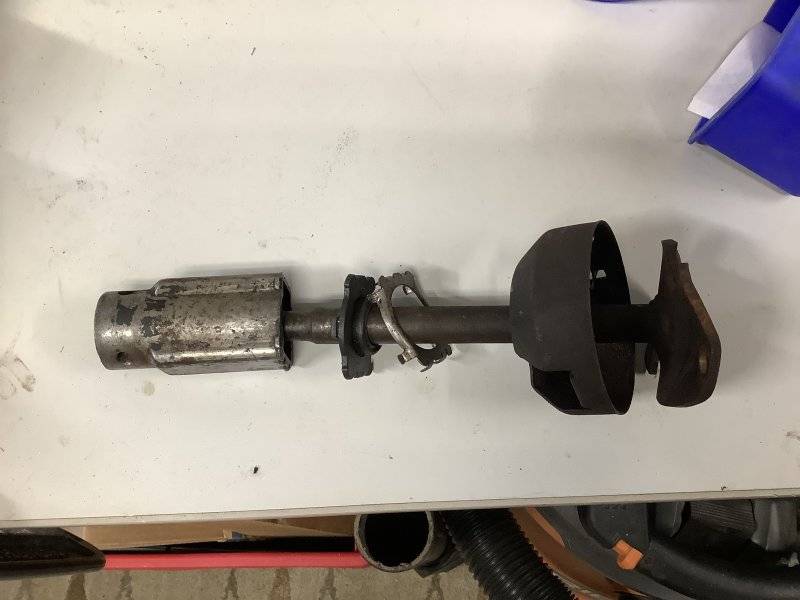

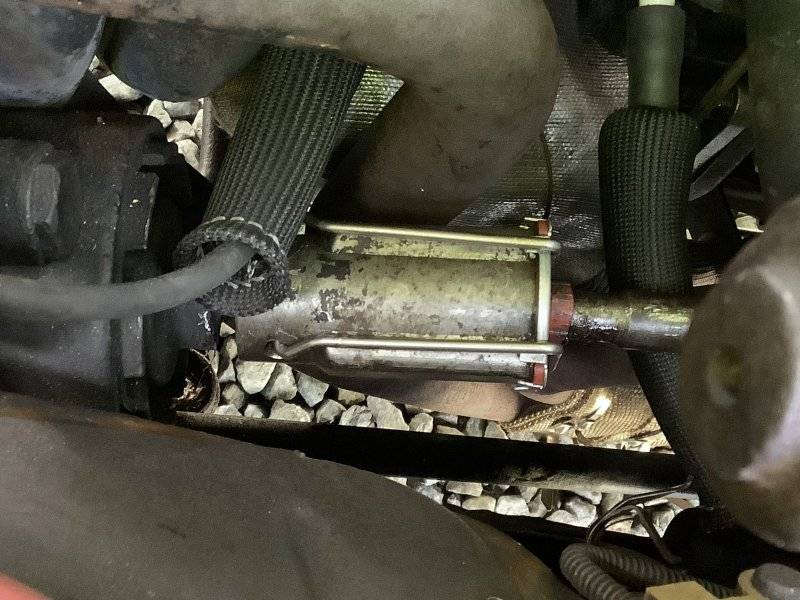

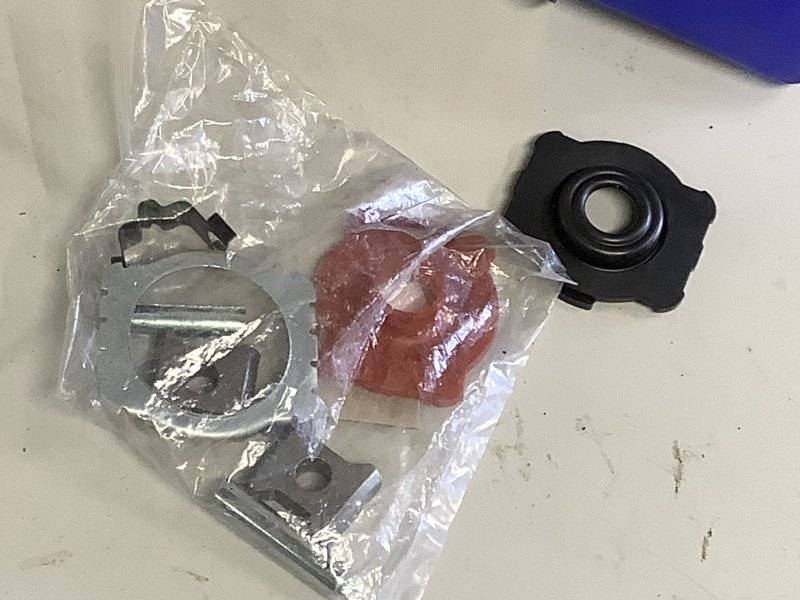

I got the right size bolt (don’t remember the size) ground the threads off to center it in the roll pin. basically a home made stepped punch. Kinda surprised me how well it works. That thing is still kicking around in a tool box somewhere.



[1 Wild R/T]

FWIW the pin it 5/16 but I use a 1/4" punch to drive it out... In fact back when I was doing a lot of wrecking yard scavenging I routinely used the air cleaner stud as a punch to drive out the roll pin... If you aren't sure what size it is the air cleaner stud is 1/4--20......



[BSB67]

I kinda though I used a 1/4 grade 8 bolt.



[beanhead]

Dang I was hoping we could get two pages on how to remove a roll pin LOL



[dadsbee]

I just hate it when the OP's never come back to advise if they gave up or not...
