Taking Up New Residence

[khryslerkid]

I think the left ones look better and brighter in my opinion.

Thats just the angle of the camera. They are all the same brightness. The second video I've wired top and bottom together, two lights flashing instead of one.



[khryslerkid]

I prefer the factory wiring because brake light stays on with turn signal flashing.

Actually on the side that's flashing, the brake light is not on. The bottom light is parking light only from the factory.



[Fran Blacker]

Actually on the side that's flashing, the brake light is not on. The bottom light is parking light only from the factory.

Ok, what does it look like with park brake and signal lights going?



[khryslerkid]

Ok, what does it look like with park brake and signal lights going?

I the first video, I had the parking lights on the whole time. I hit the brake and you'll see both top lights get brighter. Then holding the brake I turn on each turn signal. (Probably a better effect if I would have left the parking lights off.)



[Fran Blacker]

Looked at both videos again is the whiter light brakes and red parking? I'd like brake and signal come out of different lens. Parking/running lights on all four lights , just the way I'd want it. Can it be done if you want it that way? Love that 62 still kick myself for selling the one I had.



[khryslerkid]

Looked at both videos again is the whiter light brakes and red parking? I'd like brake and signal come out of different lens. Parking/running lights on all four lights , just the way I'd want it. Can it be done if you want it that way? Love that 62 still kick myself for selling the one I had.

Here, this is better. (Factory wired, parking lights off)



[Fran Blacker]

Here, this is better. (Factory wired, parking lights off)

Makes it clearer. Wonder why factory didn't have brake lights on bottom and signal top and have all 4 lit with park/running lights on? More wire I bet.
Your doing a fine job!!



[khryslerkid]

Makes it clearer. Wonder why factory didn't have brake lights on bottom and signal top and have all 4 lit with park/running lights on? More wire I bet.
Your doing a fine job!!

This is the Polara, backup lights above the bumper. The Darts are different with the backup lights on top of the bottom taillight or not at all. I think the 440 dart was another configuration. I could wire it almost anyway that I would want. Sequential from top to bottom? Lol

Craziness for only having this design for one year!

Thanks for the compliment!



[1962polara]

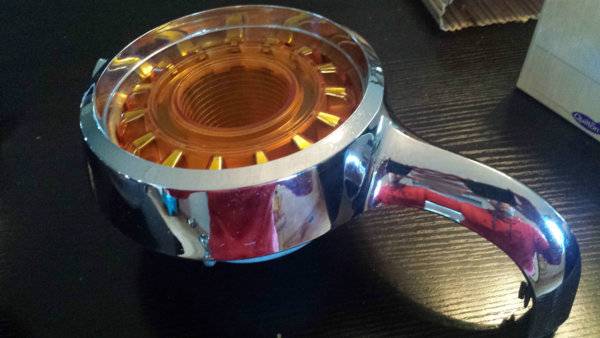

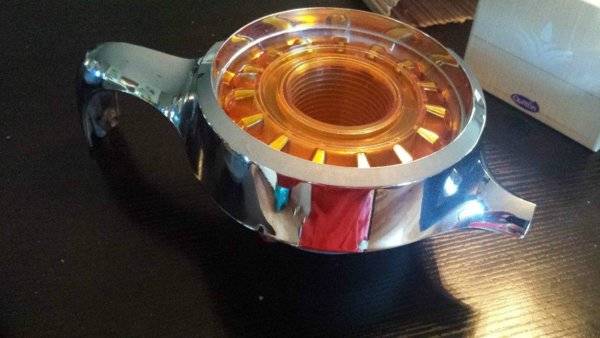

How about a orange set?

These are original to the Aussie '62 but there is a guy who repops them also
http://www.classicplastic.com.au/product/62-dodge-rear-indicator



[khryslerkid]

How about a orange set?

These are original to the Aussie '62 but there is a guy who repops them also
http://www.classicplastic.com.au/product/62-dodge-rear-indicator

View attachment 532722 View attachment 532723

Orange would be different!

Thanks for the link



[Thunderlugs]

Orange would be different!

Thanks for the link

Kid, I like your custom setup better! Much more visibility and safety . Should have been done that way from the factory! My 2 cents.



[khryslerkid]

Kid, I like your custom setup better! Much more visibility and safety . Should have been done that way from the factory! My 2 cents.

I'm going to wait until I get the front ones installed and working. Then I'll check the amp draw to see if it's within tolerance.



[Thunderlugs]

I'm going to wait until I get the front ones installed and working. Then I'll check the amp draw to see if it's within tolerance.

That has to be considered. More heat in the circuit with all the extra draw!



[PRND21]

I'm going to wait until I get the front ones installed and working. Then I'll check the amp draw to see if it's within tolerance.

LEDs have very little amp draw. You’d have to change your flasher to one compatible with LEDs. (I know, more money. Where does it stop?) Been following your thread. Thanks.



[khryslerkid]

LEDs have very little amp draw. You’d have to change your flasher to one compatible with LEDs. (I know, more money. Where does it stop?) Been following your thread. Thanks.

I'm not much on the led look. I don't even like them for the house!



[khryslerkid]

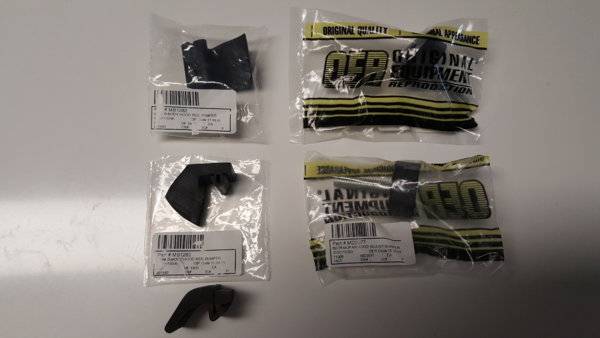

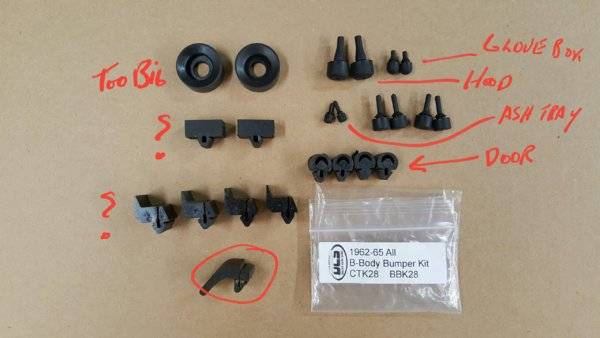

Who makes up these packs of parts that don't have what you need? Idiots!

The hood bumper in the red circle is my original. Don't see anything even close.
View attachment 529918

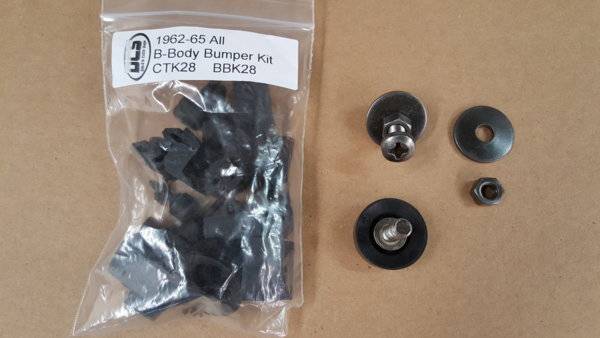

The hood adjusting rubbers are too big for the screw head.
View attachment 529919

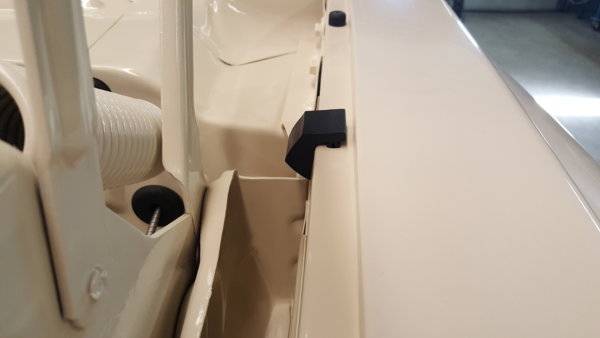

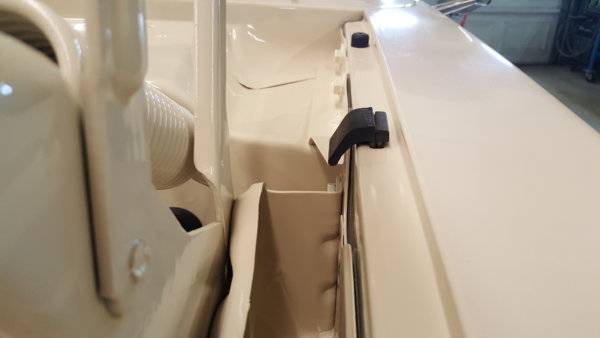

Received the bumpers that I needed. Ordered them from Classic Industries. The side hood ones are a little beefier than factory and that's ok!

Original bumper

Classic Industries

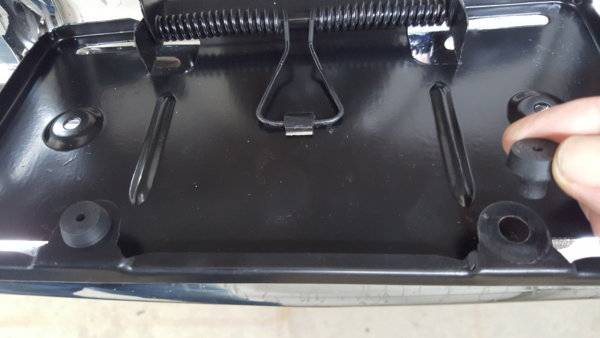

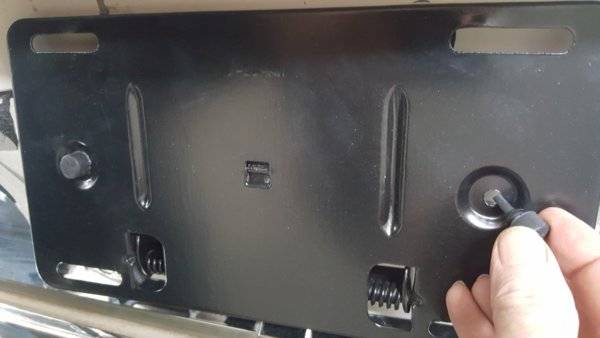

Also ordered the ones for the tag plate from Mega Parts



[747mopar]

I'm not much on the led look. I don't even like them for the house!

Really??? I've been swapping everything to LED at the house and notice a much clearer and brighter light that last much longer and draws less juice.

LEDs aside, your doing a great job on this one. I also like the dual light setup, smart thinking.



[khryslerkid]

I think it's the harshness of the light that I'm more sensitive to. (Been welding all of my life) I like a softer light. I've been in shops that decided to install mercury vapor lighting and I hated the harsh light they put out. They cast such a sharp shadow on things. Like the leds, they're brighter!



[Fran Blacker]

LEDs have very little amp draw. You’d have to change your flasher to one compatible with LEDs. (I know, more money. Where does it stop?) Been following your thread. Thanks.

I know, more money. Where does it stop? NEVER!



[khryslerkid]

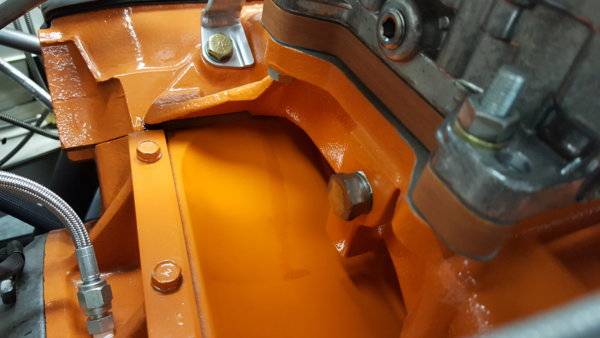

Found a manifold gasket leak that I didn't know about. The carb must have leaked down and a bit of gas found its way through a gap in the gasket. I noticed the carb tuning wasn't that sensitive so I guess there was a vacuum leak.

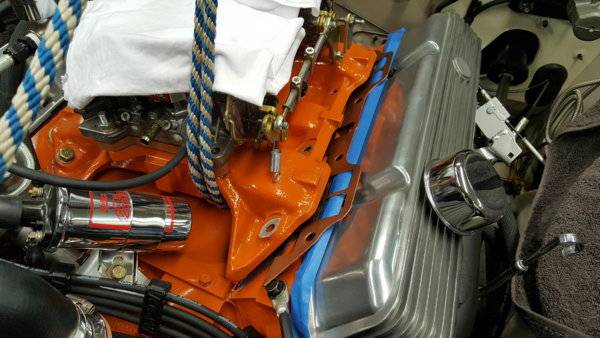

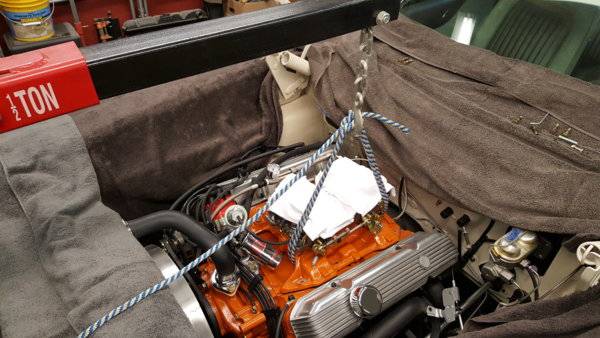

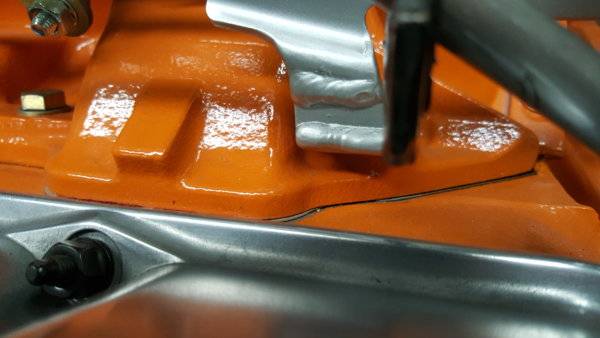

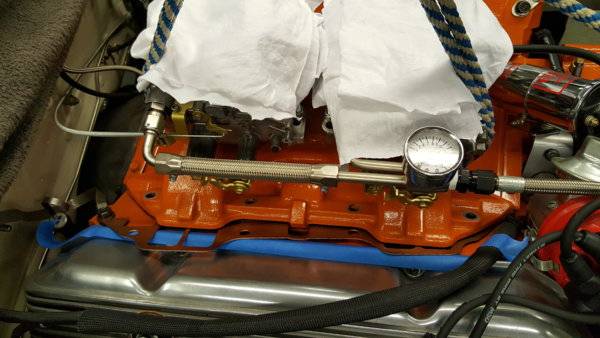

I used the engine hoist and a piece of rope to lift one side at a time, (leaving two loose bolts in the opposite side) installed a paper gasket on top of the pan gasket to take up the difference in the mating surfaces. It wasn't very much, looking closer, there is a little more gap at the bottom of the manifold flange. Heads measured stock so maybe the block was surfaced at one time.

I re tuned the carbs and they are more sensitive now. Funny how things happen when they do. I'll be addressing the carburetor issue soon...
