1966 Plymouth Satellite HP2

Thats pretty much what I did with mine too - set a small washer in a bed of JB Weld on the cracked plastic. Works well.

Thanks for the instructions on how to pull the dash cluster. The light bulb over my temp/gas gauge isn't working. I've tried swapping the bulb & holder with a working one and no go, so it looks like I've got to pull the cluster to see what's going on.

Thoughts?

Last edited:
Thanks for the instructions on how to pull the dash cluster. The light bulb over my temp/gas gauge isn't working. I've tried swapping the bulb & holder with a working one and no go, so it looks like I've got to pull the cluster to see what's going on.

Thoughts?
Unfortunately, pulling the cluster is probably necessary to figure out what is wrong. When I had the one out of my 66 out last year I spent quite a bit of time cleaning the boards, testing continuity and bulbs. I used some De-Ox at all the bulb locations but that’s probably more of a preservation thing than a fix. I believe I also made a couple wire jumpers up to hook it up to the car battery and the lighting stud/pin and ground so I could actually see each bulb was lighting up. I’ve had the clusters out of my 66 and 67 probably 5 or 6 times over the years but I hate doing it - a factory AC car is the worst.

Thanks for the instructions on how to pull the dash cluster. The light bulb over my temp/gas gauge isn't working. I've tried swapping the bulb & holder with a working one and no go, so it looks like I've got to pull the cluster to see what's going on.

Thoughts?
I'll have a boo at it when I get back to the shop to see what runs the bulb on that side. Working on getting the Daughter and GDaughter packed up and on their way home to a warm house with a new furnace. Thankfully the father and law located them a new furnace and got it installed yesterday.

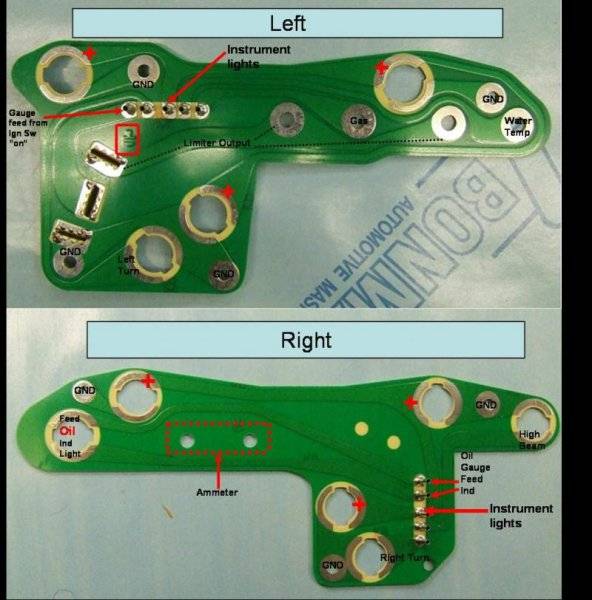

BTW.. here's a picture of the circuit boards..
Printed Ckt.jpg

I'll have a boo at it when I get back to the shop to see what runs the bulb on that side. Working on getting the Daughter and GDaughter packed up and on their way home to a warm house with a new furnace. Thankfully the father and law located them a new furnace and got it installed yesterday.

BTW.. here's a picture of the circuit boards..
View attachment 1393833
Wayne not sure if your interested in originality? 66 Satellites didn't come with bulbs or sockets in turn signal circuit board holes. They were black taped over.

Wayne not sure if your interested in originality? 66 Satellites didn't come with bulbs or sockets in turn signal circuit board holes. They were black taped over.
Explains the goo on the circuit boards.. but pretty stupid to leave two bulb holders out when the indicator arrows are in the cluster face! Tape probably cost as much as the bulb holders.. why on earth would they do that. Guess they wanted you to admire the fender tip lights.

I put bulbs in both of mine just for the heck of it. They are sometimes easier to notice in bright daylight.

I put bulbs in both of mine just for the heck of it. They are sometimes easier to notice in bright daylight.
Did the same. If I ever pull the cluster to remove the 150 mph speedo the original owner put in I'll tape them over.

Figure since the cluster is out of the car I should test everything I can before putting it back in.
1966plysathp2pt8 062.jpg

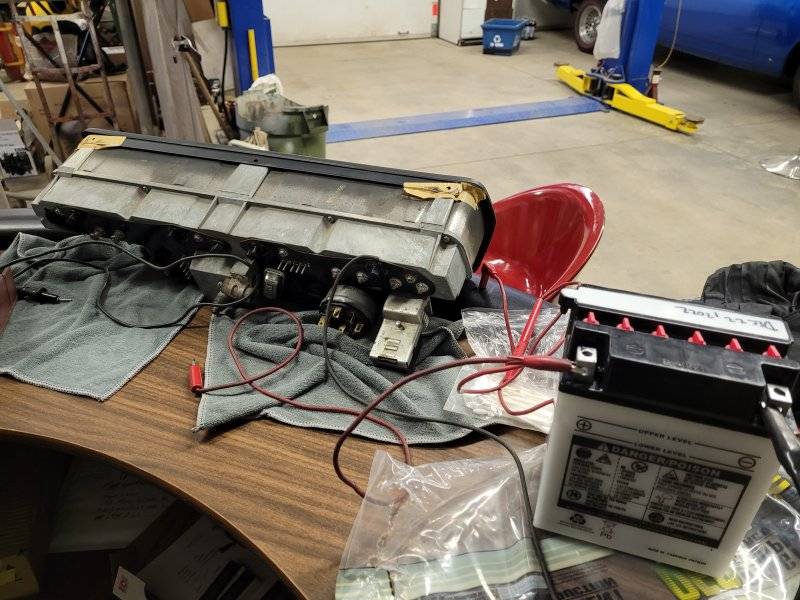

Negative to the housing and positive to the first pin on the left side board is ignition power in to the board for the voltage regulator. The new RTE's have a Red indicator light that flashes when powered up.
1966plysathp2pt8 066.jpg

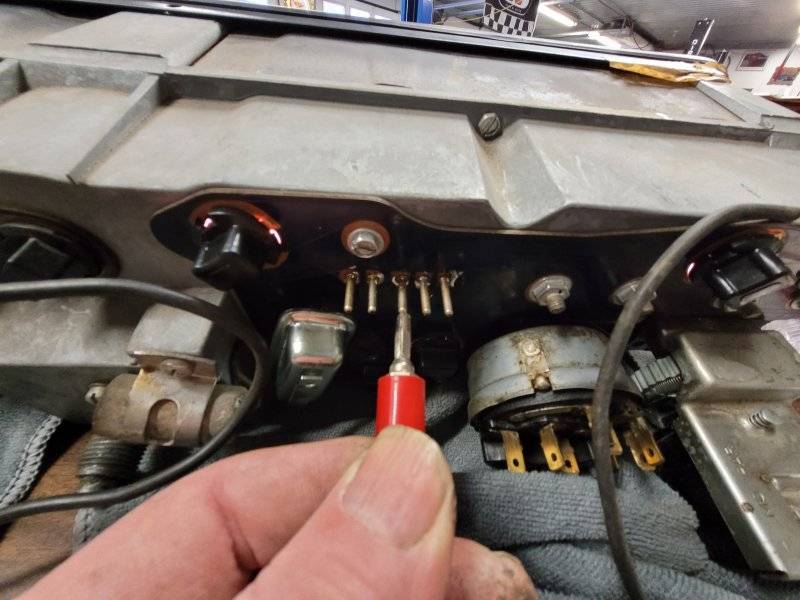

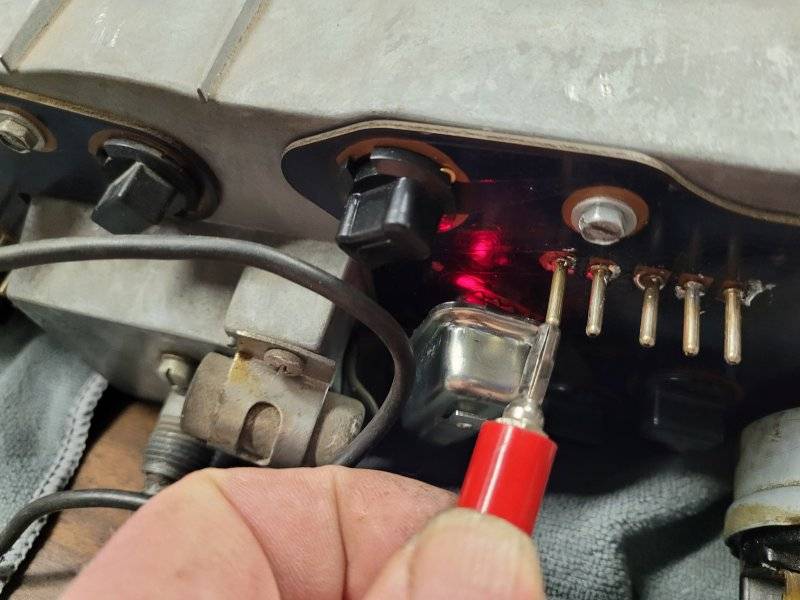

Pin #3 is instrument lights on the left circuit board.
1966plysathp2pt8 068.jpg

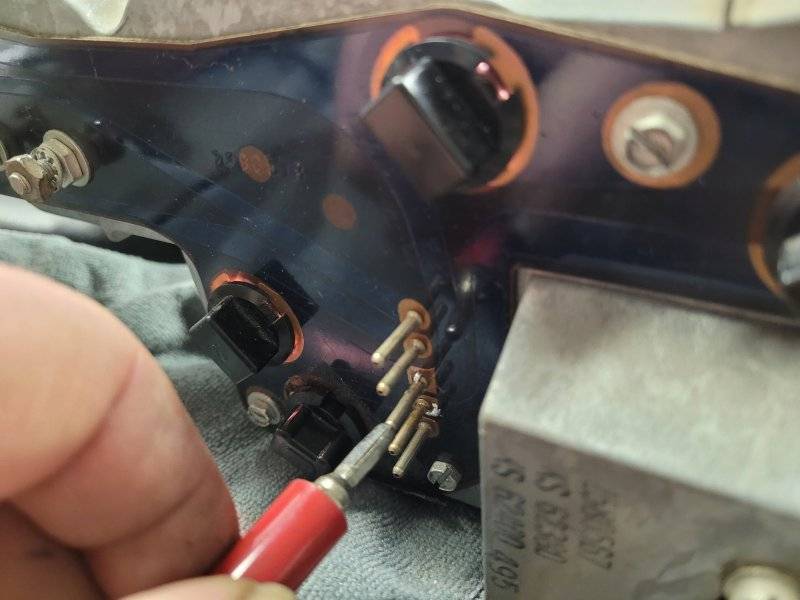

Same on the right circuit board, pin #3 for instrument lights.
1966plysathp2pt8 069.jpg

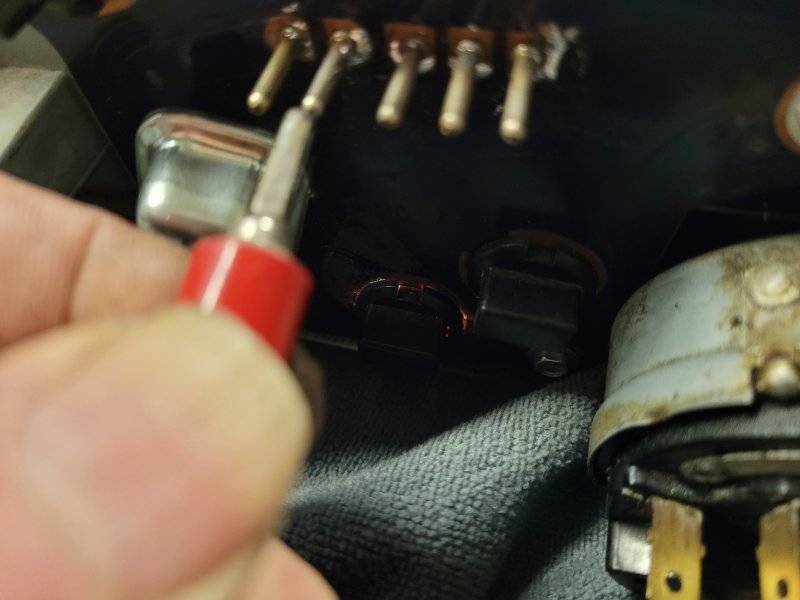

Pin #2 on the left circuit board is the left turn signal indicator light.
1966plysathp2pt8 072.jpg

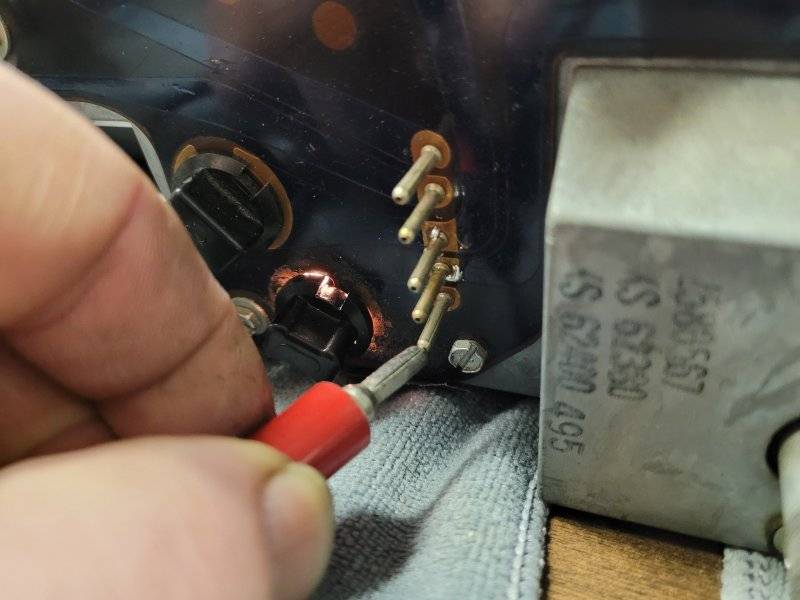

Pin #5 on the right board is the right signal indicator light.
1966plysathp2pt8 073.jpg

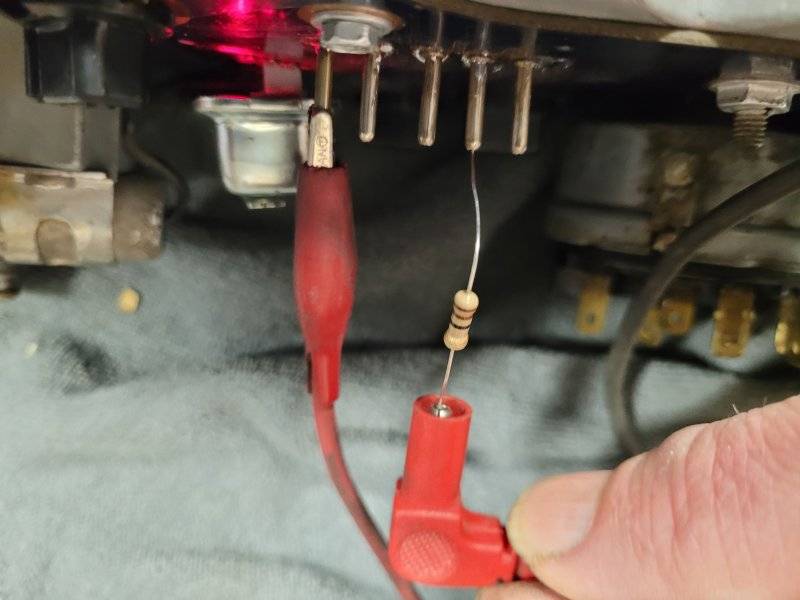

Ignition power hooked up and then a 10 ohm resistor between pin #4 and GROUND will swing the temperature gauge to full.
1966plysathp2pt8 075.jpg

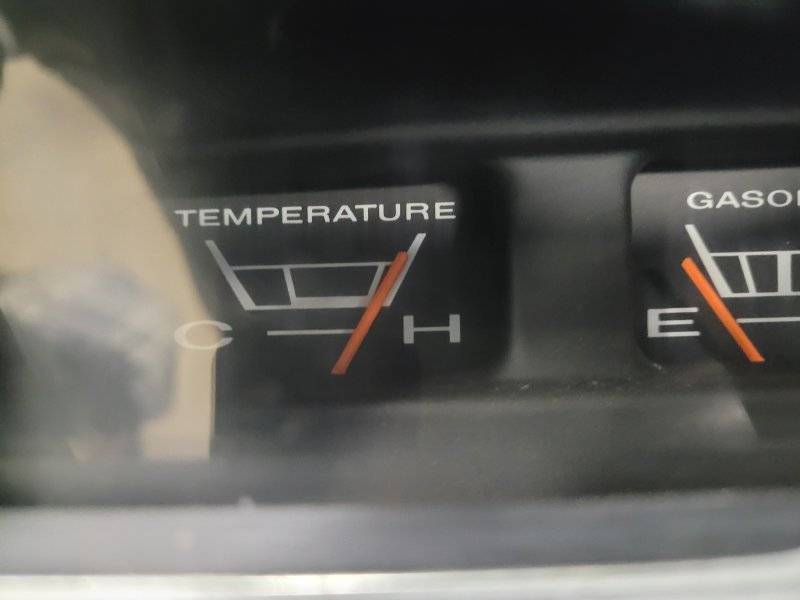

Temperature gauge at full with 10 ohm resistor to GROUND.
1966plysathp2pt8 079.jpg

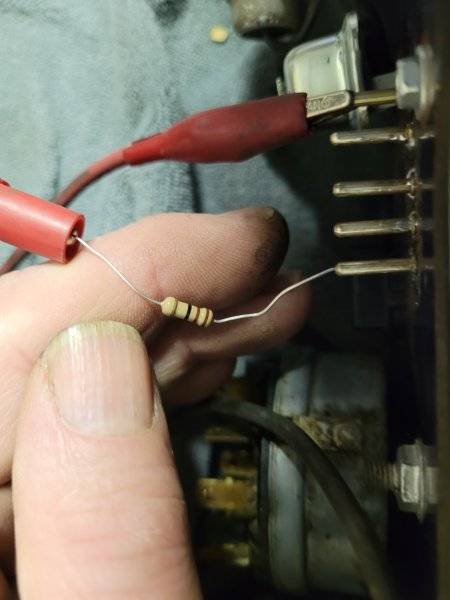

10 ohm resister between pin #5 and GROUND will swing the fuel gauge to full.
1966plysathp2pt8 080.jpg

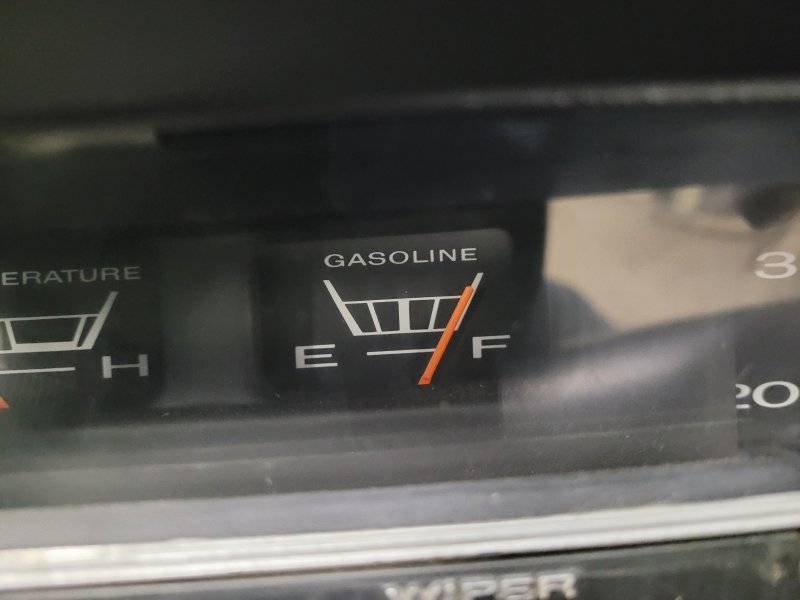

Fuel gauge at full.
1966plysathp2pt8 081.jpg

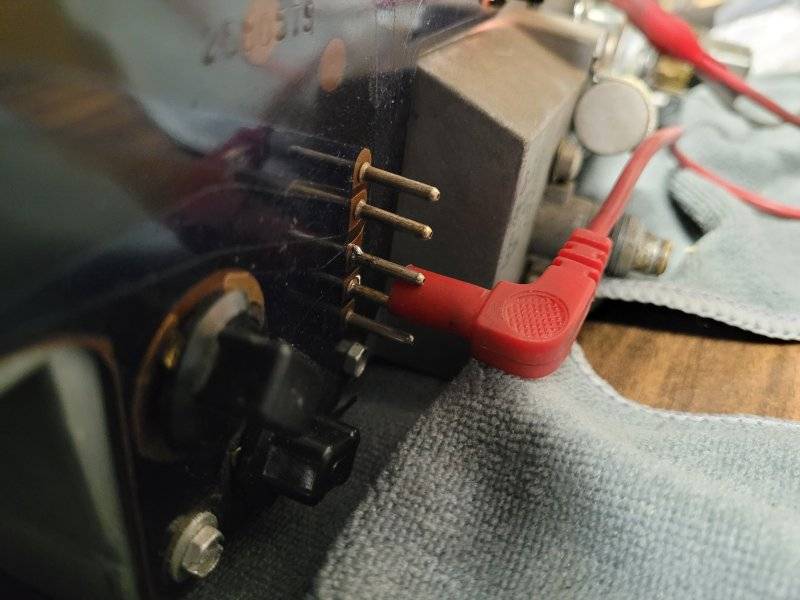

Pin #4 on the right circuit board is the high beam indicator.
1966plysathp2pt8 082.jpg

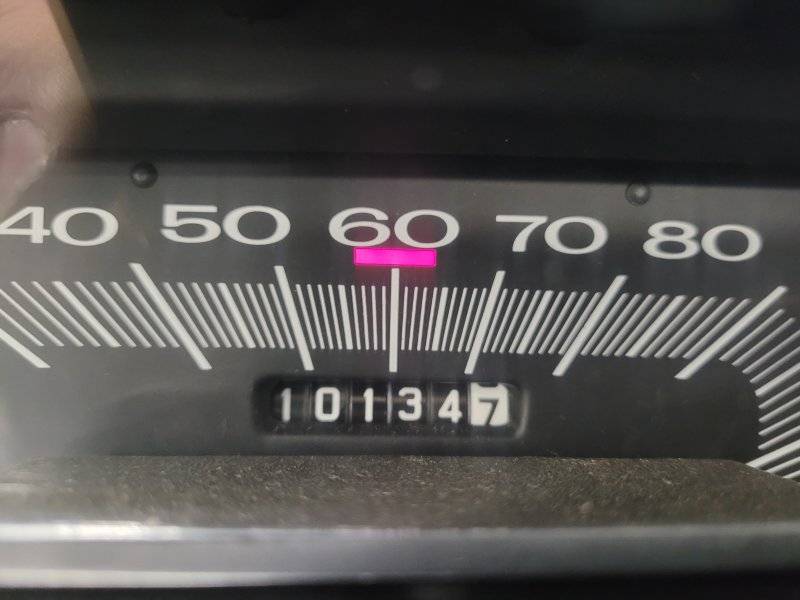

Put on the red light.... Roxanne..
1966plysathp2pt8 083.jpg

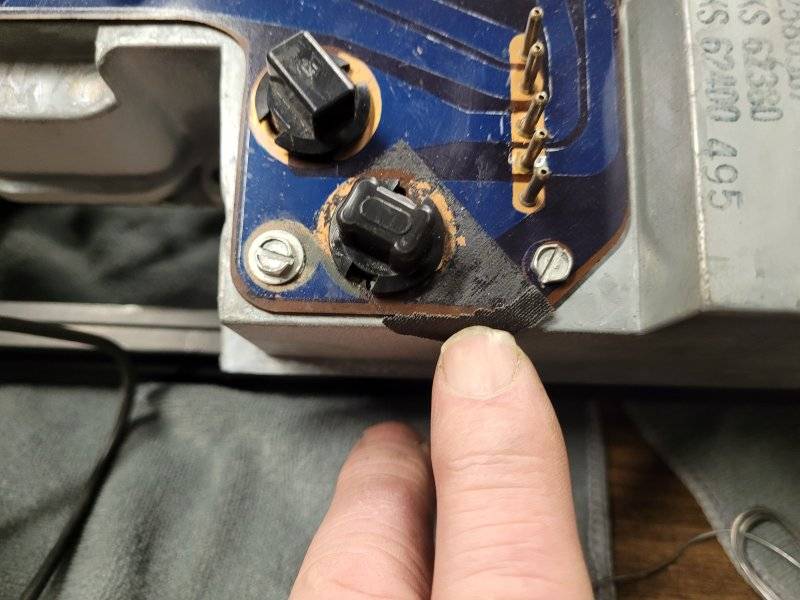

Satellites had the signal light bulb holes taped off from the factory, as they have indicator lights on the front fender tips. I like them both working. Pic shows the remnants of the tape on the right signal indicator hole.
1966plysathp2pt8 094.jpg

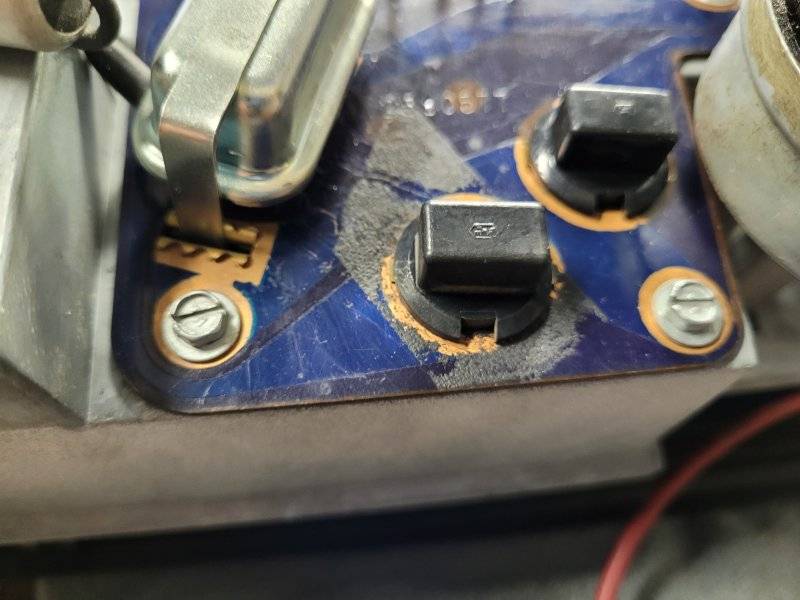

Tape goo from the factory taping off the left signal indicator hole.
1966plysathp2pt8 093.jpg

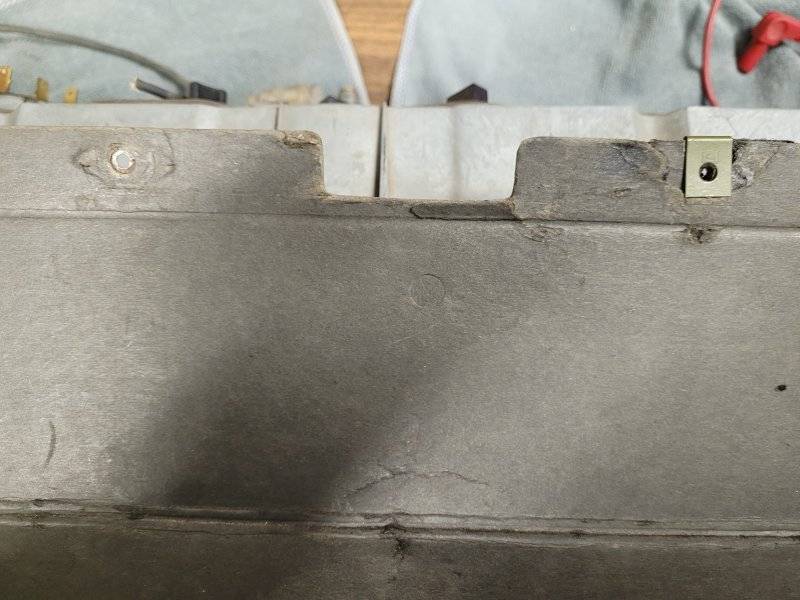

Glove box insert fixed up and clip on screw plate in place.
1966plysathp2pt8 097.jpg

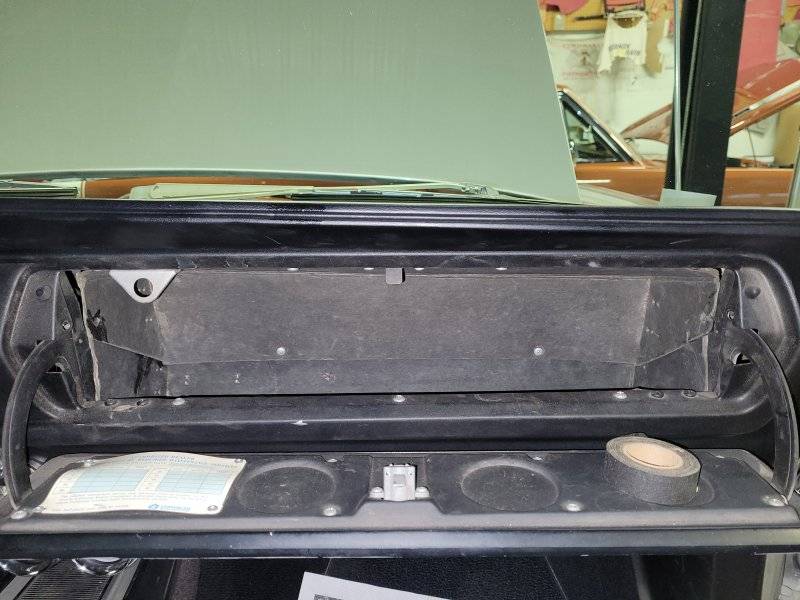

Box liner all back into place.
1966plysathp2pt8 100.jpg

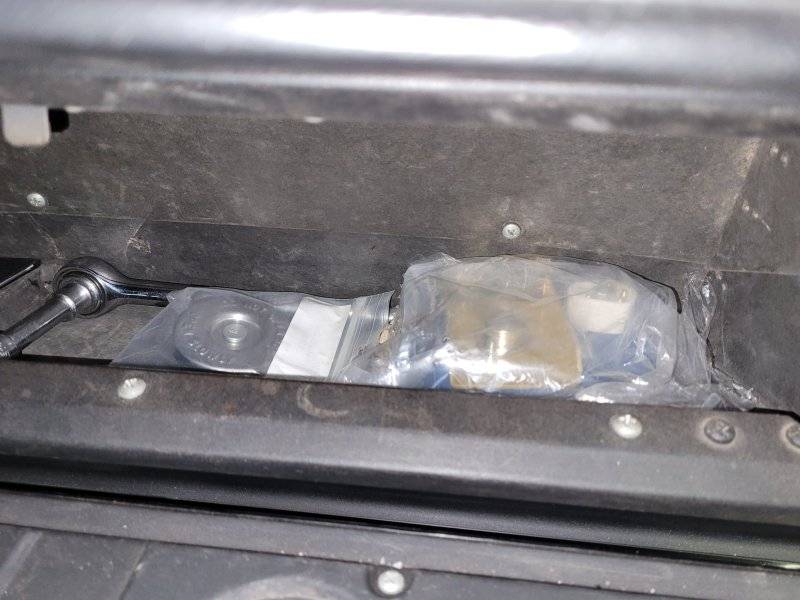

Spare ECU, rad cap, ballast resistor and the socket required to change the ECU put back in the glove box. The hemi is running an ECU box hidden under the battery tray vs stock points.
1966plysathp2pt8 103.jpg

Wayne not sure if your interested in originality? 66 Satellites didn't come with bulbs or sockets in turn signal circuit board holes. They were black taped over.
Interesting. Mine work - both in the cluster and on the fenders. I wonder if it was a factory "mistake" or a modification at some point. Doesn't look like the panel has been removed, but that really doesn't mean it hasn't. I have a few bulbs not lit, so one of these days I'll have to take it apart. It'll be interesting to see if there's any tape goo.

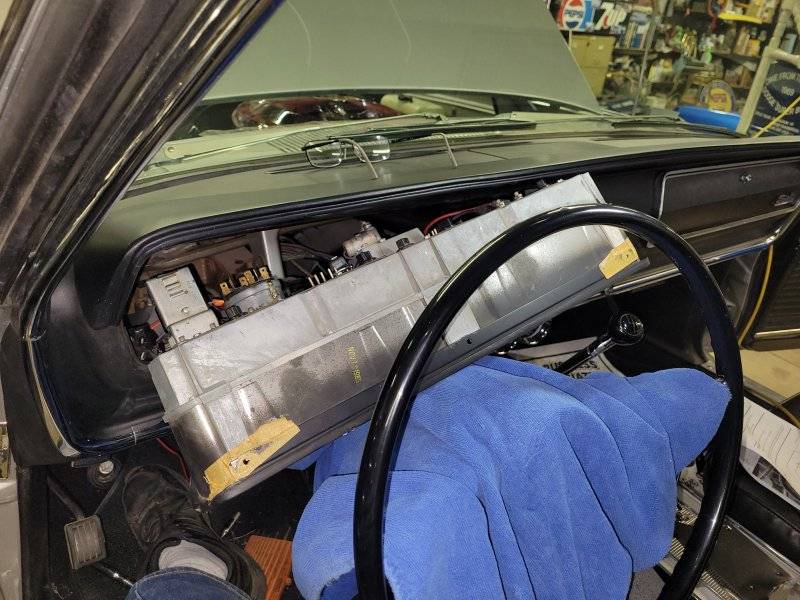

Time to put her back together.
1966plysathp2pt9 001.jpg

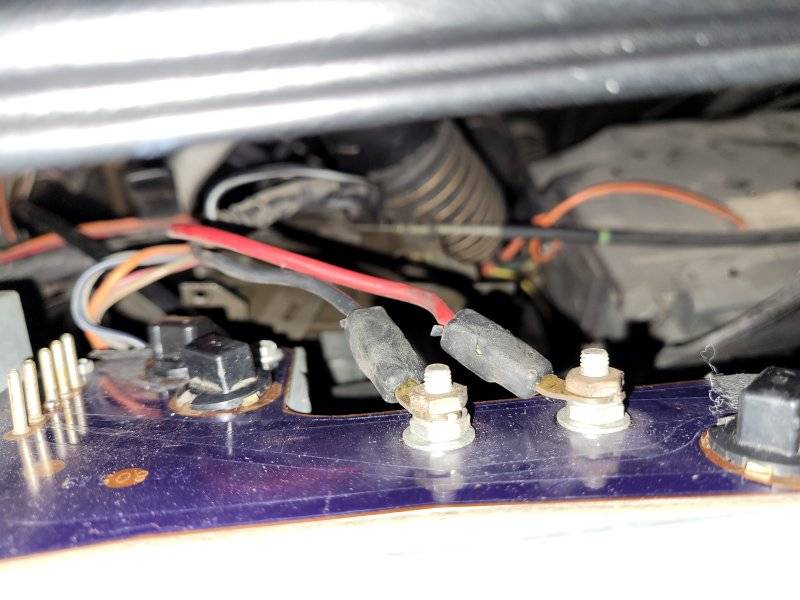

Amp gauge hooked up first, then the 5 pin plug to the left of those.
1966plysathp2pt9 004.jpg

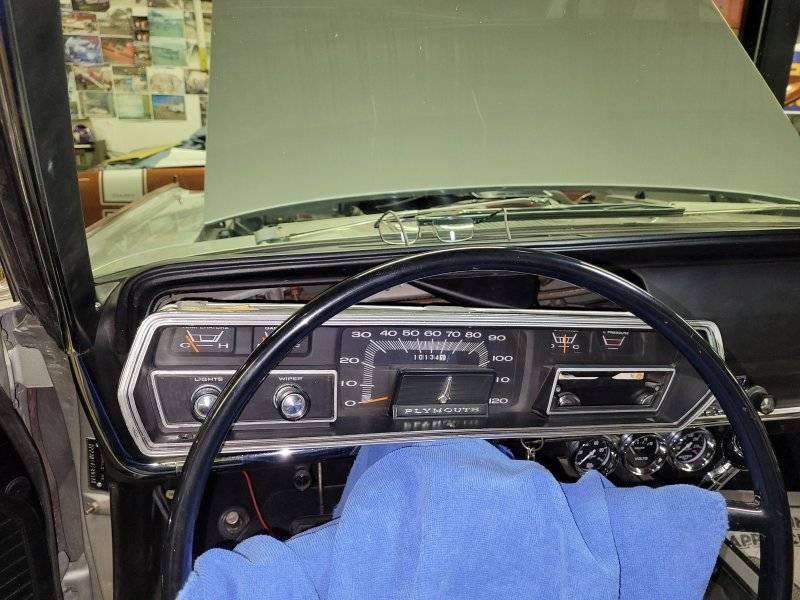

Speedometer cable hooked on and it keeps things nicely in place.
1966plysathp2pt9 006.jpg

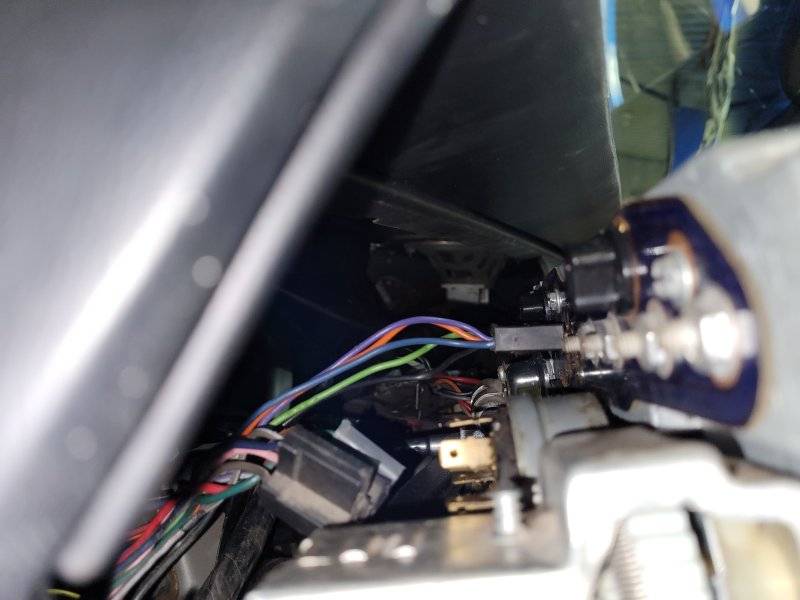

Then the longer wires of the left sides 5 pin plug to the circuit board and then the wiper switch wires and then the headlight wires last.
1966plysathp2pt9 007.jpg

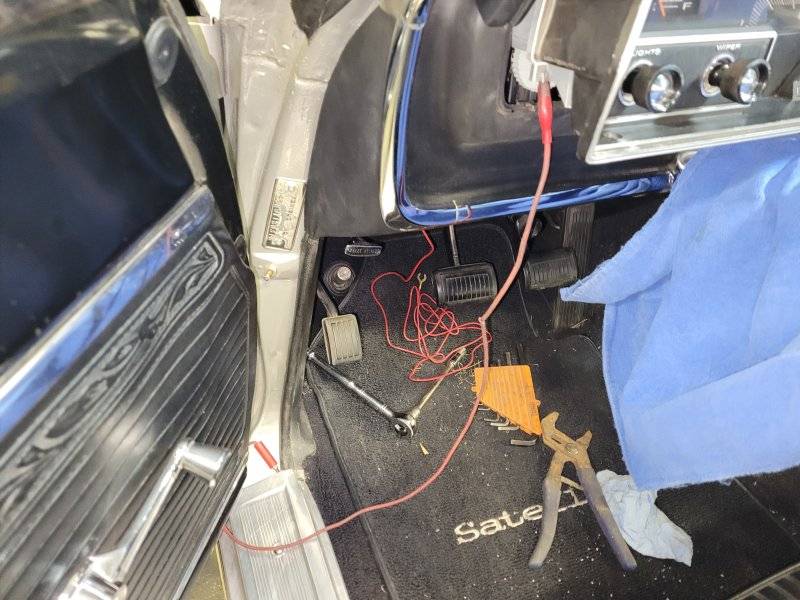

Don't forget, if you don't ground the cluster housing nothing works properly. You'll panic when you find out the wipers won't park !!
1966plysathp2pt9 009.jpg

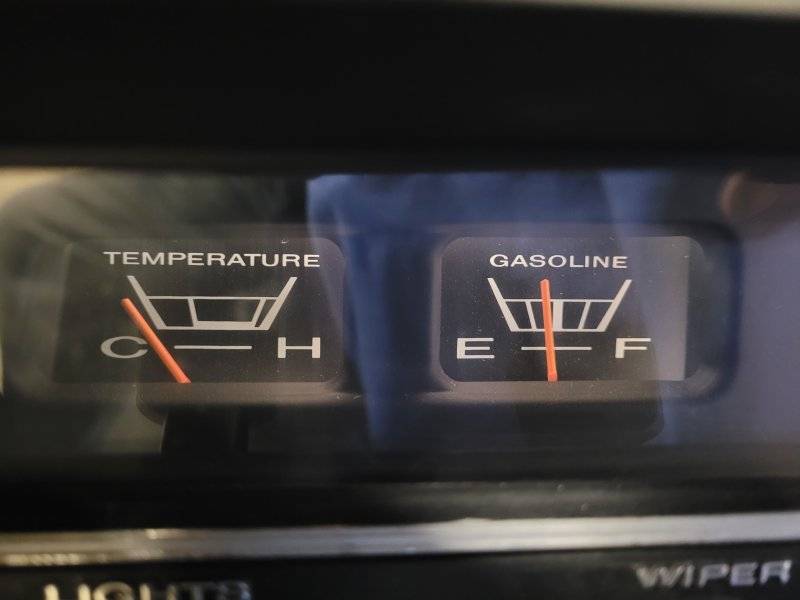

Testing everything before putting the cluster into it's final position. Fuel gauge works and instrument lights. I saw the temperature gauge move ever so slightly, so it should be good as well.
1966plysathp2pt9 015.jpg

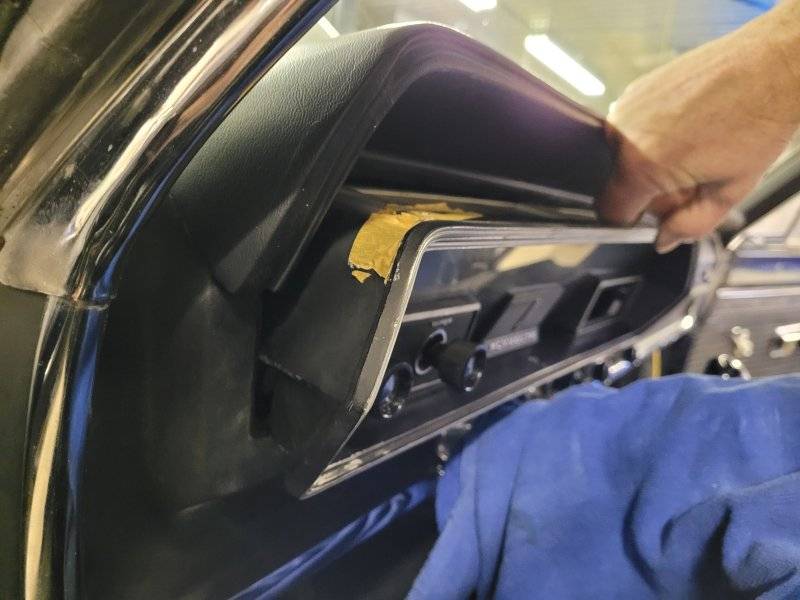

All lights, signals, high beam etc tested and then into place she goes. It won't go straight in as the housing has a bump on the bottom. Bottom "bump" has to go in first by tipping it back and then in.
1966plysathp2pt9 022.jpg

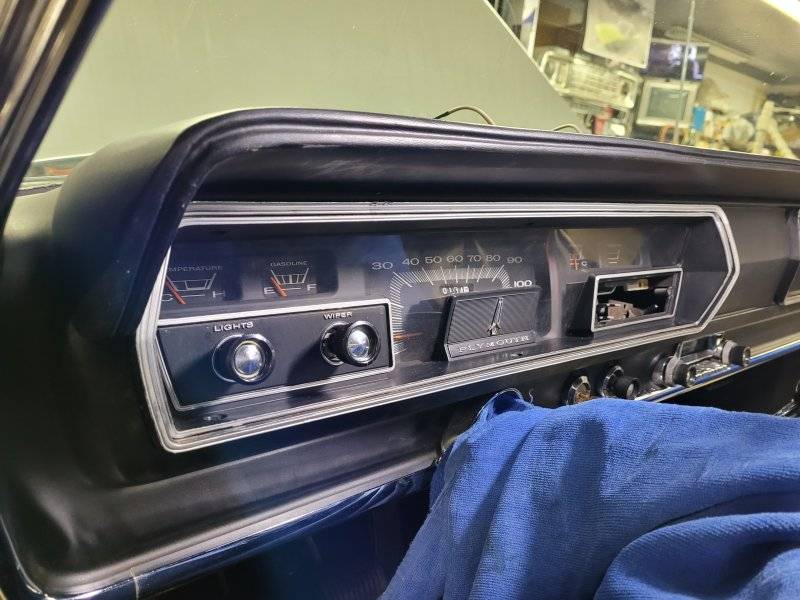

Cluster sitting in place, no screws yet.
1966plysathp2pt9 024.jpg

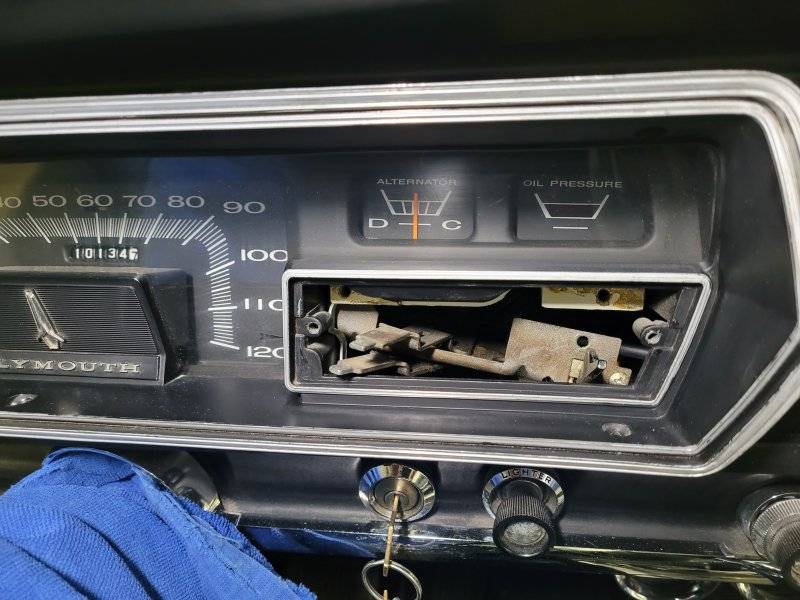

Fishing the heater control out and up into place.
1966plysathp2pt9 025.jpg

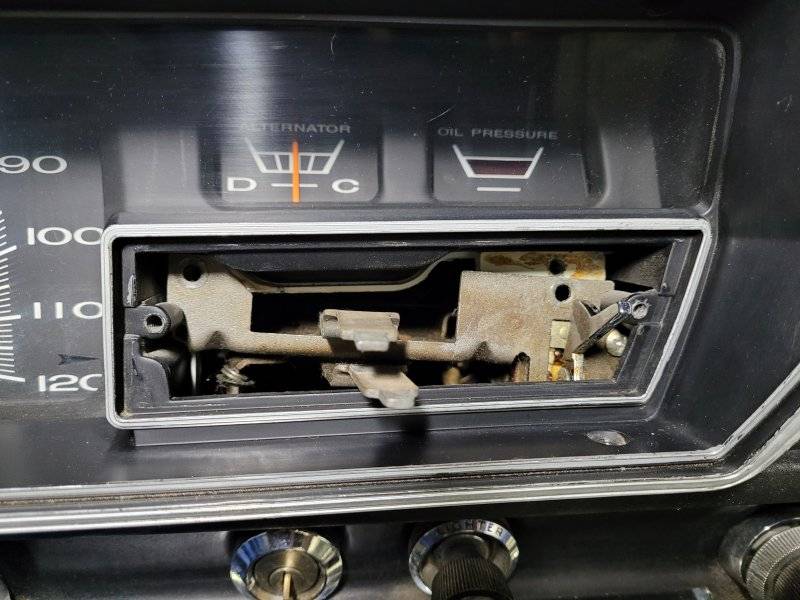

Control back on the proper side of the cluster for mounting.
1966plysathp2pt9 026.jpg

Last edited:

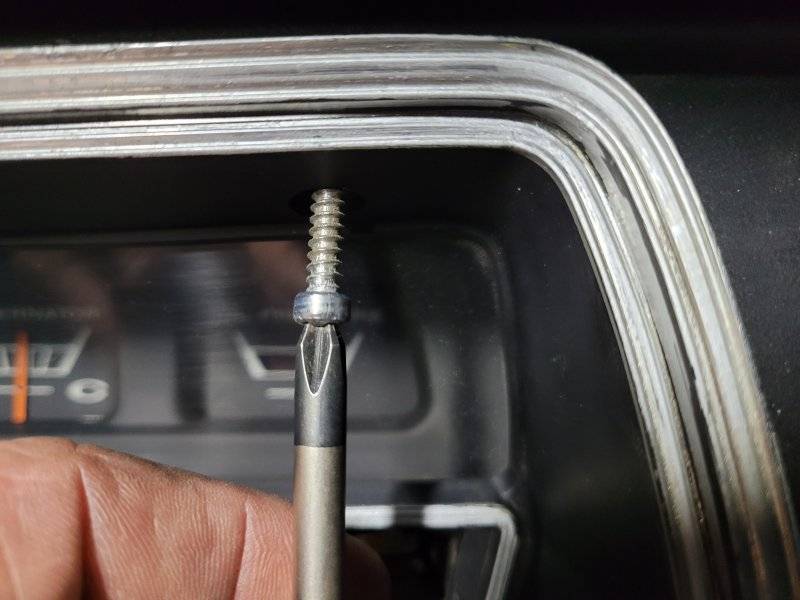

3 of these screws in the top edge of the housing are the ground source from the housing to dash frame.
1966plysathp2pt9 028.jpg

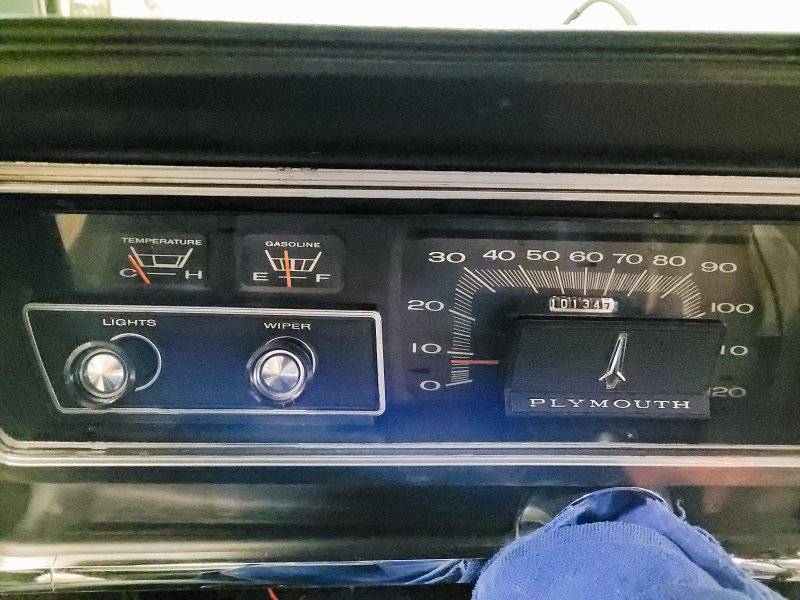

Another check of everything again before putting anymore screws in.
1966plysathp2pt9 038.jpg

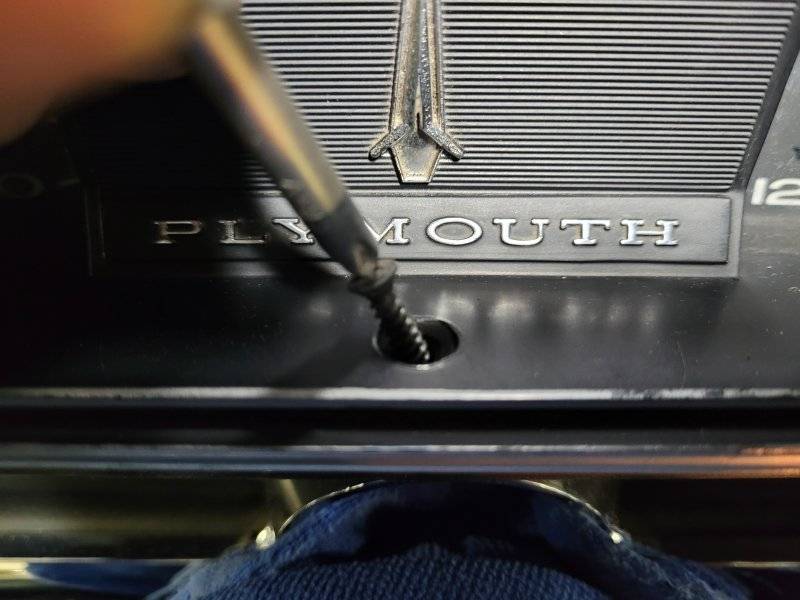

Lower 3 screws are oval head and black.
1966plysathp2pt9 046.jpg

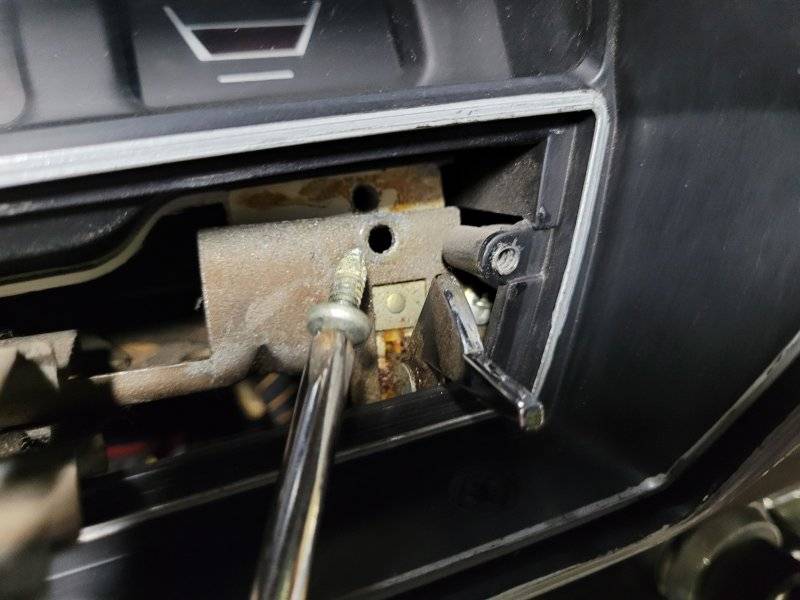

Heater control screws.
1966plysathp2pt9 048.jpg

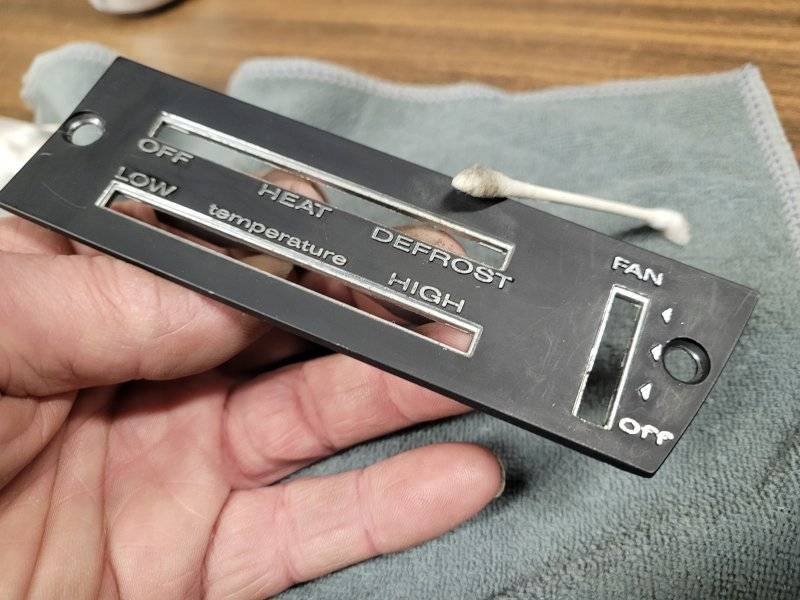

More spit cleaning.
1966plysathp2pt9 050.jpg

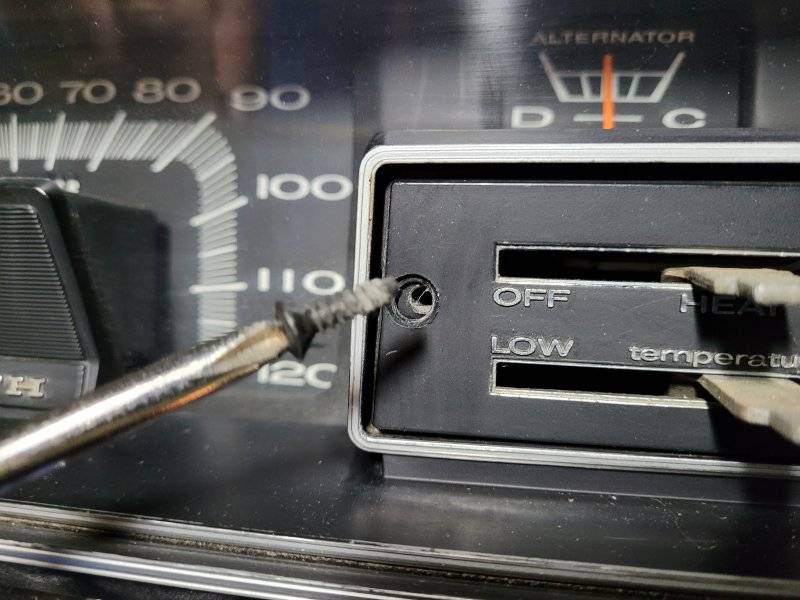

Black oval head screws for the heater control plate.
1966plysathp2pt9 054.jpg

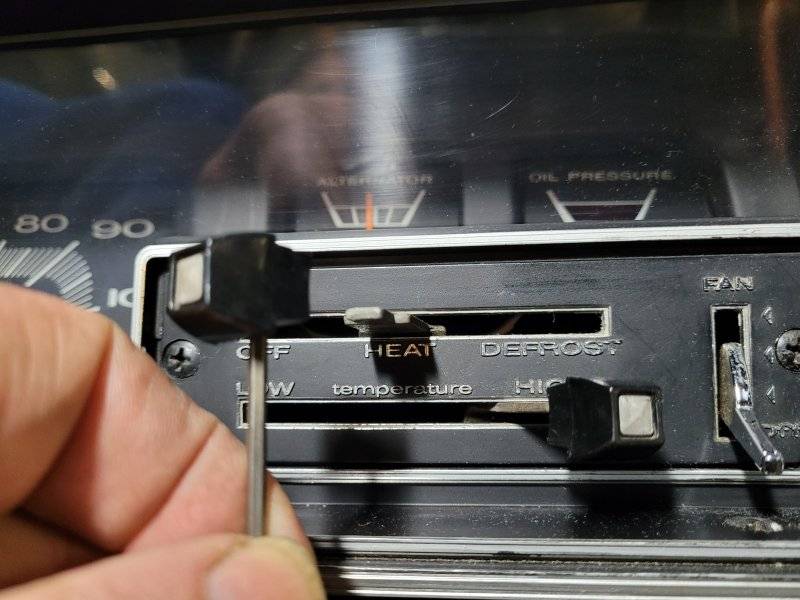

Control knobs back on with the allen key.
1966plysathp2pt9 056.jpg

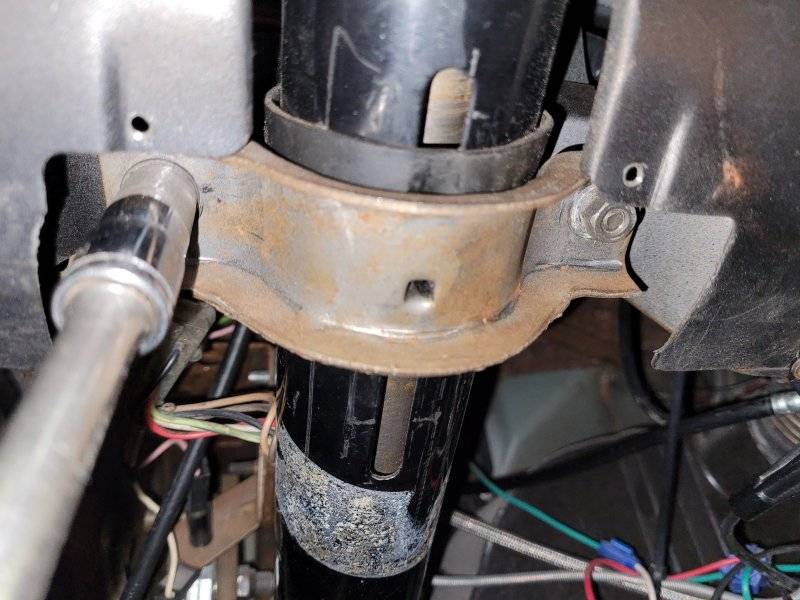

Steering column nuts tightened back up and then the cover plate put in place with 4 screws.
1966plysathp2pt9 061.jpg

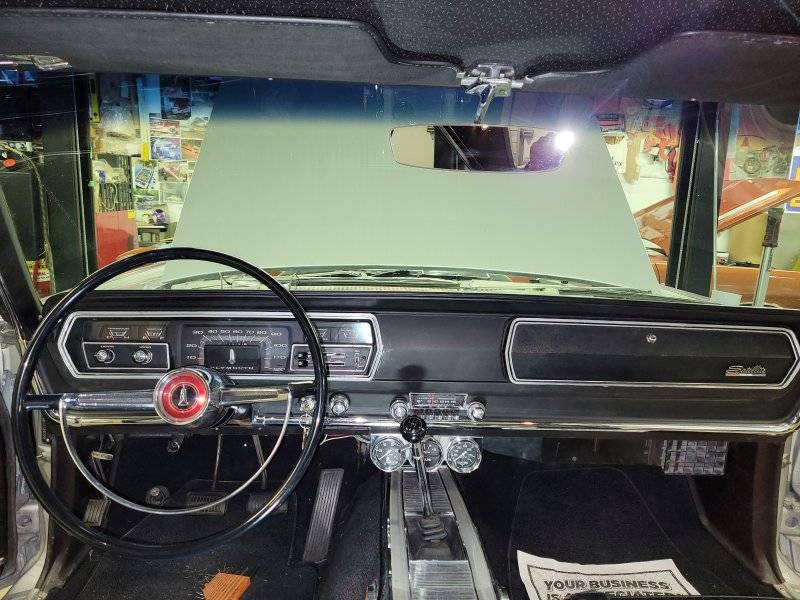

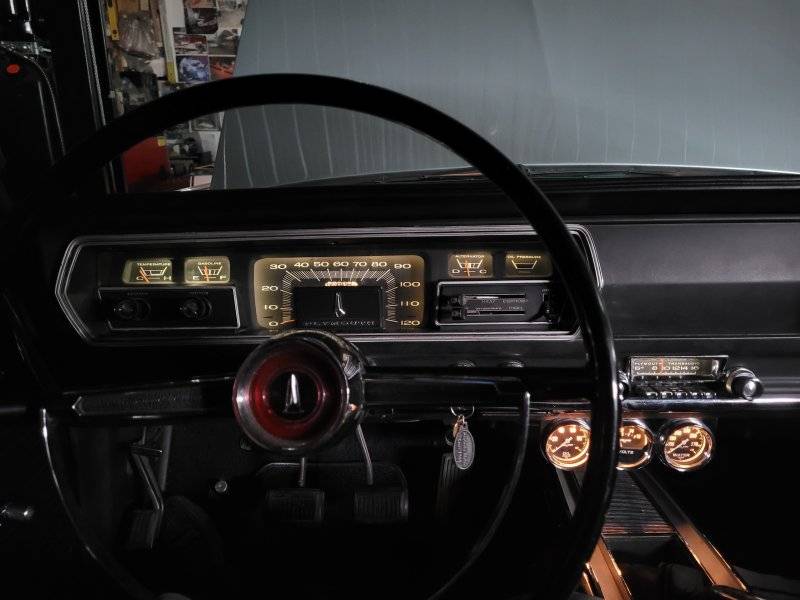

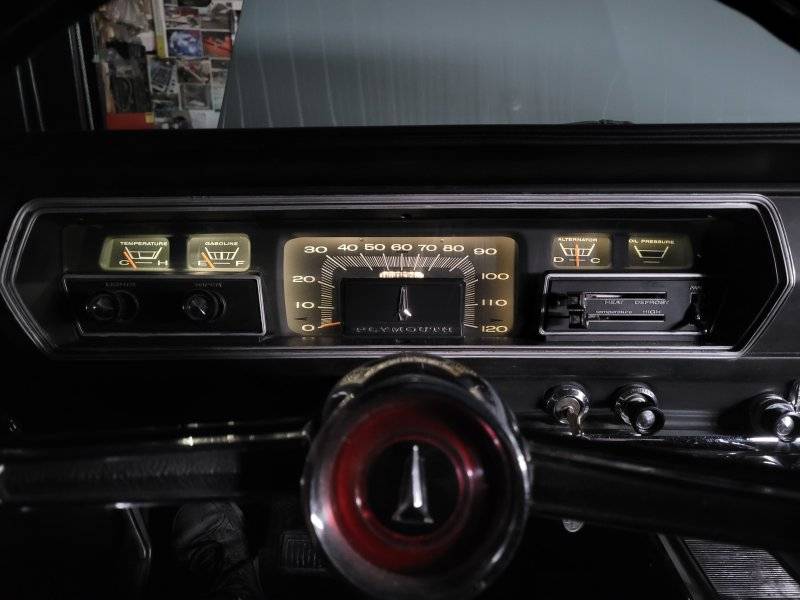

All purdy again...
1966plysathp2pt9 066.jpg

Got worried after looking at the pictures and seeing the speedometer sitting at 8 MPH. Rushed back out to the shop worried the cable was sticking out too much and damaged the movement. Got out there, she's sitting at Zero and I hooked a drill on and ran it IN REVERSE and the speedometer works just fine.

Last edited:
3 of these screws in the top edge of the housing are the ground source from the housing to dash frame.
View attachment 1394482
Another check of everything again before putting anymore screws in.
View attachment 1394484
Lower 3 screws are oval head and black.
View attachment 1394485
Heater control screws.
View attachment 1394486
More spit cleaning.
View attachment 1394488
Black oval head screws for the heater control plate.
View attachment 1394489
Control knobs back on with the allen key.
View attachment 1394490
Steering column nuts tightened back up and then the cover plate put in place with 4 screws.
View attachment 1394491
All purdy again...
View attachment 1394492
Got worried after looking at the pictures and seeing the speedometer sitting at 8 MPH. Rushed back out to the shop worried the cable was sticking out too much and damaged the movement. Got out there, she's sitting at Zero and I hooked a drill on and ran it IN REVERSE and the speedometer works just fine.
So did the odometer lose some miles, that used to work on some cars. Friend used his dad’s Scout back in the day. Put quite a few miles on it when dad was away. He got worried, put it on blocks started it, put it in reverse and let it run. Rolled it back a lot of miles over 4 or 5 hours.

Odometer doesn't go backwards. The speedometer cable has to be turned CCW (drill reverse) for the speedometer to function correctly.

Last edited:
Those heater controls are a pain to get seated right for the screws. Nice job. Hopefully you won’t need to repeat it anytime soon.

Those heater controls are a pain to get seated right for the screws. Nice job. Hopefully you won’t need to repeat it anytime soon.
I should have noted that you have to move the slide levers from one side to the other while fishing the controls from behind to get them into place!
