Can anybody tell me where this hooks up?

[DaneBisel]

Back up light harness , 69 sport satellite. floor console, auto. Thank you!!!



[hunt2elk]

Looks like the connector that goes to the backup light switch on my 4-speeds. I think the autos have a 3 wire switch though, adding in the neutral safety to the back up light.



[bigmanjbmopar]

I have an auto and I know there is no connector like that at the console. So agreed 4 speed connector? Is the color purple and light blue on the wires?

http://mymopar.com/downloads/1969/69BelvedereGTXSatelliteRoadRunnerB.JPG



[DaneBisel]

I am not by the harness right now but believe that the wires are dark blue and black with a tracer. Should the neutral safety switch /backup harness just connect at the nss and starter relay? How do the back up lights get their signal? I looked at the wiring chart and it doesn't tell me anything. Thanks for the help!



[moparsteve636]

I believe that is the connector for the hood mounted turn indicators ! Is yours a 70 B-body?



[DaneBisel]

No. It's a 69. This is the harness:



[DaneBisel]

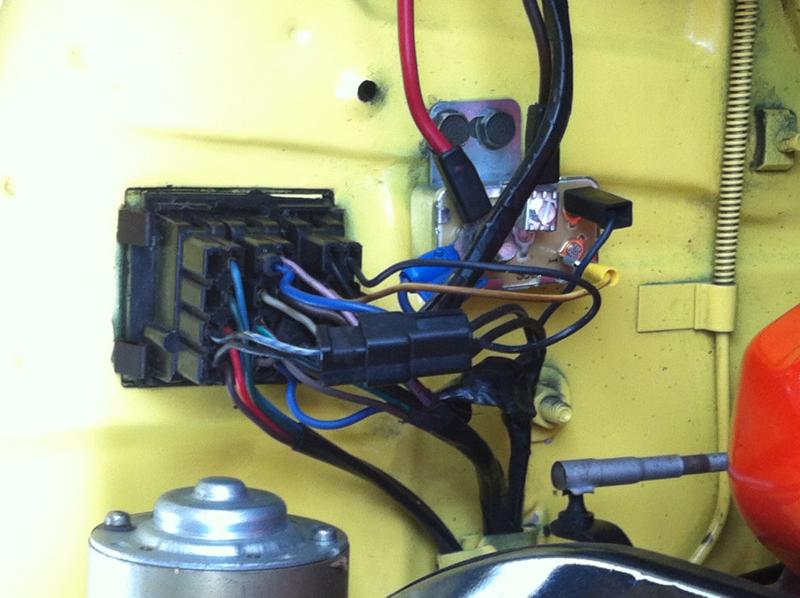

I figured it out. This is where it hooks to the bulkhead. Now I need to find the connection that goes from the bulkhead to this plug. The lead is short (6" or so). And would have the female connection on one end with 2 male spades that hook directly into the bulkhead. Anyone have this for sale?



[bigmanjbmopar]

wired, there is no console connection or inside the car connections for the NSS other than the power and rear lights feed back to the trunk. Hmm



[DaneBisel]

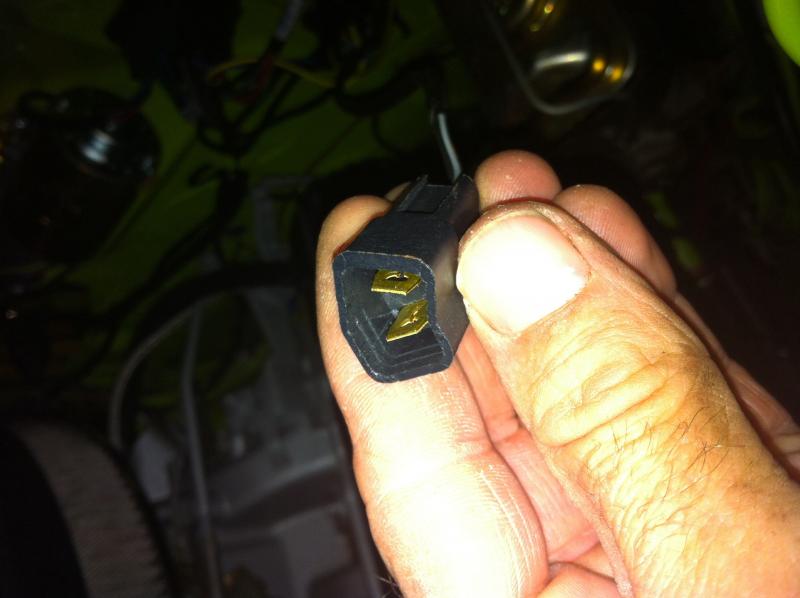

I figured it out. Now I am looking for the pigtail that connects this to the bulkhead. Here's a pic of what I need .
