Fleet wiring diagrams...where?

[miller]

Anyone run across fleet, cop, or taxi mopar wiring diagrams? Where to look?

Mainly curious how the ammeter was wired in.



[Nacho-RT74]

FULL LOAD ammeter system ( not shunted ) got wires from alt and batt with bigger gauge wires, throught the firewall with a grommet instead throught the bulkhead. Extra equipments for the special use were attached to the black side of ammeter straight to the stud

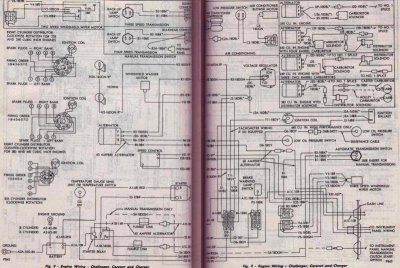

here a 71 diagram where is shown the bigger wire ( trace the "60 amperes" line )



underdash harness remain the same, since this feeds the main splice into the car but now, from amm stud instead straight from bulkhead wire/alt, like the rest of extra equipments


quite often they got higher rate ammeters
http://www.ebay.com/itm/NOS-Mopar-1...Parts_Accessories&hash=item5657f6bf93&vxp=mtr

http://www.ebay.com/itm/1971-Plymou...Parts_Accessories&hash=item4d084a8f04&vxp=mtr

- - - Updated - - -

this is the standard 40 amps ammeter:

http://www.ebay.com/itm/NOS-MOPAR-1...Parts_Accessories&hash=item35b272902c&vxp=mtr



[miller]

Thank you, sir!
Exactly what I was looking for.
