Just the noise they make with all the mechanical pieces to look at must be amazing to watch
For all of You Train Lovers
- Thread starter khryslerkid
- Start date
YY1
Well-Known Member
That SF engine looks like it might be on a shakedown after being restored. I see some light smoke from the stack.
The engine behind it looks like a genset (smaller, modular diesels under the hood).
I got to ride in the cab of the American Freedom Train (with my hand on the throttle) as it pulled into the station in 1976.
That was Ex Reading T1 4-8-4 #2101, as used on the Eastern leg.
The Western leg used Ex SP "Daylight" 4-8-4 #4449.
The engine behind it looks like a genset (smaller, modular diesels under the hood).
I got to ride in the cab of the American Freedom Train (with my hand on the throttle) as it pulled into the station in 1976.
That was Ex Reading T1 4-8-4 #2101, as used on the Eastern leg.
The Western leg used Ex SP "Daylight" 4-8-4 #4449.
YY1
Well-Known Member
Those 4-8-4's with big drivers for passenger service could easily top 120 MPH.
There was a record for a while set in the 1910's or 20's by a 4-4-2 (half the number of powered drivers and half the boiler size) that was delivering the newsreel of the Lindbergh flight.
IIRC it was 112 MPH
There was a record for a while set in the 1910's or 20's by a 4-4-2 (half the number of powered drivers and half the boiler size) that was delivering the newsreel of the Lindbergh flight.
IIRC it was 112 MPH
69a100
Well-Known Member
- Local time
- 8:12 AM
- Joined
- Aug 22, 2012
- Messages
- 11,476
- Reaction score
- 17,566
Not only that, but these old machines when running, put out the sweetest ozone smell that you'll never forget. It's just heavenly, and never gets old!!
PeteBell68
Well-Known Member
- Local time
- 9:12 AM
- Joined
- Feb 21, 2017
- Messages
- 1,239
- Reaction score
- 1,485
- Location
- Ontario , Canada
- Local time
- 6:12 AM
- Joined
- Nov 22, 2010
- Messages
- 17,373
- Reaction score
- 21,021
- Location
- Muroc Dry Lake Bed
This is my FAV Thomas the Train "out pulling a Big Boy"
B570RR440+6
Well-Known Member
Last edited:
B570RR440+6
Well-Known Member
Last edited:
B570RR440+6
Well-Known Member
- Local time
- 6:12 AM
- Joined
- Mar 14, 2012
- Messages
- 19,519
- Reaction score
- 41,192
- Location
- Surrey, B.C. Canada
Sometimes we'd see extra heavy loads on trains. Special depressed flatcars with multiple trucks are used to spread the load. On rail cars, a 'truck' is usually a pair of wheelsets, a center bolster and two side frames to hold the wheel bearings in place. The usual AAR load limit with this arrangement (four axles and eight wheels per freight car) is 286K pounds for the rail car, including the weight of the load and the car itself. Cars that push this limit are usually bulk commodity traffic such as coal cars.
But often, a load needs to be moved that is beyond this weight limit. Then it is necessary to handle the weight, and to spread it out. It isn't just the rail car that takes the weight, you need to also consider the rails themself, the type of road bed, and limiting structures such as bridges. So the answer is often to add extra wheels and trucks to a car to spread the load, and in many cases the load itself is carried by two or three flat cars all tied together.

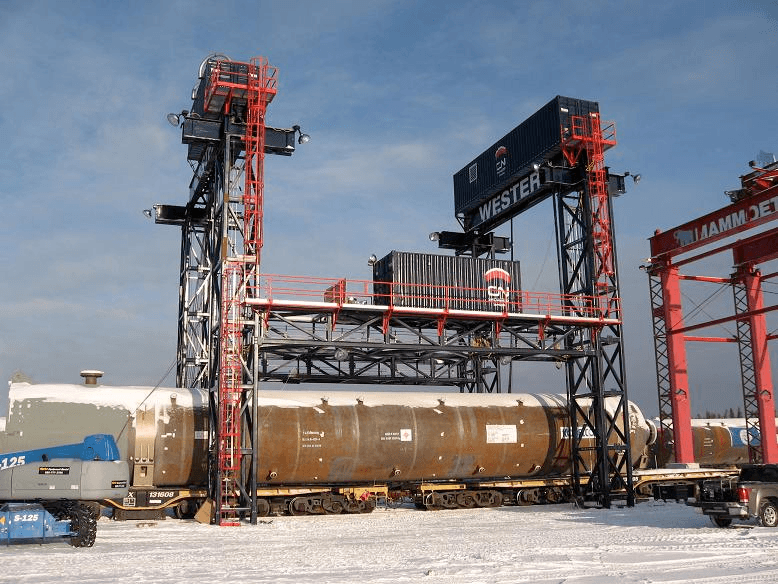

Here's a heavy load a few years back - 1.2 million pounds! I think it was a cracking tower, it was heading to the Fort McMurray heavy oil fields, originating in Thunder Bay, Ontario. You can see the large structure has a lot of wheelsets carrying the load! Special shipments like this take a lot of calculating, considering maximum dimensions to make sure everything enroute has clearance, optimal speeds are figured for cornering, safe braking distances, available sidings to let mainline traffic pass by and, as mentioned, the ability of the track itself to handle it. 1.2 million pounds isn't as much as it seems, three large locomotives together will push that weight. But the extraordinary size of something like this takes a lot of paperwork.

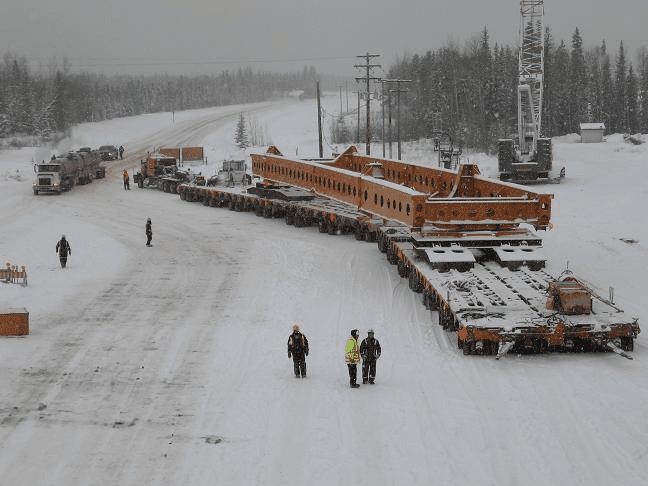

It's when the load reaches the end of the line, and still has to travel to its destination by special truck that things get real interesting. Check out the trailers that this rig required.

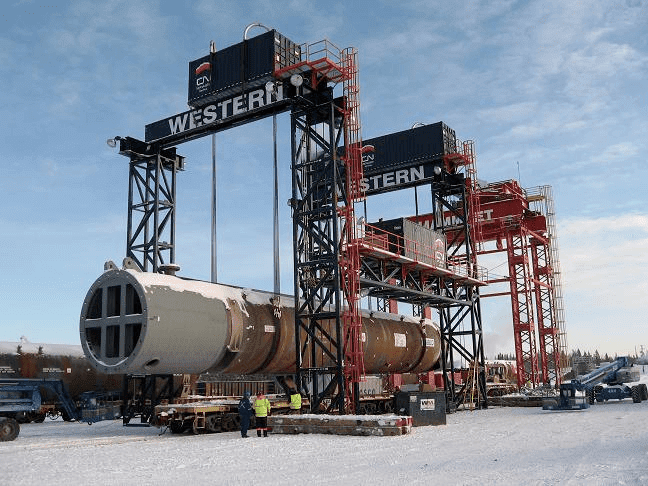

Lifting up off the rail car.....

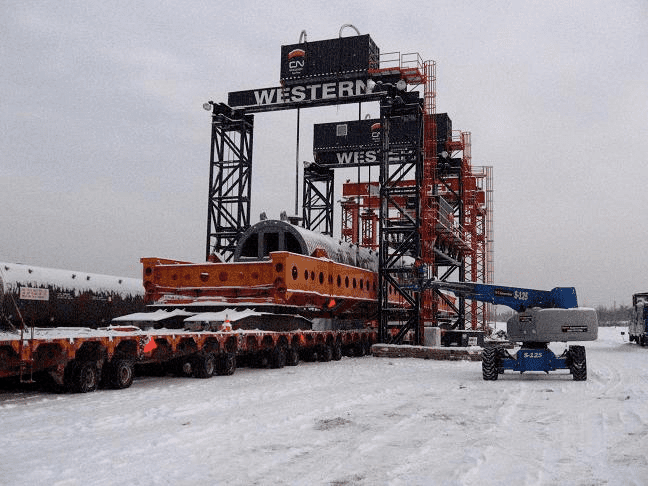

..and setting down on the trailer.

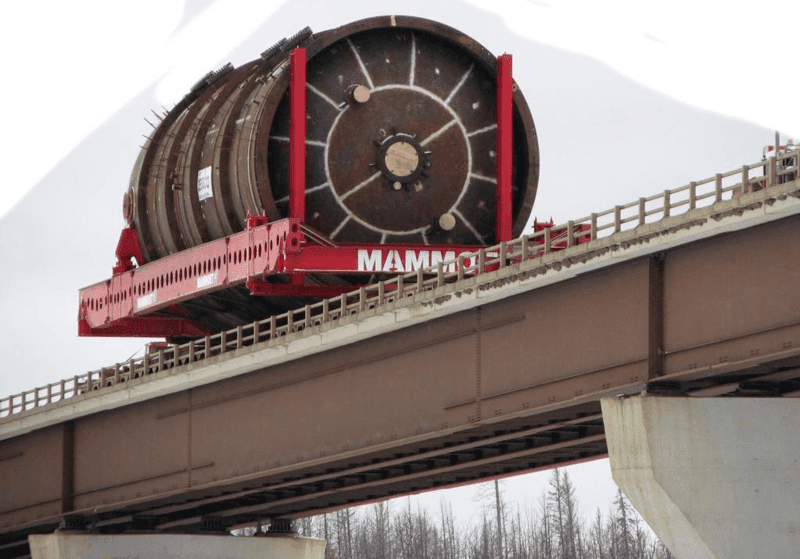

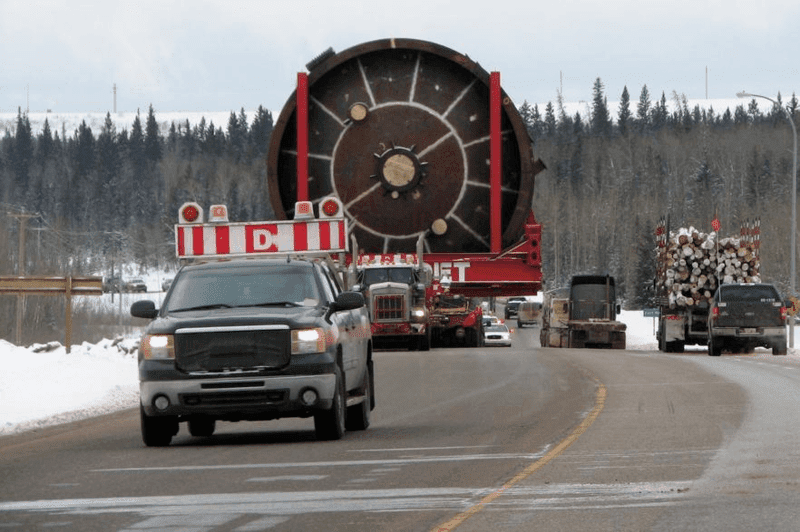

How'd you like to be this truck driver?
But often, a load needs to be moved that is beyond this weight limit. Then it is necessary to handle the weight, and to spread it out. It isn't just the rail car that takes the weight, you need to also consider the rails themself, the type of road bed, and limiting structures such as bridges. So the answer is often to add extra wheels and trucks to a car to spread the load, and in many cases the load itself is carried by two or three flat cars all tied together.
Here's a heavy load a few years back - 1.2 million pounds! I think it was a cracking tower, it was heading to the Fort McMurray heavy oil fields, originating in Thunder Bay, Ontario. You can see the large structure has a lot of wheelsets carrying the load! Special shipments like this take a lot of calculating, considering maximum dimensions to make sure everything enroute has clearance, optimal speeds are figured for cornering, safe braking distances, available sidings to let mainline traffic pass by and, as mentioned, the ability of the track itself to handle it. 1.2 million pounds isn't as much as it seems, three large locomotives together will push that weight. But the extraordinary size of something like this takes a lot of paperwork.
It's when the load reaches the end of the line, and still has to travel to its destination by special truck that things get real interesting. Check out the trailers that this rig required.
Lifting up off the rail car.....
..and setting down on the trailer.
How'd you like to be this truck driver?

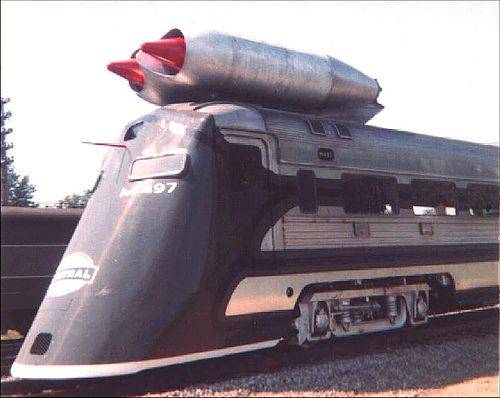

I wonder how many people the prop took out at the station?
YY1
Well-Known Member
...and in other trian related news, I saw yesterday where GE is selling it's locomotive business to WABCO (Westinghouse Air Brake Co).
A few years ago, gm spun off it's loco business (Electro-Motive Division) back to a private entity (EMC).
A few years ago, gm spun off it's loco business (Electro-Motive Division) back to a private entity (EMC).
- Local time
- 6:12 AM
- Joined
- Mar 14, 2012
- Messages
- 19,519
- Reaction score
- 41,192
- Location
- Surrey, B.C. Canada
They're not quite selling it, it's a merger. GE will get cash for the deal but will still hang on to 50.1% of the locomotive business. Wabtec gets the rest.
B570RR440+6
Well-Known Member
B570RR440+6
Well-Known Member
Hikin Mike
Well-Known Member
Since I live close to Yosemite...
