LED headlight upgrade, why the need for new wiring and relays???

5,700K, "modern white"
I have that temp as well. I agree that they could be a tad brighter but with brights on it is a massive improvement. Compared to stock bulbs, they are a great improvement with a factory harness. Really open up the road with the beam width as well.
Back in the day I hit two deer on back roads in my 68 dart and my 73 cuda that were just out of view on the side of the road with brights on. I know I would have seen them with these in place.

I have that temp as well. I agree that they could be a tad brighter but with brights on it is a massive improvement. Compared to stock bulbs, they are a great improvement with a factory harness. Really open up the road with the beam width as well.
Back in the day I hit two deer on back roads in my 68 dart and my 73 cuda that were just out of view on the side of the road with brights on. I know I would have seen them with these in place.
Hmmm....
My Holley Retro-brights are the classic white, but with my parallel wiring scheme with (4) low and (4) high beams I have plenty of brightness. At first I thought it may be too bright with (4) low beam for oncoming traffic but with their broader, wider dispersion, no complaints..

Just my $0.02... :thumbsup:

Hmmm....
My Holley Retro-brights are the classic white, but with my parallel wiring scheme with (4) low and (4) high beams I have plenty of brightness. At first I thought it may be too bright with (4) low beam for oncoming traffic but with their broader, wider dispersion, no complaints..

Just my $0.02... :thumbsup:
Makes sense. But maybe the modern whites are good enough for normal operation. But, I’ll add that to the list of cool upgrades.

Makes sense. But maybe the modern whites are good enough for normal operation. But, I’ll add that to the list of cool upgrades.
IMHO... Either Classic Whites or Modern Whites are acceptable..
They are so far superior to the OE incandescents and with much lower current drain, they check all of my boxes..

Just my $0.02... :thumbsup:

I installed my retro-brites. Went with classic white.


Alot brighter than stock, even at idle.

After some more direct comparison tests with the 100watt Hella E-codes, I’ve decided to run the RetroBrights for now. The Bi-Zeon HIDs in my more modern driver has spoiled me on color temp it would appear. Even the “Extreme White XB Hella bulbs (4200K) look yellow compared to the 5700K RetroBrights. My light meter confirms the 80/100 Hellas are a tad brighter than the RetroBrights at various parts of the patterns for most part. The lower current draw and constant brightness with slight voltage variations off-idle is pretty attractive.

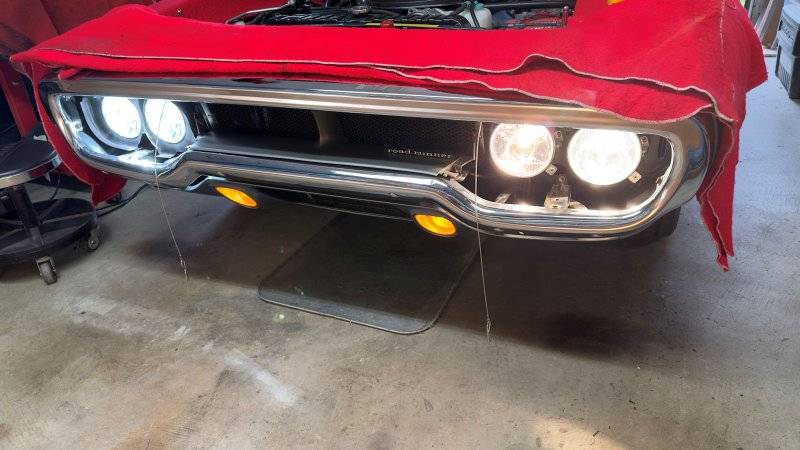

Low beam, Hellas are on the left if not obvious.


High beam



You don't need a relay for LEDs they draw less than stock bulbs, you do need a resistor if you have hidden headlights. The h4 bulbs plug right into your existing harness. Your selections look good.
I have had mine for 4 years 0 issues. H4 housings with an Led h4 bulb
I've just installed LED headlamps in my 1970 Chrysler 300 and have issues with the headlamp doors as well. Things worked fine when I plugged the old hi/low bulb back in on the drivers side and all the rest were LED. Can you supply details as to the resistor I need and where it should be placed? Electrical stuff is my weak point... Thanks!

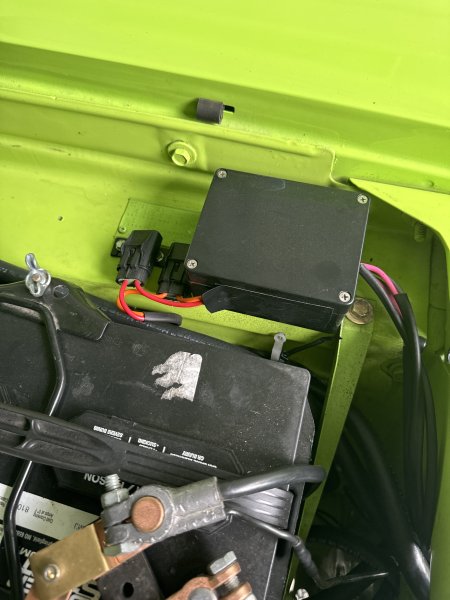

Relays will fix your issue I suspect. I used two, one for low beam one for high. I used a member on here from Palm Springs who built my harness. He did a wonderful job,I lost all my contact info with swimming with my phone!, maybe he will see this.. I mounted the relays in a box in fender behind battery left the fuse access out of box. Also there is a guy on A bodies only ( slant six dan) that was a wealth of information on lighting. I would highly recommend him.




I found a PDF file I had with full install if your interested shoot me an email, I will send it to you.
