The Willomet Charger

[1970RT]

Art in motion!! Are you doing boost on your Lq4 6.0 or just keeping it N/A? one of the best blocks to start with.

Hey, thanks. I do like to think of this as somewhat of an art project, stretching my skills.

Boost is the plan. Likely a Procharger D1SC or F1. Still a ways off from finalizing that decision.

What are trying to convert on your 6060? It looks like its out of a GTO or CTSV.

The 6060 is out of a 2011 Camaro. I’m just going to convert it to a slip yoke Magnum with the 3.01 first gear - relatively minor changes.

The 3.01 related input shaft on the TR6060 still has 3/16” interference with the crank. This includes the Magnum front cover, 1/8” scatter shield, and QuickTime bellhousing. I probably just need the American Powertrain 1/4” bellhousing spacer, so I’ll run that to ground at some point tomorrow. It’s in stock locally at Summit.

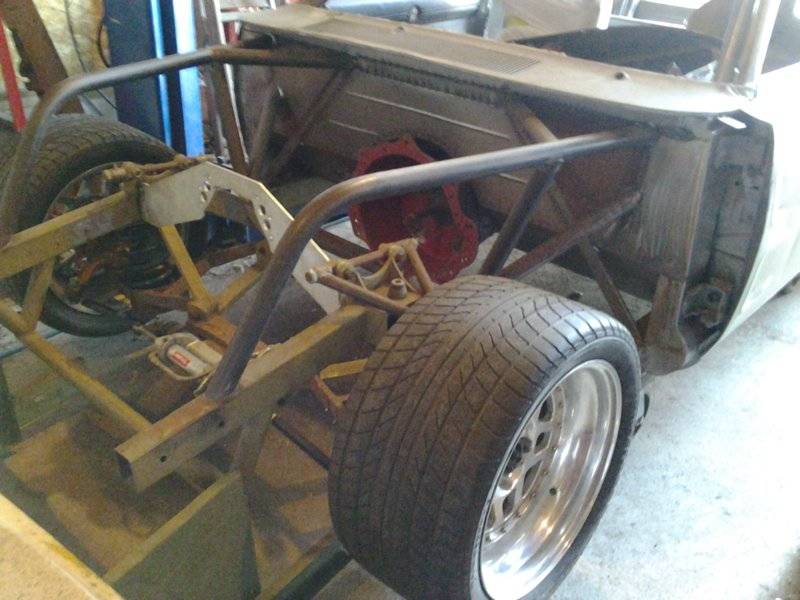

Meanwhile, got some chassis junk done.

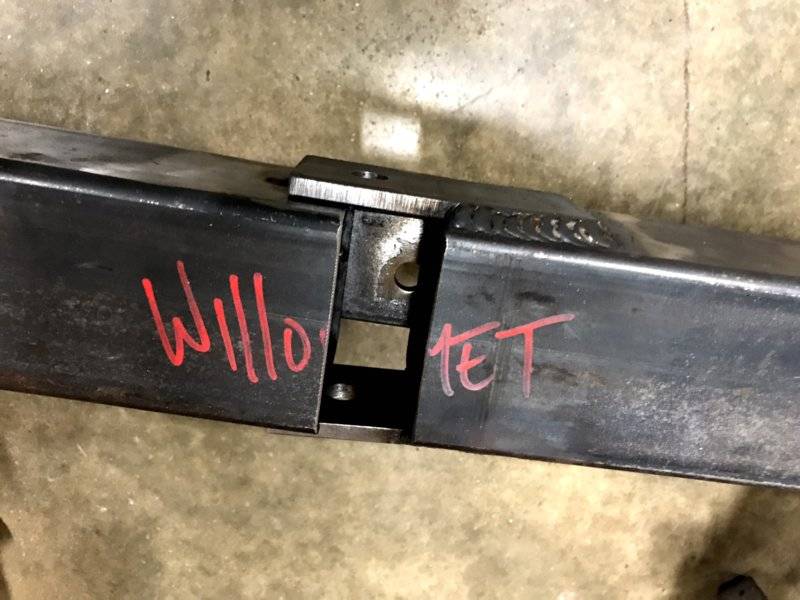

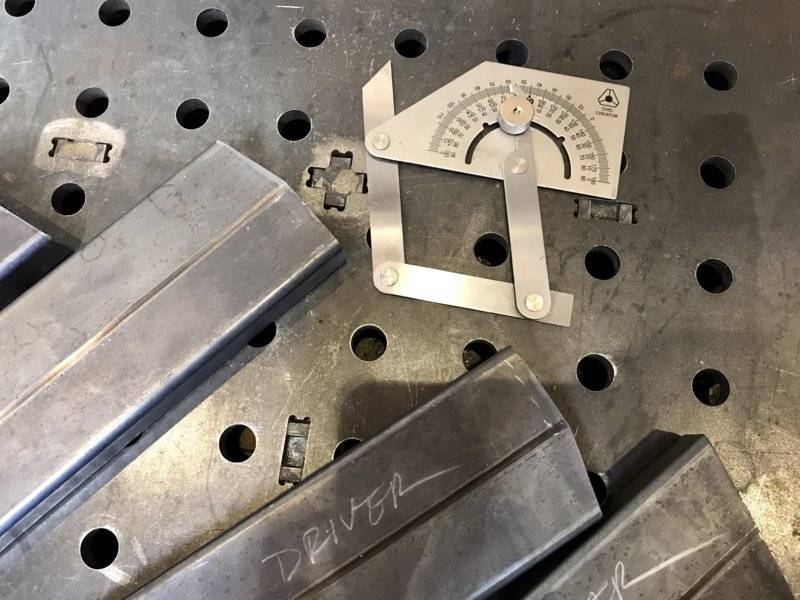

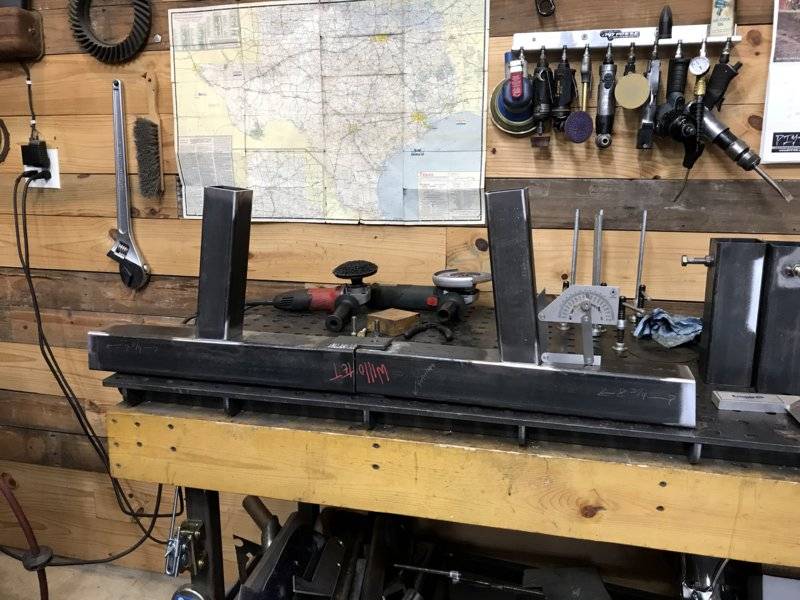

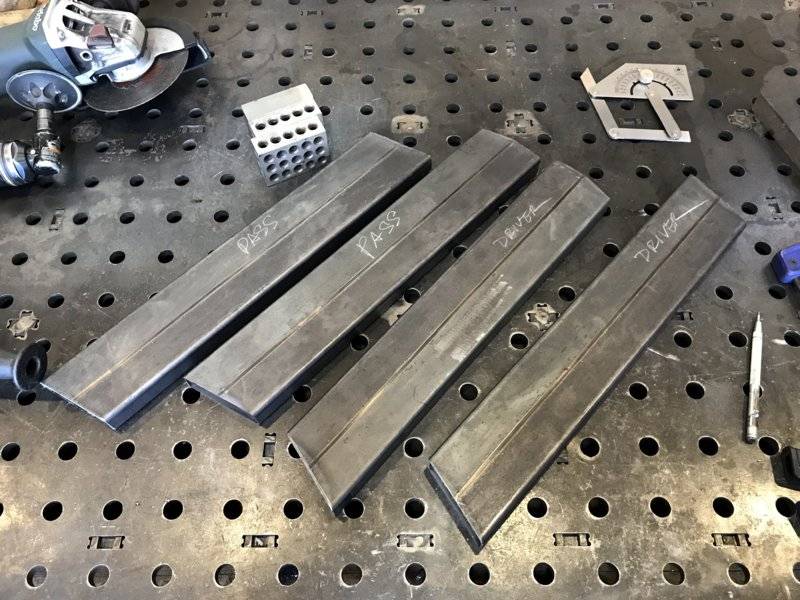

15* intersecting at the bend in the inner pieces - kind of like avoiding a dead node.

The inner rails are canted at 15*, so they make a nice right angle to the forward outriggers. Neat detail I stumbled into.

It was nice weather, so I could work with the doors open for a change.

David



[747mopar]

Just noticed your garage walls, I like it.. gives it a nice touch. I am really liking the way that frame is coming together, looks very stout and professional.



[1970RT]

Just noticed your garage walls, I like it.. gives it a nice touch. I am really liking the way that frame is coming together, looks very stout and professional.

Thanks! We live in an old neighborhood, and I had a lot of reclaimed lumber to make use of.

The frame design is strongly inspired by what I saw at the Roadster shop a few years ago.

David



[1970RT]

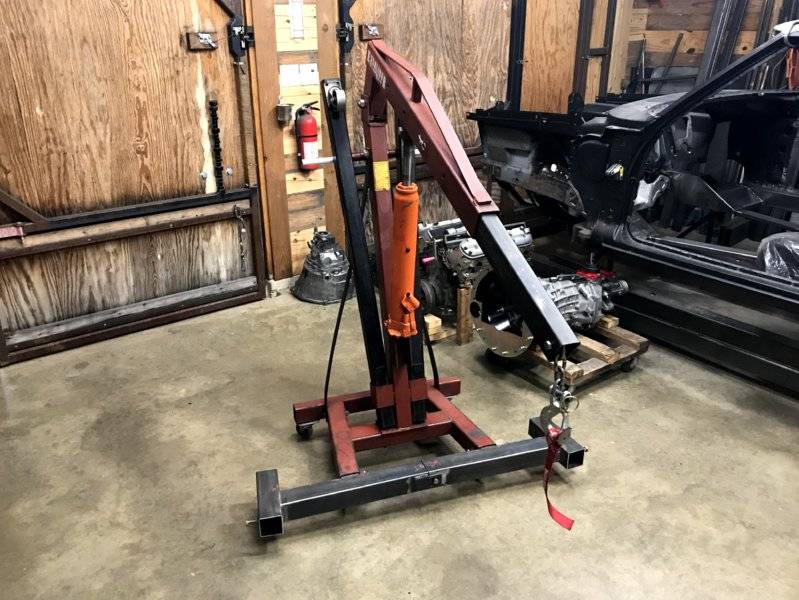

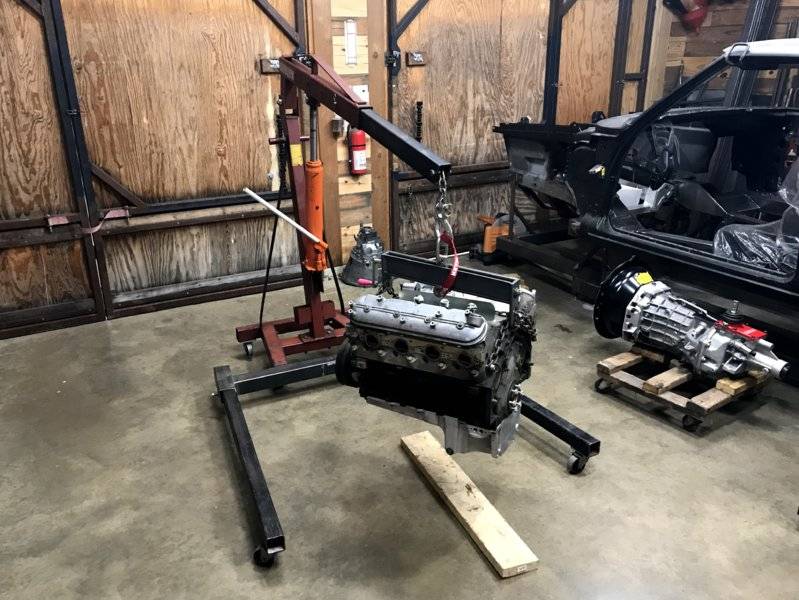

Cherry picker modifications so it’s easier to stab/pull the engine while the car is on the frame table.

David



[1970RT]

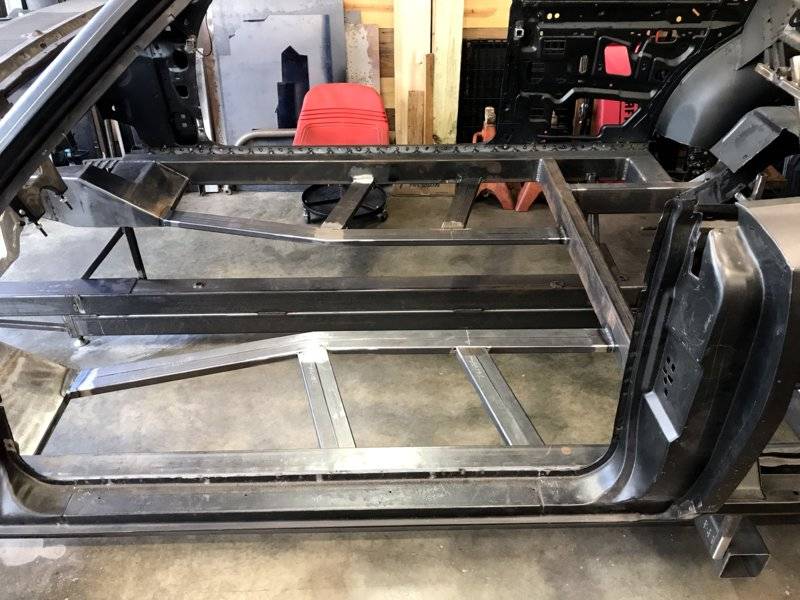

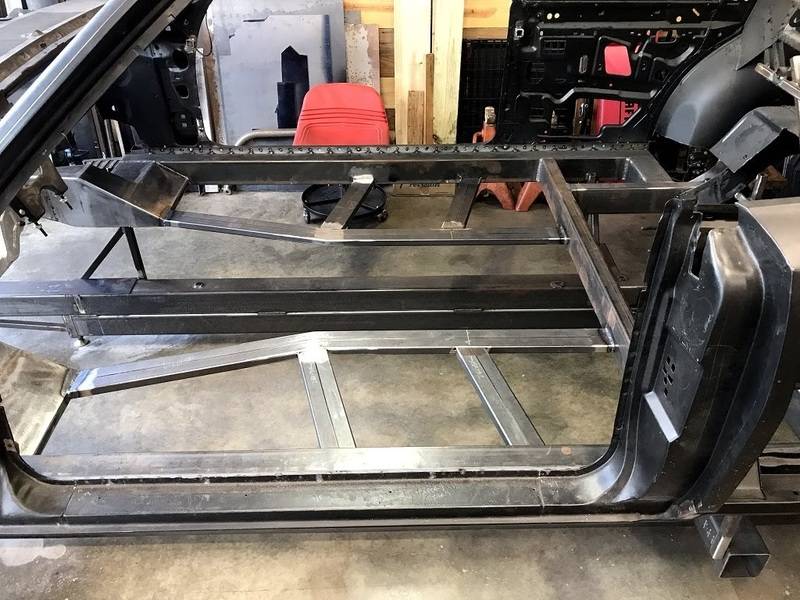

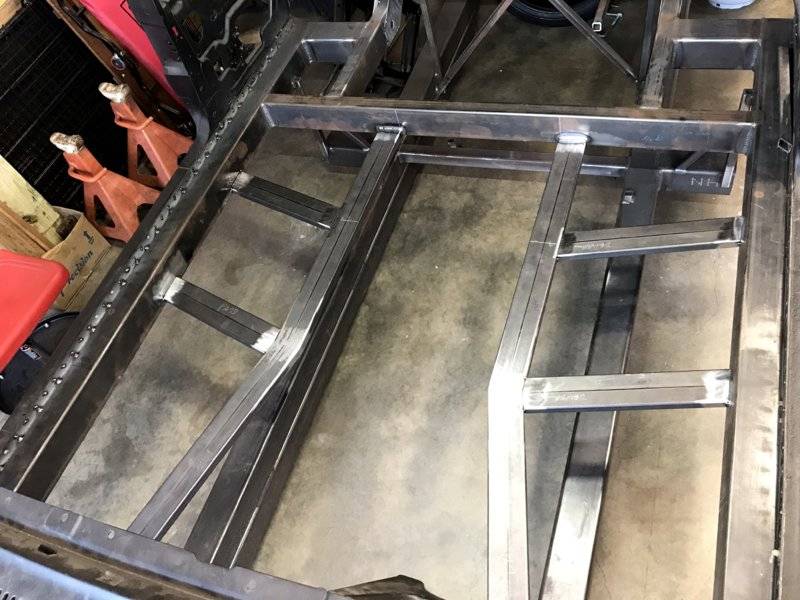

Another good few weeks of work, and a decent series of milestones.

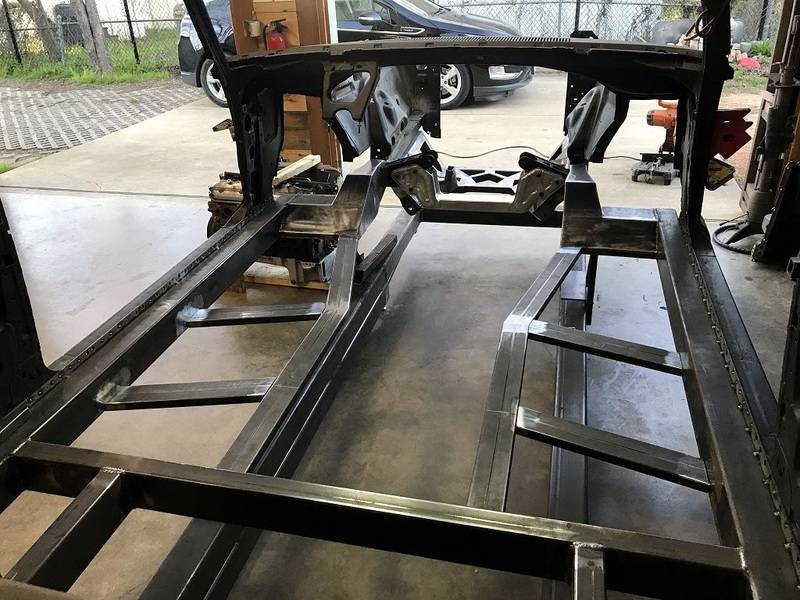

Lateral chassis bits are burned in.

Just about ready to stab the engine and trans.

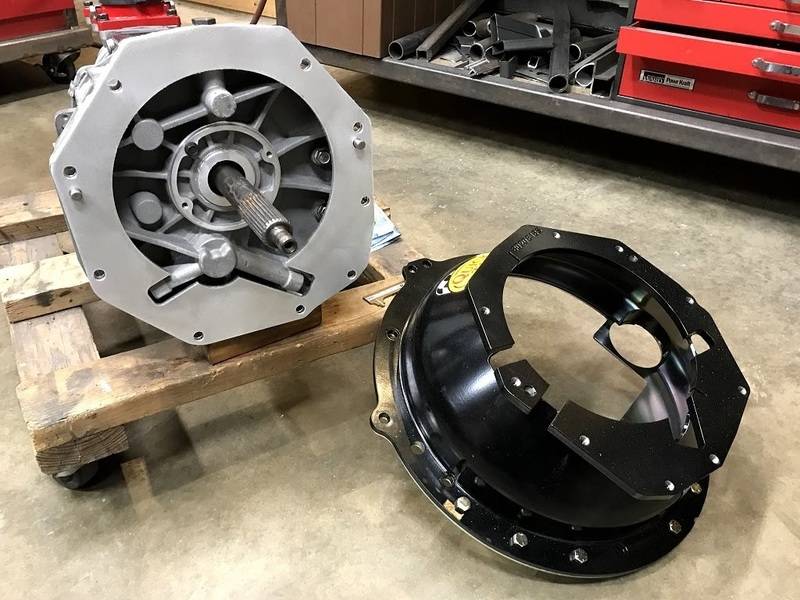

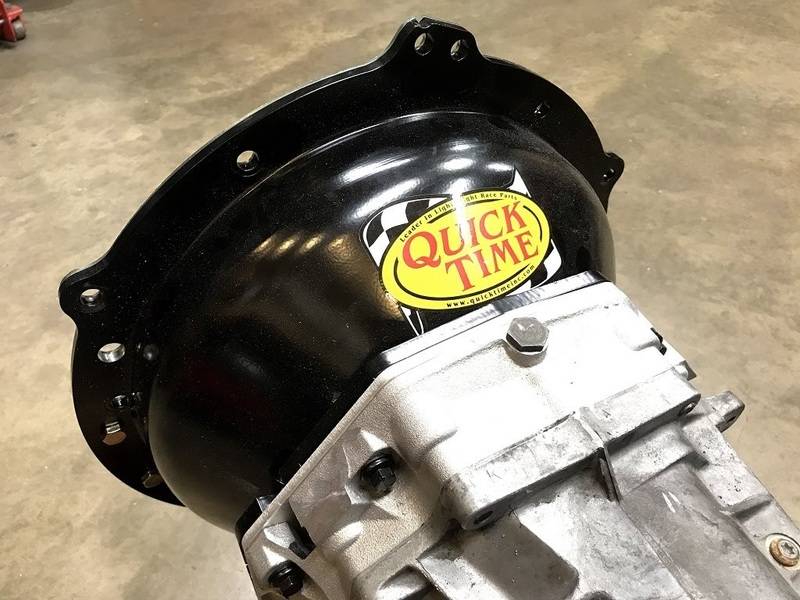

First, need to keep the input shaft from an interference fit with the crank. Quicktime RM199 1/4" bellhousing spacer leaves only a minor amount of contact, and just requires some light clearancing.

Maybe 1/32" of interference remaining.

Next up in the conversion - shifter rail. Here's the shorter TR6060 rail.

Two position magnum takeoff.

Only thing really remaining to convert is the output shaft and pump mechanism, but it's setup enough for mockup purposes.

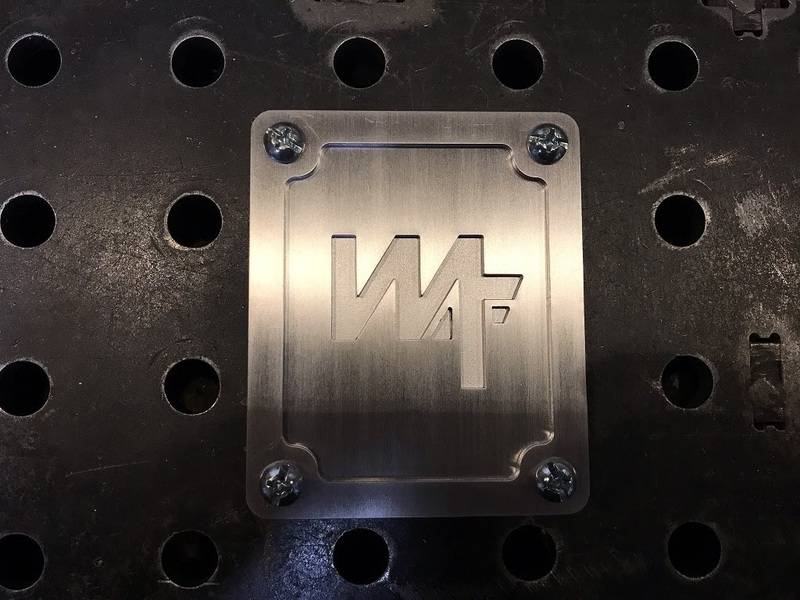

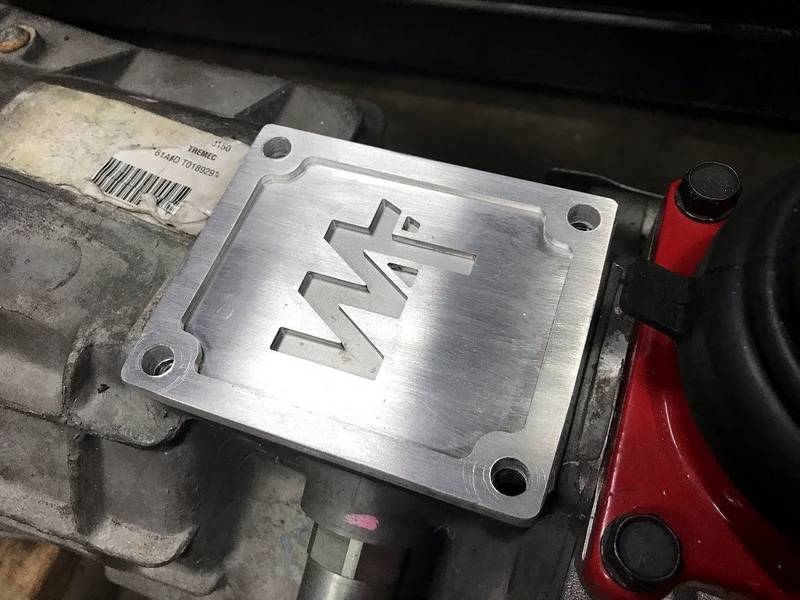

Maximum effort shifter cover.

Because a $4.95 stamped steel cover is boring.

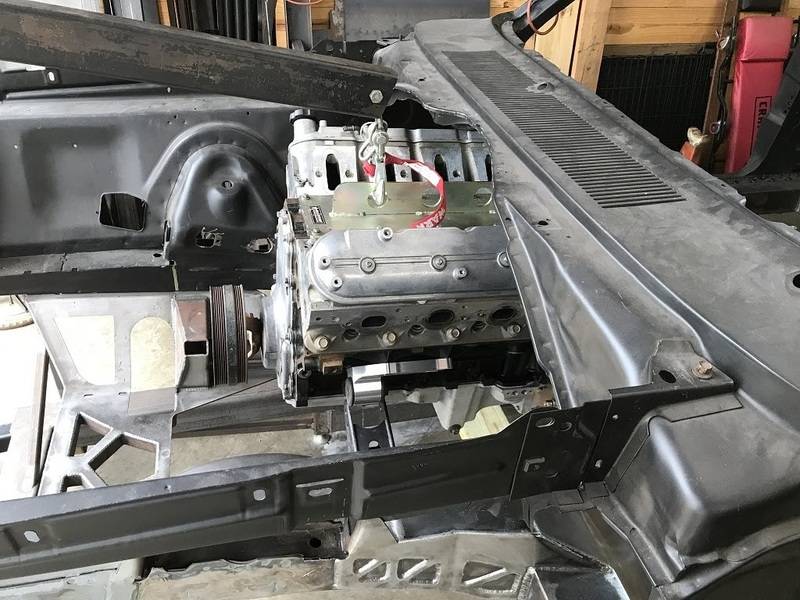

Stabbed.

Just enough rear angle for the heads to drain.

You can clearly see the 5* angle built into the magnum bell and tail housing.

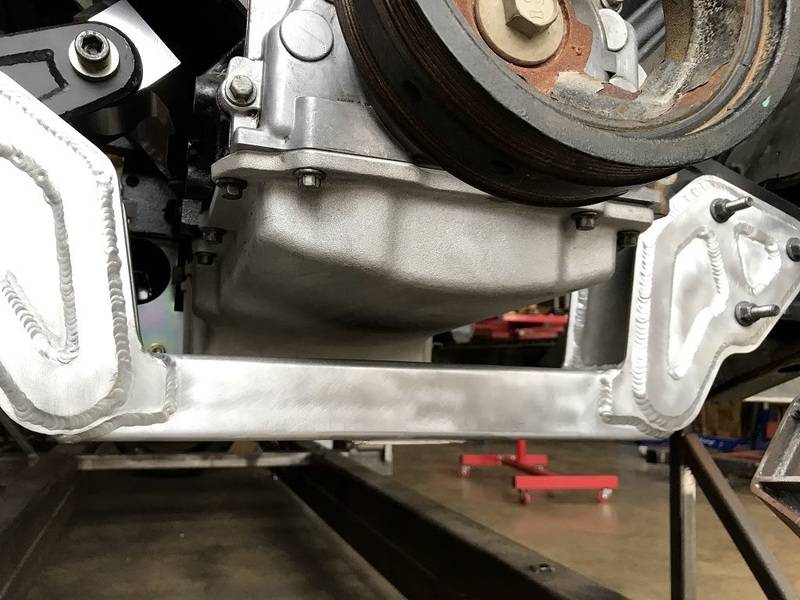

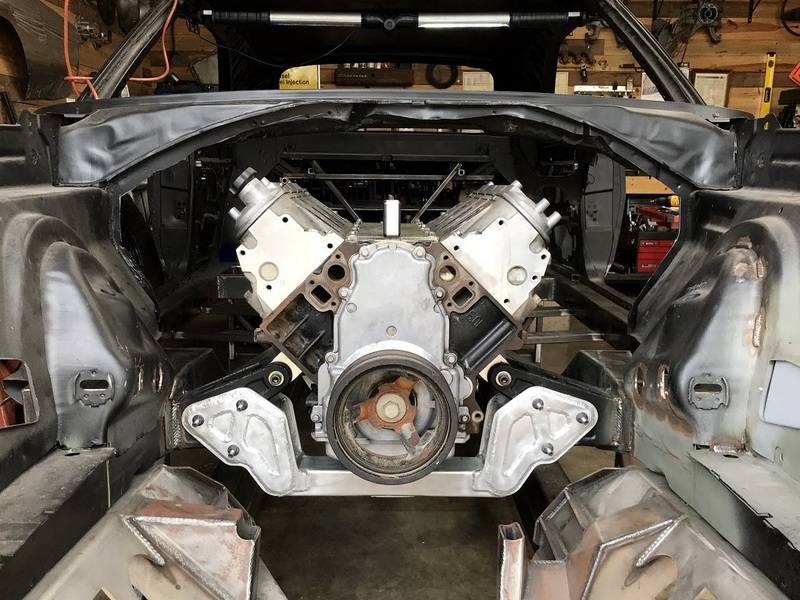

Engine cradle detail.

That's about 1" of clearance.

Finally able setup driving position.

Shifter is exactly in line with the steering wheel - just where I want it - no bent shifters in this muscle car.

Pretty proud of this one - midengine Charger.

Setup for a flat bottom, with only the oil pan and bellhousing dipping a couple of inches below the rocker beams.

A friend performing driver position duties.

The work continues.

David



[Hemirunner]

Another good few weeks of work, and a decent series of milestones.

Lateral chassis bits are burned in.
View attachment 737211

View attachment 737212

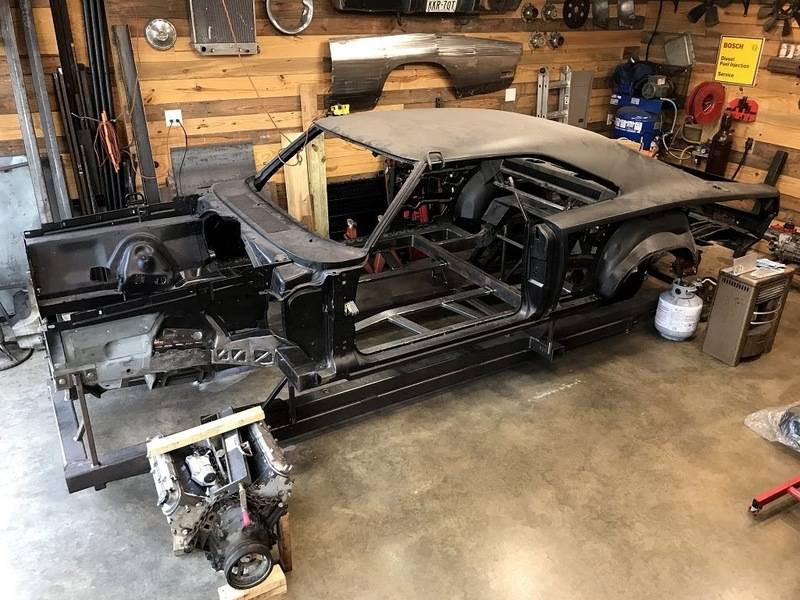

Just about ready to stab the engine and trans.
View attachment 737213

First, need to keep the input shaft from an interference fit with the crank. Quicktime RM199 1/4" bellhousing spacer leaves only a minor amount of contact, and just requires some light clearancing.
View attachment 737214

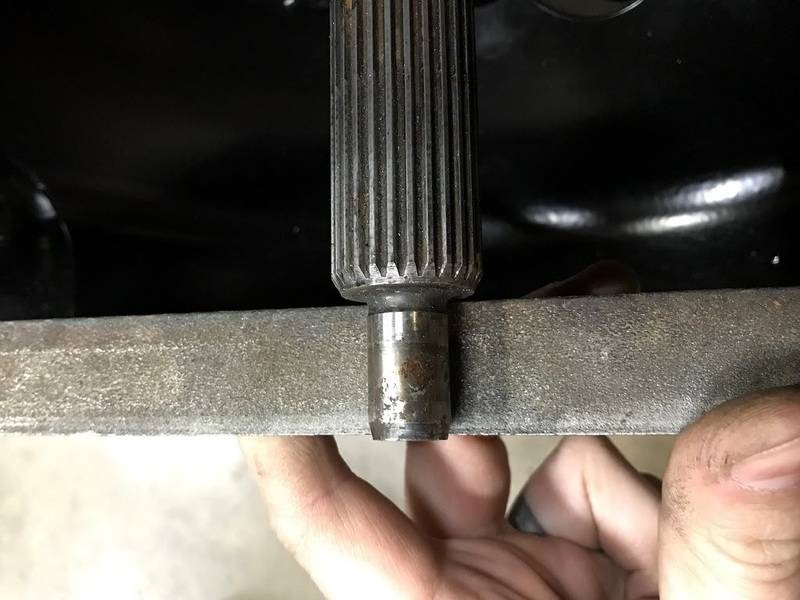

Maybe 1/32" of interference remaining.
View attachment 737215

View attachment 737216

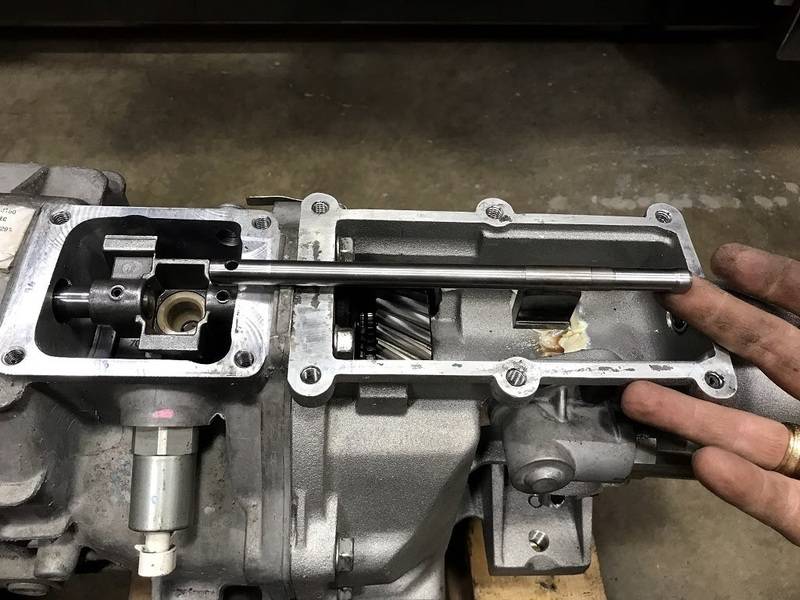

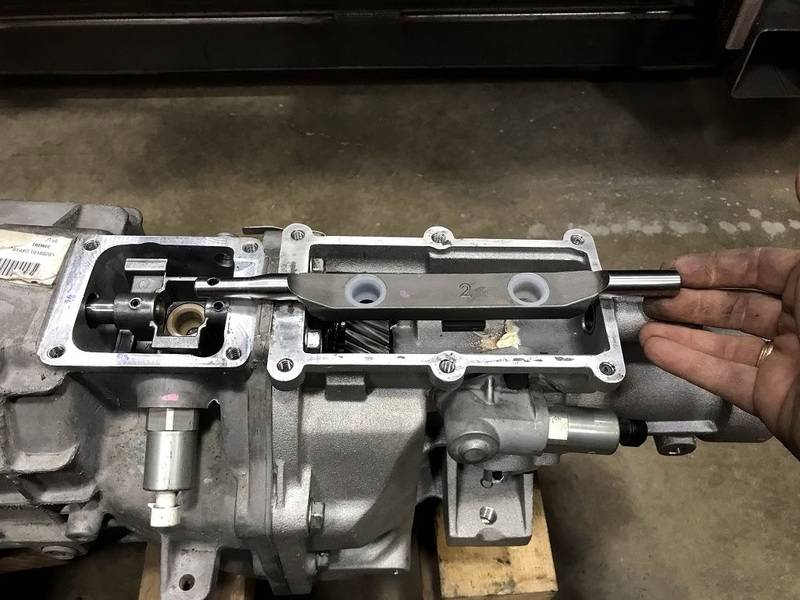

Next up in the conversion - shifter rail. Here's the shorter TR6060 rail.
View attachment 737217

Two position magnum takeoff.
View attachment 737218

Only thing really remaining to convert is the output shaft and pump mechanism, but it's setup enough for mockup purposes.

Maximum effort shifter cover.
View attachment 737219

Because a $4.95 stamped steel cover is boring.
View attachment 737220

Stabbed.
View attachment 737221

Just enough rear angle for the heads to drain.
View attachment 737222

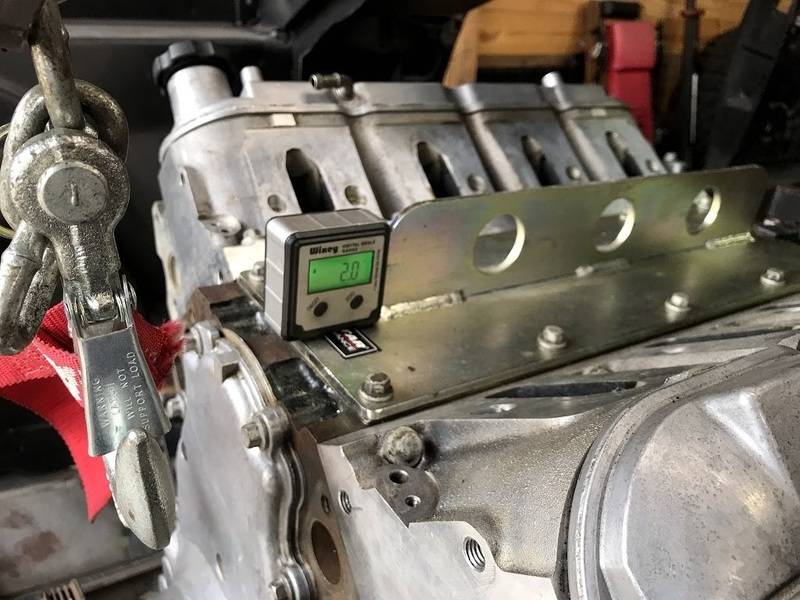

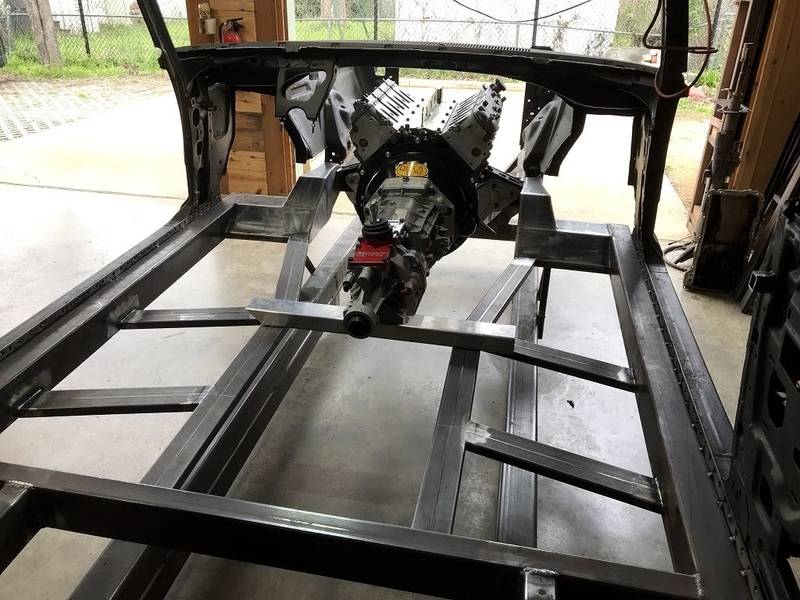

You can clearly see the 5* angle built into the magnum bell and tail housing.
View attachment 737223

Engine cradle detail.
View attachment 737224

That's about 1" of clearance.
View attachment 737225

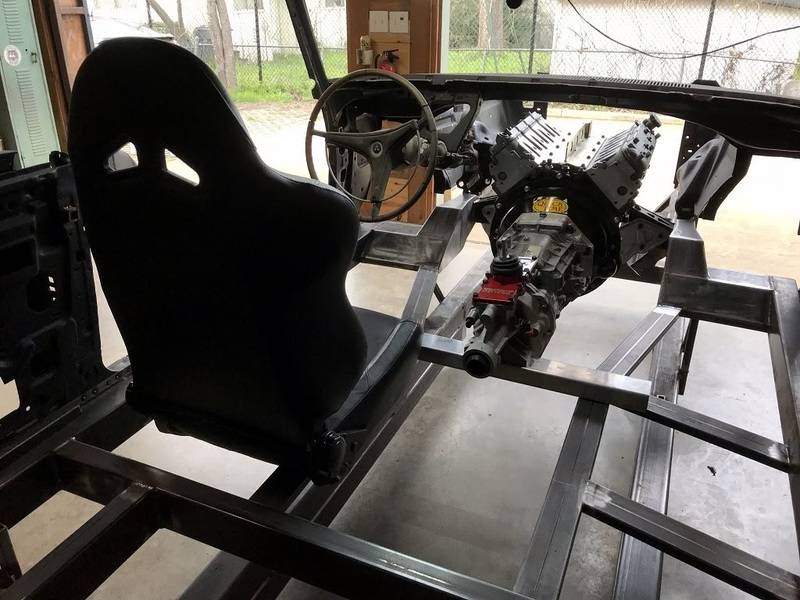

Finally able setup driving position.
View attachment 737226

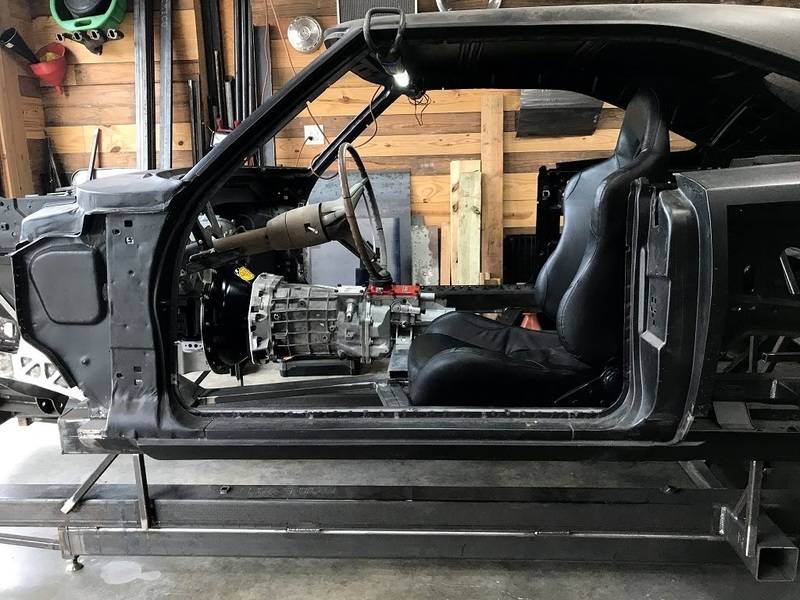

Shifter is exactly in line with the steering wheel - just where I want it - no bent shifters in this muscle car.
View attachment 737227

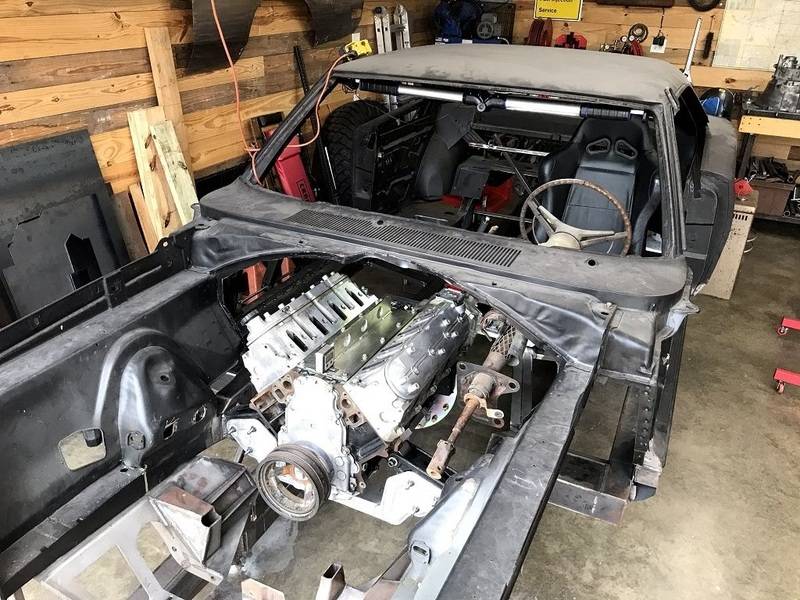

Pretty proud of this one - midengine Charger.
View attachment 737228

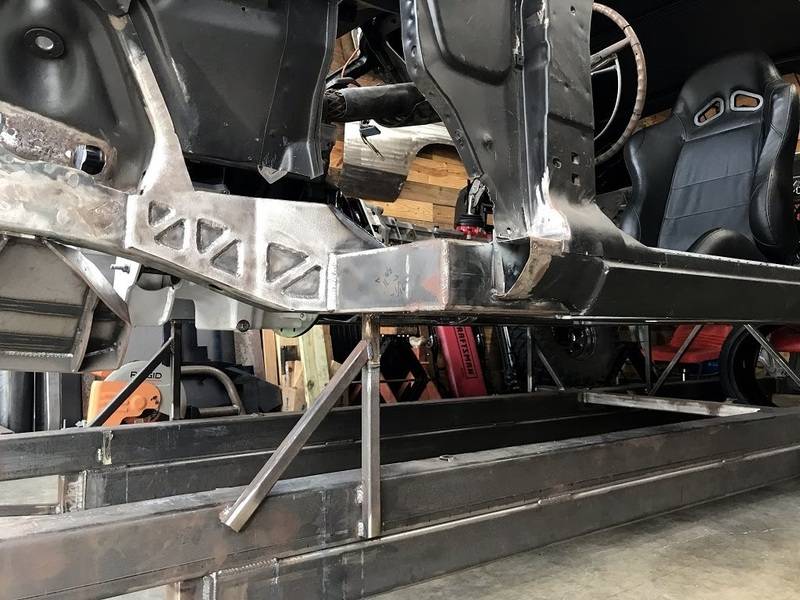

Setup for a flat bottom, with only the oil pan and bellhousing dipping a couple of inches below the rocker beams.
View attachment 737229

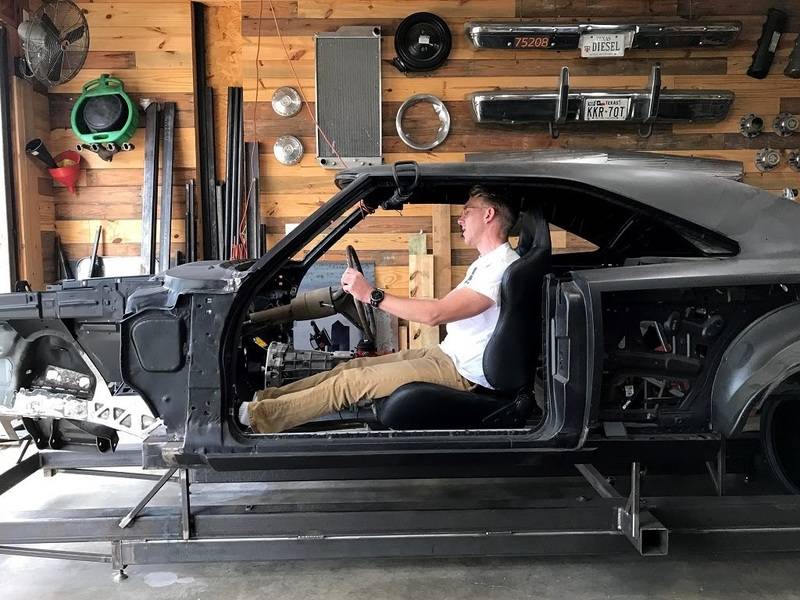

A friend performing driver position duties.
