whedre does this wire go.

[Stucat]

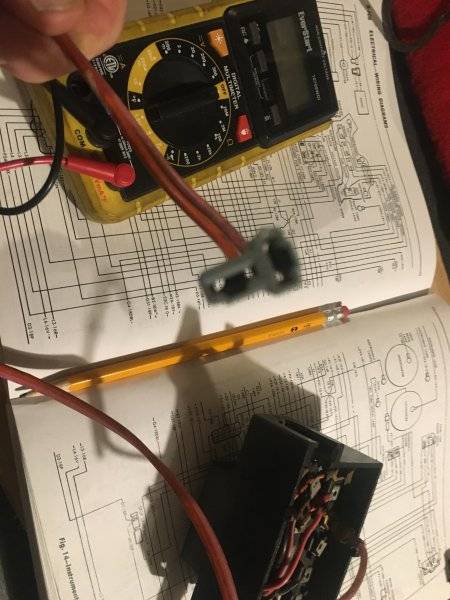

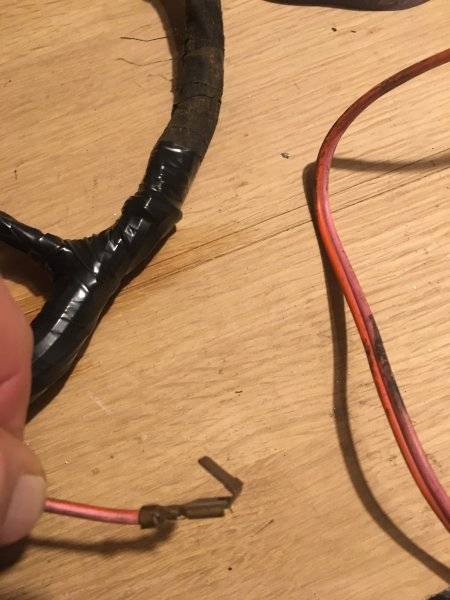

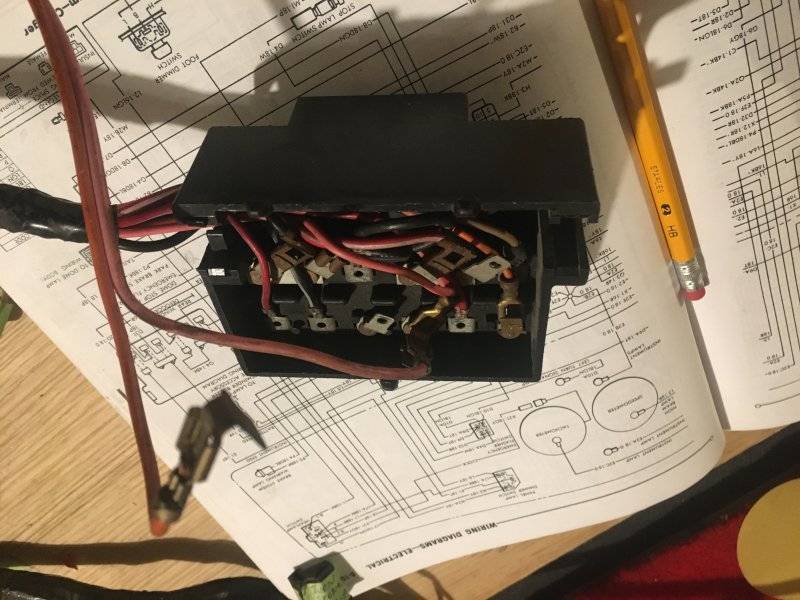

This setup was in a box ox parts for a 69 charger I purchased a while back. Trying to identify the wires and connectors. So my is there is a 2 wire, colors 1 pink and 2nd redish orange ? about 62" long. the pink wire is connected to the pink wire connector on the back of the fuse box, see picture. they have those piggy back style connectors? The other end has the T connector, see pic. I can't seen to find it on the 69 charger wiring chart on the repair manual. Any idea where it goes and what it does? Thanks



[davek]

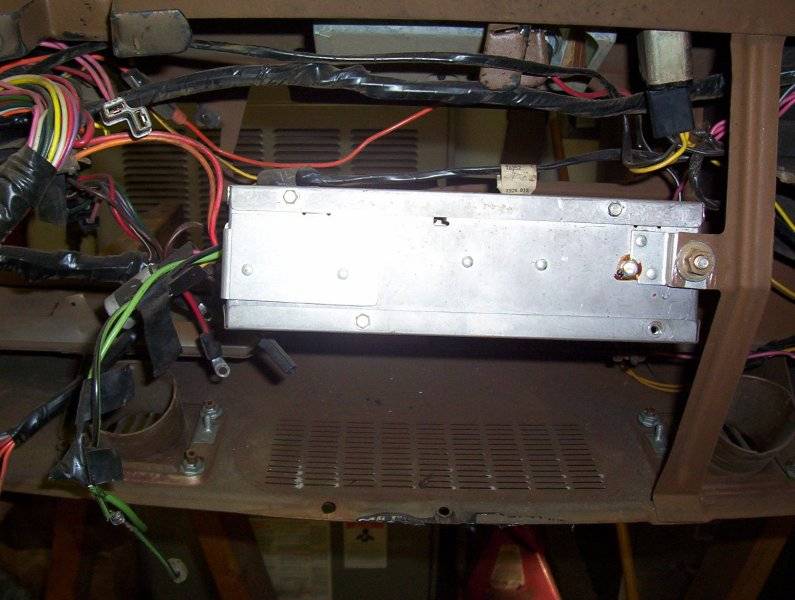

I believe the double is radio



[70gtx440dana]

Not radio... radio is orange & white wires. Orange wires are typically for lamp power. I will try to check my wiring diagram tomorrow.



[pnora]

My 69 charger has red and orange to the radio.



[dadsbee]

Orange for the light, Red for +power, ground comes from mounting. Black / green speaker wires.



[70gtx440dana]

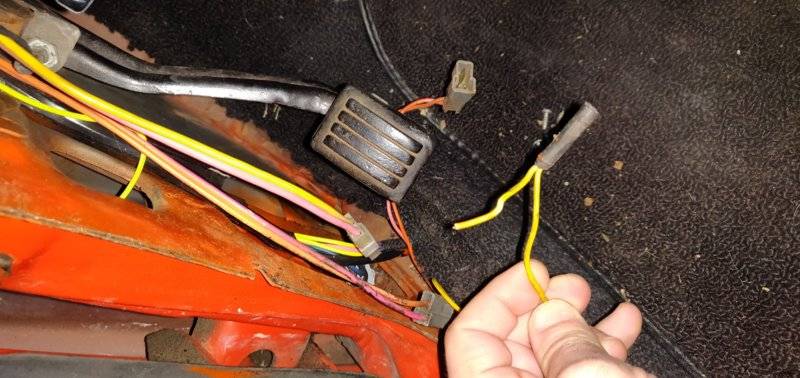

After looking at both 69 & 70 wiring diagrams I believe you may have the power harness for the console lighting. I do not see this on the 69 diagram. However the 70 diagram shows the orange and pink wires.



[pnora]

If this is a separate two wire harness that could reach the drivers side kick panel I believe it is a console feed.



[70gtx440dana]

Orange for the light, Red for +power, ground comes from mounting. Black / green speaker wires.

Agree...radio wires are red and orange. However, the dash harness that connects to those radio wires has orange and white wires.



[pnora]

Agree...radio wires are red and orange. However, the dash harness that connects to radio is orange and white wires.

There could be a white but it piggy backs off the red on the dash harness side. It feeds to the bulkhead cavity d and changes color to violet on the engine side. It feeds the backup light switch on the tranny.
