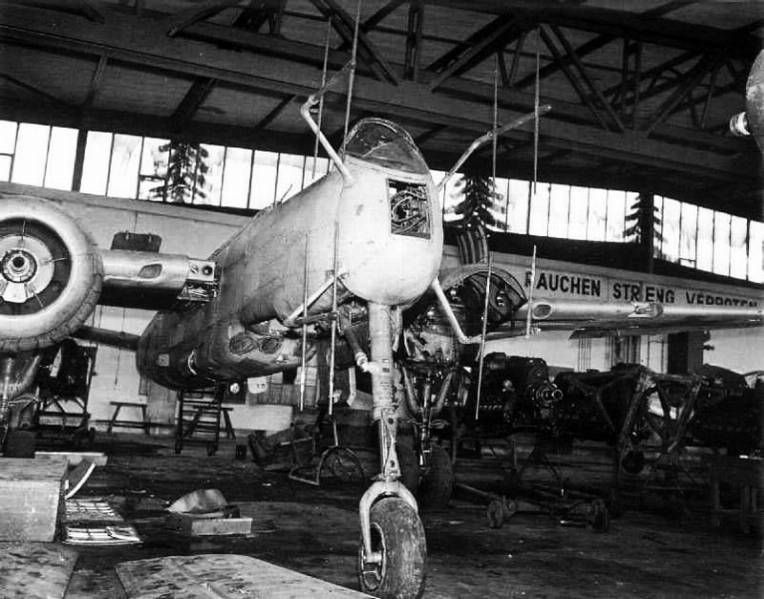

Front right side view of the Heinkel He 219; note ventral gun pack with four cannons
Who Likes Aircraft ?
- Thread starter Auggie56
- Start date
Front right side view of the Heinkel He 219; note ventral gun pack with four cannons
- Local time
- 1:23 PM
- Joined
- Mar 14, 2012
- Messages
- 18,616
- Reaction score
- 37,178
- Location
- Surrey, B.C. Canada

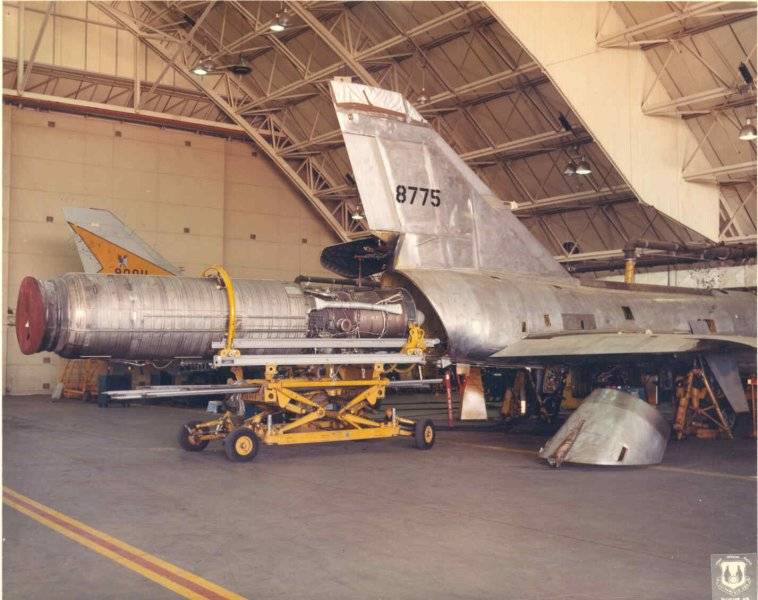

The Avro Arrow engines were installed on rails. Engine replacement under combat conditions was to be done in thirty minutes.
- Local time
- 1:23 PM
- Joined
- Mar 14, 2012
- Messages
- 18,616
- Reaction score
- 37,178
- Location
- Surrey, B.C. Canada

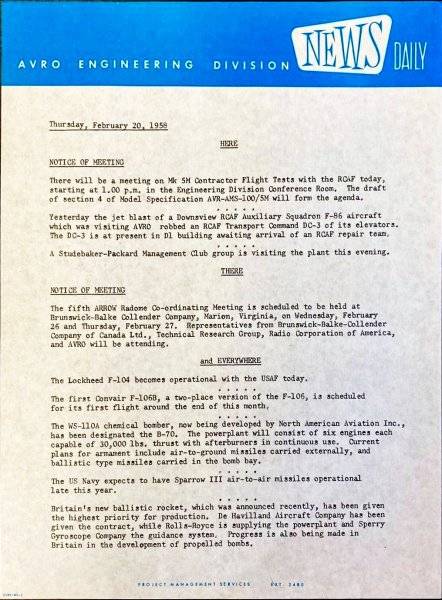

A page from the AVRO newsletter in 1958. Notice the mention of the B-70 bomber.
- Local time
- 1:23 PM
- Joined
- Mar 14, 2012
- Messages
- 18,616
- Reaction score
- 37,178
- Location
- Surrey, B.C. Canada

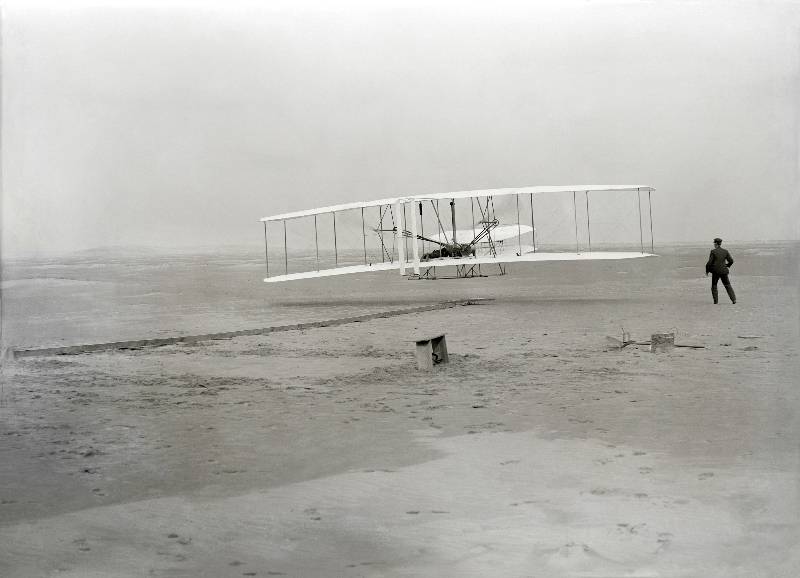

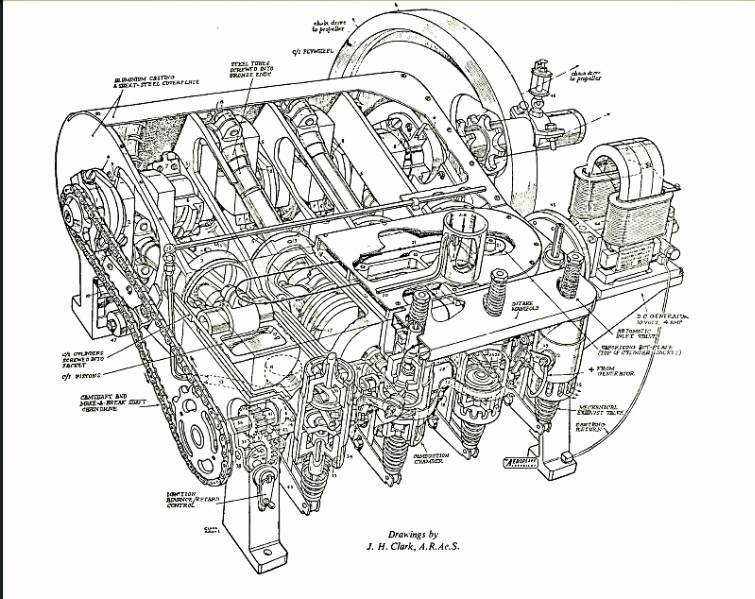

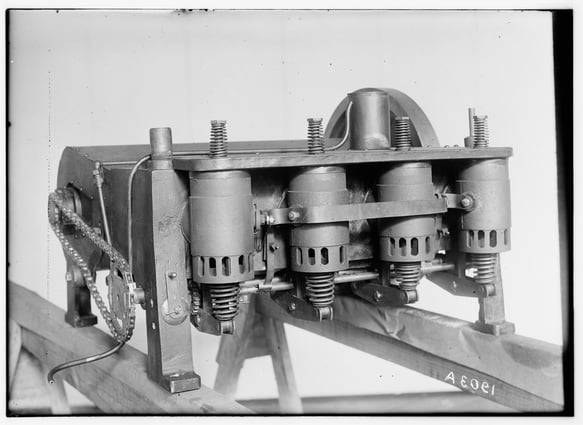

When the Wright brothers chose a powerplant for their first airplane, the 'Flyer', they didn't have a suitable example to buy. Crude engines on the earliest automobiles proved to have enough power but were too heavy. So, they build their own.
Having an aluminum block cast to their specifications, their bicycle shop mechanic Charles Taylor did most of the machining. Threaded iron cylinder liners were screwed in. Non-pressurized water jackets kept the heat down while the air cooled cylinder heads glowed with heat.
Exhaust valves were operated with a camshaft but the intakes were atmospheric valves - with light spring pressure, the intake suction pulled the valves down to let in the air/fuel mixure.
Bore and stroke were 4" each. There was no throttle, the engine ran wide open when started.
Taylor custom machined the billet crankshaft from a 100 pound block of high carbon steel. A lathe and drill press were about the only machining tools they had.
They knew they'd need at least eight horsepower for their craft to fly, this engine, at 200 cubic inches and 4:1 compression ratio developed 12 hp. at 1250 rpm, running off 36 octane gasoline. As you see, the cylinders were horizontal to lower the center of gravity.
Having an aluminum block cast to their specifications, their bicycle shop mechanic Charles Taylor did most of the machining. Threaded iron cylinder liners were screwed in. Non-pressurized water jackets kept the heat down while the air cooled cylinder heads glowed with heat.
Exhaust valves were operated with a camshaft but the intakes were atmospheric valves - with light spring pressure, the intake suction pulled the valves down to let in the air/fuel mixure.
Bore and stroke were 4" each. There was no throttle, the engine ran wide open when started.
Taylor custom machined the billet crankshaft from a 100 pound block of high carbon steel. A lathe and drill press were about the only machining tools they had.
They knew they'd need at least eight horsepower for their craft to fly, this engine, at 200 cubic inches and 4:1 compression ratio developed 12 hp. at 1250 rpm, running off 36 octane gasoline. As you see, the cylinders were horizontal to lower the center of gravity.
Last edited:
black and white underside recognition markings
Last edited:

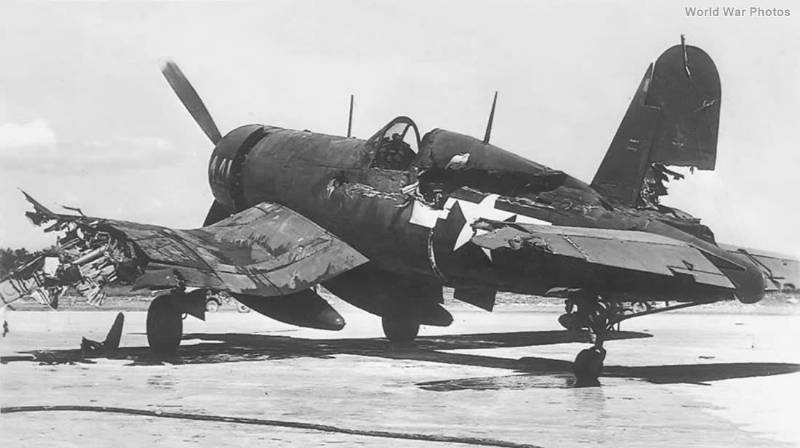

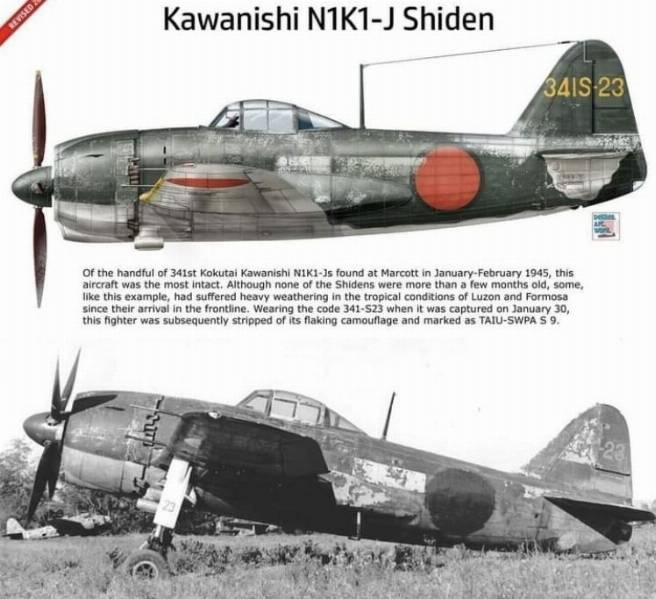

Dogfights over Japan.! Lt. Naoshi Kanno flying his Kawanishi N1K2-J Shiden-Kai of the 343rd Kokutai, blows most of the port wing off the F4U Corsair white No. 441 flown by Lt Alson C Frazer during a dogfight off southern Kyushu, 22nd June 1945. Amazingly, Frazer nursed his stricken Corsair back to base complete with unjettisoned long range
Last edited:

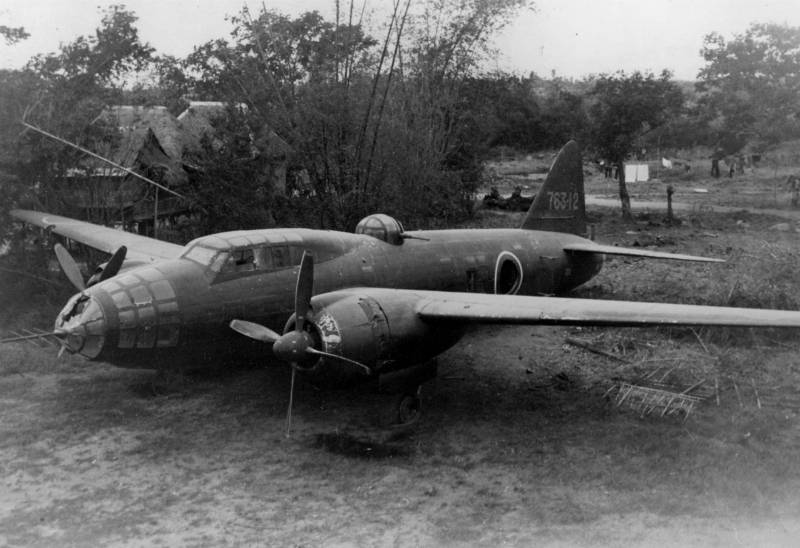

Naval bomber G4M2a model 24 installed search radar Type 3 (H6) from the 763 th Kakuta captured by the Americans.

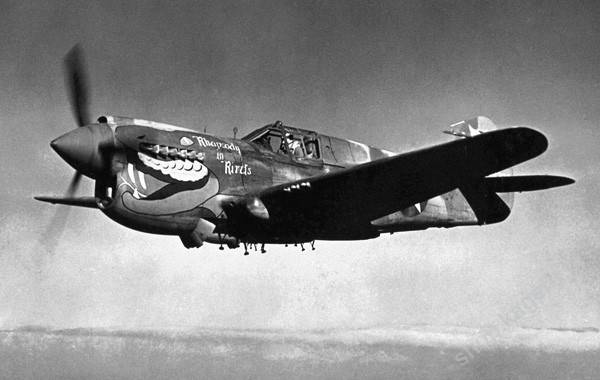

P-40K Rhapsody in Rivets of 78th FS / 15th FG; Midway, April 1943.
- Local time
- 1:23 PM
- Joined
- Mar 14, 2012
- Messages
- 18,616
- Reaction score
- 37,178
- Location
- Surrey, B.C. Canada
From the planet Cheron?
Dipstick
Well-Known Member

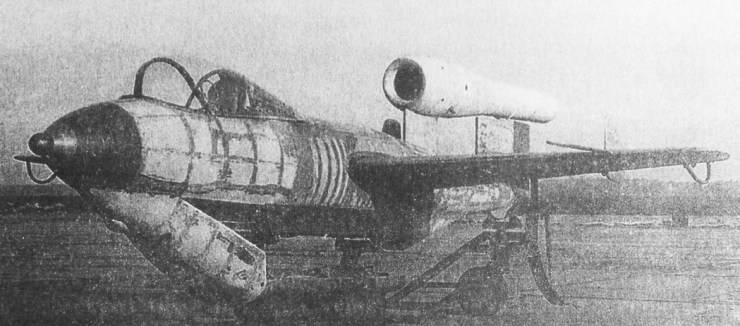

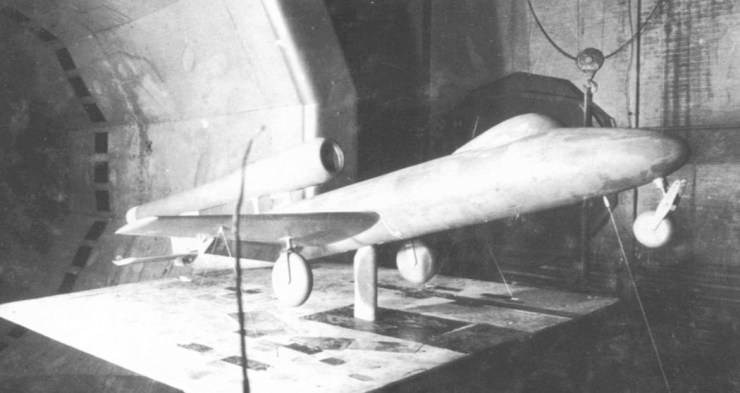

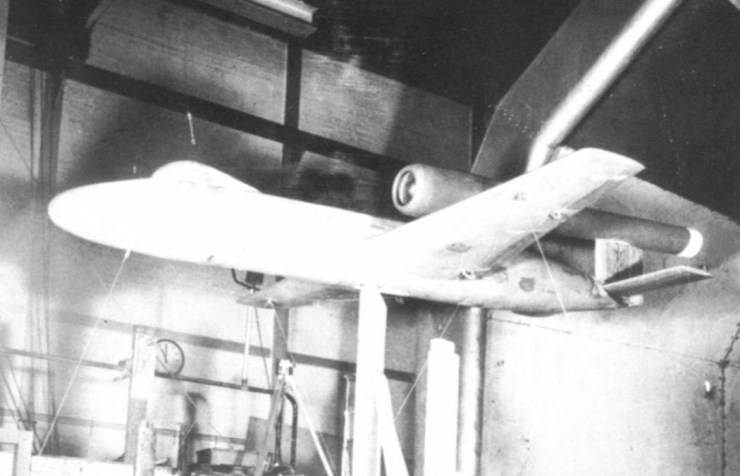

The Junkers EF 126
