1966 Plymouth Satellite HP2

[64BEL]

Mine has the heater hose bracket and no sticker on the air cleaner. I have a pic of the engine when the car was new, and no sticker then, either. My understanding is some got them and some didn't. I like the sticker, but I've left it off since that's how mine came.

Another thing with mine is it came with an oil breather cap that I haven't been able to identify so far. It wasn't with the car when I bought it. I've seen one or two in pictures, but that's about it. It seems to be different that other '66 Hemis I've seen.



[Fran Blacker]

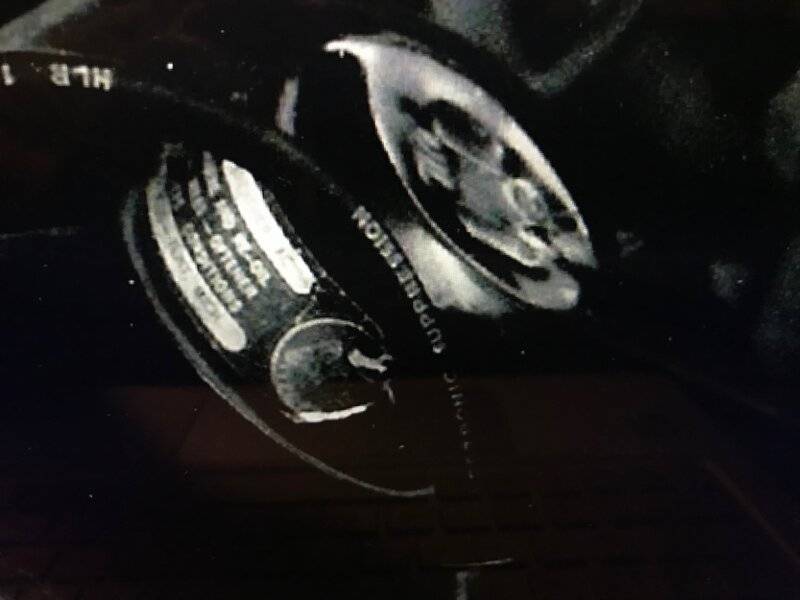

Original owner picture I zoomed in on chrome oil cap no nipple.



[440 4 speed]

View attachment 1274587



[440 4 speed]

View attachment 1274587



[440 4 speed]

[/

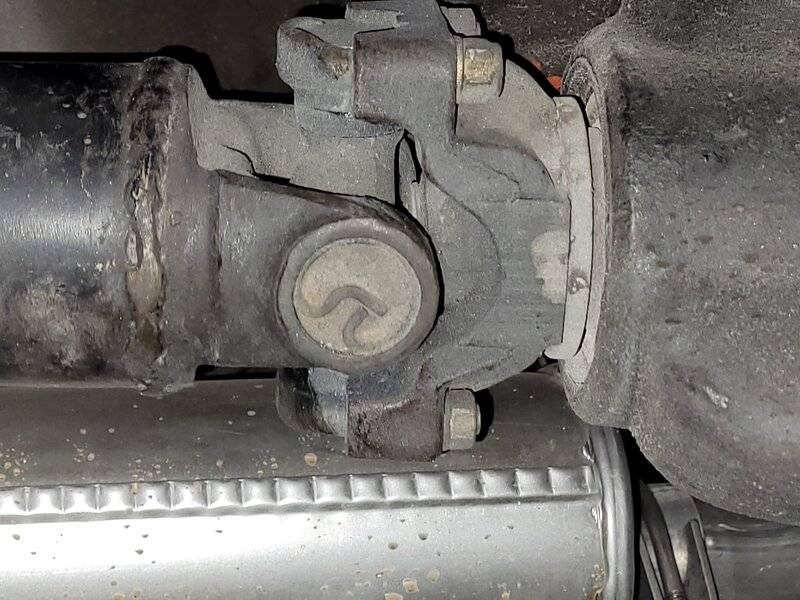

Thanks. It appears that there is a gap between the cap and bearing. Is there any play?



[Nxcoupe]

Wow! Congrats. You really have a great collection going! The car is just beautiful



[dadsbee]

It appears that there is a gap between the cap and bearing. Is there any play?

Not sure what you are looking at Ian...



[Dave6T4]

Think 67 also. 4139s front and 4343s rear.

My '62 Chrysler 300H carbs had this. Also early 273 Commando AFB had this.



[AR67GTX]

View attachment 1274587

So stock at the rear u joint was u-bolts and not caps with bolts threaded into the yoke on the Dana? Mine has caps but has bolts and nuts to secure them which seemed wrong as I figured the yoke had threaded holes and the bolts threaded into the yoke. Not that I think any of it is very original after all it’s been through. I’m putting a new seal and u joints in it next week so I’ll have to take a close look at the yoke to see if the holes are threaded or not and possible look for a u-bolt set although the caps may work fine to.



[Fran Blacker]

My 8.75" 1330 rear yoke is threaded 1/4" x 28.



[dadsbee]

RC said his (automatic) was the same. Based on this cars first 16 years of life as a weekend stock class racer who knows if that yoke is stock, the rear spring set up sure isn't.



[Fran Blacker]

Wayne I don't know if 4 speed Dana 60 cars had the inertia ring? If can measure cups diameter 1.0625 for 1330 u-j. I noticed a gear reduction starter which means you don't have the 172 tooth flywheel. One thing less grief if you need to replace it or that high dollar starter



[440 4 speed]

Not sure what you are looking at Ian...

I am

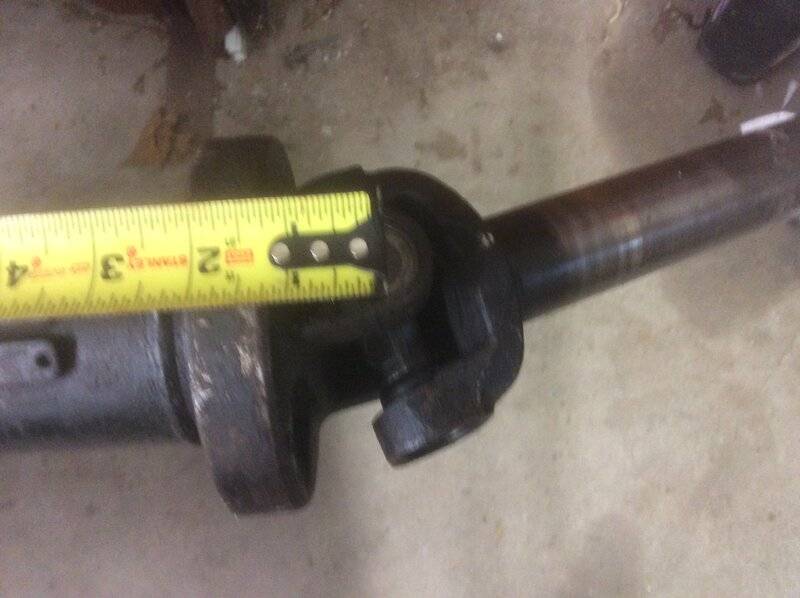

Wayne I don't know if 4 speed Dana 60 cars had the inertia ring? If can measure cups diameter 1.0625 for 1330 u-j. I noticed a gear reduction starter which means you don't have the 172 tooth flywheel. One thing less grief if you need to replace it or that high dollar starterView attachment 1274941

Our driveshaft is 3” no ring. Should I start another thread about yokes? Not talking about eggs either. Seems that this getting away from Wayne’s car.



[dadsbee]

Wayne I don't know if 4 speed Dana 60 cars had the inertia ring? If can measure cups diameter 1.0625 for 1330 u-j. I noticed a gear reduction starter which means you don't have the 172 tooth flywheel. One thing less grief if you need to replace it or that high dollar starterView attachment 1274941

I am

Our driveshaft is 3” no ring. Should I start another thread about yokes? Not talking about eggs either. Seems that this getting away from Wayne’s car.

I still don't know what "gap" you are seeing Ian. There is no play in the U joint caps or pinion.

Fran, the drive shaft has the ring..



[guy gadbois]

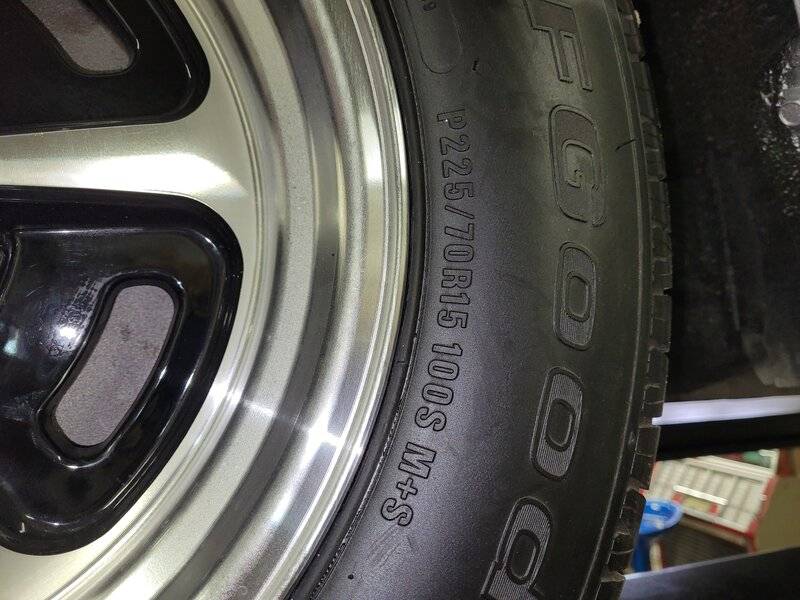

Im late to the party here, but man oh man...what a gorgeous car! Just about perfect. Love how it sits too; may I ask what sizes wheels and tyres those are?



[440 4 speed]

View attachment 1274587

I was looking at the dark area about 1:00 above flange on the prop shaft. Wasn’t seeing clearly.



[dadsbee]

Im late to the party here, but man oh man...what a gorgeous car! Just about perfect. Love how it sits too; may I ask what sizes wheels and tyres those are?



[gtx6970]

View attachment 1274587

Mine has this same style yoke . But the Dana was added to mine.
BUT, it came out of a 1966 Coronet Hemi 4spd car ,same as the engine.

Driveshaft in mine was custom built. So I cant use it for any OEM reference



[dadsbee]



[gtx6970]

Mine has the heater hose bracket and no sticker on the air cleaner. I have a pic of the engine when the car was new, and no sticker then, either. My understanding is some got them and some didn't. I like the sticker, but I've left it off since that's how mine came.

Another thing with mine is it came with an oil breather cap that I haven't been able to identify so far. It wasn't with the car when I bought it. I've seen one or two in pictures, but that's about it. It seems to be different that other '66 Hemis I've seen.

View attachment 1274661

Most 66 Hemi cars Ive seen have the small round chrome breather cap with no nipple. BUT Ive seen a few that just have the small round black breather.

It so then the nipple on the air cleaner has a plastic cap on it

UNLESS
they are CA emissions cars. then they get the hose from the cap to the breather
