1968 Plymouth GTX

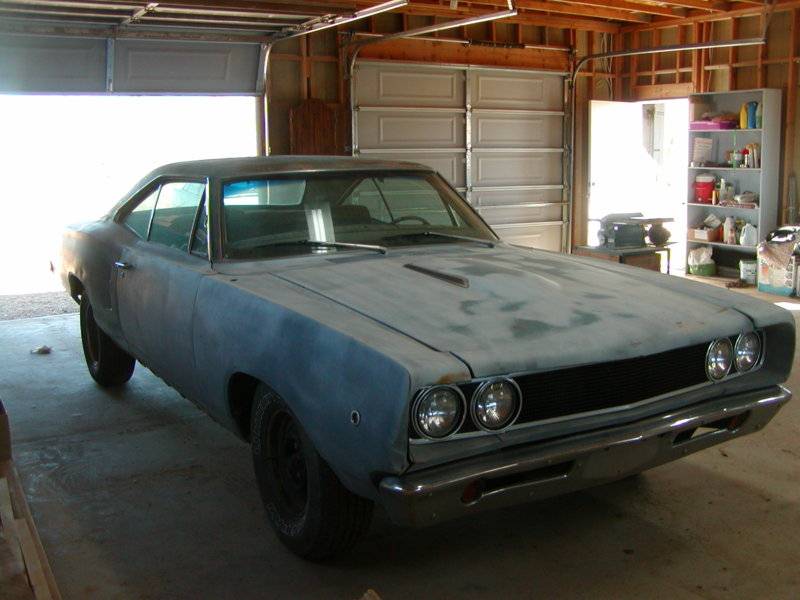

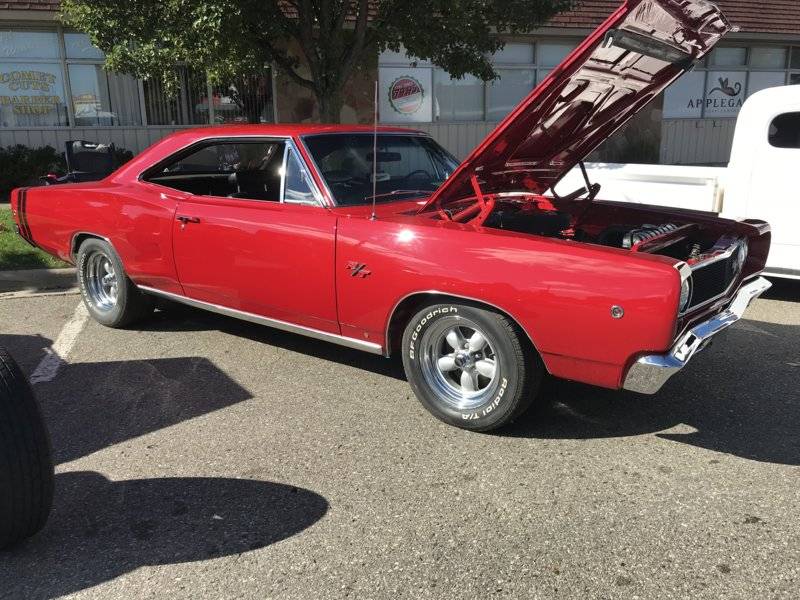

Some more inspiration. My buddies 68 R/T. He got a top Ten award at a show Saturday along with 3 more of my friends.

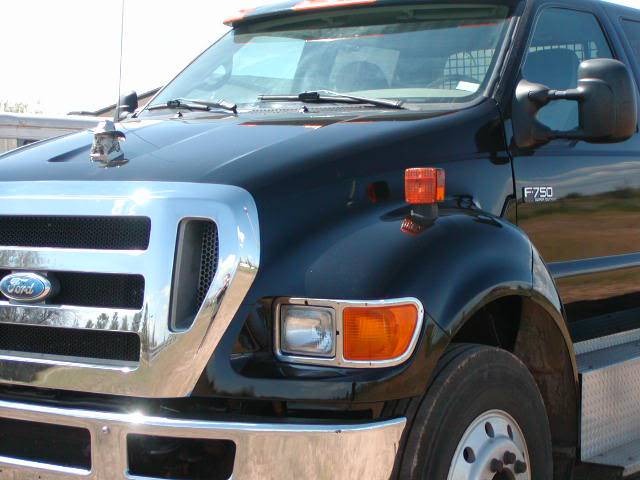

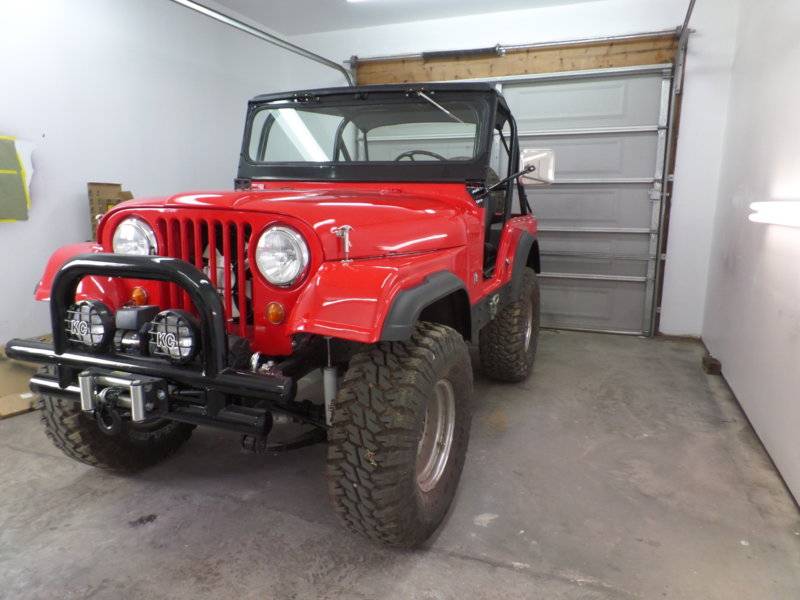

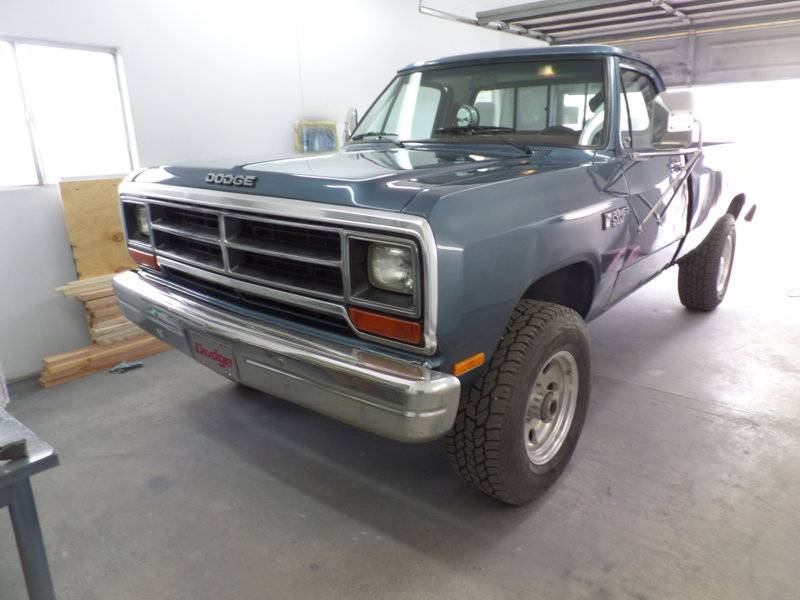

Here's a few more I did for other people:

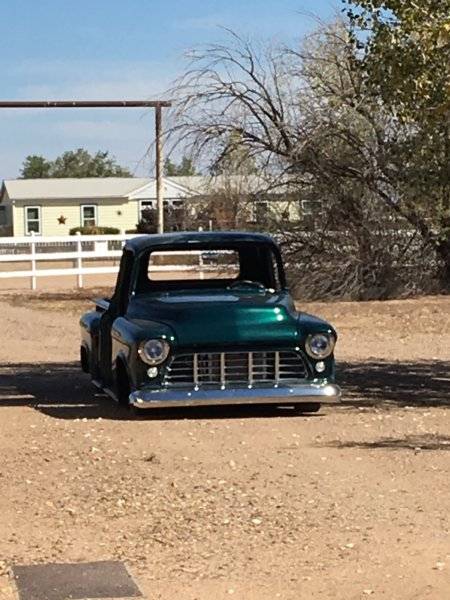

Front View.JPG

Finished Right Front.JPG

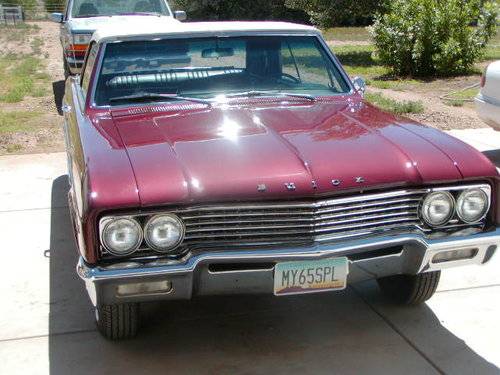

65 Buick Done Front.JPG
Left Front Quarter View.JPG

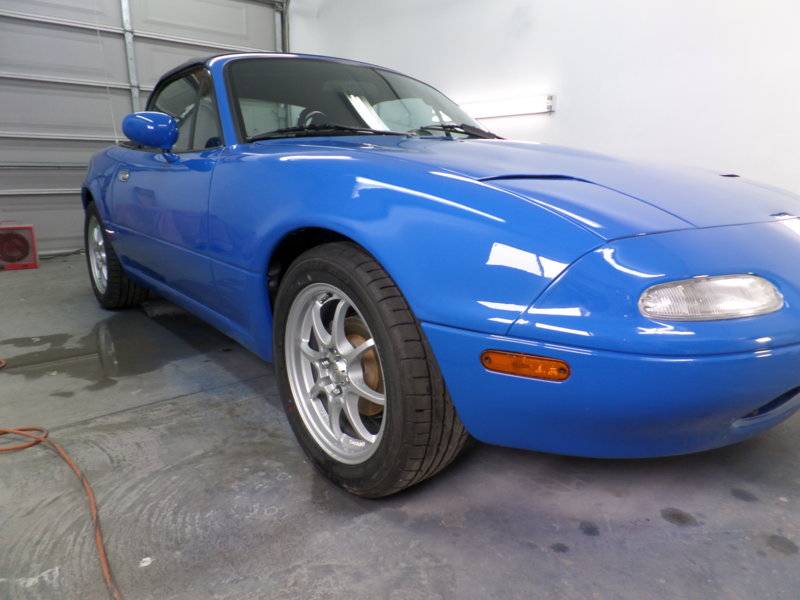

Front Right View Finished.JPG


Have detailed photos of these projects as well.

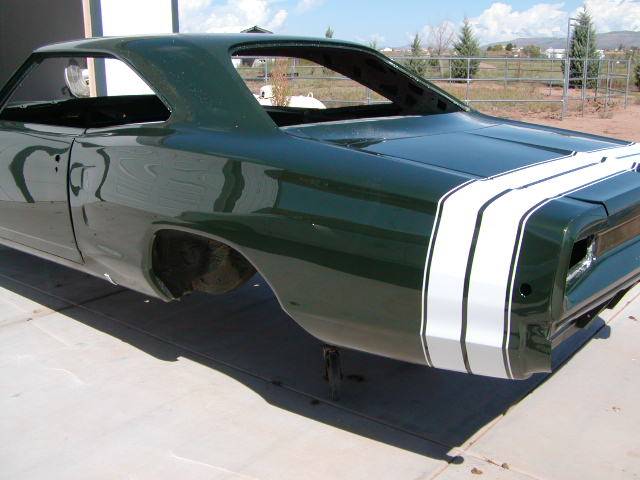

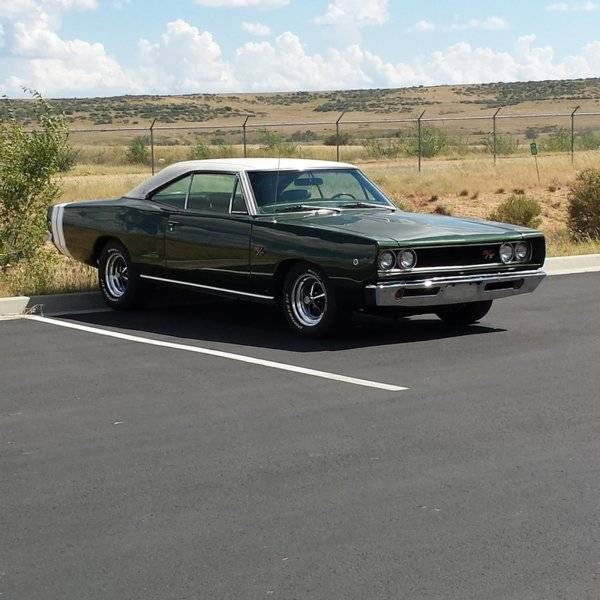

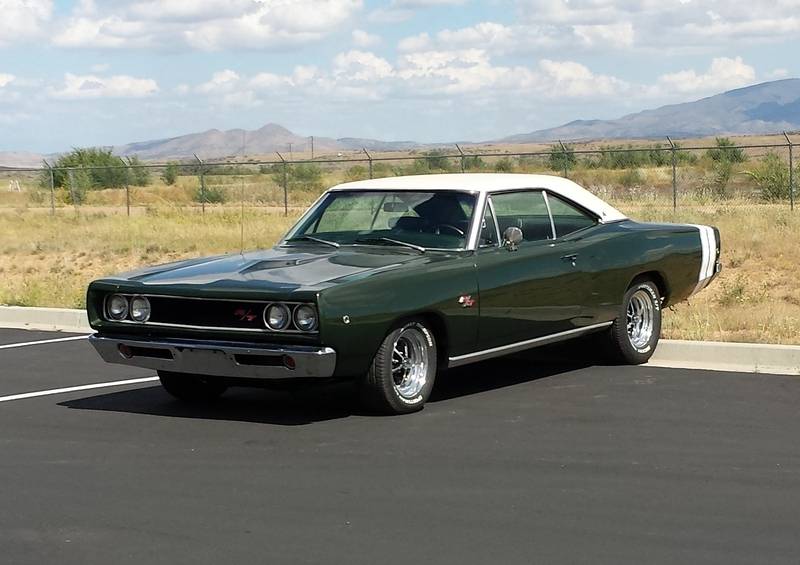

I do have experience as this was my previous project:
View attachment 667749

That's a great color, do you remember what it is. I'm leaning toward a dark green or dark blue for my 65 Coronet a few years down the road. I'm really thinking a green like that with the white interior and top would look great.

I do have experience as this was my previous project:
View attachment 667749

That's a great color, do you remember what it is. I'm leaning toward a dark green or dark blue for my 65 Coronet a few years down the road. I'm really thinking a green like that with the white interior and top would look great.

VIN Decode said: Racing Green metallic Paint

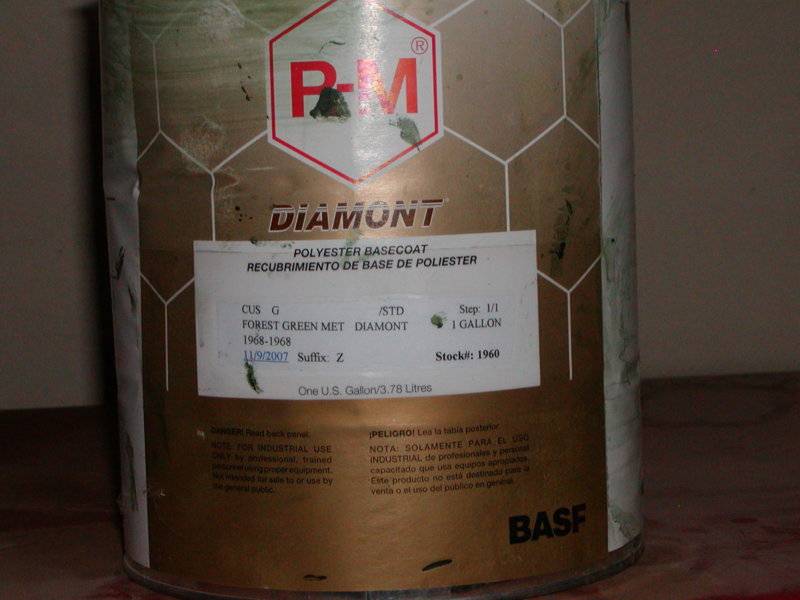

My local jobber who sells RM Diamont products computer matched it to this:
RM Diamont G Code Paint.JPG

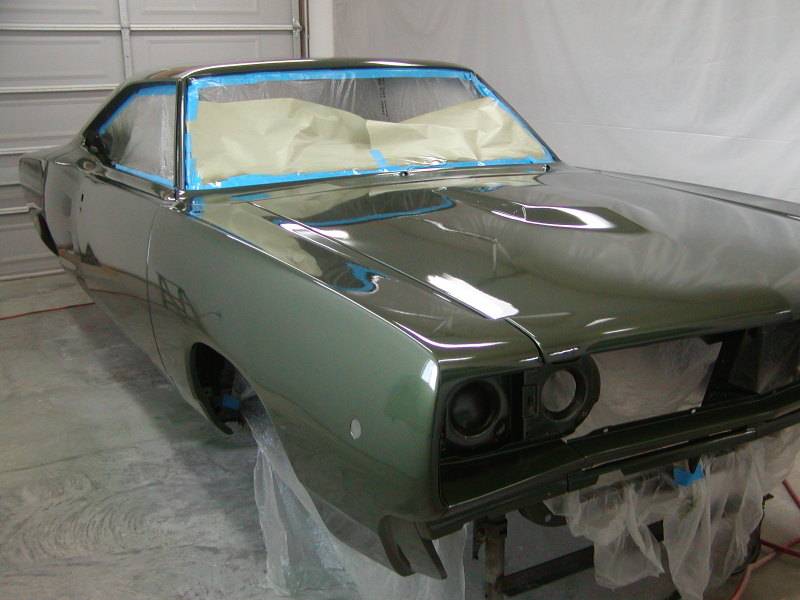

I used a black sealer under it and sprayed three good coats of base followed by 4 coats of clear.

You do great work!
I'm looking forward to see how this one comes out.

Thanks. I am hoping to get into this GTX over the winter months. Need to order some things and get the garage ready, plus I still have another project to finish for someone else.

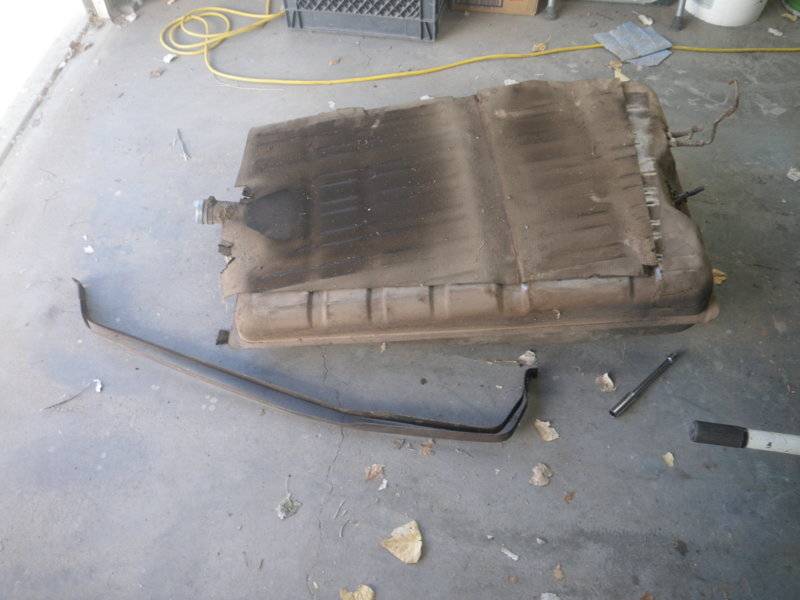

Pulled the fuel tank and lines:
Fuel Tank.JPG


Removed the brake master cylinder, brake pedal assembly and brake lines.

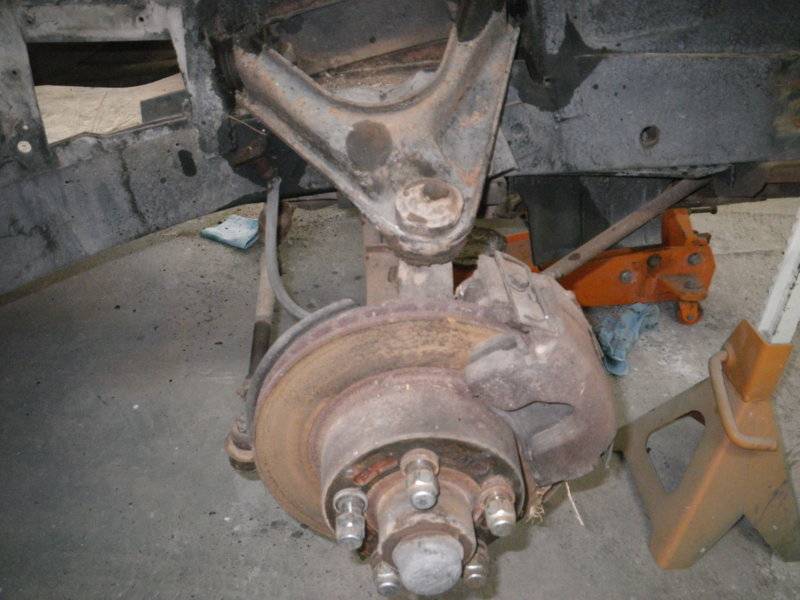

When I pulled the front right wheel I found the car came with the optional disc brakes.
Disc Brakes on Front.JPG


Removed the caliper and rotor:

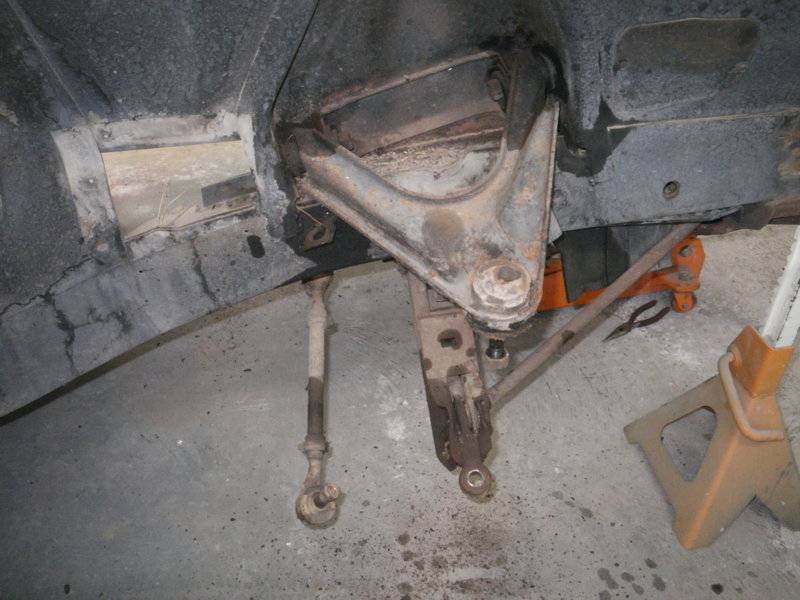

Control Arm Upper Right.JPG

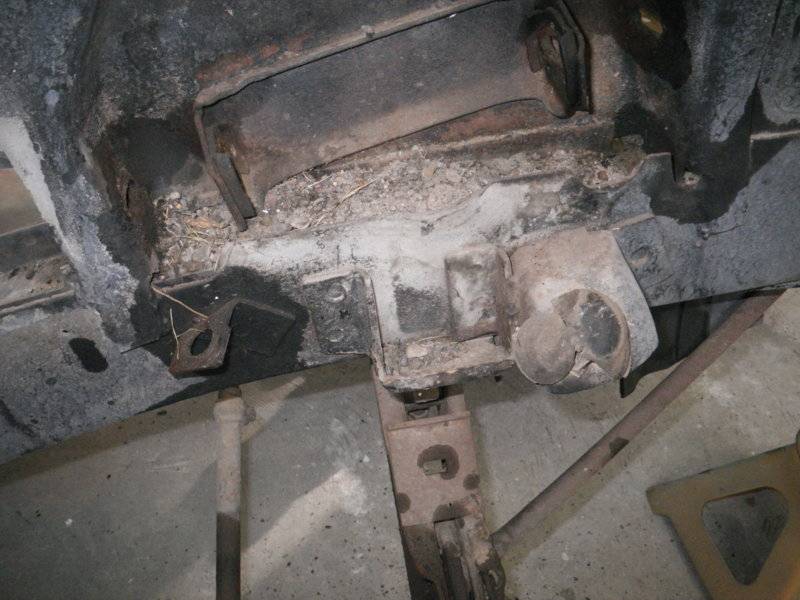

Removed the upper control arm and found the bumper disintegrated:
Control Arm Upper Bumper Right.JPG

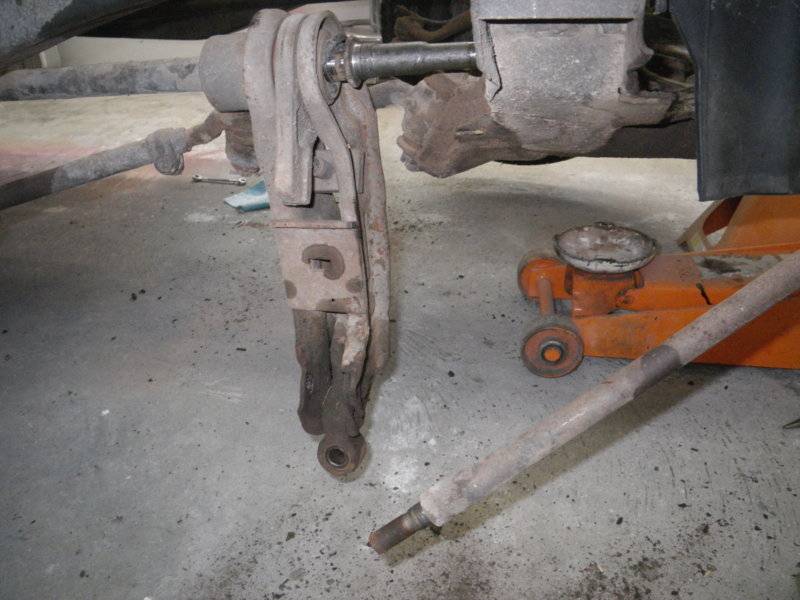

Pulled the torsion bar back to remove the strut and lower control arm:
Control Arm Lower on Torsion Bar.JPG

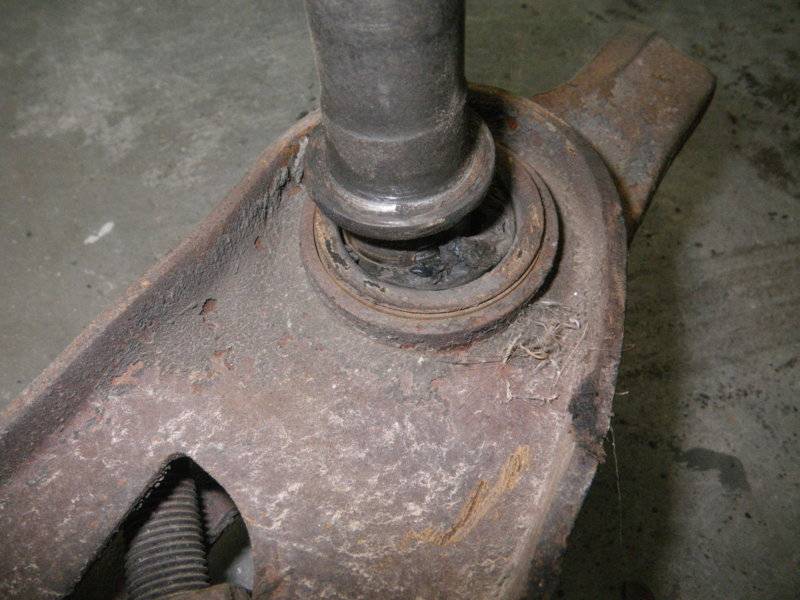

Lower control arm bushing was completely worn through on one side:
Control Arm Lower Bushing.JPG


Next I will remove the splash shield and then on to the other side. The goal is to get it completely disassembled and then media blast the shell so I can better assess the condition of the floor pans.

Have you considered using dustless media blasting?
I’ve seen the YouTube videos; removing all rust in an hour. Don’t know that much about it though.

I haven't considered it but did watch some videos. They make it look real easy.
I already have a pressurized blaster tank, maybe just throw some water in there?

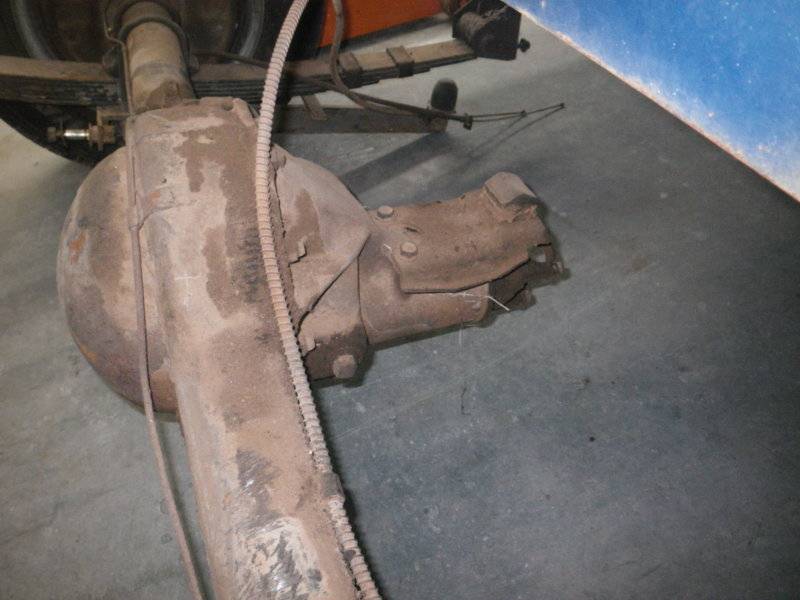

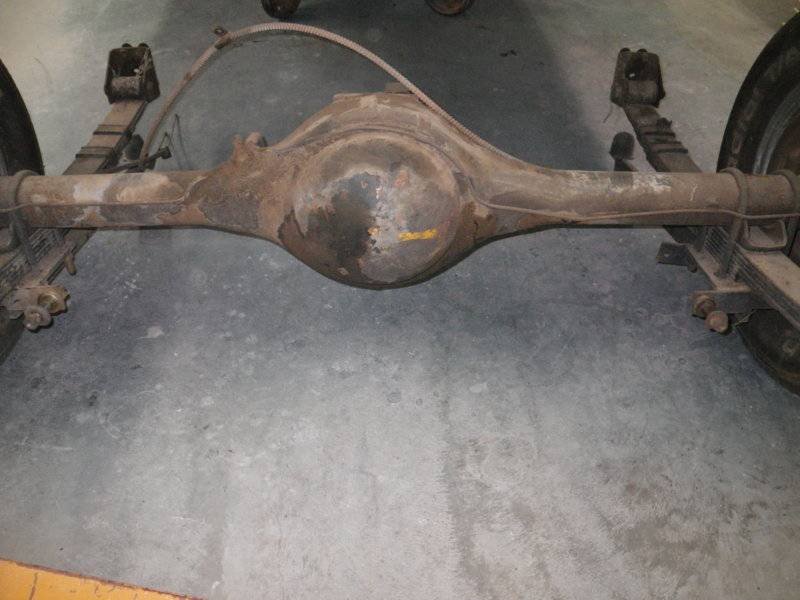

Removed the rear axle:
Axle Assembly.JPG

Axle Assembly 1.JPG


Then installed my homemade stand. Made this from pickup bed camper jacks and some scaffolding wheels.

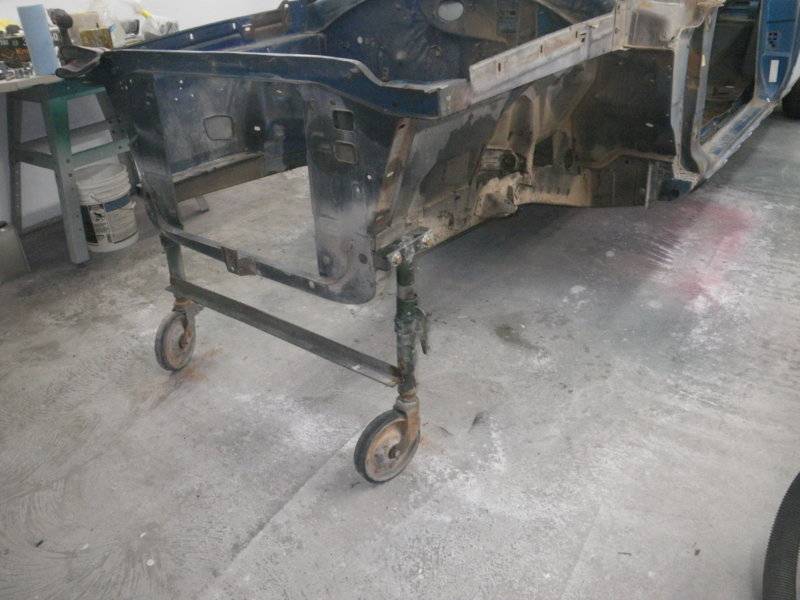

Homemade Stand Front.JPG

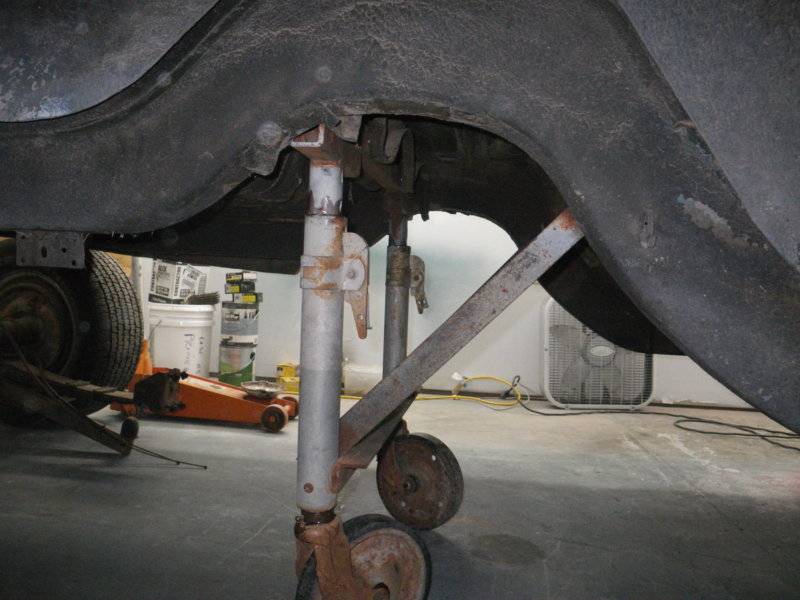

Homemade Stand Rear.JPG


I can easily roll the car around on these and one wheel on the front and back have locks on them to keep things stationary when I want to.
Still considering making a rotisserie from a couple of engine stands, just haven't spent enough time researching it yet.
